Where to buy high precision internal teeth gears

When looking for high-precision Internal Teeth Gears, B2B buying professionals have to make a big choice that has a direct effect on how well the business runs and how long the products last. The answer is to work with specialized makers who have ISO-certified production facilities, the latest cutting technologies, and years of experience in the field. Companies like YIZHI MACHINERY, which was founded in 2016 and has 15 years of experience in production, offer custom Internal Teeth Gear solutions that meet high standards of accuracy for use in mining, aircraft, and industrial machinery. If you choose the right seller, you can be sure that the parts you buy will be made to ISO 5-6 grade tolerances from premium alloy steels and come with full expert support throughout the whole buying process.

​

Introduction

High precision Internal Teeth Gears are vital for compact, high-performance mechanical systems—from mining planetary reducers to spacecraft transmissions. Supplier selection directly impacts product quality, delivery reliability, and operational efficiency. Manufacturing skills, quality control, and after-sales support determine whether production runs smoothly or faces costly downtime. This guide covers gear fundamentals, procurement considerations, supplier evaluation, and maintenance best practices for informed decisions.

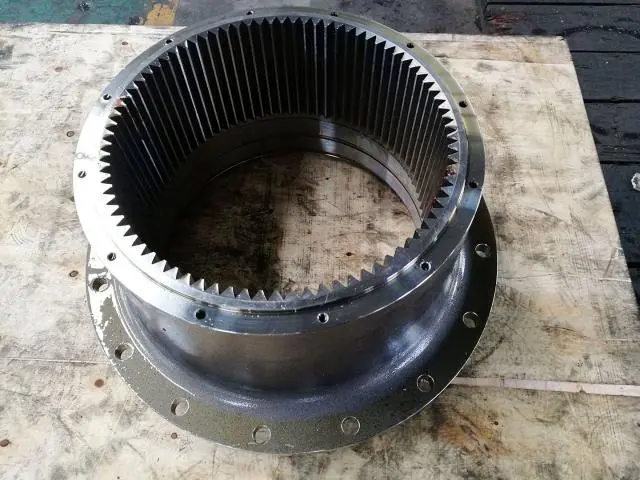

Understanding High Precision Internal Teeth Gears

Internal Teeth Gears feature teeth on the inner diameter, meshing with a pinion rotating in the same direction—unlike external gears. This enables shorter center distances and compact transmission layouts. The conformal contact surface spreads loads over larger areas, reducing Hertzian stress and backlash while enabling quieter operation and superior positioning accuracy compared to conventional external setups.

Advantages That Solve Industrial Challenges

Internal Teeth Gears enable drastic housing size reduction where space is limited. Higher contact ratios improve load distribution, preventing early failure in high-torque mining applications. The ring gear acts as a protective housing, keeping mesh zones clean and lubricated while blocking contaminants. Slower sliding speeds at mesh points protect oil films and reduce wear, improving efficiency and extending service intervals.

Material Selection and Manufacturing Methods

High-performance Internal Teeth Gears use alloy steels like 20CrMnTi, 42CrMo, AISI 4140, and 18CrNiMo7, heat-treated to 58–62 HRC surface hardness with tough cores. Power skiving enables high-volume production with shorter cycles than shaping. CNC machining, hobbing, and modern grinding achieve ISO 5-6 grade accuracy. The process chain—rough cutting, heat treatment, and final grinding—ensures precision for robotics, automotive, and aerospace applications.

Key Factors to Consider When Buying Internal Teeth Gears

A lot depends on how well you look at a few linked factors that tell you if a piece of equipment will work reliably for as long as it's supposed to. If you choose a specification, it affects not only the original cost, but also the long-term costs of running the business and the upkeep that needs to be done.

Precision and Tolerance Requirements

The needs of the program and the performance that is expected are closely linked to the grade that is chosen. ISO 5-6 grade requirements are used to make Internal Teeth Gears that are accurate enough for servo-driven positioning systems and high-speed car transmissions that need to keep backlash to a minimum. These tolerance classes, which are set by ISO 1328 or AGMA 2000-A88 norms, show how far tooth shape, pitch, and runout can vary. Knowing the tolerance needs of your application will help you avoid over-specification, which drives up costs, and under-specification, which hurts performance. When choosing gears for planetary reducers in mining equipment, where shock loads are common, it's important to balance precision with sturdy shape to keep positional accuracy and stop premature wear.

Material Compatibility and Environmental Resistance

Material selection goes beyond simple strength estimates to cover wear resistance, fatigue life, and environmental compatibility. AISI 8620 alloy steel works great in situations where the surfaces need to be very case-hardened and the cores need to be very tough. It's perfect for impact-loaded winches and transmission systems for pulling equipment. The 42CrMo material standard has great tensile strength and hardenability, which makes it ideal for machine tool feed systems that need to work consistently under a range of loads. When working in places that are corrosive, choosing the right materials needs to take protection treatments or other metals with better resistance properties into account. No matter if the surface hardness is 45-50 HRC or 58-62 HRC, it should match the contact pressures and wear patterns that are expected in your application.

Supplier Lead Times and Order Flexibility

Learning about the lead times and minimum order amounts for manufacturing helps make sure that buying plans are in line with project deadlines and budget limits. It usually takes 35 to 60 days to make a custom Internal Teeth Gear from the time the order is confirmed until it is delivered. This time includes verifying the design, getting the materials, cutting, heat treatment, grinding, and quality checking. Suppliers that offer low minimum order numbers or even the ability to make a single item are very helpful for developing prototypes, getting extra parts, or other specialized uses where volume doesn't support traditional batch requirements. When looking at providers, you should find out if they can offer fast delivery in emergencies, what their contact methods are for keeping you up to date on production, and how easily they can change specs during the planning process. These practical factors are often just as important as expert skills for making sure that a project runs smoothly.

Comparing Internal Teeth Gears with Other Gear Types for Procurement Decisions

To make smart choices about what to buy, you need to know how Internal Teeth Gears compare to other setups. Different types of gears have their own benefits, and the best one to use relies on the job, available space, and operational goals.

Performance Characteristics Across Gear Types

Internal Teeth Gears outperform spur, planetary, and worm drives with 96-98% efficiency in compact spaces. Coaxial input/output shafts eliminate worm-drive angle offsets—critical where space is limited. Conformal contact spreads loads over larger areas, enabling higher torque density for planetary reducers and winch drives. Lower noise and vibration benefit precision automation and automotive NVH control. Limitations include minimum tooth difference (8-12 teeth) restricting ratio flexibility and difficult internal inspection requiring special tools or disassembly, affecting lifecycle costs.

Cost-Effectiveness and Lifecycle Analysis

Internal Teeth Gears have higher initial costs due to complex manufacturing and special tooling—power skiving and internal grinding require significant capital investment. However, better load distribution and reduced sliding motion extend service life and reduce maintenance frequency. Mining reliability benefits outweigh higher costs; compact size reduces housing and system weight—critical for aerospace. Calculate total ownership cost including energy efficiency, maintenance labor, replacement intervals, and unplanned failure costs. This analysis often reveals superior value despite higher upfront expense.

Where to Buy High Precision Internal Teeth Gears: Trusted Suppliers and Brands

To find trusted sources for precision Internal Teeth Gears, you need to look at both well-known global manufacturers and specialized custom gear makers who can provide parts that meet strict technical standards and specific needs for the application.

Leading Global Manufacturers and Their Capabilities

Global manufacturers like SKF (planetary ring gears), Bosch (automotive transmissions), and KHK (standard/modified gears) offer ISO 9001-certified products through distribution networks—benefiting from shorter lead times and full documentation, but with limited customization. Specialized custom makers like YIZHI MACHINERY (since 2016, 15 years experience) provide flexible solutions for mining, aerospace, and industrial applications with comprehensive services from design to international logistics.

Selecting Custom Gear Manufacturers

Evaluate ISO certification (quality management) and AGMA membership (American gear standards). Manufacturing must include cutting, hobbing, milling, grinding, and modern heat treatment (carburizing, quenching, induction hardening). In-house tooth grinding is essential for ISO 5-6 accuracy and specific hardness ranges. Assess engineering support—CAD models, finite element analysis for stress validation, and expert specification guidance—to prevent costly errors and ensure the finished product truly meets application needs.

Evaluating Supplier Services and Reliability

Assess delivery reliability, production capacity relative to order size, and schedule change communication. After-sales support—quick technical help, warranty terms, and responsive problem resolution—distinguishes exceptional suppliers. YIZHI MACHINERY's one-year warranty and rapid response protocol demonstrate post-sale commitment. Order flexibility matters: low minimum quantities or single-item production enable prototyping and spare parts without excess inventory—valuable for developing standards or supporting aging equipment.

Best Practices for Procurement and Post-Purchase Maintenance

A successful gear buying process includes more than just the purchase itself. It also includes strategic ordering, proper installation, and preventative upkeep that gets the most out of the equipment's performance and service life while keeping the total cost of ownership as low as possible.

Strategic Procurement and Supplier Relationship Management

Clear specification paperwork gets rid of confusion and lowers the risk of getting parts that don't meet standards. This is the first step in optimizing procurement. The module, amount of teeth, helix angle, bore size, and necessary precision grade should all be shown in detail on the blueprints. Not only must the alloy name be included in the material callout, but so must the heat treatment standards and goal hardness ranges. Specifications for the surface finish and inspection standards keep disagreements at bay and make sure parts come ready to be installed.

Negotiating a bulk order for Internal Teeth Gears can help you save money, but you should weigh the price benefits against the costs of keeping supplies and the risk of running out of items. When negotiating with custom makers of internal teeth gears, talking about expected annual volumes during the first meeting can help you get better prices while still keeping your options open by releasing internal teeth gear goods on a plan instead of all at once. Managing lead times for internal teeth gear orders becomes very important. Placing orders with enough time to spare keeps you from having to pay expensive rush fees and lets providers make the best use of their production schedules for internal teeth gears.

Building good ties with suppliers has perks that go beyond individual transactions. When sellers know about planned projects ahead of time, they can plan their capacity and find supplies ahead of time. Sharing application comments, both good and bad, with sellers helps them make their products better and shows that you want a partnership-based relationship instead of a business one. These ways of working together often lead to faster service when problems happen and better treatment when resources are limited.

Installation and Preventive Maintenance Guidelines

Installation that is done correctly sets the stage for effective performance and a longer service life. Being clean during assembly is very important, because dirt introduced during installation speeds up wear and can cause failure before it's time. Tolerances for alignment must be carefully followed because inaccuracy puts loads on the edges of teeth, which causes stress clusters that cause fatigue cracks. It is important to carefully follow the torque requirements for attaching bolts to make sure a solid connection without causing distortion that changes the geometry of the gear.

Regular preventive maintenance greatly increases the life of parts and lowers the number of surprise breakdowns. Setting up lubrication plans that work with the working conditions makes sure that the oil film protects well and stops contamination from building up. Periodic vibration analysis finds problems before they become too big to fix. This is especially helpful for Internal Teeth Gears that need to be taken apart for visual review. Oil debris analysis lets you know right away if there are any strange wear patterns, so you can fix small problems before they become big problems that need a lot of downtime.

The intensity of operations should match the monitoring plan. Equipment that is constantly under a lot of stress or that is subjected to shock loads needs to be inspected more often than systems that are lightly loaded and work in clean surroundings. Keeping thorough service records provides a standard of information that can be used to spot slowing down of performance and support strategies for planned maintenance. When it's time to change a gear, looking at the wear patterns on the old one gives you useful information about how it was used and how it could be improved. This closes the feedback loop that keeps your mechanical systems getting better.

Conclusion

To find high-precision Internal Teeth Gears, you need a plan that takes into account technical requirements, provider skills, and product lifecycle factors. Because they are small, evenly distribute loads, and send power smoothly, these specialized parts have unique benefits that make them essential in industrial tools, mining equipment, and aerospace uses. To be good at procurement, you need to know about precision grades, choosing materials, and industrial processes. You should also be able to evaluate providers based on their certifications, engineering support, and operating dependability. Custom makers like YIZHI MACHINERY offer advanced production skills and adaptable service to meet a wide range of application needs, such as those for planetary gear reducers and machine tool feed mechanisms. By following the guide's best practices for purchasing and managing things, you can improve the performance of parts, make them last longer, and lower the total cost of ownership while keeping the operating dependability that makes a business successful.

FAQ

1. What manufacturing process delivers the best results for Internal Teeth Gear production?

Power skiving is the best way to make things quickly and accurately in large quantities right now. Power skiving is a more modern method than gear shape. It has shorter cycle times and more options, especially for gears with shoulder limits. When compared to broaching, this improved method allows for tighter tolerances and better surface finishes. This makes it the preferred choice for demanding uses in precision automation systems and car transmissions.

2. How do you specify appropriate precision grades for different applications?

The needs of the product should guide the choice of precise grade. ISO 5-6 grade gears work well in high-precision systems like robotic devices and servo-driven positioning systems that need very little slack. For less money, ISO 7-8 grades may work well in industrial settings with mild loads. Talk to the engineering team at your provider about the working speeds, load factors, and accuracy needs so they can help you find the best precision standard that meets both performance and cost needs.

3. What heat treatment distortion risks affect the quality of the Internal Teeth Gear?

Internal Teeth Gears are basically rings with thin walls that are easily bent during cooling processes. Professional makers use press quenching or die quenching methods that hold the gear in place automatically to keep it round and reduce ovality. This controlled heat treatment process is a key quality difference that makes sure the dimensions stay accurate during the hardening process, which gives the surface hardness needed for long-lasting durability and resistance to wear.

Partner with YIZHI MACHINERY for Your Internal Teeth Gear Requirements

YIZHI MACHINERY specializes in making custom Internal Teeth Gears for use in mining, aerospace, and industrial machines. They offer ISO-certified precise parts that are made to your exact specs. We can analyze your needs, help you with your design, use advanced CNC gear centers to make precise parts, treat your parts with high-tech heat, and check each one for quality to make sure it meets ISO 5-6 grade standards. We've been making Internal Teeth Gears for 15 years and use high-quality materials like 42CrMo, AISI 4140, and 18CrNiMo7. We carburize and grind the gears to make the surface hard, which goes from 45 to 62 HRC. We can handle a wide range of order sizes, even one-piece production, and offer delivery times between 35 and 60 days. We also offer unique packing that keeps damage to goods during shipping to less than 0.1%. Our one-year warranty and quick answer after-sales help give you peace of mind for the life of your component. Contact us at sales@yizmachinery.com to talk about your needs for an Internal Teeth Gear supplier and get a full technical advice with a unique quote.
