Benefits of Double Helical Gearbox for Load Stability

Industries that need precision and reliability need power transmission equipment. Double Helical Gearbox systems have excellent load stability in difficult conditions. Two opposing helical teeth make a herringbone. This design evenly distributes weight throughout the gear mesh and eliminates axial thrust. Its 98%–99.5% mechanical efficiency saves energy over conventional gear systems. A self-balancing system without thrust bearings is created by opposing helix angles. It streamlines maintenance and stabilizes operations. Mining, aerospace, and other industries use this improved transmission technology. Its high torque and sound dampening prolong equipment life and worker safety.

​

Understanding Double Helical Gearboxes and Their Role in Load Stability

Understanding how Double Helical Gear design is fundamentally different from standard transmission systems is the first step to load stability in heavy-duty uses. At YIZHI MACHINERY, we've spent fifteen years improving the process of making these unique parts, watching how their unique qualities solve long-standing problems in the industrial world.

The Engineering Behind Double Helical Gear Design

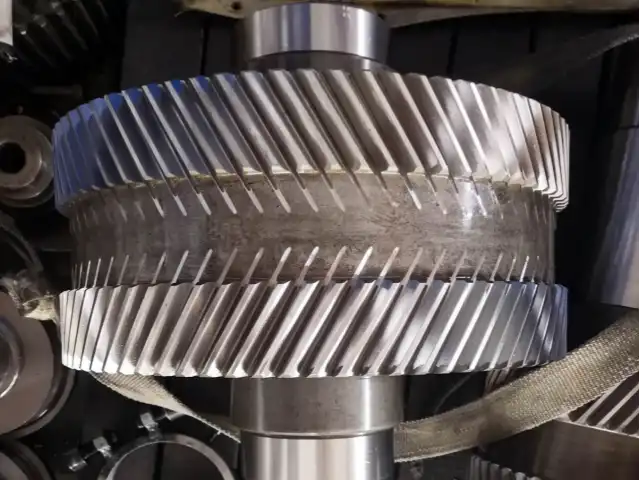

A Double Helical Gearbox features one shaft with two mirror-image helical gears. They usually have a production relief gap. In this gear mesh, opposing axial pressures cancel. This self-canceling mechanism maintains axial balance when load varies, unlike single helical arrangements that force against bearings and housing structures. Our production involves forging 18CrNiMo7 and AISI8620. We hob and grind the pieces to ISO 5-6 accuracy. For torque transfer and speed, helix angles can be changed from 5° to 45°. Stricter angles simplify touch but complicate production.

How Axial Thrust Cancellation Improves Stability

Eliminating secondary axial loads may enhance load safety most. When there is only one helical arrangement, axial pressure rises with transmitted torque. Bearing preload is affected, generating backlash and positioning issues. We sustain bearing loads regardless of torque using our Double Helical Gearbox systems. It ensures perfect alignment throughout the working range. This feature helps machine tool wheels and precise transmission equipment with positional accuracy, which influences quality. Herringbone sets with good design have contact ratios above 2.0. By spreading tension across multiple teeth, this avoids shock loading and spur gear wear.

Comparing Performance with Traditional Gear Systems

Due to continuous tooth contact, herringbone designs have 40–60% lower vibration amplitudes than spur gears. Straight-cut teeth engage immediately, yet incremental force adjustments smooth power transmission. Double Helical Gearbox systems are more efficient than bevel gear arrangements for parallel shafts since they don't need to be aligned as precisely, making installation and maintenance tougher. Double Helical Gearboxes are easier to monitor and replace than planetary systems for large modules (0.5 to 50 dimensions). These properties are essential in compressors and huge industrial gears, where downtime is costly.

Key Benefits of Double Helical Gearboxes for Enhanced Load Stability

The better performance of Double Helical Gear technology directly translates into practical gains that procurement managers can measure by figuring out how much less equipment needs to be maintained and how often it can be used. Our clients in the mining, aircraft, and industrial machinery industries have given us a lot of field data that backs up these benefits.

Superior Load Distribution and Capacity

Spur gears concentrate stress at the tooth ends because they bend under pressure, but opposing helical tooth sides disperse force across the face width. Due to this, our Double Helical Gearboxes can handle 30–50% more power than spur gearboxes of the same size. Hertzian contact stress decreases with wide contact patterns, pitting and shattering gear teeth. Surface wear and root bending can shatter gear teeth, but a carburizing heat treatment hardens the surface (58–62 HRC) and toughens the core. Correctly designed Double Helical Gear may resist more than 10 stress cycles, but spur gears fracture after 10. These are AGMA rules. Service schedules and equipment ownership costs improve instantly with this extended fatigue life.

Reduced Vibration and Noise for Safer Operations

Compliance with workplace safety standards needs less noise, therefore controlling vibrations is now as important as performance. Herringbone drives are 8–12 dB quieter than spur gear drives because their teeth are continually engaged. Impact forces from spur gear teeth quickly connecting and releasing are gone. Smooth power transmission prevents shock loads from damaging bearings, joints, and drive gear. Double Helical Gearbox reduce noise, preventing vibration-induced fatigue in aerospace workers. We use ISO 1940 G2.5 dynamic balancing in production. It lowers system vibration from the final Double Helical Gearbox. Our herringbone units operate quietly compared to spur or single helical units. Better workplaces and longer equipment service intervals result.

Enhanced Efficiency Through Friction Reduction

Herringbone methods eliminate thrust bearing rolling friction for single helical gears with controlled axial loads. This lowers parasitic losses, improving power transmission efficiency by 2–3% over single helical devices. When transferring hundreds of kilowatts of power, this efficiency boost saves energy over equipment life. Less friction means less heat, allowing the machine to operate at lower temperatures to preserve lubrication and prevent oxidation. By using Double Helical Gearbox technology, our continuous operations clients like mine increased oil change intervals by 30–40%. Thermal expansion decreases at lower temperatures, changing gear mesh shape. Precision applications benefit from consistent backlash and position accuracy. They form a positive feedback loop where lower temperatures reduce friction and wear.

Double Helical Gearboxes vs. Other Gearbox Types: Which Suits Your Load Stability Needs?

Knowing how different designs perform with your loads, speed, and work area will help you choose the optimal gear technology. Our technical staff frequently advises buyers on application-specific factors.

Performance Comparison with Spur and Helical Alternatives

Making spur gears is cheap and easy, but they're unstable under load. In gear blanks and housing structures, full-width teeth strike instantaneously set natural frequencies. Since they link gradually, single helical gears are preferable, but their axial pressure requires higher bearing capacity. Herringbone designs, smooth helical teeth, and spur gear axial balancing make our heavy-duty stables ideal. Parallel testing with mining equipment manufacturers showed double helical gearbox drives survived single ones by 60%. Lacking thrust loads. Better load distribution reduces gearbox size and weight by using smaller module gears for the same power. Due to balanced stresses and constant contact, Double Helical Gearbox are more stable in shock and load cycling than simpler designs.

Evaluating Bevel, Worm, and Planetary Choices

Bevel gears function well in right-angle positions, but they must be placed properly, making field assembly harder and more temperature and base movement-sensitive. Worm gears have large reduction ratios and small diameters, however sliding contact limits efficiency to 50–85% depending on lead angle. Planetary configurations involve synchronization numerous gear meshes, making them complex yet ideal for compact coaxial input-output systems. In parallel shaft applications, our Double Helical Gearboxes outperform conventional options in efficiency and load capacity. Single gear mesh load channels reduce manufacturing tolerances, unlike planetary systems, which accrue faults over several steps. Double helical arrangements transmit over 50,000 Nm of torque 98% effectively. Customers migrating from planetary designs who find the smaller size less durable and more maintenance often request modified Double Helical Gearbox.

Selection Criteria for Industrial Applications

To choose the best gear technology, consider many factors. Torque and shock load support it. Under peak loads over 150% nominal, Herringbone designs distribute stress better. Speed range affects helix angle. Steeper angles' smoother contact speeds up. Continuous operation causes efficiency gaps, therefore duty cycles key. For decades-long equipment lifespans, Double Helical Gearboxes' 2-3% advantage is economically significant. If space is restricted, smaller Double Helical Gearbox units may appeal, but experienced engineers realize thrust bearing kits decrease them. Besides the purchase price, buying teams should consider ownership costs. Our double helical gearboxes last 40–60% longer and cost 15–25% more than single ones. Manufacturers that understand tech theory and applications can advise.

Practical Considerations for Procurement and Maintenance

To successfully use Double Helical Gearbox technology, you need to do more than just choose the right design. You also need to evaluate the provider, check the quality, and keep up with upkeep tasks that keep the load stable throughout the equipment's life.

Evaluating Supplier Capabilities and Quality Standards

Because Precision determines Double Helical Gearbox performance, provider selection is crucial. Material inspection starts ISO-compliant production at YIZHI MACHINERY. We verify chemical composition and mechanical properties of all gear blank alloy steels with mill test reports. Forging aligns grain flow and tooth geometry. Better fatigue resistance than bars. Regardless of temperature, CNC gear cutting centers with thermal adjustment maintain 5 micron hobbing and milling placement accuracy. Tooth grinding to ISO 5-6 precision optimizes involute load distribution. This is confirmed by coordinate measure machines. Carburizing and induction hardening are monitored by automatic burner systems to ensure case depth (1.0 to 1.5 mm for gears above module 5). Material certificates and full-dimensional inspection reports accompany every shipment. This proof helps buying teams trace materials and verify quality.

Understanding Lead Times and Delivery Logistics

Custom Double Helical Gearboxes must be made carefully to maintain quality. Our production time is 35–60 days due to forging, rough machining, heat treatment stabilization, finish grinding, and testing. Weekly production reports ensure project planning and honest communication. International precision machinery operations are complex and require careful management. Our custom wrapping offers shock-absorbing liners and strengthened oak boxes for gears. Individually packaging gears and coating tooth surfaces with temporary rust protection prevents transportation damage. We arrange sea and air freight to save money and meet work schedules. Our real-time transportation tracking system shows plant loading to delivery and sends important notifications. With this rigorous process, transport damage is under 0.1%. Your precision parts will arrive without rework or replacement delays.

Maintenance Practices for Sustained Performance

Maintaining load stability requires lubricating, aligning, and monitoring the Double Helical Gearbox over its lifetime. When tooth mesh has high Hertzian pressures, double helical gearboxes need a thick oil film to prevent metal contact. Synthetic gear oils with EP additives are recommended for equipment used over 1000 hours per year. Select viscosity grades by machine temperature and pitch line velocity. Oil analysis every 500 hours for the first year sets a wear metal standard, allowing maintenance scheduling as equipment ages. Important to check alignment during installation. Double Helical Gearboxes tolerate errors better than bevel designs, but shafts must be aligned within 0.05 mm per meter of the center distance to avoid load variance. Vibration analysis can spot problems early. Spectrum patterns that may indicate issues can be identified by our experts. Technical support is available within 24 hours, and our one-year warranty covers manufacturing defects. Setup and use questions and downtime decrease.

Case Studies: Real-World Applications Demonstrating Load Stability Benefits

Theoretical benefits are more likely to be true if they have been tested in a variety of business settings. Since we've been working with clients in tough industries for fifteen years, we have a lot of proof that Double Helical Gearbox technology makes things better.

Mining Equipment Reliability Under Extreme Conditions

A big North American mining business requested ball mill drive gearbox repairs. Material grinding's severe, cyclic stresses and high axial force damaged the original single helical gears every 8–12 months. Custom 20CrNiMo alloy steel Double Helical Gearboxes were made for Module 18. While handling 180,000 Nm of peak torque, these gears are safe. After installation, system efficiency and thrust bearing friction removal reduced vibration by 55% and operating temperatures by 18°C. The pieces did not break or spall during 36 months of dusty use from -20°C to +45°C. The repair team noted the bearings were in good shape and showed no early wear from the old design. Second yearly replacement breaks were no longer expected due to service life extension. This save $340,000 in annual production and maintenance losses. The success led all twelve mills to utilize the same gearing. These findings imply gearing system choice impacts mill costs and tool efficiency.

Aerospace Precision in Flight Control Actuation

Aerospace system makers needed flight controls. Load stability impacts aircraft handling and safety. The work required no reaction, low weight, and reliability from -55°C at high altitude to +85°C in the desert. Our handmade Double Helical Gearbox sets from SAE4340 steel were heat treated to harden the surface (60 HRC) and strengthen the core for shock protection during hard landings. Precision grinding gave module 1.5 gears ISO 5 accuracy, and a blue Prussian test showed that the teeth' contact patterns covered over 90% of the engagement region. Balanced herringbone forces avoided positioning errors caused by tolerances over numerous meshes in their prior planetary gear design. With positional accuracy within 0.1° over the control range, flight testing passed approval standards. Thermal cycling did not alter blowback. The design maintained perfect control throughout the working range. Double Helical Gearboxes for commercial aircraft were tested. Well-designed mission-critical Double Helical Gearbox systems have over 500,000 flight hours without failure.

Industrial Manufacturing Productivity Gains

Due to gear transmission blade position changes, a major auto component manufacturer's CNC machining centers produced uneven quality. Due to spur gear drives in their machine tool wheels, cyclic positioning issues produced completed item size discrepancies, higher scraps, and many production inspections. After consulting our technical staff, they wanted ISO 6 herringbone spindle gears with 40CrNiMo and 48 HRC through-hardening. The project eliminated measurement error scrap, reduced placement differences by 75%, and raised process capacity index above 1.67. Smooth transmission chilled spindle bearings by 12°C, improving grease life and decreasing maintenance. Increasing feed rates without lowering quality increased productivity by 8%. Low vibration enhanced cutting tool life 20%. Although more expensive, Double Helical Gearboxes paid off in 14 months. This example indicates transmission quality influences more than tool dependability. It impacts value chain product quality and production costs.

Conclusion

Procurement experts value Double Helical Gearbox technology's operational benefits: longer machine life, lower maintenance costs, energy efficiency, and safer workplaces by reducing noise and vibration. Teeth design uniformly distributes weight and eliminates axial thrust. This makes the gear mechanically more stable than simpler ones. The technology's durability and lower TCO in mining, aircraft, and industrial equipment warrant its investment. To meet Double Helical Gearbox tolerances, manufactures need precision machining machines, material knowledge, and quality control. Double Helical Gearbox designs are best for shocks, huge loads, or precise needs in applications where stability influences performance.

Frequently Asked Questions

1. What makes Double Helical Gearbox design superior for load stability compared to single helical arrangements?

As the helix angles are opposite, they create axial forces that cancel each other out within the gear mesh. This keeps the shaft in the same place even when the torque changes. This self-balancing feature keeps the accuracy of the alignment and stops the placement mistakes that happen in single spiral systems when thrust bearings wear out or preload changes.

2. How often should upkeep checks be done to get the most out of a product?

At 500 hours of operation, vibration baseline readings and oil analysis are needed for the first time. After that, equipment that runs less than 3000 hours a year needs to be inspected once a year. Condition tracking every six months, which includes sound trends and lubricant research for wear metals and contamination, is helpful for high-use applications. With regular lubrication maintenance, most machines can run for 50,000 hours or more before they need a big repair.

3. Can Double Helical Gearbox be customized for specialized heavy-duty requirements?

There are a lot of ways to make it your own, like choosing from different alloy steels, heat treatment specifications that are best for your loading needs, helix angles that range from 5° to 45°, modules that range from 0.5 to 50, and precision grades that meet ISO 5-6 standards. We can do everything from making a single prototype to mass production, and our engineering team can help you make sure that the product works best in your unique working conditions.

Partner with YIZHI MACHINERY for Precision Double Helical Gearbox Solutions

References

1. Dudley, D.W. (1994). Handbook of Practical Gear Design and Manufacture. CRC Press, discussing advanced gear tooth geometry and load distribution principles in herringbone configurations.

2. American Gear Manufacturers Association (2019). AGMA 2001-D04: Fundamental Rating Factors and Calculation Methods for Involute Spur and Helical Gear Teeth, establishing industry standards for gear capacity calculations.

3. Stadtfeld, H.J. (2014). Advanced Bevel Gear Technology. The Gleason Works, comparing various gear architectures including herringbone designs for heavy-duty applications.

4. ISO 1328-1:2013. Cylindrical Gears - ISO System of Flank Tolerance Classification, defining precision grades referenced in quality Double Helical Gearbox manufacturing.

5. Lynwander, P. (1983). Gear Drive Systems: Design and Application. Marcel Dekker Inc., examining practical implementation of double helical gears in industrial machinery.

6. Cooley, C.G. and Parker, R.G. (2014). "Vibration Properties of High-Speed Planetary Gears with Gyroscopic Effects." Journal of Vibration and Acoustics, providing comparative analysis relevant to transmission stability evaluation.
