Internal Teeth Gear

Internal Teeth Gear - Precision Engineered for Industrial Excellence

At Henan Yizhi Machinery Co., Ltd., our Internal Teeth Gear speaks to the apex of accuracy fabricating innovation. With 15 a long time of generation involvement and ISO certification, we provide enterprise-grade equip arrangements that meet ISO 5-6 accuracy benchmarks. Our progressed preparing capabilities incorporate cutting, hobbing, processing, and crushing, accomplishing surface hardness up to 58-62 HRC. We serve multi-industry obtainment requests with customization alternatives extending from module 0.5-50, conveying total arrangements inside 35-60 days whereas keeping up transport harm rates underneath 0.1%.

What is Internal Teeth Gear?

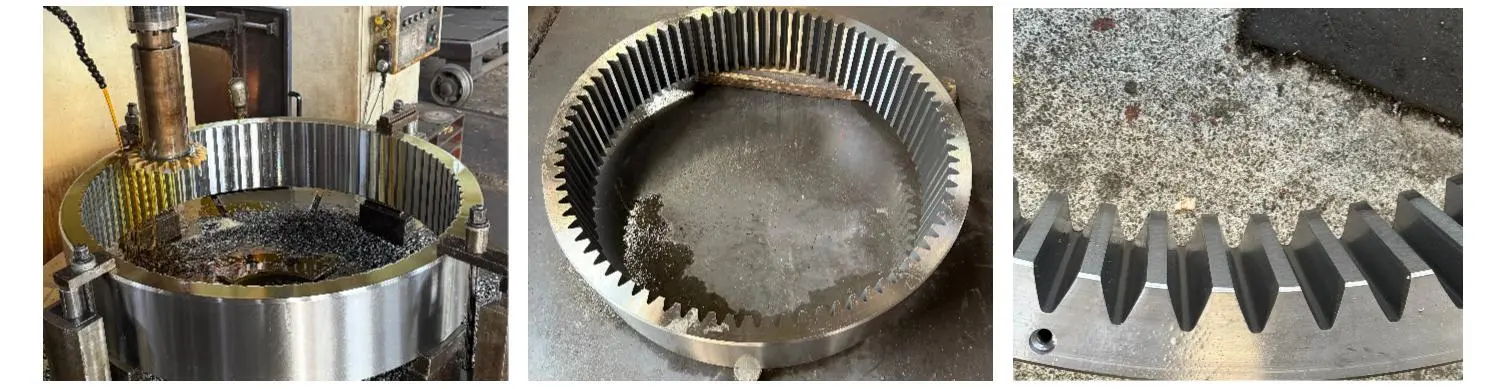

The item is a specialized component where cutting teeth are machined on the internal circumference of a ring or barrel. Not at all like outside gears that pivot in inverse bearings, inside gears work with outside pinions whereas pivoting in the same direction.

This special plan makes a coaxial course of action that essentially decreases center separations. The concave tooth profile wraps the raised pinion, expanding contact proportion and diminishing push concentrations. This comes about in higher torque thickness and progressed stack conveyance compared to customary outside equip systems.

Technical Specifications

Key Advantages

Extremely Compact Structure

You get greatest control transmission in negligible space. The coaxial plan kills the require for extra shafts and bearings.

High Transmission Stability

Your operations advantage from smoother control exchange. The higher contact proportion diminishes vibration and clamor amid operation.

Excellent Load-Bearing Capacity

You can handle heavier workloads unquestionably. The conformal contact surface conveys loads more successfully than outside Internal Teeth Gear arrangements.

Flexible Gear Ratio Design

Your particular prerequisites are met with customized tooth setups. We suit different diminishment proportions for your specific application needs.

Custom Services & Low MOQ

You do not require huge orders to get to our quality. We acknowledge single-item generation and give comprehensive customization services.

Working Principle

Ring gears work through involute bend fitting with outside pinions. The inward-facing tooth profile guarantees both components pivot in the same course. This arrangement makes nonstop control exchange with upgraded stability.

The fitting activity happens along carefully calculated involute bends. This geometric exactness guarantees smooth engagement and withdrawal of person teeth. Your framework encounters diminished sliding activity, coming about in higher productivity and lower working temperatures.

Industrial Applications

Planetary Equip Reducers: You'll discover these gears fundamental in high-reduction applications where compact plan things most

Construction Hardware: Overwhelming apparatus depends on our inside ring gears for last drives in excavators and track loaders.

Automotive Frameworks: Present day programmed transmissions and electric vehicle powertrains depend on accuracy inside gears for smooth operation.

Wind Vitality: Turbine yaw and pitch drive frameworks utilize our gears to handle variable wind loads with extraordinary durability.

Machine Apparatus Bolster Components: Exactness situating frameworks require the exactness and unwavering quality our gears provide.

Manufacturing Excellence

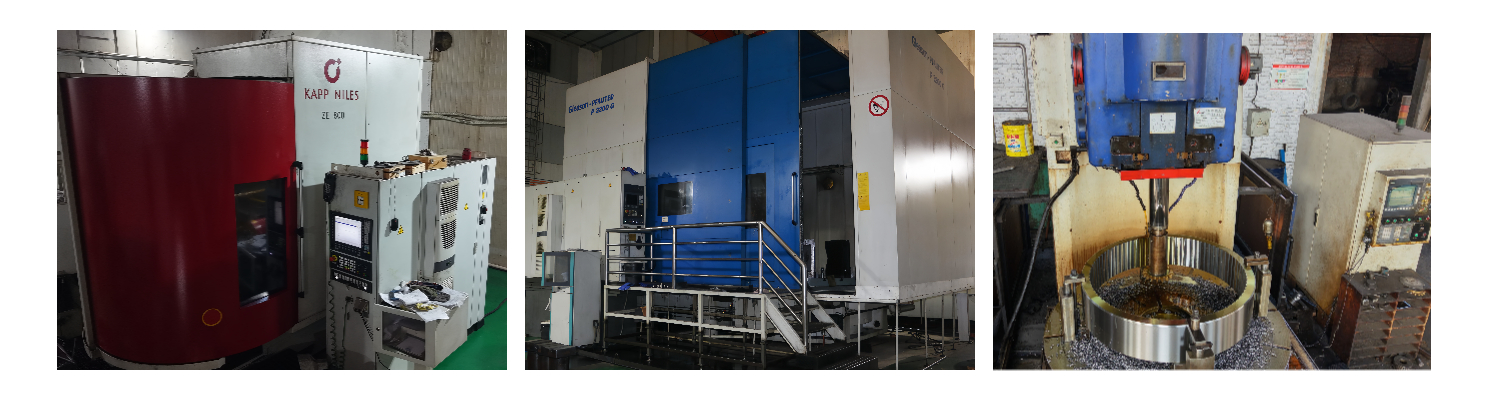

Our generation office highlights all inclusive driving accuracy gear. You advantage from our high-precision CNC equip machining centers, completely robotized crushing machines, and brilliantly warm treatment generation lines.

We keep up long-term organizations with famous mechanical building endeavors. This collaborative notoriety guarantees you get items assembly the most noteworthy industry standards.

Our standardized forms ensure effective arrange fulfillment. From necessities discourse through plan drawings, generation machining, quality review, bundling, to transportation - each step takes after strict protocols.

Quality Assurance & Service

Pre-sales Back: You get comprehensive plan drawings and specialized meeting to guarantee ideal equip selection.

Production Straightforwardness: We give synchronized advance overhauls, test arrangement, and total quality review documentation.

After-sales Commitment: Your venture is ensured with our one-year guarantee and fast reaction issue resolution.

Packaging Brilliance: Our customized bundling with shock-absorbing padding liners and wooden beds guarantees your gears arrive in idealize condition.

FAQ

Q: What manufacturing process ensures the highest precision for internal ring gears?

A: Control skiving as of now leads the industry for high-volume, high-precision fabricating. It's speedier than conventional forming and more adaptable than broaching, particularly for gears with bear constraints.

Q: How do you prevent interference during gear design?

A: We calculate the difference in tooth numbers precisely. Our design rule maintains at least 8-12 teeth difference between the pinion and internal gear to avoid trochoidal interference.

Q: Why is heat treatment critical for internal ring gears?

A: Inside gears are thin-walled rings vulnerable to mutilation amid extinguishing. We utilize press extinguishing or pass on extinguishing to mechanically control the equip and minimize distortion.

Q: Can these gears handle higher shock loads than external gears?

A: Yes. The conformal contact between concave internal teeth and convex pinions distributes loads over larger surface areas, significantly lowering contact stress and improving shock resistance.

Q: What are the main maintenance considerations?

A: Inspection access requires careful planning since teeth are internal. We recommend oil debris analysis as the preferred predictive maintenance method for early problem detection.

Contact Us

Ready to use the Internal Teeth Gear to discuss your internal gear requirements? Contact our engineering team at sales@yizmachinery.com for customized solutions.
