What Is a Cylindrical Worm Gear and How Does It Work?

To move motion between perpendicular shafts, usually at a 90-degree angle, a Cylindrical Worm Gear pairs a screw-like worm with a matched worm wheel. The spiral threads on the worm engage the gear's teeth through sliding contact, reducing speed by a large amount and multiplying force by a factor of five to one hundred, all while taking up a very small space. This mechanism works by continuously sliding engagement instead of rolling contact. This creates a unique friction dynamic that makes the mechanism self-locking and allows for smooth, quiet operation, making it perfect for industrial machinery, mining conveyors, and aerospace actuators.

​

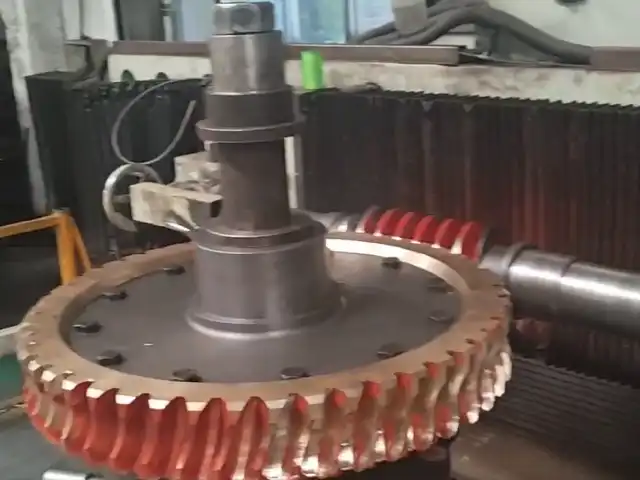

Understanding Cylindrical Worm Gears

Core Components and Design Architecture

The Cylindrical Worm Gear system is made up of two main parts that work together. The worm looks like a threaded screw made from a sharpened alloy steel like 20CrMnTi or AISI4140. It has threads that stay the same width along the cylinder's axis. Different side profiles—Archimedean (ZA), involute (ZI), or regular straight (ZN)—affect how the load is distributed and how hard it is to make these threads. The worm wheel is made of bronze alloys like CuSn12Ni2 or sometimes hardened steel. It has teeth that are precisely cut to fit the worm threads. This combination of materials stops galling from happening when the meshing process involves fast sliding speeds.

Our production process uses advanced hobbing and grinding methods to get ISO 8-9 accuracy grades, which make sure that the tooth contact patterns are perfect. The module range of 1 to 50 modules meets a wide range of torque needs, and engineers can define exact reduction ratios that meet the needs of each application by changing the number of teeth. Worm sides with a surface hardness of between 58 and 62 HRC don't wear down even after heavy-duty rounds that go on for a long time.

Meshing Mechanics and Operating Principles

Cylindrical Worm Gear sets work by sliding against each other, while spur or helical gears work by rolling against each other. When the worm turns, its threads push against the teeth of the worm wheel in a lateral way. This changes the rotating input into motion that goes in a straight line. The reduction ratio is the number of worm wheel teeth divided by the number of thread starts on the worm. For example, a 60-tooth wheel and a single-start worm give a 60:1 reduction. This sliding action makes more heat than rolling contact, but it also creates an oil wedge effect that lessens shock loads and vibrations that reach connected equipment.

Self-locking is based on the lead angle, which is the angle between the worm thread and a plane that is perpendicular to the axis. When the angle is less than 5 degrees, there is enough friction to stop the machine from backdriving. This makes these systems very useful for lifting equipment and lift traction machines that need to keep the load in place without external brakes. Another big problem in vertical material handling is that there isn't a built-in safety feature.

Material Selection and Load Capacity Engineering

To be durable in harsh situations, you need to carefully choose which materials to use together. For worm shafts, we use steel alloys that have been quenched and carburized, such as 42CrMo and SAE4340. This gives the surfaces case-hardened properties that make them resistant to scoring and pitting. The worm wheel material that goes with it needs to be both soft and tough. Centrifugally cast bronze is a good choice because it can hold a lot of weight and mould itself perfectly to the firm worm surface, keeping the greasing film in place. This choice of materials has a direct effect on load capacity, which stays high across all of our products thanks to optimized contact ratios and heat treatment methods such as cooling, tempering, and induction hardening.

Industrial Applications Across Sectors

In many high-demanding industries, Cylindrical Worm Gear systems are indispensable. In mining operations, these parts move abrasive materials along sloping conveyor lines. Their high starting torque and anti-rollback features keep the loads from switching directions in a disastrous way. The small structure can fit into underground spaces that aren't very big, and it can handle shock loads from uneven material flow. Aerospace valve actuators need to be able to multiply torque quickly in order to move control surfaces against strong airflow forces while still fitting into housings that are limited in weight. The indexing mechanisms on machine tools use the arc-second positioning accuracy that can be reached with dual worm arrangements and adjustable backlash. This gets rid of the ripple effects that damage surface finishes when precision machining. Automated production line reducers use the smooth, low-noise transmission properties that are needed in places where noise disturbance is minimal.

Cylindrical Worm Gear vs Other Gear Types: Making the Right Choice

Efficiency and Thermal Considerations

The effectiveness of a Cylindrical Worm Gear is usually between 40% and 90%, but it depends on the lead angle, the quality of the grease, and the speed of the slide. This is not as good as helical gears, which get 95–98% efficiency through rolling contact. Because Cylindrical Worm Gear systems have rolling friction, they turn more input energy into heat. This means that they need careful thermal management based on DIN 3996 estimates. This drawback seems bad, but it's okay when the application values simplicity and high reduction ratios more than peak efficiency. Instead of several helical gear steps, a single-stage Cylindrical Worm Gear set is used. This makes the setup simpler and reduces the number of possible failure points.

Torque Capacity and Shock Absorption

Cylindrical Worm Gears are better at absorbing shock than spur gears, which only have point-contact profiles, because their continuous tooth engagement pattern spreads loads across multiple teeth at the same time. This makes them better for situations where the load changes quickly, like mining hoists going from being filled to being empty. Bevel gears can handle right-angle gearbox, but they don't lock themselves and need the shaft to be aligned more precisely. Hypoid gears have offset axes, but they are more expensive to make and make too much noise for places where noise levels need to be kept low.

Noise and Vibration Profiles

When compared to the whine that spur or helical gears make when they connect, the slide contact device makes almost no noise. Because the oil wedge damping effect keeps vibration amplitudes low, Cylindrical Worm Gear drives are perfect for lab equipment and medical gear that needs to be very quiet. When the load is normal, proper gear grinding and matched surface finishes lower the noise level even more, below 70 decibels.

Application-Specific Selection Criteria

Finding the best gear type requires balancing a lot of different factors. Cylindrical Worm Gears work best when they have to fit into small spaces, when self-locking stops back-driving, when reduction ratios are higher than 20:1, and when quiet, smooth operation is more important than efficiency. Helical gears are good for high-speed, high-efficiency tasks that don't need a lot of room. When selecting parts, procurement managers should think about job cycles, temperature environments, access for upkeep, and cost goals. Our tech team can help you match the specs of your gear with how it will be used. This way, you can avoid expensive mistakes that hurt the performance of your system.

Maintenance, Noise Reduction, and Load Capacity Optimization

Lubrication Protocols and Inspection Routines

How long a Cylindrical Worm Gear lasts is directly related to how well it is oiled. We suggest synthetic gear oils that have EP (extreme pressure) additives that work well with sliding contact. Viscosity of the oil should meet the temperature at which it will be used. For industrial uses, ISO VG 220-460 types are usually sufficient. Visual checks for oil level and contamination should be done once a month, sound analyses should be done every three months to find worn bearings, and yearly tear-downs should be done to check the tooth flanks. According to data from mining clients who use continuous-duty conveyors, putting these routines into place cuts down on unexpected failures by over 60%.

Failure Prevention Strategies

Some common ways things break are scoring (also called "surface galling"), pitting (also called "fatigue cracks"), and too much wear from not lubricating enough. To avoid these problems, you need to make sure that the lubricant is free of contaminants and that the oil film thickness is maintained by choosing the right viscosity. Temperature monitoring finds lubrication breakdown before it does any damage. Oil temperatures above 90°C mean that the cooling capacity is not enough. Putting in temperature monitors and systems that shut down machines automatically saves expensive machinery investments. Our heat treatment methods, such as carburizing and induction hardening, make surfaces that don't wear down easily and last much longer than normal options.

Noise Reduction Through Design and Installation

Aside from the fact that the machine itself is quiet, precision making and careful fitting also help reduce noise. Grinding the sides of worms to tolerances of less than a micron reduces surface irregularities that produce sound energy. When you match the thermal expansion coefficients of the housing material and the gear components, the gears don't get out of alignment when the temperature changes, which can cause more meshing noise. When the shaft is installed correctly, within 0.05 mm at most, it makes sure that all of the teeth touch the face evenly across its width. Structure-borne sound is less likely to reach nearby equipment when the mounting is flexible and uses vibration-isolating elastomers.

Load Capacity Calculation and Optimization

To accurately rate Cylindrical Worm Gear capacity, you need to think about a number of different ways it could fail. The Hertzian contact stress is used in surface longevity estimates according to AGMA 6022 to figure out pitting resistance. Bending strength research makes sure that teeth can handle power without breaking. Based on its ability to get rid of heat, thermal grade limits the amount of power that can be sent continuously. Our engineering team uses the duty cycles and environmental conditions specific to each client to do these calculations. They then choose the best parameters, such as face width, module, and material, to maximize capacity while keeping costs low. A recent aircraft customer increased the load capacity by 35% by customizing the choice of material and improving the shape of the teeth without making the envelope bigger.

Procuring Cylindrical Worm Gears: A B2B Buying Guide

Evaluating Supplier Credentials and Capabilities

To find a reliable provider, you need to look at a number of capability signs. ISO 9001 certification shows that a quality management system is mature, and certifications specific to a field, like AS9100 for aerospace applications, show that the company knows what it's doing. Deliverable precision is directly affected by the complexity of the production equipment. For example, high-accuracy CNC gear machining centers and automatic grinding machines make it possible to keep tolerances very tight, which is necessary for smooth, quiet operation. Ask for tours of the facility or thorough lists of the equipment to make sure that the manufacturing skills meet your precise needs. Our building has some of the best gear grinding machines in the world, as well as smart heat treatment production lines that can handle complicated shapes and strict material requirements.

Understanding Lead Times and Customization Options

Standard Cylindrical Worm Gears ship between 35 and 60 days, based on how complicated the order is and how many are being sent. For engineering approval and production preparation, custom designs that need unique tooth profiles, non-standard materials like SAE4320, or specialized coatings add two to four weeks to the time frame. We have low minimum order numbers and can make single items for prototyping or fixing broken equipment, even though some rivals have prohibitively high batch minimums. This adaptability is useful for aerospace clients who need to quickly replace parts on grounded planes or for mining operations that need emergency spares during unplanned maintenance windows.

Pricing Dynamics and Total Cost Considerations

Unit price takes into account the cost of materials, the difficulty of the job, the need for heat treatment, and the number of orders. Bronze worm wheels are more expensive than steel ones, but they last longer and wear less easily, which lowers the total cost of ownership. Discounts for buying in bulk usually start at 50 units, and prices drop by 15 to 25 percent at 200 units. Instead of just looking at ex-works prices, you should also look at the total landed cost, which includes shipping, packaging, and import duties. Transport damage rates are kept below 0.1% with our custom packing, which includes shock-absorbing liners and promises against damage. This keeps you from having to file expensive warranty claims and wait for production to start.

Quality Assurance and After-Sales Support

Comprehensive checking procedures give you peace of mind about the quality of the parts. Ask for inspection records that show measures of the surface finish, hardness, and dimensions. As part of our quality control process, a coordinate measuring machine (CMM) checks the shape of the teeth, and metallurgy research confirms that the right amount of heat treatment was done. Support after delivery is just as important. Quick expert help answers questions about installation, and guarantee coverage protects against early failures. We offer one-year warranties and promise to respond quickly, sending new parts within 72 hours for important purposes. Established partnerships with well-known mechanical engineering companies show that we work well with others and care about our customers' success.

Why Choose Our Cylindrical Worm Gear Solutions?

Advanced Engineering and Material Expertise

Since its start in 2016, YIZHI MACHINERY has focused on making custom gears using high-quality materials and advanced techniques. For example, 45# steel is used for light loads, 18CrNiMo7 and 17CrNiMo6 are used for heavy-duty mining tasks, and special grades like 20CrNi2Mo are used for aerospace parts that need to be traceable very carefully. This wide range of materials lets you precisely match the needs of an application instead of having to make design choices based on limited stock options. Modules from 1 to 50 can be cut, honed, milled, and ground. This means that the machine can handle everything from precision instruments to heavy mining reducers.

Precision Manufacturing and Quality Standards

High-precision CNC gear machining centers and fully automatic gear grinding tools that regularly reach ISO 8-9 precise grades are part of our production equipment. This accuracy directly affects performance. Tighter tolerances lower backlash, which makes machine tool indexing mechanisms more accurate at positioning, and better surface finishes reduce friction losses and increase the life of lubricants. Before being packed, each part is carefully checked using high-precision measuring tools to make sure it meets the requirements. Because they focus on quality, they have long-term relationships with many well-known mechanical engineering companies in the mining, aircraft, and industrial machinery sectors.

Customization Capabilities and Flexible Production

Standardized goods don't always perfectly meet the needs of each application. Our full customization process starts with a discussion of your needs, during which engineers look at your working conditions, available room, and performance goals. Then, we make design drawings that include the best tooth shape, material choice, and heat treatment methods. Our modern equipment suite is used for production machining, which is followed by a full quality check to make sure all requirements are met. Our production method is flexible, so we can take orders for anything from a single prototype unit to big production batches. This way, we don't have to meet the minimum orders that slow down development projects or emergency fixes.

Seamless Global Logistics and Technical Support

It takes specialized logistics knowledge to safely ship precision parts across continents. We offer custom packaging with wooden pallets and shock-absorbing cushioning liners that keep tooth surfaces safe while they are being handled. Multiple modes of transportation, such as sea freight for bulk orders that need to be cheap, air freight for urgent needs, and China-Europe freight trains for a good balance of speed and cost, make sure that lead times are manageable and fit your project schedules. Visual tracking systems that work from the plant loading to the final delivery send real-time information. This lets buyers see what's going on in the whole supply chain. Our committed technical support goes beyond delivery; we also offer help with installation, troubleshooting, and application building to make sure the system works at its best.

Conclusion

For uses needing a small, high-ratio speed reduction, self-locking feature, and quiet, smooth operation, Cylindrical Worm Gears offer special benefits. Knowing how they work, what care they need, and how to choose them over other types of gear helps you make smart purchasing choices that balance performance, cost, and dependability. Working with skilled suppliers who offer full customization, quality assurance, and global shipping support is the best way to make sure that projects in demanding industries like mining, aerospace, and industrial machinery are completed successfully.

FAQ

1.What factors most significantly influence Cylindrical Worm Gear efficiency?

The main factor that determines efficiency is the lead angle. Larger angles lower slide velocity and friction losses, so multi-start worms are more efficient than single-start designs. Quality of the lubrication and the finish on the surface also have a big effect on performance, since the right thickness of the oil film keeps metals from touching each other. The friction coefficient changes depending on the materials that are paired together. Usually, bronze-on-hardened-steel combinations work better than steel-on-steel ones.

2.What are typical lead times for custom Cylindrical Worm Gear orders?

Standard custom orders with common materials and standard shapes are shipped 35 to 60 days after the order is confirmed. The lead time goes up to 60 to 90 days for designs that are complicated and need special alloys like SAE4320, heat treatment protocols that aren't standard, or tooth profiles that aren't found anywhere else. Premium service plans may allow prototype sizes or rush orders to be processed more quickly and delivered in 20 to 30 days.

3.Are Cylindrical Worm Gears ideal for high-speed applications?

Because sliding friction creates heat, Cylindrical Worm Gears work best at input speeds below 1800 RPM. For faster speeds, you need strong cooling systems and synthetic oils that don't melt at high temperatures. Helical or planetary gear arrangements, which offer rolling contact and higher efficiency, are usually better for applications that need to work quickly.
