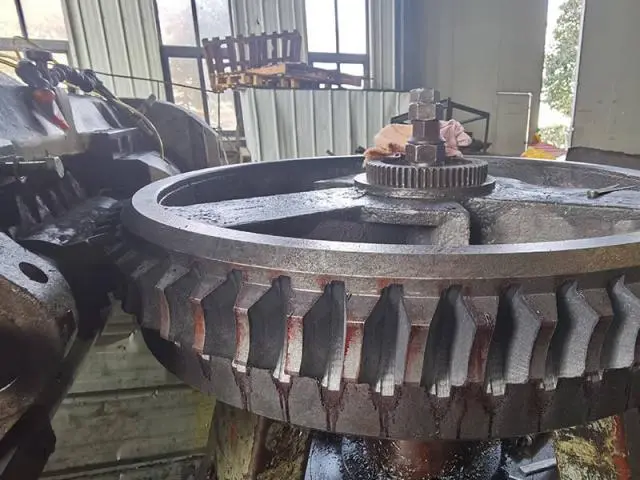

Understanding Large Worm Gears: What They Are and Why They Matter

If you're in charge of buying parts for industrial tools, mining operations, or aircraft uses, knowing how important parts work can mean the difference between high-quality operations and costly downtime. Large Worm Gears are a special kind of gearbox designed for heavy-duty settings that need high torque, a small footprint, and the ability to self-lock, which is safety-critical. These parts, which usually have worm wheels bigger than 500 mm in diameter, change the direction of spin between shafts that are not parallel. They can also provide reduction ratios of up to 300:1 in a single stage, which makes them essential in tough B2B industry settings.

​

Introduction

Transmission parts that work reliably in harsh situations are needed for heavy-duty industrial uses. Because they provide special mechanical benefits that other types of gears cannot match, Large Worm Gears have earned a reputation as crucial mechanical components in industrial machinery, mining operations, and specialised equipment. When space is limited and heavy loads need to be moved, these parts are especially useful because they can transmit a lot of torque in a small package and automatically lock themselves.

The goal of this blog post is to give procurement managers, engineers and OEM clients a complete understanding of how Large Worm Gear gearbox systems work, their advantages and how to choose the right one. By looking into design principles, operational difficulties, and industry uses, we help B2B decision-makers make choices that improve performance, cut down on unplanned downtime, and keep costs low over the long term. If you're looking for parts for lift traction machines, lifting equipment, machine tool positioning mechanisms or automatic production line reducers, knowing about these gearbox elements will help you make better buying decisions.

What Are Large Worm Gears and How Do They Work?

Large Worm Gear systems work by having two separate parts work together: the worm, which is a screw-like shaft, and the worm wheel, which is a helical gear. This pair sends motion and power between shafts that are 90 degrees to each other. It can change rotational motion into reduction ratios and torque multiplications that are very impressive. The threads on the worm connect with the teeth on the worm wheel, making a sliding contact. This is different from spur or helical gear systems, which have rolling contacts.

The Working Principle Behind Worm Gear Transmission

The shape itself gives it a technical edge. When the worm goes around once, it moves the worm wheel forward by the same number of teeth as the thread starts on the worm. This relationship makes it possible for high reduction ratios—usually between 5:1 and 300:1—to exist within a single stage. This means that there is no need for multiple gear sets, which would make the system more complicated and take up more space. When parts slide past each other, they create friction. This friction helps the self-locking feature stop back-driving in many situations.

Critical Design Factors for Durability and Efficiency

The choice of material has a big impact on how long something will last and how well it works. High-quality alloy steels like 20CrMnTi, 40CrNiMo, or AISI 8620 are often used for the worm shaft. These steels are case-hardened through processes like carburising, cooling and tempering, or induction hardening to make the surface hardness between 58 and 62 HRC. Because these gears work by constantly sliding against each other, this hardening protects against wear.

The worm wheel rim needs different kinds of materials. Bronze alloys that are centrifugally cast have the best combination of low friction, high wear resistance, and the ability to absorb shock loads. To get ISO 8–9 Grade perfection, the tooth profile shape must be made with great care by cutting, hobbing, milling, and grinding. This makes sure that the contact patterns are correct and that loads are spread evenly across the tooth surfaces.

Performance Metrics and Common Operational Challenges

The main performance measure is load capacity, which is affected by the features of the material, the contact area, and how well it can get rid of heat. Modern designs can fit modules from 1 to 50, and the number of teeth can be changed to fit the needs of each application. Heavy industrial applications are a good fit for the cylindrical profile type because it has predictable performance characteristics.

A common problem is noise generation, which happens when parts slide against each other. To solve this problem, we use exact production standards, the right lubricant (usually ISO VG 460 or 680 synthetic polyglycols), and toothed surface finishing processes that lower vibration and friction. Thermal control is also important because the sliding movement makes heat that can lower efficiency. Calculated backlash allowances account for thermal expansion, which keeps the system from seizure while it's running continuously.

Advantages and Applications of Large Worm Gears in Industrial Settings

Large Worm Gear transmission systems are useful in harsh industrial settings because of the unique way they work mechanically. By knowing these benefits, buying workers can find uses for these parts where they are more cost-effective than other types of gear. When you combine safety features with space efficiency and operational smoothness, you get compelling use cases in many fields.

Core Advantages of Worm Gear Transmission Systems

These gearbox parts are very useful in heavy-duty situations because of the following main benefits:

• High Transmission Ratio with Compact Structure: Because of its ability to dramatically slow down in a single stage, it does not need multiple stages of gearboxes. This makes the equipment footprint much smaller and the system architecture simpler. This ability to make the best use of room is especially useful in mining, where heavy equipment has to fit into small areas.
• Self-Locking Capability: If the lead angle stays below the friction angle (usually less than 5 degrees), the mechanism naturally stops back-driving. This is a safety feature that keeps loads from turning around when the power goes out. This feature is very important for lifting tools and lift traction machines. However, secondary brake systems are always required by industry standards for safety-critical uses.
• Smooth Transmission with Minimal Noise: When properly oiled and made to exact specifications, the sliding contact action makes operation softer than the meshing impact common in spur gear systems. In workplace settings, where less noise makes working conditions better, this benefit is important.
• High Load Capacity and Reliable Operation: Systems made with hardened alloy steel worms and bronze wheels are built to last and can handle heavy shock loads and start-up torque spikes that are common in mining and mineral processing.

Together, these benefits solve some of the most important problems in production, like limited space, safety concerns, noise levels, and the need for dependability in harsh industrial settings.

Industry Applications in Mining, Machinery, and Aerospace

In mining and material processing, transmission systems power ball mills and rotary kilns, which are big drums that spin and hold tonnes of ore. These parts are perfect for situations where failure would mean huge losses in production because they can withstand shock loads and have high reduction ratios. The small size and steady operation of these gearbox systems make them great for adding extra drives to big mine milling machines.

The self-locking feature is used in lift traction machines to make passengers safer, and it is also used in machine tool indexing systems to make precise positioning control possible. These parts are used by automated production line reducers to change the high-speed spinning of motors into the controlled, high-torque motion that conveyor systems and assembly tools need.

Precision-made gears are used in actuator systems and control mechanisms in the aircraft industry. Their high reduction ratios and small size meet strict weight and reliability standards. Because some manufacturers let you customise their products, design engineers can choose the exact tooth counts, modules, and material combinations that work best for their needs.

Maintenance Guidelines for Extended Service Life

Systematic repair practices that include lubrication, temperature management, and wear tracking are needed to make gears last as long as possible. By using ferrography techniques to look at oil, bronze particles can be found early on, giving early warning of wear progression before catastrophic failure happens. When a tooth's thickness drops to 20 to 25 percent of its original size, it needs to be replaced to keep it from breaking suddenly.

When to lubricate depends on how the machine is being used, but for continuous-duty applications, the condition of the oil should be checked every 500 to 1000 hours of use. The lubricant needs to keep its viscosity index throughout the working temperature range so that the film is strong enough to keep metal surfaces apart even when they are moving against each other. Checking the contact patterns regularly with blueing tests makes sure that the load is spread out evenly, with target contact areas of more than 60% along the length of the tooth surfaces and 50% along the height of the teeth.

Large Worm Gear Vs. Other Gear Types: Making the Right Choice

To choose the best gear type, you need to know how the different gearbox systems stack up against each other in key performance areas. Additionally, Large Worm Gears are great for some tasks, but other types of gears may be better in other situations. This comparison helps procurement professionals and design experts find gearbox options that meet the needs of the application.

Comparative Analysis Across Key Performance Parameters

Spur gears are the most efficient type of gear—often more than 98%—but they can't achieve the high reduction ratios that single-stage systems can. The parallel shaft arrangement of spur gears limits layout choices compared to worm drives, which are set up at a right angle. Because the teeth connect with impact, spur gear devices tend to make more noise.

By gradually engaging their teeth, helical gears are better at reducing spur gear noise, but they are still more efficient than worm gears and have lower reduction ratios per stage. The slanted teeth cause axial thrust loads that need more bearing capacity. Right-angle gearbox is possible with bevel gears, but they have smaller reduction ratios than worm systems and are harder to make.

Planetary gear systems have higher reduction ratios and are more efficient than worm drives, but they are much more expensive to make and don't have self-locking features built in. Planetary systems are more complicated, which means they need more maintenance and have more possible failure modes. Hypoid gears are also set up at a right angle, and they work more efficiently than worm gears. However, they don't have the large reduction ratios or self-locking features that make worm drive uses unique.

Material Impact on Durability and Operational Effectiveness

How the worm and wheel are made of materials affects their performance in a fundamental way. Steel-on-bronze is still the standard because it strikes a good balance between cost, wear resistance, and friction coefficient. Cast iron wheels and other materials are cheaper, but they don't last as long and can only be used for lighter-duty bikes. Composite materials are still being developed for specific uses, but bronze is still the most popular choice in heavy industrial settings because it has been shown to last.

The choice of steel alloy for worm shafts has a direct effect on the level of surface hardness that can be achieved by heating them. When you quench and temper materials like 42CrMo and AISI 4140, they get the 58–62 HRC surface hardness they need to keep from galling and pitting when they are constantly sliding against each other. Through carburising processes, advanced alloys like 18CrNiMo7 allow for deeper case depths, which increases service life in tough situations.

How to Procure Large Worm Gears: A Buyer's Guide

When buying Large Worm Gear transmission parts strategically, you have to think about more than just the initial purchase price. By knowing the pros and cons of both standard catalogue products and custom-engineered solutions, buyers can get the best overall value for their money while also making sure that the parts they buy meet the needs of their specific applications. When you buy something, you need to pay attention to the technical details, the supplier's skills, and the infrastructure for long-term support.

Standard Products Versus OEM-Customized Solutions

Catalogue goods have faster lead times and lower unit costs, which makes them appealing for uses that meet standard requirements. Industrial machinery, mining, and aerospace uses, on the other hand, often need custom tooth counts, special materials, or mounting configurations that standard goods can't meet. Custom engineering lets you find the best solution for unique load patterns, duty cycles, and space limitations.

We at YIZHI MACHINERY are experts at customising OEM products. We use a standard method that includes communicating requirements, creating design drawings, processing orders, inspecting for quality, packing, and shipping. This method takes into account the fact that catalogue standards are rarely met in heavy industrial settings, especially when module counts go over 20 or widths go over 1 metre. Being able to choose exact material compositions from 45# steel, SAE 4340, or specialised nickel-molybdenum alloys makes sure that parts meet the needs of operations.

Minimum order numbers have a big effect on how procurement methods are used. Some manufacturers need big orders to make custom products, but we don't have high minimum order quantities. We can make just one item when buyers need prototype quantities or parts to replace parts that are already in their equipment. Having this kind of freedom is helpful when making new tools or getting parts for old systems.

Price Drivers and Volume Negotiation Strategies

The biggest part of the price is the cost of the materials, especially for large parts that need a lot of alloy steel and bronze. The tools and methods needed to reach ISO 8-9 Grade accuracy have an effect on the costs of manufacturing precision. Grinding processes that produce exact tooth shapes and surface finishes are useful, but they take longer to do and wear out tools more quickly.

Order number leads to economies of scale by spreading out setup costs and buying materials more efficiently. When buyers buy more than one unit or make long-term deals to supply, they can negotiate better prices. Our production capacity, which we've built up over 15 years of specialising, lets us offer competitive prices even for complicated shapes that need advanced heat treatment and precise grinding.

The lead time is usually between 35 and 60 days, but it depends on the size, complexity, and production plans at the time. Buyers should plan their projects with these deadlines in mind, especially for parts that are on the key path and whose delays could affect the whole project's finish. Smaller parts may be able to be made quickly, but this usually comes with a higher price.

Supplier Selection Criteria and Risk Mitigation

To find reliable suppliers, you need to look at their technical skills, quality control systems, and infrastructure for providing support after the sale. Compliance with ISO standards is a basic way to make sure that quality management systems work, but buyers should check for special certifications that are important for their business. Our quality control methods are in line with ISO standards, and we use the best precise manufacturing and inspection tools in the world, such as high-precision CNC gear machining centers, automatic gear grinding machines, intelligent heat treatment production lines, and advanced inspection instruments.

Warranty coverage and speed after the sale protect buyers from parts failing too soon and give them options when parts don't meet specs. Our one-year warranty and quick response protocols take care of problems right away, so production doesn't have to stop. Buyers can choose the best configurations with the help of technical advice during the design process, which saves them the cost of redesigning after production starts.

Logistics skills affect both the total cost and the dependability of delivery. Because precision gears are so fragile, we use custom packing with shock-absorbing cushioning liners and wooden boxes to keep shipping damage rates below 0.1%. Multiple shipping methods, such as sea freight, air freight, and freight trains running between China and Europe, give you the freedom to meet the needs of your orders quickly and within your budget. Real-time tracking systems let buyers keep an eye on shipments from the time they are loaded at the factory until they are delivered.

Conclusion

Industrial buying professionals can make choices that improve machine performance while minimising costs and risks when they understand Large Worm Gear gearbox systems. It is impossible to use these parts in heavy-duty uses outside of aircraft, industrial machinery, and mining because they have high reduction ratios, small sizes, and the ability to lock themselves. The choice of materials, the accuracy of the manufacturing process, and the skills of the provider all have a big impact on the long-term dependability and total cost of ownership. By looking at the needs of the application and the pros and cons of various types of gear, buyers can find the best solutions for their needs, taking into account things like space limitations and working needs.

FAQ

1.What materials work best for heavy-load worm gear applications?

When case-hardened to 58–62 HRC, hardened alloy steels like 20CrMnTi, 40CrNiMo, and AISI 8620 work best as worm shafts. Centrifugally cast bronze wheels last longer in difficult situations, which makes up for their higher cost. They are better at resisting wear and shock loads for Large Worm Gears than cast iron wheels of the same size.

2.How often should maintenance occur for continuous-duty installations?

Every 500 to 1000 hours of use, the oil should be analysed to find wear particles before they cause a catastrophic failure. Looking at the contact patterns and measuring the thickness of the teeth can help you see how wear is progressing. Checks on the lubrication system and temperature tracking keep things from getting too hot, which speeds up the wear rate.

3.Can efficiency match other gear types in industrial applications?

Efficiency is usually between 50 and 90%, based on the reduction ratio and lead angle. It is lower than spur or helical systems, but it's fine when the application needs a small size, a high reduction ratio, or self-locking features that other gear types can't offer.
