Cylindrical Worm Gear
2.Material:45#steel，20CrMnTi，40CrNiMo，SAE4340，42CrMo，AISI4140，18CrNiMo7，17CrNiMo6，20CrNiMo，AISI8620，20CrNi2Mo，SAE4320
3.Load Capacity:Strong
4.Toothed Surface Finishing:Yes
5.Processing Techniques:Cutting，hobbing，milling，grinding
6.Heat Treatment:Carburising，quenching and tempering，induction hardening
7.Precision Grade:ISO 8-9 Grade
8.Applications:Elevator traction machines，lifting equipment，machine tool indexing mechanisms，automated production line reducers
- Product Description
Cylindrical Worm Gear - Precision Power Transmission Solutions
Henan Yizhi Machinery delivers enterprise-grade Cylindrical Worm Gear frameworks with 15 a long time of fabricating ability. Our precision-engineered arrangements highlight ISO 8-9 review exactness, surface hardness of 58-62 HRC, and custom modules extending from 1-50. With progressed CNC machining centers and mechanized pounding frameworks, we accomplish transport harm rates underneath 0.1% through specialized bundling. Our comprehensive benefit incorporates 35-60 day conveyance, real-time following, and one-year guarantee scope for mechanical applications.

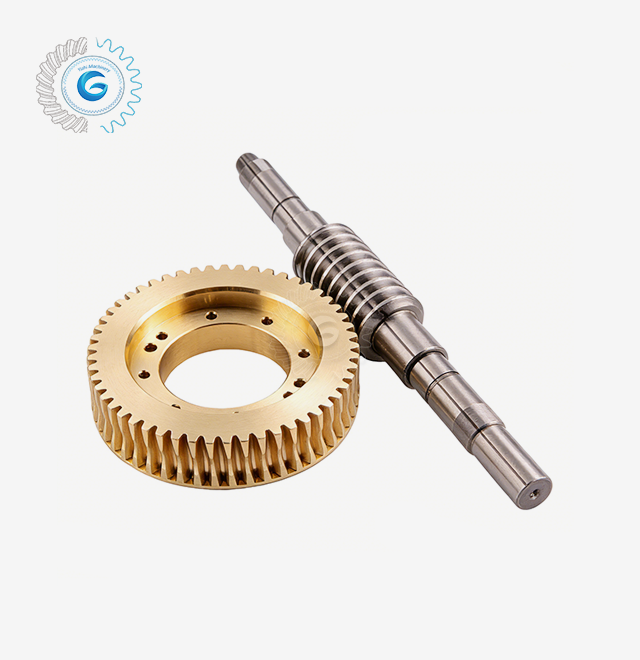

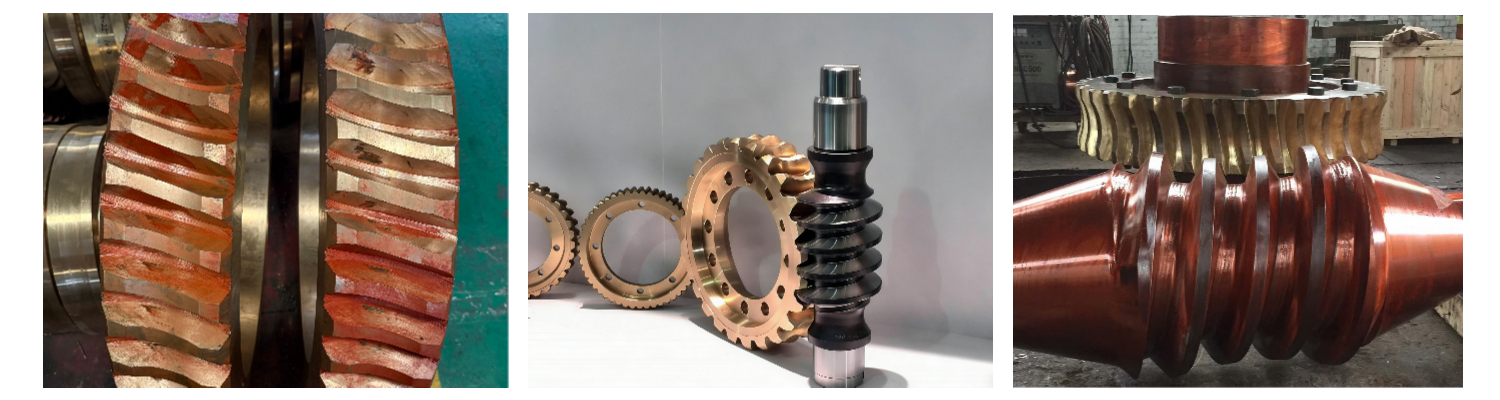

What is a Cylindrical Worm Gear?
The item is a specialized control transmission instrument outlined for high-ratio speed lessening between opposite tomahawks. This framework comprises of a round and hollow worm with uniform strings and a conjugate worm wheel. Not at all like conventional adapt frameworks, worm gears give enormous decrease proportions from 5:1 to 100:1 inside a compact footprint.
The plan addresses basic industry challenges where space limitations anticipate multi-stage equip frameworks. The inalienable self-locking capability anticipates back-driving beneath stack, making it basic for vertical lifting applications and safety-critical systems.
Key Applications
Industrial Equipment
- Elevator Footing Machines: Smooth vertical movement control with security locking
- Lifting Hardware: Tall torque duplication for overwhelming loads
- Machine Instrument Ordering: Exactness situating with negligible backlash
Heavy-Duty Operations
- Conveyor Frameworks: Anti-rollback highlights for slanted belt drives
- Mining Hardware: Stun stack resistance in grating environments
- Automated Generation Lines: Calm operation for ceaseless obligation cycles
Technical Specifications
| Parameter | Specification |
|---|---|
| Number of Teeth | Customized |
| Module Range | 1–50 |
| Profile Type | Cylindrical Worm Gear |
| Surface Hardness | 58–62 HRC |
| Precision Grade | ISO 8-9 Grade |
| Load Capacity | Strong |
| Materials Available | 45# steel, 20CrMnTi, 40CrNiMo, SAE4340, 42CrMo, AISI4140, 18CrNiMo7, 17CrNiMo6, 20CrNiMo, AISI8620, 20CrNi2Mo, SAE4320 |

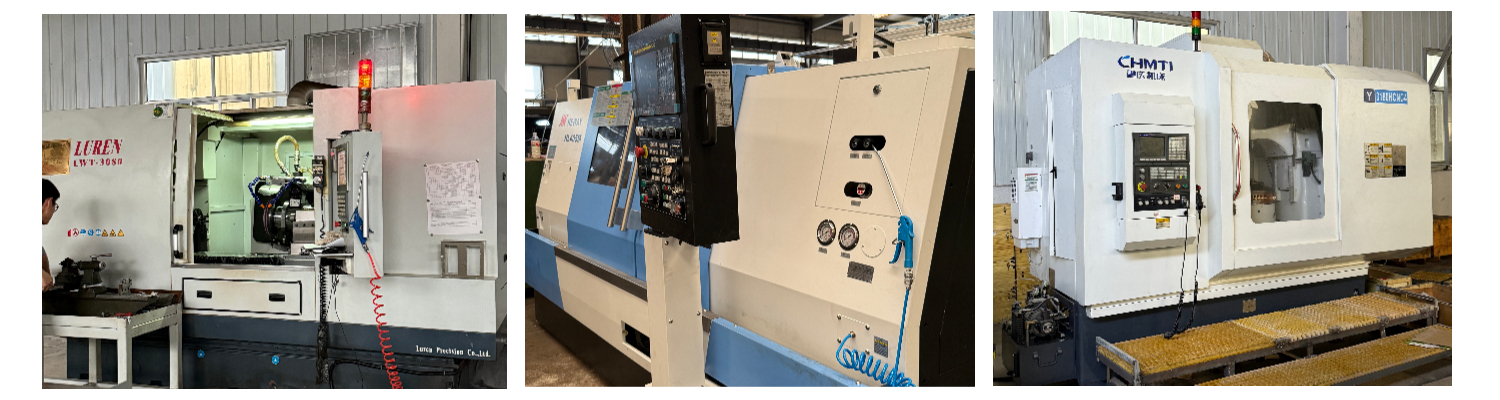

Manufacturing Process
Advanced Processing Techniques
Our state-of-the-art office utilizes numerous fabricating methods:
- Cutting and Hobbing: Starting tooth formation
- Precision Processing: Fine surface finishing
- Grinding Operations: Last precision achievement
Heat Treatment Options
- Carburizing: Improved surface hardness
- Quenching and Hardening: Ideal strength-toughness balance
- Induction Solidifying: Particular solidifying for particular applications
Key Advantages
Superior Performance Features
- High Transmission Proportion: Compact structure with enormous decrease capabilities
- Self-Locking Capability: Built-in security for vertical applications
- Smooth Operation: Negligible clamor and vibration
- Exceptional Stack Capacity: Solid execution beneath overwhelming loads
Flexible Manufacturing
- Custom Administrations: Custom fitted arrangements for particular requirements
- Low Least Orders: Single-item generation capability
- Fast Conveyance: 35-60 day lead times with real-time tracking
Quality Assurance
Our comprehensive quality framework guarantees reliable performance:
- ISO Certification: Worldwide quality guidelines compliance

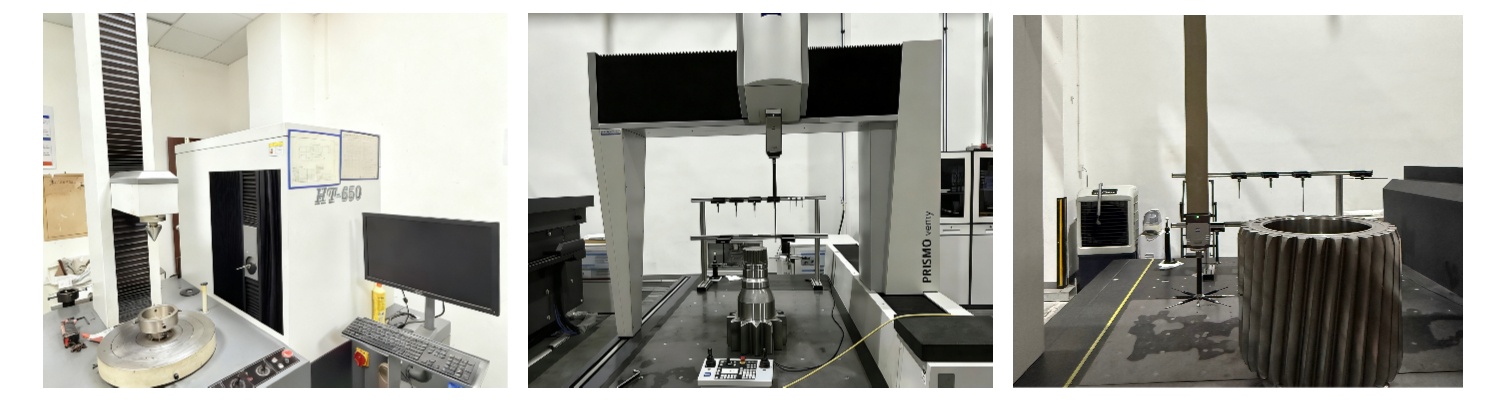

- Advanced Assessment: High-precision estimation equipment
- Damage Avoidance: Specialized bundling lessening transport harm to underneath 0.1%
The fabricating prepare takes after strict conventions from plan meeting through last conveyance, guaranteeing each Cylindrical Worm Gear meets exact specifications.
Service Excellence
Complete Support Cycle
- Pre-Sales: Specialized meeting and plan drawings
- During Generation: Test arrangement and advance updates
- After-Sales: One-year guarantee with fast response
Logistics Solutions
We offer multi-channel transport alternatives counting ocean cargo, discuss cargo, and rail associations. End-to-end visual following gives real-time upgrades from plant stacking to client delivery.
Frequently Asked Questions
Q: What reduction ratios can cylindrical worm gears achieve?
A: Our systems typically provide ratios from 5:1 to 100:1 in a single stage, eliminating the need for complex multi-stage arrangements.
Q: Are these gears suitable for vertical applications?
A: Yes, the self-locking feature prevents back-driving, making them ideal for elevators, lifts, and other vertical equipment.
Q: What materials do you recommend for high-load applications?
A: We suggest 20CrMnTi or 40CrNiMo with carburizing treatment for maximum durability under heavy loads.
Q: Can you handle small quantity orders?
A: Completely. We acknowledge single-item generation and keep up moo least arrange amounts to serve different client needs.
Q: How do you ensure quality during shipping?
A: Our custom bundling framework incorporates shock-absorbing padding and wooden beds, accomplishing transport harm rates underneath 0.1%.
Contact Us
The precision engineering behind each Cylindrical Worm Gear guarantees dependable operation over requesting mechanical applications, sponsored by our comprehensive back services.
Ready to discuss your requirements? Email us at sales@yizmachinery.com for technical consultation and custom solutions.
