Worm Gear Manufacturing: Precision and Innovation

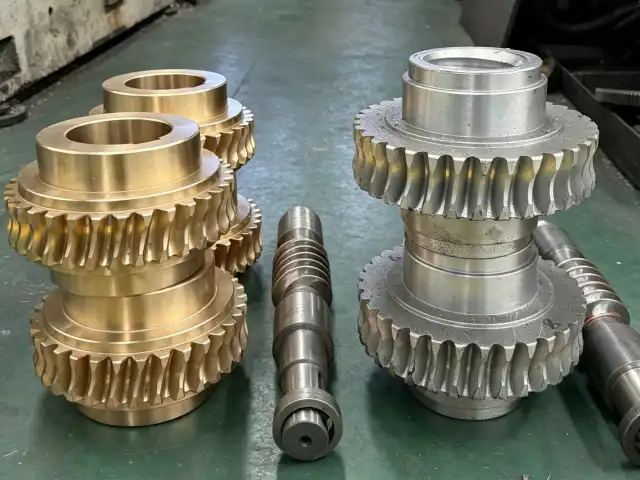

Worm gear manufacturing represents a critical intersection of precision engineering and innovative production techniques. When we talk about Precision Worm Gear systems, we're discussing components that deliver exceptional accuracy and reliability in power transmission applications. These specialized mechanical elements combine a machined worm (screw) with a mating worm wheel, manufactured to extremely tight tolerances—typically ISO 8-9 Grade—addressing industry pain points regarding positional accuracy, kinematic error, and vibration control. The technology has become indispensable in industrial machinery, mining operations, and aerospace applications where compact design, high reduction ratios, and smooth torque transmission are non-negotiable requirements.

Understanding Precision Worm Gears: Design and Functionality

Core Design Principles That Set Standards

Due to their careful engineering and high level of workmanship, Precision Worm Gears are different from other industrial gearing. In the basic form, there is a worm wheel that meshes with a worm that is threaded like a screw. This makes a 90-degree angle for power transfer. These parts are labelled as "precision" because they are made with tighter standards and have better surface finishing. The mechanism works because the worm threads and wheel teeth slide against each other, changing the direction of rotation and getting reduction ratios that would need a lot more room with other types of gear. This small structure offers high gearbox ratios—often 10:1 to 60:1—with a small footprint, making them perfect for situations where saving space is important.

Material Selection and Advanced Alloys

The composition of a material has a direct effect on how long it works and how reliably it functions. Precision Worm Gear sets are made by YIZHI MACHINERY from high-quality metals such as 45# steel, 20CrMnTi, 40CrNiMo, 42CrMo, AISI4140, 18CrNiMo7, 17CrNiMo6, 20CrNiMo, AISI8620, 20CrNi2Mo, and SAE4320. Case-hardening alloys, such as 20CrMnTi, have very durable surfaces while still having a tough core, while through-hardening steels, such as 42CrMo, have strength properties that are the same all the way through the part. Using heat to treat materials, like carburising, quenching and tempering, and induction hardening, can improve their properties even more, making the surface hardness between 58 and 62 HRC. This level of hardness protects against wear and pitting, and the softer core keeps its ability to absorb shock, which is important for handling dynamic loads in mining equipment and lift traction machines.

Processing Techniques for Superior Accuracy

To make Precision Worm Gear parts, you need to use complex processing methods that ensure quality at every step. Cutting processes are usually the first step in the production process. They set the basic shape. Next, hobbing is used to make the first gear tooth profiles. Milling processes smooth out the shapes of the teeth and make sure that the lead angles are exact. Grinding, which is the most important finishing step, makes the surfaces mirror-smooth and the dimensions are exact enough for precision-grade classification. These two processing methods work well together: hobbing makes the tooth form accurate, and grinding gets rid of surface flaws that cause noise, vibration, and early wear. We finish the toothed surface in a way that makes contact patterns that spread loads evenly across the tooth flanks. This increases the load capacity and operational lifespan. When angular positioning mistakes must stay below arc-minute values, these methods are especially important for things like machine tool indexing systems.

Industrial Applications Demonstrating Practical Value

The useful advantages of Precision Worm Gears can be seen in many different manufacturing settings. These parts make sure that the traction machines in lifts can speed up and slow down smoothly and quietly. They also have self-locking features that make the machines safer for passengers. Lifting equipment uses its high load capacity and small size to get the most out of installation areas that are limited. For precise machining tasks, machine tool indexing mechanisms need to have very little backlash in order to achieve repeatable positioning accuracy. Automated production line reducers use their smooth gearbox properties to get rid of vibrations that could hurt the quality of the products being put together quickly. Mining companies like how strong they are and how well they work in tough settings with lots of shocks and contamination. Even though aerospace uses the most precise types, they are still useful because they have good power-to-weight ratios and consistent performance even in a wide range of weather conditions.

Precision Worm Gear vs Alternative Gear Solutions: A Comparative Insight

Torque Capacity and Size Considerations

To choose the best gear technology, you need to know how the different options match the gearbox of torque with the size of the gear. Precision Worm Gears are great at getting high reduction ratios into small spaces. For example, a 30:1 reduction takes up a lot less room than the same-sized planetary or spur gear trains. Planetary gear systems are more efficient and have a higher torque density, but they are much more expensive and complicated to set up. Helical gears are great for spreading out loads and running smoothly, but they can't match the reduction ratios that can be reached with worm configurations that don't have multiple stages. Spur gears are efficient and cost-effective, but they make more noise and need more room to be installed for the same reduction ratios. The decision matrix changes depending on the importance of the application. Worm gear solutions are usually the best engineering choice when installation space is limited and reduction ratios are higher than 20:1.

Noise Levels and Backlash Characteristics

Precision worm gears provide quiet operation and low backlash, making them suitable for accurate motion control applications. Their sliding contact and high contact ratios reduce noise compared with spur and bevel gears. Precision manufacturing can achieve 3–5 arcminutes of backlash, improving positioning accuracy, though trade-offs should be considered against cost and application requirements.

Load-Bearing Capacity Across Gear Types

Precision worm gears provide strong load capacity for heavy-duty applications through optimized materials and heat treatment. Although their efficiency is lower than planetary and helical gears due to sliding contact, they offer valuable self-locking capability. This feature prevents back-driving and provides reliable holding force in lifting and positioning systems without external brakes.

Innovations in Worm Gear Manufacturing: Enhancing Precision and Efficiency

Limitations of Conventional Manufacturing Methods

Conventional worm gear manufacturing faced limitations in precision, consistency, and cost. Manual adjustments caused production variations, while traditional hobbing and milling struggled with tight tolerances and surface quality. Inconsistent heat treatment and limited inspection methods reduced reliability. These challenges increased defects, machining time, and overall production expenses for precision components.

Transformative Technologies Driving Modern Production

CNC machining has changed the way Precision Worm Gears are made by getting rid of human error and making it possible to run complex tool paths consistently. High-precision CNC gear machining centers are used in our factory to make sure that the precise accuracy of our parts stays within micrometres during long production runs. Multi-axis interpolation is used by these tools to make accurate involute profiles and lead angles that meet the requirements of ISO 8-9 Grade. Fully automatic gear grinding machines use controlled material removal to get the surface roughness below 0.4µm Ra. This makes the mirror finishes that are needed for the formation of a hydrodynamic lubrication film. Intelligent heat treatment production lines use exact temperature tracking and atmosphere control to make sure that all of the parts have the same case depth and core hardness. Modern surface treatments, such as specialised coats, lower friction coefficients and make things more resistant to wear than old ways could. Coordinate measuring machine (CMM) technology and double flank rolling tests are used to make sure that the total composite error and tooth-to-tooth variations are correct. This gives objective quality data that helps the process keep getting better.

Real-World Performance Improvements

Manufacturing innovations improve real-world performance through higher precision, better surface finishes, and consistent heat treatment. CNC-produced worm gears reduce noise, extend service life, and lower maintenance costs. High-precision components enhance positioning and smooth operation in lift systems. Tighter tolerances and reduced friction allow engineers to achieve more reliable and efficient system designs.

Future Trends in Smart Manufacturing

Future worm gear manufacturing will benefit from automation, IoT, and digital technologies. Smart sensors enable real-time tool monitoring, while data analytics optimize processes and maintain quality. Digital twins reduce setup time by simulating production outcomes. Additive manufacturing may expand design possibilities through advanced prototyping and low-volume production, improving efficiency and flexibility.

Procurement Guide for Precision Worm Gears: Making Informed Decisions

Evaluating Supplier Capabilities and Certifications

A successful procurement process starts with a full evaluation of the seller, with a focus on their professional skills and quality systems. ISO certification is a basic way to make sure that manufacturing processes follow written instructions and are overseen by quality control. In addition to basic certifications, you should look into the equipment that suppliers have on hand. Manufacturers who have modern CNC gear grinding machines and coordinate measuring systems show that they are committed to making Precision Worm Gears. Check out material tracking systems that keep records of alloy formulas and heat treatment to make sure that parts meet the required mechanical properties. Check out the customisation options, especially the ability to make parts with custom tooth counts, modules that range from 1 to 50, and surface hardness requirements that fall between 58 and 62 HRC. Suppliers who offer all-around services, from communicating requirements to making design plans and handling production, quality control, packing, and shipping, make it easier to complete projects and hold everyone accountable.

Understanding Technical Specifications and Datasheets

Technical datasheets have important information that buying teams need to understand properly to make sure that parts will work together. Labels for precision grades, like ISO 8-9 Grade, show the level of geometric accuracy and expected performance. The specs of a module determine the size of its teeth and its load capacity. The pressure angle, on the other hand, affects its efficiency and ability to lock itself. Surface hardness values (58–62 HRC for our Precision Worm Gears) are directly linked to how well they resist wear and how long they should last. It is important to compare load capacity rates to application duty cycles, taking into account shock loads and operating temperature ranges. The most common profile type is cylindrical worm gears, which affects how the gears are put together and how far apart they can be. Talk to the manufacturer's technical support teams about any unclear parts in the datasheets and application-specific needs that might mean changing parameters beyond what's available in the catalogue.

Commercial Considerations and Order Optimization

Commercial optimization of precision worm gears depends on order volume, customization, materials, lead times, and total ownership costs. Flexible suppliers offering single-unit production, competitive pricing, and varied shipping options provide greater value. Protective packaging, real-time tracking, and logistics choices support reliable delivery, inventory planning, and efficient procurement decisions.

Building Trusted Partnerships With Quality Manufacturers

Long-term supplier partnerships provide valuable expertise, responsive support, and reliable quality. Experienced manufacturers like YIZHI MACHINERY apply industry knowledge to meet demanding requirements. Warranty coverage, technical consultation, design support, progress updates, and quality transparency strengthen customer confidence. These services help optimize specifications, solve issues quickly, and ensure stable operations.

Maintenance and Optimization of Precision Worm Gears for Long-Term Performance

Essential Lubrication Protocols

Precision Worm Gear service life and performance depend on how well they are oiled. The sliding contact mechanism in worm meshes causes more friction than rolling contact gears, so it is very important to choose the right lubricant and keep up with maintenance. Synthetic polyalkylene glycol (PAG) oils are the best choice for the industry because they are more stable at high temperatures and have lower friction coefficients than mineral oils. The viscosity of the lubricant should fit the working temperature range and the sliding speed of the surface. For example, oils with lower viscosities that make good hydrodynamic films without losing too much energy through churning are needed for faster speeds. Controlling contamination is very important because particles getting into systems cause rough wear that breaks down finishes quickly and raises temperatures. The manufacturer will tell you how often to change the oil, but it's usually between 2,000 and 5,000 hours of use, depending on the conditions and how hard the job is. During operation, keep an eye on the lubricant temperature. If it goes above 90°C, it means that the machine isn't properly lubricated, is overloaded, or isn't able to get rid of heat properly. This needs to be fixed right away to avoid rapid wear and possible seizure.

Alignment Checks and Routine Inspections

Proper alignment ensures balanced load distribution and prevents premature gear failure. Regular inspections should verify shaft alignment, center distance, fastening conditions, and tooth wear patterns. Noise, vibration, and thermal changes can reveal early problems. Recording inspection data supports predictive maintenance planning based on actual operating conditions rather than fixed service intervals.

Troubleshooting Common Performance Issues

Common performance issues such as noise, overheating, efficiency loss, and vibration often indicate gear, lubrication, or alignment problems. Checking backlash, lubrication conditions, load levels, and mounting accuracy helps identify causes. Vibration analysis supports effective troubleshooting, while persistent issues should be reviewed with manufacturers to apply design knowledge and proper corrective solutions.

Performance Enhancement Through Continuous Monitoring

Continuous monitoring improves equipment reliability by detecting issues before failures occur. Vibration, temperature, and oil analysis systems identify wear, lubrication problems, and contamination, enabling condition-based maintenance. Operational data supports predictive maintenance programs that optimize replacement timing, extend component life, reduce downtime, and improve resource efficiency by shifting from reactive to proactive strategies.

Conclusion

Precision Worm Gear production has developed into a complex fusion of material science, advanced machining methods, and quality control systems that produce parts that meet the strict needs of industrial machines, mining operations, and aerospace applications. Knowing the design rules, material qualities, and processing methods that make precision-grade parts different from normal ones helps you make smart buying choices. When you compare performance features of one gear system to those of other options, you can see how well it fits your needs and how much it costs. Innovations in manufacturing, such as CNC machining, automatic grinding, and clever heat treatment, keep raising the level of accuracy that can be achieved and the efficiency of production. To make sure the quality of the parts and the success of the project, good procurement strategies balance technical requirements, the supplier's abilities, business concerns, and the chance of forming a partnership. By following the right repair procedures and keeping an eye on performance, you can extend the life of your equipment and make sure it works reliably. This will protect your investments and lower your total cost of ownership.

FAQ

1.What performance advantages do precision worm gears offer compared to standard models?

Precision Worm Gears have tighter tolerances than commercial grades, usually ISO 8–9 Grade. This means that there is less backlash, the machine runs more smoothly, and there is less noise. Better surface finishing through grinding operations cuts down on friction and wear, which greatly increases the service life. Better consistency in the heat process makes sure that the load capacity and mechanical qualities are the same across production lots. These changes mean that the positional accuracy for motion control applications is better, the operation is quieter in noise-sensitive areas, and the stability is better during heavy task cycles.

2.How do I choose between worm gears and alternative gear technologies for my application?

Look at a number of factors, such as the need for a high reduction ratio (worm gears are great for this), limited space (worm configurations are small), the need for self-locking (low-lead-angle worms naturally have this feature), the need for efficiency (planetary gears are better at this but cost more), the need for low noise (precision worms run quietly), and the need for cost-effectiveness (spur gears are cheaper but take up more space). Worm gear options are usually best for situations that need high reduction ratios within limited spaces and can handle a little less efficiency.

3.What are typical lead times for custom precision worm gear orders?

Depending on the complexity of the specifications, the availability of materials, and the state of the production queue, custom manufacturing wait times are usually between 35 and 60 days. Simple changes to standard designs may be able to be made faster, but fully unique Precision Worm Gear shapes that need special tools take longer. Talk about shipping needs early on in the buying process. Some makers will speed up production for an extra fee if you need it quickly.

Partner With YIZHI MACHINERY for Your Precision Worm Gear Requirements

Customised worm gear solutions made for industrial machinery, mining equipment, and aircraft uses are ready to help you with your precise motion control problems at YIZHI MACHINERY. As a well-known Precision Worm Gear manufacturer with 15 years of experience, we offer parts that are made to ISO 8-9 Grade standards using cutting-edge CNC machining centers, automated grinding systems, and smart heat treatment lines. Our wide range of materials, which includes 20CrMnTi, 40CrNiMo, SAE4340, and AISI4140 metals, can be used in a wide range of situations, from lift traction machines to machine tool turning mechanisms. We have low minimum order quantities and can make just one item at a time, so you can choose us whether you need prototype parts or full production volumes. Our full service includes design advice, synchronised production updates, reports on quality inspections, custom protective packing, and tracking shipments in real time. Contact us at sales@yizmachinery.com to talk about your needs and find out how our Precision Worm Gear seller services can improve the performance and dependability of your equipment.

References

1. American Gear Manufacturers Association (AGMA). AGMA 6034-B92: Practice for Enclosed Cylindrical Wormgear Speed Reducers and Gearmotors. Alexandria: AGMA Publications, 1992.

2. Dudley, Darle W. Handbook of Practical Gear Design and Manufacture. 2nd ed. Boca Raton: CRC Press, 2012.

3. ISO Central Secretariat. ISO 1328-1:2013 Cylindrical Gears — ISO System of Flank Tolerance Classification. Geneva: International Organization for Standardization, 2013.

4. Jelaska, Damir. Gears and Gear Drives. Chichester: John Wiley & Sons, 2012.

5. Radzevich, Stephen P. Dudley's Handbook of Practical Gear Design and Manufacture. 3rd ed. Boca Raton: CRC Press, 2016.

6. Society of Automotive Engineers. SAE J1588: Worm Gear Design Manual. Warrendale: SAE International Standards, 2005.
