What industries use custom bevel gears and where to source them

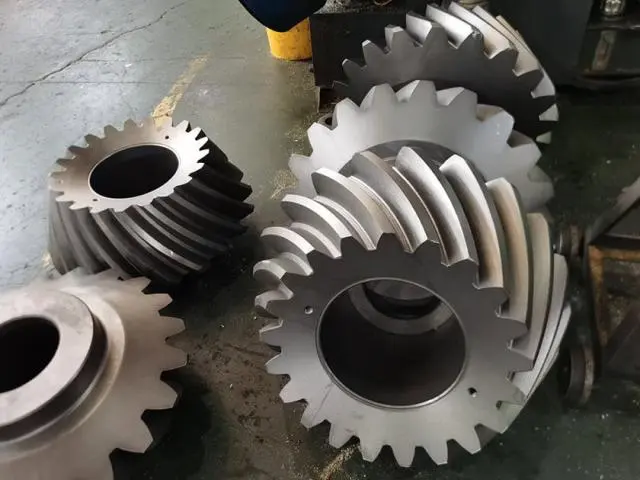

Custom Bevel Gears are precisely built transmission parts that move power between shafts that cross each other, usually at 90-degree angles, but custom angles are common in specialized machinery. These gears are very important in fields like aircraft, mining, and industrial machines because they can handle heavy loads, work in harsh conditions, and last a very long time while being precisely manufactured. To get these parts, you need to work with experienced makers who can offer full customization, strict quality control, and global shipping support to meet the needs of demanding B2B buyers.

​

Understanding Custom Bevel Gears and Their Industrial Importance

Because they are made to exact OEM specs for tooth geometry, material composition, and heat treatment, Custom Bevel Gears are fundamentally different from off-the-shelf options. These special mechanical parts transfer rotational motion and force between shafts that cross each other. They solve important engineering problems that regular gears can't. When there isn't much room, heavy loads, or difficult working conditions in an industrial setting, customizing is required instead of choice.

Types of Bevel Gears and Their Characteristics

Knowing the main types helps people who work in buying choose the best option. The teeth on straight bevel gears are straight and horizontal, which makes them easier and cheaper to make. However, they make more noise and put stress on the body because of the quick full-tooth touch that happens during operation. Spiral bevel gears, on the other hand, have curved teeth that connect gradually. This makes them run more smoothly, make less noise, and hold a lot more weight. They are perfect for high-speed uses in aircraft and precision machinery. Hypoid bevel gears let you set up shafts that aren't lined up with each other. This gives you more design options and the ability to handle more power. You can find these gears in car differentials and heavy mining equipment.

Materials and Heat Treatment for Demanding Applications

The choice of material has a direct effect on how long gear lasts and how well it works under stress. We use high-quality alloy steels like 20CrMnTi, 40CrNiMo, SAE4340, and AISI8620 to make bevel gears because they are strong and don't break down easily. Some heat treatments, like carburizing, cooling and tempering, and induction hardening, make the surface hard to 58–62 HRC while keeping the core tough at 30–40 HRC. This makes sure that the surface of the gear doesn't wear down or get pits, and the core takes the shock loads, so the gear doesn't break in high-torque places like mine crushers or aircraft actuators.

Why Precision and Customization Matter?

In mission-critical situations, precision grade is a must. We use advanced processing methods, such as CNC cutting, hobbing, milling, and precise grinding, to make sure that our gears meet ISO 8-9 Grade standards. The Gleason gear profile type we use makes sure that the contact patterns and load distribution are optimized, which is very important for uses that need to be reliable in harsh circumstances. Customization takes into account things like limited space, specific gear ratios, and non-standard pressure angles (14.5° or 20°), which lets engineers easily add these parts to custom equipment designs.

Major Industries Utilizing Custom Bevel Gears

Because they are so flexible and strong, Custom Bevel Gears are essential in many high-stakes fields where failure is not a choice.

Aerospace: Mission-Critical Reliability

The strictest standards are put on mechanical parts used in aerospace uses. Spiral bevel gears are used in helicopter transmissions, actuator systems, and flying control devices. They have to work perfectly in temperatures ranging from -55°C to over 150°C. These gears need to have overlapping teeth that connect smoothly and quietly, and they also need to have high safety factors against wear failure. Precision grinding to limits of a few microns gets rid of backlash and ensures the exact precision needed for flight-critical systems. To meet the standards for aerospace approval, the material's integrity and the uniformity of its heat treatment are carefully checked.

Mining: Surviving Brutal Operating Conditions

Gears in mining tools are constantly under a lot of shock loads, abrasive particles, and high power. Heavy-duty bevel gears are made from high-nickel metals and have special surface processes to stop corrosion and micro-pitting. They are used in cone crushers, ball mills, and conveyor systems. Custom designs make the tooth geometry as good as it can be so that loads are spread out properly. This stops premature wear and severe breaking that would stop production. These gears are very important for keeping remote mine sites running because they can take hits and keep their shape even when they are under constant stress.

Industrial Machinery: Precision and Power Combined

Robotic arms, machine tool spindle drives, and automatic industrial systems all need bevel gears that are both precise and able to transfer power. In robots, zero-backlash or low-backlash custom gears make sure that positions are accurate by getting rid of "dead zones" that can affect the accuracy of an assembly. Heavy industrial cars' steering systems depend on small bevel gear arrangements that can fit in small spaces and move power reliably. Gears that are made to handle changing loads and being outside without needing to be serviced often are useful for agricultural tools and light industrial equipment.

Emerging Applications in Renewable Energy and Marine Systems

Custom Bevel Gears are becoming more popular in gears for wind turbines and naval propulsion systems. Since wind turbines are always working in harsh coastal settings, they need gears that are very resistant to wear and rust. Marine Z-drives and azimuth thrusters both have to deal with problems that are similar: they need parts that can keep working even when they are exposed to saltwater and waves. Engineers can choose coats, seal designs, and materials that last longer in these tough situations thanks to customization.

How to Select the Right Custom Bevel Gear for Your Industry Needs?

To find the best gear option, you need to carefully look at the technical factors that are related to the needs of the operation.

Critical Technical Parameters to Evaluate

The most important thing to think about is the torque ability. Figure out the highest force that your application can handle, taking into account starting peaks and shock loads. Compare this to the estimated size of the gear, making sure to include the right safety factors. The gear ratio affects how much speed is reduced and how much torque is multiplied. Custom designs let you use non-standard ratios that aren't offered in catalog goods. Modules with a range of 0.5 to 50 can hold everything from tiny medical devices to huge mining machinery. Pressure angles of 14.5° or 20° change how strong teeth are and how stress is distributed in the contact area.

Dimensional Precision

Dimensional accuracy affects how easy it is to put things together and how smoothly they work. To get the required backlash, which is usually between 0.10mm and 0.20mm based on the module, mounting distance tolerances must be strictly controlled. These are generally ±0.05mm. Different types of applications need different levels of surface hardness. Lower speeds can handle 45–50 HRC, but high-speed precise applications need 58–62 HRC, which can only be reached by grinding after heat treatment.

Comparing Custom Solutions to Alternatives

Standard gears have lower start-up costs and are delivered faster, but they don't always meet specific needs. Custom Bevel Gears offer exact size matches, so you don't have to make any expensive changes or deal with lower performance. Bevel gears are more efficient (95–98% vs. 50–90%) and better at getting rid of heat in high-speed situations than worm gears. Unlike spur gears, bevel gears let you transmit power at a right angle, which is important for designing small equipment. Customization is an investment that pays off with longer service life, less downtime, and better performance.

Understanding Manufacturing Processes and Lead Times

The process of making gears follows a set pattern. Forging or sawing are used to make the blanks, and then rough turning is done to set the outer diameter and hole measurements. The tooth shape is made by hub or milling the gear. Heat treatment methods make steel harder and more resistant to wear, but they also twist the steel on purpose. This error is fixed by precision grinding, which gives the tooth its final accuracy. Before protection coatings and packing, quality control checks to see if the dimensions are correct and the tooth contact patterns are correct. Production times are usually 35 to 60 days.

Where to Source Custom Bevel Gears: Trusted Suppliers and Manufacturers

When looking for trusted providers, you need to look at more than just price.

Global Supplier Landscape

Different manufacturers in the US, Europe, and Asia offer different strengths. European and North American providers usually put more emphasis on technical support and quick prototyping, but their prices are higher. Asian makers, especially those with ISO approval and high-tech tools, offer low prices without sacrificing quality. It's important to check real skills instead of just believing what marketing says.

Critical Evaluation Criteria for Supplier Selection

An evaluation of a manufacturer's abilities should look at how complex their equipment is. Top providers run smart heat treatment production lines, fully automatic gear grinding machines, and high-precision CNC gear machining centers. Coordinate measuring machines (CMM) and gear rolling testers are examples of inspection tools that make sure the dimensions are correct and that the teeth touch. Suppliers that offer design consulting can reverse engineer old plans to make them more useful for current manufacturing. Delivery dependability and logistics capabilities are also very important for global buying.

Why YIZHI MACHINERY Stands Out

Since we started in 2016, we've focused on making unique gears and exporting them around the world, giving us a lot of experience with high-precision mechanical parts. Our 15 years of production knowledge and ISO-compliant quality systems make sure that we always send reliable parts. We keep technical hurdles in precision grinding and full customization options that can be used for purchases in many industries. Our reputation for quality is backed up by long-term relationships with well-known mechanical engineering companies.

Optimizing Procurement: Best Practices for Buying Custom Bevel Gears

Strategic procurement methods get the most value for the least amount of danger.

Requesting Accurate Quotes and Managing Specifications

Provide full details for Custom Bevel Gear, such as the required power, working speeds, environmental conditions, and the maximum size that can be used for Custom Bevel Gear. Clear communication is achieved through detailed models or reference pieces for Custom Bevel Gear. Make sure you understand the price factors for Custom Bevel Gear, such as the costs of materials, tools, heat treatment, and finishes. Clear pricing for Custom Bevel Gear builds trust and makes it easier to stick to a budget.

Lead Time Management and Bulk Ordering Advantages

Realistic scheduling is possible when you know about the 35–60 day output schedule. When you order ahead of time, you can avoid emergencies that need expensive fast service. We can handle small orders when needed, but buying in bulk saves money per unit by making better use of materials and dividing up production. Setting up outline deals for needs that come up over and over again makes reordering easier and keeps prices stable.

Balancing Upfront Costs with Long-Term Value

Alternatives that are cheaper often have hidden costs that show up later on when they break down, need more upkeep, or cause operating downtime. The total cost of ownership is lower when you buy handmade gears that are made from high-quality materials and go through strict heat treatment. Calculate lifecycle costs including replacement frequency, downtime effect, and upkeep needs when assessing providers.

Warranty and After-Sales Considerations

We offer a one-year guarantee that covers problems with the way the product was made, so you can feel safe about your purchase. Rapid reaction methods make sure that when you need technical help, you can get it fast. Keeping clear records of guarantee terms, such as limits on coverage and how to file a claim, stops disagreements and keeps good relationships with suppliers. After-sales service shows that you believe in the quality of the goods and want the customer to succeed.

Conclusion

Custom Bevel Gears are important parts for aerospace, mining, and industrial tools where normal options can't provide the speed, precision, or longevity needed. To choose the right seller, you need to look at more than just price. You should also look at the supplier's manufacturing skills, technical expertise, logistics dependability, and value-added services. Procurement pros can find the best solutions that meet operating needs by knowing about the qualities of materials, how they are heated, and the level of accuracy needed. Feel free to use our knowledge and track record to help you with even the most difficult gear transfer needs.

FAQ

1. What is the difference between straight and spiral bevel gears regarding performance?

Straight bevel gears have easier geometry and cheaper production costs, but they make more noise and stress when they hit something hard at full speed. Spiral bevel gears have bent teeth that connect gradually. This makes them run more smoothly, make much less noise, and hold more weight. Spiral designs are very useful for high-speed uses, which is why they are chosen over other designs in aerospace, precision robots, and high-end car systems.

2. How do you control backlash in custom bevel gear assemblies?

Backlash control rests on being able to precisely change the distance between where the pinion and gear are mounted. We give you exact fixing distance guidelines (usually ±0.05mm) and full advice on how to put it together. When you use shims during installation, you can reach the backlash goals shown on the technical plans, which are generally between 0.10mm and 0.20mm for each module. When blowback is set correctly, teeth don't get stuck together, and play that affects placement accuracy is kept to a minimum.

3. What heat treatment processes enhance gear performance?

Carburizing spreads carbon into the top layer, making areas that are hard and won't wear down while keeping cores that are tough. The best mix of strength and toughness is reached by quenching and heating. For certain uses, induction hardening can harden only a small area of the surface. These processes raise the surface hardness to 58–62 HRC, which greatly increases resistance to wear and fatigue life. At the same time, the core's resilience lets it handle shock loads without breaking.

Partner with YIZHI MACHINERY for Your Custom Bevel Gear Solutions

For 15 years, YIZHI MACHINERY has been making precise Custom Bevel Gears that are made to your exact specs. As a trusted Custom Bevel Gear provider, we use advanced CNC cutting, precise grinding, and strict quality systems that are in line with ISO standards to make parts that go above and beyond what is expected. Our full customization routine, which includes communicating requirements, making design drawings, processing orders, inspecting for quality, creating custom packing, and shipping goods around the world, makes sure that projects run smoothly. We accept low minimum order amounts, even for a single item, so you can make prototypes and large quantities at the same time. Our customized packing and damage prevention systems keep shipping damage rates below 0.1%, and our multi-channel logistics with real-time tracking lets you see every detail of your package. Contact our team at sales@yizmachinery.com to discuss your technical needs.
