Where can I buy internal helical gears for industrial machinery?

Finding reliable Internal Helical Gear parts starts with finding makers that offer both high-tech production and helpful customer service. If you want to buy these precision gears, you need to find sellers who meet ISO-certified quality standards, let you make changes, and deliver on time. This is true whether you work in mining, military, or general industrial machinery. YIZHI MACHINERY, which was founded in 2016, is one of the renowned companies that gives custom solutions to procurement workers around the world. We have been making Internal Helical Gears for 15 years and can make them from high-quality alloy steels like 20CrMnTi, SAE4340, and AISI8620. The helix angles can be anywhere from 5° to 45°, and the surface hardness can reach 58–62 HRC. This guide walks you through the most important things you need to think about in order to easily find gears that will improve the performance and life of your equipment.

​

Understanding Internal Helical Gears: Key Features and Benefits

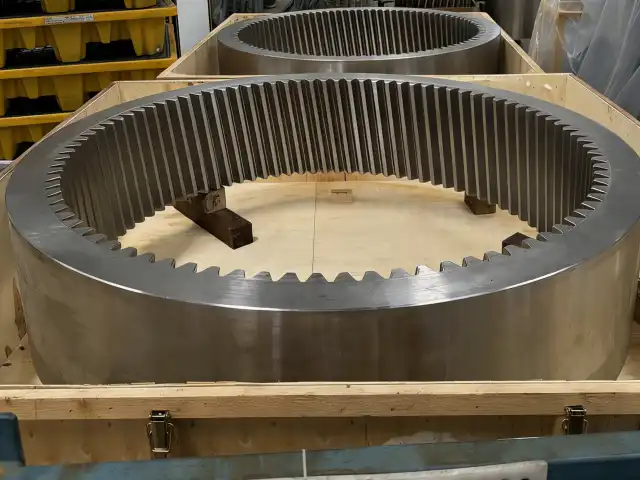

When it comes to power transfer systems, Internal Helical Gears are unique because they have teeth cut at an angle on the inside surface of a cylinder-shaped bore. In contrast to external helix gears or straight spur gears, this arrangement makes a concave-convex meshing relationship with external pinions. This allows teeth to connect gradually, distributing loads across multiple contact points at the same time. In function, this design feature directly leads to less noise, vibration, and harshness, which is generally known as NVH.

What Makes Internal Helical Gears Unique?

The amount of vertical overlap during meshing is based on the helix angle, which is usually between 10° and 35° in commercial settings. Higher helix angles raise the contact ratio, which shows how many teeth are touching at the same time. In well-designed systems, this ratio can go above 2.0. Because of their higher contact ratio, these gears can handle 20–30% more torque density than spur gear setups of the same type. This makes them perfect for small planetary gear reducers and winches that need to be efficient but don't have a lot of room.

The choice of materials has a big impact on how long something works. Heat processes like carburizing or cooling and tempering are used on high-grade alloy steels like 42CrMo and 18CrNiMo7 to make their surfaces case-hardened and resistant to wear and pitting. Core toughness and surface hardness that often reach 58–62 HRC work together to make sure that gears can handle being loaded and unloaded many times in machine tool feed mechanisms and transmission systems for lifting equipment without wearing out too quickly.

Core Advantages in Industrial Applications

Internal Helical Gears are better in many ways than bevel gears or worm gear sets. When driving at a right angle, bevel gears work great, but when driving along a parallel line, internal helical configurations offer more power and more space. Worm gears have high reduction ratios but are less efficient because of sliding friction. Helical teeth, on the other hand, make rolling contact smoothly with little energy loss.

The very small size of Internal Helical Gears makes them very useful in planetary gearboxes, where the ring gear (an Internal Helical Gear) circles several planet gears to get the most power into a small frame. The continuous tooth engagement pattern makes the transmission very stable. It reduces shock loads and increases the life of parts in mine conveyors and aircraft actuators. Because they can hold a lot of weight, these gears can be used in heavy-duty situations where external spiral gears would need longer center lengths to handle the same amount of force.

Comparison and Selection Criteria for Internal Helical Gears

In order to choose the right gear type, you need to know how Internal Helical Gears compare to other options in real life. External helical gears are best for open-drive situations where both gears spin openly, but internal configurations are better when room is limited and arrangements need to be nested. Planetary gear systems use internal helical ring gears to make designs smaller than they could be with external-only designs. This is especially useful in automatic transmissions and artificial joint actuators.

Torque Transmission and Noise Profiles

When fully oiled, Internal Helical Gears have a torque efficiency of almost 98%, which is about the same as external helical pairs and higher than worm drives, which rarely go above 90%. The slow tooth contact that comes with helical profiles lowers transmission error, which is the difference between how the gears should rotate and how they actually do. This is what it takes to reach DIN 3962 Quality Class 5-6 precision levels. This accuracy means that the machine will run more quietly, which is very important in machine tool spindle housings where noise pollution can make it hard for the user to be comfortable and measure accurately.

In a lot of industrial settings, Internal Helical Gears are easier to maintain than bevel or worm types. Helical teeth create axial thrust forces that need thrust bearings or washers. This is a minor problem compared to worm gear sets, which need to be oiled often and produce heat. Worm gears, on the other hand, may need to be rebuilt every 20,000 hours at the same duty cycles, whereas planetary reducers with Internal Helical Gears can typically go 50,000 hours without needing to be serviced.

Calculating Load Capacity and Gear Ratios

To find the load capacity, you have to look at both the bending stress on each tooth and the contact stress at the areas that connect. The Lewis method is used to start bending estimates, and the Hertzian contact stress equations are used to check how durable a surface is. These calculations are made easier by modern gear design tools like KISSsoft or MASTA. Engineers can enter factors like module (0.5–50 range in our product line), number of teeth, and material properties to get the best specs.

This is how gear ratio design works in internal helical systems: ratio = (number of teeth on internal gear) / (number of teeth on pinion). Because we let you change the number of teeth, you can precisely tune the ratio to match motor speeds with output shaft needs. This ratio is multiplied by planetary arrangements many times over, resulting in decreases of more than 100:1 in small spaces. When procurement teams describe gears, they should make sure that the estimated ratios match the available motor torque curves and machinery job cycles to avoid overloading or underutilization.

Where to Buy Internal Helical Gears: Supplier Landscape and Procurement Tips

To find your way around the global supplier scene, you need to be able to tell the difference between mass-production makers and experts in custom fabrication. Large OEM providers in Germany and the US are great at making standard gears quickly, which makes them a good choice for making new parts that fit current designs. Because they use economies of scale in their production processes, these companies usually have minimum order amounts that range from 50 to 500 units. To secure reliable Internal Helical Gear components, procurement teams must vet manufacturers based on their specialized machining capabilities.

Evaluating Global and Regional Manufacturers

European manufacturers excel in precision grinding with DIN and ISO certifications for aerospace and medical applications. German gear makers hold ISO 9001 and AS9100 certifications meeting strict quality standards. Custom lead times extend to 16 weeks with higher labour costs. Asian manufacturers offer competitive pricing with modern CNC and automated heat treatment. YIZHI MACHINERY achieves ISO 5-6 accuracy with 35-60 day delivery for mining and industrial applications.

Standard Versus Custom Gear Procurement

Standard gears suit catalog-matching specifications with rapid delivery and lower unit costs. Stock items eliminate lead time for common modules. Custom gears address space constraints, special mounting requirements, or specific material needs. Low minimum order quantities enable single-piece production for prototypes and niche applications. Bulk purchasing delivers volume discounts and reduced shipping costs. Coordination between order quantities and annual usage prevents excess inventory costs.

Manufacturing Processes and Quality Assurance for Internal Helical Gears

The quality of the production determines whether Internal Helical Gears last as long as they're supposed to or break down too soon when they're loaded. CNC machining centers are used in modern production to do rough cutting. To make tooth shapes, gears are then hobbled or shaped. A revolving cutter is used for traditional gear shape. This type of cutter works well with internal gear profiles, but it moves slowly, which slows down production. Power skiving is now the most popular way. It combines the steady cutting motion of hobbing with the adaptability of shaping to get cycle times three to five times faster than regular shaping.

Precision Machining and Heat Treatment

Grinding removes heat treatment distortion and establishes final tolerances for high-precision gears. Tooth grinding achieves Ra 0.4-0.8 µm surface finish correlated with lower noise and extended service life. Klingelnberg or Gleason measuring centres verify profile deviation, helix deviation, and total pitch error against ISO 1328-1:2013 standards. Dimensional accuracy ensures proper meshing and load distribution. Surface quality directly impacts lubrication film formation and wear resistance.

Importance of International Certifications

ISO 9001 confirms systematic quality management while ISO 1328 specifies gear tooth tolerances. AGMA 2015 standards define material requirements and load capacity values common in North American markets. Nondestructive testing including magnetic particle inspection detects subsurface flaws causing stress concentration and wear initiation. Cross-section analysis verifies effective case depth meeting specifications for surface protection against wear and cracking. Third-party inspection reports provide independent verification.

How to Choose the Right Internal Helical Gear Supplier for Your Business?

Comparing prices isn't the only thing that goes into choosing a supplier; professional skills, response to communication, and the possibility of a long-term relationship are also important. Reputation is a good place to start for any Internal Helical Gear project. Manufacturers with a history of working with hard industries like mining or flight have shown that they can be trusted. To check the quality of a product, you need to look at the certifications, ask for sample reviews, and, if possible, do plant surveys.

Key Evaluation Criteria for Procurement Teams

The ability to provide technical help sets apart average providers from great partners. Suppliers who offer pre-sales design advice can help match the right gear specs to the job, which could lower costs by switching materials or making small changes to the geometry. During production, buying teams are kept up to date on manufacturing goals through synchronized progress updates. This lets them make changes to the schedule ahead of time. After-sales service, like one-year warranties and quick problem settlement, lowers the risks that come with unexpected breakdowns or specs that don't match up.

To find the right balance between low prices and high quality, you have to carefully read through quotes to find any hidden costs. Low unit prices may hide problems like bad heat treatment, bad materials, or lax checking procedures that cause things to break down early. Our clear price shows how much it really costs to make things in an ISO-compliant way, using high-quality alloy steels, advanced heat treatments, and strict inspection methods that ensure stable performance over long periods of time.

Building Strategic OEM Partnerships

OEM ties change buying things one-time into working together on development. As OEM partners, suppliers put money into learning about your product roadmaps, suggesting ways to make the design better, and keeping extra inventory on hand to support just-in-time delivery. Customization skills turn into strategic assets that make it possible to quickly make prototypes of gears that have been changed for next-generation machines. Our normal OEM process includes talking about requirements, making design drawings, producing parts, inspecting quality, packing, and shipping. This makes order fulfillment faster from the idea stage to delivery.

Long-term relationships help people trust each other and share information, which is good for everyone. Suppliers who know your application well can predict problems before they happen and offer ways to avoid them, which lowers the risk of downtime. Buyers get first access to production capacity during times of high demand, which keeps assembly plans from getting thrown off. Over time, these benefits add up, making competitive moats that are hard for competitors to copy.

Conclusion

Finding Internal Helical Gears that work with industrial machinery means matching technical requirements, the supplier's skills, and the coordination of logistics. In mining, aerospace, and general industry settings, these precision parts provide small power transfer, high torque capacity, and smooth operation. Finding manufacturers who meet ISO-certified quality standards, allow for customization, and offer quick expert help is key to successful sourcing. With 15 years of experience in production, state-of-the-art manufacturing equipment, and a full service model, YIZHI MACHINERY is a reliable partner for global sourcing professionals looking for gears that improve the stability and operating efficiency of their equipment.

FAQ

1. What Are Typical Lead Times for Custom Internal Helical Gears?

Custom gear production times depend on how complicated the order is and how many of them there are. Standard customization, which includes choosing the material, changing the module, and changing the tooth count, usually takes 35 to 60 days from the time the plan is approved until it is shipped. Changes that are more complicated, like special finishes or non-standard helix angles, may add one to two weeks to the lead time. Air freight can sometimes be used to speed up rush orders for replacements that need to be sent right away, but it costs more to ship.

2. How Do I Ensure Compatibility with Existing Gear Systems?

To start checking for compatibility, you need to write down the module, number of teeth, helix angle, and hand of helix of the gear that you already have. Internal Helical Gears need the same hand of helix as their matched pinions in order to mesh on parallel planes. This is different from external gear pairs, which match left-hand helixes with right-hand helixes. Giving suppliers dimensional models or real samples lets them make exact copies, which makes sure that new gears fit perfectly into existing machinery.

3. What Maintenance Practices Extend Internal Helical Gear Lifespan?

It is still very important to use the right lubrication. To handle sliding contact loads, GL-5 or highly additived oils are suggested. During regular inspections, the wear patterns on the flanks of teeth should be checked for macropitting or scuffing, which are signs that the lubrication has broken down. It is important to pay attention to the thrust bearing state because rotational forces can speed up wear if it is not supported properly. Temperature tracking can find oil problems before they cause major damage, and long-term temperature rises above the normal range let you know that you need to take action.

Partner with YIZHI MACHINERY for Premium Internal Helical Gear Solutions

YIZHI MACHINERY makes Internal Helical Gear parts that are precisely designed to fit your needs in mining, aircraft, and industrial machines. We are an experienced maker of internal gears. To make gears that meet ISO 5-6 Grade perfection, we use advanced CNC machining, smart heat treatment, and strict ISO-compliant quality control. We can customize materials from 20CrMnTi to SAE4340, modules from 0.5 to 50, and helix angles from 5° to 45°, so we can meet a wide range of power and space needs.

With 15 years of experience in production and delivery times between 35 and 60 days, we can meet the needs of your project while keeping our prices low. Our custom packing with shock-absorbing liners makes sure that damage during shipping is less than 0.1%, and real-time visual tracking gives you peace of mind during the whole process. Our full service plan includes design advice before the sale, reports on production that happen at the same time, and one-year warranties.

Email us at sales@yizmachinery.com right now to talk about your needs and get a full quote. You can look at our whole selection of products.

References

1. Budynas, Richard G., and J. Keith Nisbett. Shigley's Mechanical Engineering Design. 11th ed. McGraw-Hill Education, 2019.

2. Dudley, Darle W. Handbook of Practical Gear Design and Manufacture. 2nd ed. CRC Press, 2012.

3. ISO 1328-1:2013. Cylindrical Gears – ISO System of Flank Tolerance Classification – Part 1: Definitions and Allowable Values of Deviations Relevant to Flanks of Gear Teeth. International Organization for Standardization, 2013.

4. American Gear Manufacturers Association. AGMA 2015-1-A01: Accuracy Classification System – Tangential Measurements for Cylindrical Gears. AGMA, 2002.

5. Radzevich, Stephen P. Dudley's Handbook of Practical Gear Design and Manufacture. 3rd ed. CRC Press, 2016.

6. Stadtfeld, Hermann J. Gleason Bevel Gear Technology: Manufacturing, Inspection and Optimization. The Gleason Works, 2014.
