Custom Bevel Gear

Custom Bevel Gear - Precision-Engineered Transmission Solutions

When you need precise power transmission between intersecting shafts, Custom Bevel Gear solutions from Henan Yizhi Machinery provide unmatched execution. With 15 a long time of fabricating mastery and ISO certification, we design transmission components that accomplish 95-98% effectiveness. Our exactness crushing capabilities guarantee ISO 8-9 review exactness, whereas comprehensive customization addresses your interesting spatial and stack necessities. Leveraging progressed CNC equip machining centers and brilliantly warm treatment lines, we make gears taking care of extraordinary torque applications with surface hardness up to 62HRC. Each component experiences thorough quality assessment, supported by our sub-0.1% transport harm ensure and 35-60 day conveyance commitment.

Why Choose Our Custom Bevel Gear Solutions?

Advanced Manufacturing Capabilities

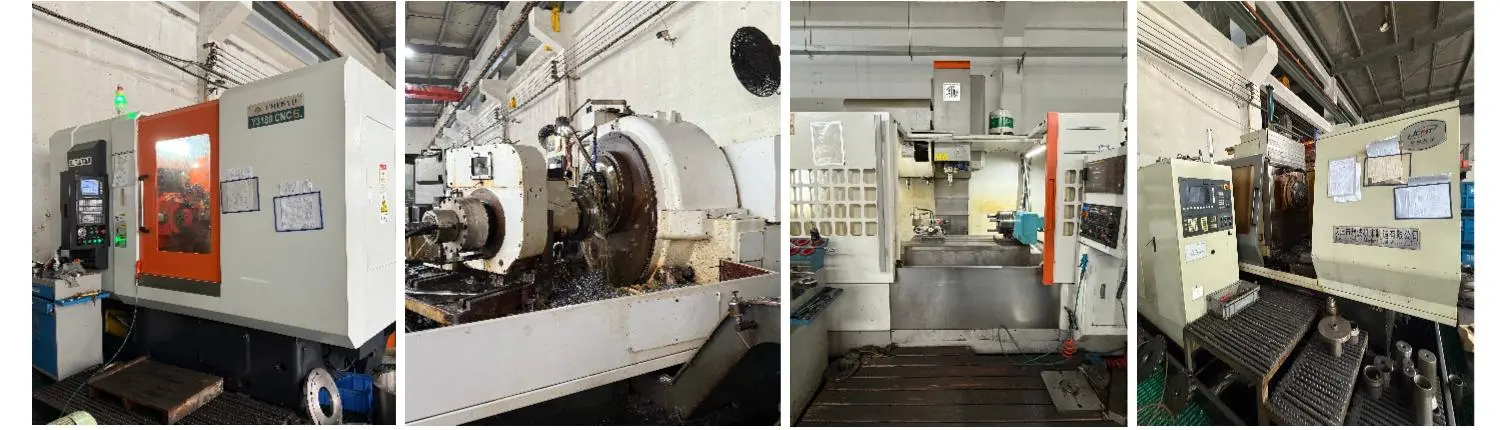

You get get to to all inclusive driving exactness hardware counting high-precision CNC adapt machining centers and completely robotized pounding machines. Our cleverly warm treatment generation lines guarantee reliable metallurgical properties over each batch.

Flexible Material Options

We work with premium amalgam steels counting 45# steel, 20CrMnTi, 40CrNiMo, SAE4340, and specialized grades like 18CrNiMo7. Each fabric choice optimizes execution for your particular application requirements.

Precision Heat Treatment

Our carburizing, extinguishing and hardening, additionally acceptance solidifying forms provide exact surface hardness extending from 45-50 HRC to 58-62 HRC, guaranteeing ideal wear resistance and center toughness.

Technical Specifications

Key Manufacturing Processes

Cutting and Machining

Our hobbing, processing, and cutting operations utilize accuracy tooling to accomplish correct tooth geometry. Each Custom Bevel Gear gets cautious consideration to weight points and contact patterns.

Quality Assurance

Every component passes through thorough review utilizing high-accuracy estimation disobedient. We confirm dimensional exactness, surface wrap up, and metallurgical properties some time recently approval.

Protective Packaging

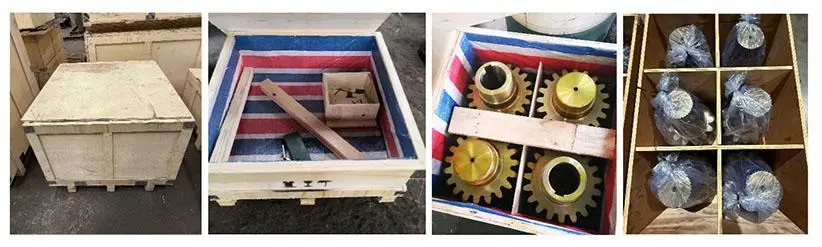

Understanding equip defenselessness, we utilize shock-absorbing liners and custom wooden beds. This specialized bundling diminishes transport harm rates underneath 0.1%.

Application Solutions

Industrial Machinery

Your machine apparatus axle drives advantage from our adjusted transmission proficiency and accuracy. Compact structures permit adaptable establishment in space-constrained environments.

Agricultural Equipment

Agricultural apparatus requires strong components taking care of variable loads. Our gears provide solid load-bearing versatility with solid execution over requesting field conditions.

Steering Systems

Automotive and marine directing frameworks depend on exact precise transmission. Our fabricating guarantees smooth operation and amplified benefit life.

Compact Transmissions

Light mechanical gear needs productive control exchange in negligible space. Our ​​​​​​​Custom Bevel Gear plans optimize spatial necessities whereas keeping up execution standards.

Service Excellence

Design Support

We give comprehensive pre-sales specialized interview and plan drawing administrations. Your necessities get point by point investigation to guarantee ideal equip selection.

Production Transparency

During fabricating, you get synchronized advance overhauls, test arrangement when required, and total quality review documentation.

Logistics Excellence

Our multi-channel transport organize combines ocean cargo, discuss cargo, and rail choices. Real-time following gives perceivability from production line stacking through last delivery.

After-Sales Commitment

Every arrange incorporates one-year guarantee scope with quick reaction issue determination. Our specialized group remains accessible for continuous support.

Competitive Advantages

Low Minimum Orders

We acknowledge single-item generation runs, dispensing with least arrange obstructions for model improvement or specialized applications.

Scalable Solutions

Whether you require person components or volume generation, our fabricating capacity scales to meet multi-industry acquirement demands.

Technical Expertise

Fifteen a long time of generation involvement combined with standardized OEM workflows guarantees effective arrange fulfillment and reliable quality.

Frequently Asked Questions

Q: What's the difference between straight and spiral custom bevel gears?

A: Straight bevel gears offer simplicity and cost-effectiveness for lighter loads. Spiral designs provide smoother operation, higher load capacity, and reduced noise through gradual tooth engagement.

Q: How do you control backlash in assemblies?

A: We specify strict mounting distance tolerances (±0.05mm) and recommend shim adjustment during assembly to achieve target backlash, typically 0.10-0.20mm depending on module.

Q: Can you work with non-standard drawings?

A: Yes, we perform reverse engineering and design optimization using advanced software. We recalculate tooth geometry ensuring manufacturability on modern CNC equipment while maintaining performance.

Q: Why choose grinding for my application?

A: Grinding corrects heat treatment distortion, ensuring perfect tooth profiles for high-precision applications (AGMA Q10+) or high-speed operations above 1000 RPM.

Q: What materials work best for corrosive environments?

A: For marine or chemical applications, we recommend stainless steel grades like 17-4 PH or specialized nickel alloys with protective coatings.

Contact Us

Ready to use the Custom Bevel Gear to solve your transmission challenges? Contact our technical team at sales@yizmachinery.com for personalized gear solutions.
