How to choose the right bevel pinion shaft for my machinery

Selecting the appropriate Bevel Pinion Shaft for your machinery involves evaluating operational demands, material compatibility, and precision requirements. This critical transmission component transfers rotational power between intersecting axes—commonly at 90 degrees—making it indispensable in mining equipment, gearbox assemblies, and precision instrument systems. The right choice balances load capacity, environmental resilience, dimensional accuracy, and cost-effectiveness. Understanding your machinery's torque requirements, rotational speeds, and operating conditions guides you toward optimal material grades like 18CrNiMo7 or AISI8620, appropriate heat treatments, and reliable suppliers who deliver ISO-compliant components within your project timeline.

​

Understanding Bevel Pinion Shafts and Their Role in Machinery

The Bevel Pinion Shaft is a sophisticated combination of gear technology and shaft design that was made to efficiently redirect rotational motion. Unlike parallel-axis spur gears, these parts allow power to be sent at angles, which is useful when space is limited in complex machinery layouts.

What Makes Bevel Pinion Shafts Essential

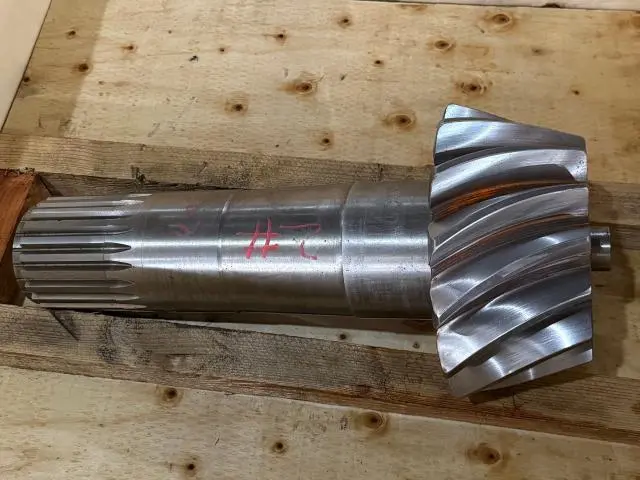

At its core, a Bevel Pinion Shaft combines a conical gear pinion directly onto a driveshaft. This gets rid of the weak spots that come with connecting a separate pinion and shaft by keys or splines. This one-piece design greatly lowers displacement under load while keeping the tooth mesh aligned consistently during use. The shape of the conical teeth makes it easy for them to connect with matching crown gears or ring gears. This turns input power into straight-out motion, and in properly designed systems, the efficiency rate is over 95%.

Design Variations and Performance Characteristics

There are two main types of layouts used in industry: straight bevel and spiral bevel. Straight bevel teeth line up straight to the shaft axis, making production easier and providing good performance for medium-speed tasks. Spiral bevel designs have curved and angled teeth that connect slowly instead of all at once. This makes noise, shaking, and shock loads much less noticeable. This progressive contact pattern makes parts last longer in heavy-duty or high-speed settings, like in mining crushers and car differentials.

Operational dependability is based on how precisely things are manufactured. Forging, hobbing, milling, and precision grinding are all methods used to make parts with the tight specs needed for smooth power transfer. Some heat treatment methods, like carburizing and quenching, make the surface hardness between 58 and 62 HRC while keeping the core stiffness between 30 and 45 HRC. This balance is important for keeping the metal from breaking from wear and contact.

Industrial Applications Across Sectors

These parts are very important in cone crushers and other drive systems used in mining equipment. They transfer a lot of torque while being subjected to heavy shock loads and dust. Precision-ground versions are used on machine tool spindles to keep cutting processes accurate to the micron level. Because they are small and have no backlash, robotic joints can be placed in the same place over and over again. Marine propulsion Z-drives need different types of corrosion-resistant alloys to work in saltwater and transfer power from vertical engine shafts to horizontal propellers.

Key Criteria for Selecting the Right Bevel Pinion Shaft

For procurement choices to be made, they need to be carefully looked at from a number of professional angles. The way your machinery is used determines the specifications of its parts that make them last longer and keep them from breaking down too soon.

Evaluating Load Capacities and Torque Requirements

First, figure out how much power your gearbox system can handle at its highest level. This should include shock load factors for equipment that will be hit from time to time. The load capacity of the Bevel Pinion Shaft is directly related to its module, which is the ratio of pitch width to tooth count. Modules with sizes between 0.5 and 50 can be used for a wide range of tasks, from heavy industrial reducers to tiny precision tools. Higher modules make the teeth stronger, but they also make the parts bigger and heavier.

The number of teeth that are involved at the same time (the contact ratio) changes how the load is distributed. When compared to straight designs, spiral ones usually get contact ratios above 1.5, which spreads stress across more teeth and makes each tooth 30% to 40% less loaded. In mining, this feature is very useful because it prevents sudden torque spikes caused by unpredictable rock fragments.

Material Selection and Environmental Compatibility

The composition of the material determines how long a component will last and how often it needs to be serviced. Case-hardening alloy steels, such as 20CrMnTi and 18CrNiMo7, have very hard surfaces after being carburized, but their cores are still tough and can handle shocks. For uses requiring fast spinning, 40CrNiMo or SAE4340 grades are better because they don't wear out as quickly when loaded and unloaded over and over again.

Because of the environment, it's important to match materials carefully. Corrosive environments need stainless steel or special coatings. Extreme temperatures change the rates of thermal expansion. When the axle and chassis expand at different rates, the preload changes and wear happens faster. For use at temperatures above 120°C, metals with better high-temperature strength preservation may be needed.

Dimensional Specifications and Precision Grades

Dimensional precision has a direct effect on the quality of the mesh and how smoothly it works. ISO 6 Grade accuracy, which can be reached by grinding the surface to a roughness of Ra ≤ 0.8µm, lowers the chance of micropitting and friction losses. Some important measurements are pitch diameter tolerance (which affects backlash), helix angle accuracy (for spiral types), and total runout (which makes sure the spin is concentric).

The diameter and length of the shaft need to work with the bearing arrangements and the space limitations in your machinery. To keep fretting rust from happening when torsional loads are put on keyway designs or splined joints, careful tolerancing is needed. The number of teeth affects both power capacity and rotating smoothness. The number of teeth can be changed based on the desired gear ratio and load distribution.

Maintenance and Wear Indicators

Parts that are made to last a long time have features that make checking their condition easier. The effective case depth in carburized parts, which is the surface hardness depth, tells you how long a part will last before its tooth root strength starts to weaken. Case depths should be between 0.8 and 1.5 mm, based on the size of the module.

By controlling the first action at low loads, proper break-in processes set up the best contact patterns. This process hardens the surfaces of the teeth and checks for possible assembly mistakes before the full-load operation starts. Checking the contact pattern with blueing powder, measuring backlash to find worn bearings, and analyzing vibrations to find mesh quality loss should all be part of regular inspections.

Comparing Bevel Pinion Shafts: Making Informed Decisions

By understanding the performance trade-offs between design variants, you can make specification decisions that are in line with the practical goals and budget of your machinery.

Spiral Versus Straight Bevel Designs

When deciding between spiral and straight configurations, you have to weigh the benefits of performance against the difficulties of making them. Because the teeth engage more slowly in spiral designs, they make operation quieter—often by 5 to 10 dB. This faster power transfer lowers peak stresses by spreading loads across multiple teeth at the same time. In high-cycle uses, this makes the Bevel Pinion Shaft last 20–40% longer.

Straight bevel configurations are easy to make and have lower start-up costs, so they are good for low to moderate speed applications where noise levels are acceptable. Their perpendicular tooth alignment makes inspection and replacement easier, which could cut down on maintenance downtime in remote installations.

In well-designed systems, the differences in efficiency don't seem to be that big; both types can reach 95% or more efficiency with the right lubrication. But spiral forms are better at dealing with misalignment errors, which is important for manufactured housings where accurate measurements are hard to achieve.

Heat Treatment and Surface Finishing Options

Surface engineering has a big effect on how long something lasts and how well it works. Carburizing, which spreads carbon into the surface layers before quenching, makes cases that don't wear down while keeping cores that are tough. This treatment works well for situations where there are both bending and touch forces. Through-hardened parts can be processed faster with induction hardening, but the hardness profiles are not as deep.

The quenching and hardening processes make alloy steels like 42CrMo and AISI4140 stronger at the core. This makes them perfect for uses that value shock resistance over surface hardness. During break-in periods, some manufacturers use special coatings like phosphate treatments or nitriding to cut down on friction even more and make the product less likely to get scratched.

Fatigue life is directly related to the quality of the surface finish. Precision grinding makes the surface rough enough at the sub-micron level to reduce stress densities at tiny surface flaws, which are where cracks start. Investing in better finishing pays off by extending the time between repair visits and lowering the risk of catastrophic failure.

Cost-Quality Balance and Supplier Evaluation

The procurement strategy needs to balance the limited budget with the overall cost of ownership. Premium parts cost more at first, but they last longer and cost less to fix when they break. To find the break-even point, you have to guess how often the parts will need to be replaced, how much production will be lost during failures, and how much it will cost in labor for maintenance tasks.

Long-term happiness is greatly affected by how trustworthy the supplier is. ISO 17485 compliance shows that dimensional tolerancing standards are being followed, while ISO 9001 certification shows that quality management is being done in a systematic way. Customer reviews from related businesses can help you figure out how well the product works in real life and how good the customer service is after the sale.

The terms of the warranty show how confident the company is in their goods. Strong quality control is shown by guarantees that cover both material flaws and premature wear. On the other hand, limited warranties could mean that corners were cut during production or that the product was made with poor materials.

Procurement Insights: How to Source Your Bevel Pinion Shaft

Strategic sourcing combines technical specifications with evaluations of supplier partnerships to make sure that parts arrive on time and work as expected for the duration of their useful life.

Identifying Reliable Manufacturers

Manufacturers of good quality show what they can do by having the right licenses, production tools, and technical support resources. To make sure the sizes are correct, look for providers who have CNC gear machining centers, automatic gear grinding machines, and coordinate measuring machines. These technologies make it possible to keep margins very small, which is needed for smooth, quiet operation.

When planning projects with tight deadlines or possible growth needs, production ability is important. When manufacturers offer 35–60 day lead times for custom specs, it means that their processes are efficient without losing quality control. Partnerships with well-known mechanical engineering companies show that the company is reliable and skilled.

Customization Parameters and Engineering Support

Off-the-shelf parts don't always perfectly fit the needs of a specific piece of machinery. Customization is what sets great providers apart from average ones. Some of the most important factors that can be changed are the number of teeth, the choice of module, the helix angle (between 0° and 45°), the surface hardness requirements, and the choice of material grade from large metal catalogues.

Customization should be done in a structured way, with clear communication of needs, the creation of design drawings, production machining, quality checks, packaging, and shipping. Suppliers who give technical advice before the sale can help improve standards before production starts, which could lead to design changes that improve performance or lower costs.

Engineering drawings and material certificates are proof that promises about quality are true. Inspection records with lots of information, like photos of contact patterns, hardness test results, and CMM measurement data, make it clear how precise the manufacturing process was.

Pricing Structures and Volume Considerations

Unit prices usually go down as order quantities go up, but the minimum order quantities vary a lot from one supplier to the next. Some makers will only make one piece at a time, which is helpful when testing out new machines or fixing old machines that still have parts that don't work. Others want minimum amounts that are only reasonable for production equipment or large inventories for routine maintenance.

Ask for detailed quotes that break down the costs of materials, manufacturing processes, heat treatment, finishing, and packaging. This openness makes value engineering discussions easier and helps find ways to save money without affecting important performance factors for the Bevel Pinion Shaft.

Logistics and Global Shipping Strategies

International procurement requires more than product compliance, as logistics complexity must be carefully managed. Reliable suppliers provide protective packaging with shock-absorbing materials and custom crates to prevent damage. Multi-modal transport—sea for cost efficiency, air for urgent delivery, and rail for regional balance—supports flexible scheduling. Real-time tracking improves planning, while experienced exporters handle customs documentation, HS codes, and duty guidance to avoid delays and unexpected costs.

Preventing Common Issues and Ensuring Optimal Performance

Maintenance that is done proactively and correctly installed parts last longer and break down less often, which keeps production schedules on track.

Identifying and Mitigating Noise and Vibration

Too much noise usually means there are issues with the mesh quality, such as wrong backlash settings, tooth geometry errors, or contact pattern problems caused by bearing wear or housing misalignment. Whining sounds at certain speeds are a sign of resonance frequencies that need to be dampened or operating speeds need to be changed.

Using accelerometers for vibration research can find problems before they can be heard. Tooth contact irregularities are shown by high shaking at mesh frequency, while harmonics show mistakes in assembly or component wear. Taking care of these problems right away keeps bearings, seals, and housing structures from getting damaged again.

Alignment Precision During Installation

Proper installation of a Bevel Pinion Shaft requires ensuring housing bore concentricity and correct shaft perpendicularity to prevent edge loading, which increases stress and failure risk. Dial indicators and precision fixtures help achieve accurate alignment. Backlash, typically 0.1–0.35 mm, must be carefully adjusted via shimming to avoid binding or noise. Correct bolt torque and tightening sequences ensure structural stability and prevent deformation under load.

Lubrication Selection and Maintenance Protocols

Proper lubrication extends component life by reducing friction, heat, and corrosive wear. Spiral bevel and hypoid gears require extreme-pressure lubricants, with viscosity selected based on speed and temperature—lower viscosity for high-speed efficiency. Contamination control through sealing systems and magnetic drain plugs helps detect abnormal wear early. Oil analysis identifies degradation, while lubrication intervals should be adjusted based on operating load and real conditions rather than fixed schedules.

Conclusion

To pick the best Bevel Pinion Shaft, you need to carefully consider the needs of the operation, the requirements for the material, and the supplier's abilities. When choosing tooth configuration, heat treatment, and dimensional tolerances, you should think about how much torque your machinery needs, the environment, and how precise you want the results to be. In demanding situations, spiral forms are quieter and last longer, while straight shapes are more cost-effective for moderate-duty cycles. Working with ISO-certified companies that offer full customization, clear quality paperwork, and dependable logistics support makes sure that parts come ready to give years of reliable service. When you install things correctly and do regular maintenance, you get the most out of your investment by keeping it running at its best and preventing problems before they happen.

FAQ

1.What factors most significantly impact Bevel Pinion Shaft lifespan?

Longevity is based on the quality of the material and the depth of the heat treatment. Case depths between 0.8 and 1.5 mm are effective at resisting wear. But the real service life of the Bevel Pinion Shaft is often determined by the right choice of lubricant and the ability to keep contaminants out. When fitting isn't done right, edge loading happens, which speeds up wear no matter what kind of material it is. These factors, along with operating conditions like shock loads, duty cycles, and temperature extremes, work together to figure out how long it's reasonable to wait between replacements.

2.When should I specify custom manufacturing versus standard components?

When machinery needs non-standard gear ratios, unique mounting configurations, or special materials that can handle harsh environments, it needs to be made to order. Customized designs are helpful for situations where accurate dimensional integration is needed in limited space setups. Customization costs are justified for production equipment with a long life because it improves performance. Prototypes or low-volume projects, on the other hand, may be able to use standard parts with adapter changes if they are compatible in terms of size.

3.Can in-house teams handle Bevel Pinion Shaft replacement, or should we engage specialists?

How hard it is to replace something depends on how easy it is to get to and how well it fits. With simple setups in equipment and changes made from the outside, skilled maintenance teams can replace parts by using dial markers to check for backlash and contact pattern. However, experienced technicians with the right tools are needed to work on assemblies that need housing bore machining, precision shimming, or specialized preload adjustments. When you don't install something correctly, you waste expensive parts and run the risk of damaging other gears and bearings.

Partner with YIZHI MACHINERY for Your Bevel Pinion Shaft Needs

If you need help with your gearbox system, YIZHI MACHINERY can help with precision-engineered Bevel Pinion Shaft solutions that are made to fit your exact needs. Since we started in 2016, we've learned a lot about making customized gears for mining equipment makers, gearbox installers, and builders of precision machinery around the world. Advanced CNC gear machining centers and automatic grinding tools are used in our ISO-compliant production processes to make parts that meet ISO 6 Grade precision standards.

Our manufacturing is flexible enough to handle orders of any size, from a single sample to a large production run. We offer a wide range of materials, from 20CrMnTi to SAE4340 alloys, along with the right heat treatments that give them a surface hardness of 58 to 62 HRC for tough uses. Before a sale is made, our engineering team gives technical advice to help make sure that the specifications are perfect before production starts. With lead times between 35 and 60 days and real-time order tracking, you can see every step of the manufacturing process. Customized packaging keeps your investment safe during global shipping, and we promise that damage rates during transport will be less than 0.1%. Contact us at sales@yizmachinery.com. We are committed to your business success.

References

1. American Gear Manufacturers Association. (2019). AGMA 2005-D03: Design Manual for Bevel Gears. Alexandria, VA: AGMA Publications.

2. Budynas, R.G. & Nisbett, J.K. (2020). Shigley's Mechanical Engineering Design (11th ed.). New York: McGraw-Hill Education.

3. Deutsches Institut für Normung. (2012). DIN 3965: Tolerances for Bevel Gears - Part 1: Tolerances for Deviations of Individual Parameters. Berlin: Beuth Verlag.

4. International Organization for Standardization. (2021). ISO 17485: Bevel Gears - ISO System of Accuracy. Geneva: ISO Publications.

5. Klingelnberg GmbH. (2016). Bevel Gear Technology: Design, Manufacturing, and Application. Hückeswagen: Klingelnberg Technical Publications.

6. Radzevich, S.P. (2018). Dudley's Handbook of Practical Gear Design and Manufacture (3rd ed.). Boca Raton: CRC Press.
