How to select the right worm gear pair for my machinery

When choosing the right Worm Gear Pair for your machinery, you need to think about a number of important factors, such as the reduction ratio needed, the load capacity, the working environment, the fit of the materials, and the available space. If you choose the right Worm Gear Pair, it will transmit high torque while being small, self-locking for safety-critical applications, and running smoothly with little noise. By knowing your specific operational parameters, like whether you need anti-reverse functionality in lift systems or shock absorption in conveyor drives, you can find the best configuration for your equipment in terms of performance, durability, and cost-effectiveness.

Understanding Worm Gear Pairs – Basics and Core Principles

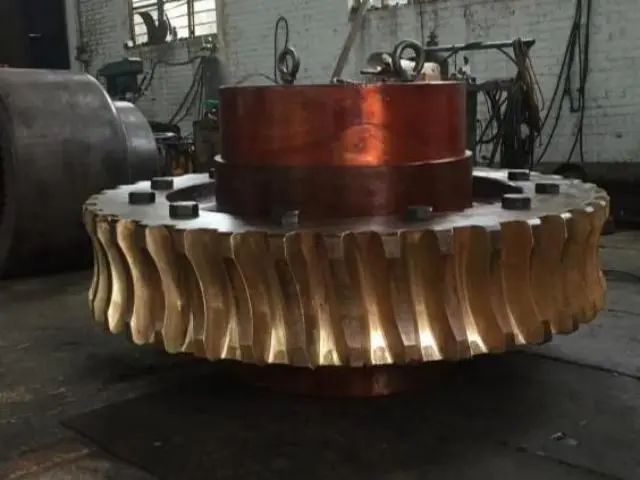

The worm, which is a twisted screw-like rod, and the worm wheel, which is a matching helical gear, are the two basic parts of a Worm Gear Pair. This setup uses axes that aren't parallel or crossing and are usually set at 90-degree angles. This gives it a unique mechanical benefit that makes it different from other gear systems.

Operating Principles and Reduction Capabilities

Working on the basic level, the worm's spiral threads engage with the worm wheel's teeth by moving against each other. This design lets you get amazing reduction ratios from 5:1 to over 300:1 in a single small stage, so you don't need the big multi-stage gear trains that are popular in other gearbox systems. The worm's threads push against the wheel's teeth as it turns, turning high-speed, low-torque input into low-speed, high-torque output. This is a very space-efficient way to use mechanical efficiency.

Material Selection and Performance Impact

The materials you choose have a big effect on how long they last and how well they work. We make worms at YIZHI MACHINERY from hardened alloy steels like 20CrMnTi, 40CrNiMo, SAE4340, and AISI4140. We use the carburising and cooling methods to make the surface hard, which is between 58 and 62 HRC. The worm wheel is usually made of phosphor bronze or a special kind of bronze alloy that works well with steel. The harder steel worm slides against the softer bronze wheel, which keeps them from galling and creates good wear patterns that make contact better over time.

Key Design Parameters

Worm Gear Pair efficiency is based on a number of scientific factors. It depends on the angle of the lead whether it is efficient or not and whether it can self-lock. Self-locking works best when the angle is below 5 degrees, which is important for raising uses. Different torque needs can be met by modules with specifications ranging from 1 to 50. The center distance changes the total size and how the load is distributed. Pressure angles of 20 or 25 degrees change how strong teeth are and how they fit together. These factors work together to make gearbox solutions that are best for each piece of machinery.

When purchasing managers and design engineers know these basic ideas, they can make smart choices when choosing Worm Gear Pairs for lift traction machines, pulling equipment, machine tool indexing mechanisms and automatic production line reducers.

Key Comparison Factors for Selecting Worm Gear Pairs

If you want to choose between Worm Gear Pairs and other gearing choices, you need to carefully look at how well they perform in terms of your operational goals.

Torque Capacity and Speed Compatibility

Worm Gear Pairs perform better than other gear types in high-torque, low-speed situations. In order to get the same reduction ratios as spur gears, which need multiple stages, a single worm gear stage does the same job in a lot less room. Planetary gears may be more efficient, but worm gears are better at absorbing shock loads. This is especially important for mine conveyors and heavy-duty lifting equipment that have to deal with rapid changes in load. Worm gears are designed with a moving contact that stops movements that would otherwise travel through helical or bevel gear systems.

Self-Locking Features for Safety-Critical Applications

The ability to self-lock is a unique benefit that procurement managers in the hoisting and lift industries really value. The Worm Gear Pair can be used as an integrated brake system if the lead angles are set correctly. If the power goes out or the drive motor stops, the load cannot reverse-drive the mechanism. This built-in safety feature gets rid of the need for extra stopping parts, making the system simpler and lowering the number of places it could go wrong. Manufacturers of stage lifting equipment rely on this feature to meet strict safety standards without having to add extra safety systems.

Noise Reduction and Operational Smoothness

When compared to spur or helical gears, which have rolling contact, the sliding mesh design makes the process quieter. Worm Gear Pairs help factories that are worried about noise pollution in automated production lines where noise levels affect worker comfort and following the rules. When several teeth slowly connect with each other, loads are spread out evenly. This makes torque gearbox smooth, without the pulsing that can happen with other types of gear.

Efficiency Considerations and Thermal Management

Depending on the design parameters and the quality of the lubrication, the efficiency ranges from 40% to 90%. Even though the price is lower than some alternatives, it's worth it when you think about the small size, safety features, and low noise. High-tech materials and precise grinding of touch surfaces—methods we use at YIZHI MACHINERY with ISO 8-9 grade accuracy—raise efficiency to the higher end of this range. Choosing the right lubricant controls the heat that is created by sliding contact, keeping the optimal operating temperatures even when the duty cycle is continuous.

When safety, room, and sound quality are more important than pure mechanical efficiency, these comparison factors help procurement experts find uses for Worm Gear Pairs that get better value even though they are less efficient.

Procurement Considerations: Where and How to Buy Worm Gear Pairs

Finding reliable Worm Gear Pairs requires more than just comparing unit prices. Smart procurement managers also look at the skills of the suppliers, the dependability of the supply chain, and the possibility of forming partnerships.

Evaluating Manufacturer Credentials

Reputable makers show qualifications that can be checked, such as ISO compliance, documented quality management systems, and clear output capabilities. We founded YIZHI MACHINERY in 2016 and use our 15 years of combined engineering experience to improve the way we make things. We have high-precision CNC gear machining centers, fully automated gear grinding machines, and intelligent heat treatment production lines at our facility. These lines can do all the important processes, like cutting, hobbing, milling, and grinding. When looking at different providers, make sure you ask for proof of their heat treatment skills. The ability to carburise, quench and temper, and induction harden directly affects how long a product lasts and how much weight it can hold.

Customization Capabilities and Minimum Order Flexibility

Standard parts from catalogues don't always meet the exact needs of specialised machines. Manufacturers who let you customise everything from the number of teeth and module specs to the choice of material and surface treatments are more valuable than sellers who only offer ready-made solutions. We keep our minimum order quantities low and can make just one item at a time at YIZHI MACHINERY because we know that prototype development and special equipment often need the ability to work with small batches. Our normal customisation process includes communicating needs, making design drawings, producing the item, inspecting for quality, packing, and shipping it. This makes sure that all orders are filled quickly and correctly, no matter how many there are.

Lead Times and Logistics Reliability

Delivery schedules that can be predicted are important for keeping manufacturing going. Our 35–60-day delivery period is based on realistic production cycles for precision-engineered parts, not unrealistic deadlines that fall apart when quality issues arise. We use a variety of shipping methods, such as sea freight, air freight, and freight trains that run between China and Europe. This lets us adapt our solutions to your order number and emergency needs. Real-time order tracking lets you see what's happening from the time the plant loads the cartons to the time the customer receives them. This lets you plan your production ahead of time instead of having to scramble when parts come late.

Warranty Coverage and After-Sales Support

A full warranty shows that the manufacturer is confident in the product's durability. Our one-year warranty covers problems with the materials or the way they were made, and our quick response methods take care of problems before they become big enough to stop production. Technical help during the design phase before the sale and during troubleshooting after the installation adds value beyond the actual product. This turns supplier relationships from transactional ones into strategic partnerships.

These things to think about when buying things help technical purchasing managers and quality inspection supervisors find sellers who can provide uniform performance across multiple order cycles. This helps them build long-term relationships that support operational excellence.

Maintenance Tips and Long-Term Performance Optimization

Using strict maintenance procedures greatly increases the service life of Worm Gear Pairs and stops expensive unplanned downtime.

Lubrication Schedules and Choosing the Right Fluid

Worm gears last a long time if they are properly oiled. The moving contact creates a lot of heat and friction, so choosing the right lube is very important. Extreme pressure (EP) chemicals in high-quality synthetic gear oils make protective layers that separate metal surfaces, which lowers wear and heat production. Set lubrication times based on the number of hours the machine is used and the temperature. Applications that run continuously at high loads need more frequent attention than those that run on and off. Regularly check the condition of the lubricant, looking for changes in colour that mean oxidation or metallic particles that mean abnormal wear.

Inspection Protocols and Wear Pattern Analysis

Regular inspections find problems as they start to form before they become too big to fix. Check the tooth contact patterns during regular maintenance times. A good mesh has contact patches that are centred and slightly offset toward the exit side, which lets a lubricant wedge form. Patterns that aren't straight show that there are problems or errors that need to be fixed. Compare the backlash measures to the specs. Too much clearance lowers the accuracy of positioning in machine tool indexing tasks, while not enough clearance leads to binding and faster wear. Changes in the surface sharpness of the worm threads show that problems are starting to happen. If you fix the problem quickly, the damage doesn't spread to the more expensive worm wheel.

Thermal Monitoring and Cooling Optimization

The lifespan of a component is directly related to its operating temperature. To keep track of thermal trends, put temperature sensors on the housings of the gearboxes. Temperatures that stay above the design limits for a long time speed up the breakdown of lubricants and cause damage to the surface. Make sure there is enough air flow around gears, and if the temperature outside is high, think about adding extra cooling fans. Cleaning the outside surfaces on a regular basis is important to keep the heat absorption working well. Dust builds up inside housings and traps heat, which shortens the life of the grease and speeds up the wear of parts.

Troubleshooting Common Issues

Noise that isn't normal often means that problems are getting worse. Grinding sounds mean that there isn't enough oil or that the part is dirty, while knocking sounds mean that there is too much backlash or that the mounting is loose. Overheating can happen when there isn't enough lubrication, too much load, or not enough air flow. Less power gearbox could mean that the teeth are worn, the bearings are out of line, or the lubrication film isn't strong enough. Regularly write down changes in performance—trends show problems that are starting to appear before they completely stop working and throw off production schedules.

Companies that use these maintenance methods report a lot less downtime and longer periods between replacements. This means that careful maintenance leads to measurable cost savings and operational reliability.

Decision Support Framework for Selecting the Perfect Worm Gear Pair

Systematic evaluation systems make the selection process easier and make sure that the parts picked meet operating needs while also being as cost-effective as possible.

Defining Load Requirements and Safety Factors

Figure out the real load conditions, such as the power needs, shock loads, and task cycles. Use the right safety factors. For example, continuous heavy-duty tasks in mining equipment need wider safety margins than intermittent positioning tasks in machine tool indexing. Our Worm Gear Pairs can handle heavy loads because they are precisely manufactured and made from the best materials. They are used in lift traction machines and lifting tools, among other places. Write down both normal operating loads and the worst-case scenarios to make sure that the parts you choose can handle changing conditions without breaking too soon.

Environmental Factors and How Well Materials Work Together

The operating area has a big effect on the choice of materials and the level of security needed. In corrosive environments, surfaces need to be treated in special ways or materials need to be upgraded beyond what is normally required. For use in high-temperature situations, lubricants and seals that can withstand long-term heat exposure are needed. Stainless steel construction and special coatings are needed for areas that are washed down during food processing or pharmaceutical production. Designs that meet ATEX or similar standards must be approved for use in explosive environments. YIZHI MACHINERY has a range of materials, such as 20CrNiMo, AISI8620, and SAE4320, that can be used to deal with a wide range of environmental problems.

Spatial Constraints and Integration Considerations

Worm gears are often chosen over other designs because they take up less space. The 90-degree axis orientation naturally fits many machine layouts, so you don't need the complicated adapter brackets that parallel-axis gear types need. Carefully measure the room that is available for fitting, making sure that there are enough gaps for servicing access and thermal expansion. Check that the configurations of the shafts match the existing drive parts or make any changes that are needed. We can customise our products to fit special mounting needs and interface requirements that normal catalogue parts can't meet.

Balancing Cost-Effectiveness with Performance Requirements

The total cost of ownership is more than just the price of the car. Higher-precision manufacturing, like our ISO 8-9 grade limit compliance, costs more at first, but it lasts longer and needs less upkeep. Find the total cost of ownership, which includes how much energy it uses, how often it needs to be replaced, the cost of repair labour, and the cost of downtime. When dependability is more important than efficiency, Worm Gear Pairs are better than other options, even though they are less efficient mechanically. When purchasing things, choices that focus only on the original price often lead to higher total costs because of the need for frequent replacement and extended downtime.

This organised framework helps reducer design engineers and production directors carefully consider all of their options. They can then write down their choices using objective criteria that can stand up to technical review and help with efforts to keep getting better.

Conclusion

When choosing the right Worm Gear Pair, you have to think about a lot of things, like reduction ratios, load capacity, environmental conditions, space limitations, and cost. Knowing basic working principles, material properties, and performance trade-offs helps you make smart choices that fit the needs of your machines. When you work with makers that offer full customisation, strict quality control, and quick support, buying parts turns into strategic relationships that support long-term operating excellence. Using systematic selection frameworks and proactive repair routines in a wide range of industrial settings improves the reliability of equipment and lowers the total cost of ownership.

FAQ

1.What machinery types benefit most from worm gear pairs?

Worm Gear Pairs are great for uses that need high reduction ratios in small areas, safety features that lock themselves, and smooth, quiet operation. The best places to use them are in lift traction machines, stage lifting equipment, machine tool positioning mechanisms, crane and winch systems and automatic production line reducers. The anti-reverse gearbox feature makes hoisting applications safer, and the 90-degree axis orientation makes it easy to use with a lot of different machine layouts without the need for complicated adapters.

2.How do worm gear pairs compare to planetary or helical gears?

Worm Gear Pairs have higher reduction ratios in single stages than helical gears, take up less space than multi-stage planetary systems with the same ratios, and can lock themselves, which is something that most other types of gears can't do. There are some trade-offs, such as less mechanical efficiency (40–90% vs. 95%+ for planetary gears) and more rolling friction. Worm gear solutions are best for situations where safety, compactness, and noise performance are more important than pure efficiency.

3.Can worm gear pairs be customized for unique applications?

Full customisation meets specific operational needs, like tooth count, module ranges from 1 to 50, special materials that don't meet standard requirements, custom mounting arrangements, and surface treatments for tough environments. Reputable makers offer engineering help during the whole specification process. They make custom design drawings and samples before starting full production to make sure that parts fit perfectly into custom machinery designs.

Partner with YIZHI MACHINERY for Precision Worm Gear Solutions

When you order from YIZHI MACHINERY, they will make custom Worm Gear Pairs to the highest ISO 8-9 grade accuracy standards. These are made for tough jobs in lift systems, lifting equipment and automatic production machinery. We've been making gear gearbox parts for 15 years and have a lot of advanced manufacturing skills, such as precise grinding, thorough heat treatment, and strict quality inspection. We also offer flexible customisation services that can handle both large production runs and prototypes of a single item. We help with everything, from the first design consultation to global logistics. Our one-year warranty and quick technical support back this up. Contact us at sales@yizmachinery.com to talk about your needs and find out why top equipment manufacturers choose YIZHI MACHINERY as their Worm Gear Pair supplier. You can look at our full line of products at yizhimachinery.com and get exact specs that are made just for your machinery needs.

References

1. Dudley, D.W. (1994). Handbook of Practical Gear Design and Manufacture. CRC Press.

2. American Gear Manufacturers Association. (2018). AGMA 6022-C93: Design Manual for Cylindrical Wormgearing. AGMA Standards.

3. Deutsches Institut für Normung. (2012). DIN 3996: Calculation of Load Capacity of Cylindrical Worm Gear Pairs with Rectangular Crossing Axes. DIN Standards.

4. International Organization for Standardization. (2014). ISO 14521: Gears – Calculation of Load Capacity of Worm Gears. ISO Technical Standards.

5. Buckingham, E. (1988). Analytical Mechanics of Gears. Dover Publications.

6. Townsend, D.P. (1991). Dudley's Gear Handbook: The Design, Manufacture, and Application of Gears. McGraw-Hill Professional.
