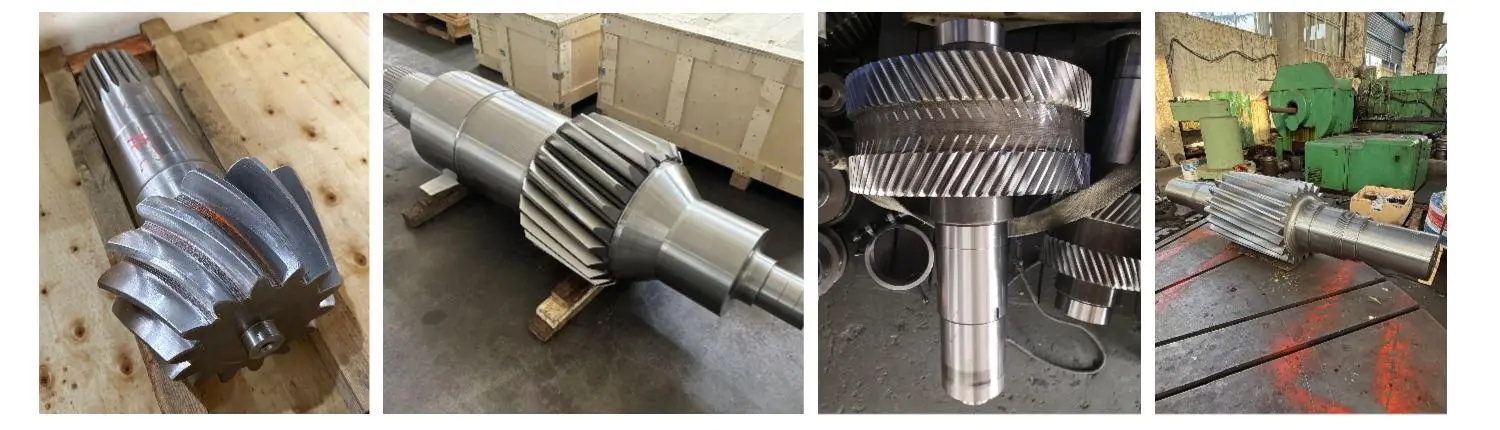

Bevel Pinion Shaft

High-Performance Bevel Pinion Shaft Solutions for Industrial Applications

At Henan Yizhi Machinery Co., Ltd., our precision-engineered Bevel Pinion Shaft conveys enterprise-grade execution with zero association backfire and transmission productivity surpassing 95%. With 15 a long time of fabricating skill and ISO certification, we give customizable arrangements including surface hardness up to 58-62 HRC and exactness review ISO 6 benchmarks. Our progressed generation capabilities incorporate high-precision CNC adapt machining centers and completely mechanized equip pounding machines, guaranteeing conveyance inside 35-60 days. The coordinates shaft-pinion manufacturing dispenses with powerless association focuses whereas keeping up compact structure plan for diminished establishment impression and remarkable stack capacity.

What Makes Our Bevel Pinion Shafts Different

You require exactness components that won't fall flat beneath weight. Our shafts illuminate basic transmission challenges in heavy-duty applications. The solid fashioning plan anticipates the worrying erosion common in keyed connections.

We utilize progressed winding tooth geometries to keep up effectiveness evaluations over 95% in right-angle drives. This implies less control misfortune and superior execution for your equipment.

Key Benefits You'll Experience

• Zero backfire transmission for exact movement control
• Compact impression spares important establishment space
• Low upkeep costs decrease your operational expenses
• High torque thickness maximizes control in negligible volume
• Custom building custom-made to your particular requirements

Technical Specifications

Manufacturing Excellence

Our generation office houses all inclusive driving accuracy gear. We utilize high-precision CNC adapt machining centers and completely computerized adapt crushing machines. Each​​​​​​​ Bevel Pinion Shaft experiences shrewdly warm treatment forms for ideal metallurgical properties.

The standardized workflow guarantees steady quality:

1. Requirement examination and specialized consultation
2. Custom plan drawings creation
3. Precision fabricating with progressed machinery
4. Rigorous quality review at each stage
5. Protective bundling with harm avoidance guarantee
6. Multi-channel transportation with real-time tracking

Quality That You Can Trust

Surface quality comes to Ra ≤ 0.8µm through accuracy pounding. This decreases contact and anticipates micropitting. Our case-hardening forms make the idealize adjust of surface wear resistance and center toughness.

We keep up strict adherence to universal quality benchmarks counting DIN 3965, AGMA 2005-D03, and ISO 17485 for dimensional tolerancing.

Industrial Applications

Your gear requests dependable control transmission arrangements. Our shafts exceed expectations in challenging environments:

Heavy Mining Hardware: Transmits gigantic torque in cone crushers whereas withstanding extreme stun loads and contamination.

Automotive Differentials: Gives calm operation and remarkable life span over hundreds of thousands of working cycles.

Marine Impetus: Handles tall RPMs with negligible warm development in destructive marine environments.

Machine Device Shafts: Conveys accuracy movement control for fabricating hardware requiring correct positioning.

Robotics: Empowers compact, high-precision transmission for mechanical joints and robotization systems.

Custom Engineering Services

We get it that standard arrangements do not continuously fit your needs. Our building group works with you to create custom details. Whether you require single models or generation amounts, we oblige orders of any size.

Our collaborative approach includes:

• Technical interview amid plan phase
• Sample arrangement for testing and validation
• Real-time generation advance updates
• Comprehensive quality documentation
• One-year guarantee with quick reaction support

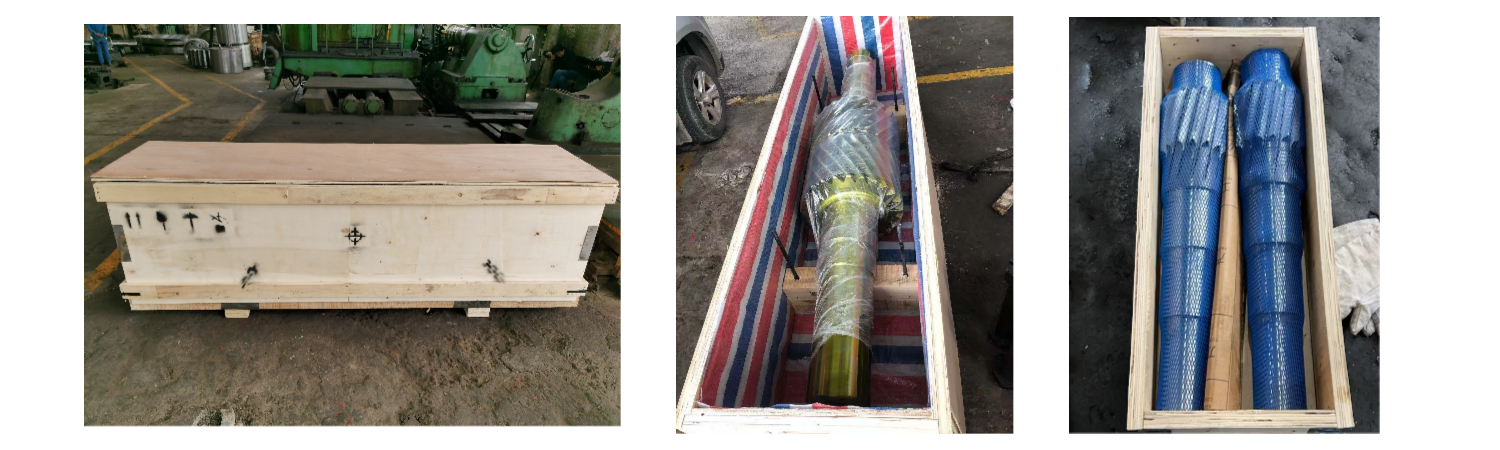

The transport harm rate remains underneath 0.1% much appreciated to our specialized bundling framework. We utilize shock-absorbing padding liners and custom wooden beds to secure your investment.

Frequently Asked Questions

Q: Why must the Bevel Pinion Shaft and ring gear be replaced as a matched set?

A: Amid fabricating, we lap the pinion and ring equip together. This makes interesting mating surfaces and contact designs. Supplanting as it were one component ordinarily comes about in clamor and fast disappointment due to jumbled tooth topography.

Q: What causes whining noise in applications?

A: Crying as a rule demonstrates erroneous backfire settings or tooth geometry mistakes. It frequently implies the contact design has moved due to bearing wear or disgraceful get together procedures.

Q: How do you determine correct backlash?

A: Backlash depends on the module and thermal expansion expectations. We typically specify 0.15mm to 0.35mm for industrial applications. Measurement requires a dial indicator positioned perpendicular to the tooth surface.

Q: What's the difference between spiral bevel and hypoid designs?

A: Winding incline shafts have crossing tomahawks with the mating equip. Hypoid plans highlight counterbalanced tomahawks, permitting bigger pinion distances across and smoother operation but requiring specialized lubricants.

Q: How important is the break-in period?

A: Proper break-in allows surface polishing and work-hardening of tooth surfaces. This controlled process significantly extends component life by preventing scuffing and scoring.

Q: Can you handle custom material specifications?

A: Yes, we work with various alloy steels including specialized grades for extreme environments. Our metallurgy team can recommend optimal materials for your specific application requirements.

Contact Us

Ready to use the Bevel Pinion Shaft to improve your transmission performance? Contact our engineering team at sales@yizmachinery.com for custom solutions and technical consultation.
