How Precision Spiral Bevel Gear Grinding Improves Gear Performance

Precision Spiral Bevel Gear Grinding turns sharpened gear tooth surfaces into high-performance mechanical parts by improving the surface finish, making sure the dimensions are correct, and making the contact pattern better. This high-tech finishing method uses CNC-controlled grinding tools with CBN or corundum wheels to fix distortions caused by heat treatment, get rid of small flaws, and make sure the kinematic accuracy. As a result, gear sets make less noise and vibration, last longer, and can carry more weight. These are all very important benefits for industrial machinery, mining equipment, and military uses that can't risk working dependability.

​

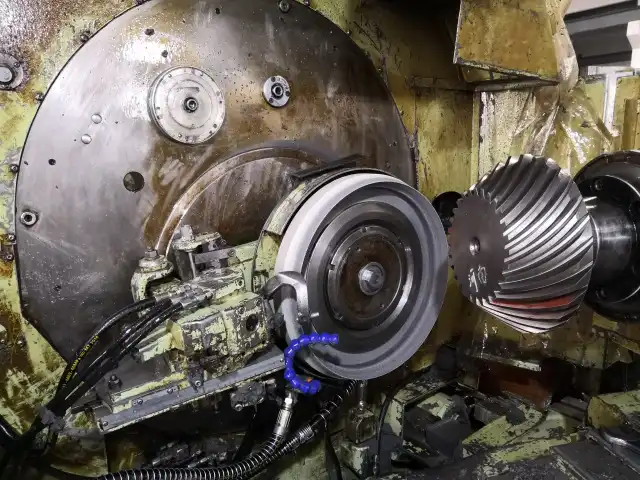

Understanding Spiral Bevel Gear Grinding and Its Process

Spiral Bevel Gear Grinding is the best way to finish off the hard parts of modern gears because it can solve problems that rough grinding methods can't. Gears will always be distorted after heat treatments like cooling or carburizing, which raise the surface hardness to 58–62 HRC. This twisting changes the shape of the teeth and the quality of the mesh, which causes it to break too soon when it's loaded.

What Makes Grinding Different from Other Machining Methods

While hobbing or milling shapes gear teeth by removing material from lighter metals, grinding finetunes areas that are already hard with accuracy down to the micron level. For this process, special 5-axis CNC tools are used that follow scientifically defined tooth surface topographies. Cubic Boron Nitride (CBN) grinding wheels get the surface roughness to between 0.2µm and 0.4µm Ra while removing only 0.05 to 0.15 mm of material per side. By lowering friction coefficients and working temperatures during power transfer, this amount of finish has a direct effect on how well the gear works.

The Technical Sequence Behind Precision Grinding

The first step in the grinding process is to dress the wheel. This conditions the rough surface so that it keeps its cutting shape. Each gear tooth is ground in a series of passes, and the machine is always changing the position of the wheel based on feedback from built-in measurement tools. Adaptive control methods are used in modern grinding centers to make up for heat expansion and tool wear in real time. Single-side roll testing checks the quality by measuring the transmission error across the whole mesh cycle. This makes sure that the harmonic frequencies stay within acceptable NVH (noise, vibration, and harshness) limits.

By understanding these technical basics, buying teams can better understand why grinding costs more but gives clear benefits like fewer warranty claims and longer component lifecycles.

Benefits of Precision Spiral Bevel Gear Grinding for Industrial Applications

Industry areas like mining, aerospace, and heavy machinery all need gear systems that work consistently in harsh situations. There are measurable benefits to precision grinding that immediately meet these practical needs.

Enhanced Load Capacity and Durability

Spiral Bevel Gear Grinding: Grinding creates contact patterns that spread loads evenly across the tooth sides. This keeps stress from building up at the edges, where severe chipping starts. The process increases fatigue life by 30–50% compared to options that aren't ground. This is because it keeps the positive leftover compressive stresses that were introduced during heat treatment and avoids grinding burn, which would weaken the metal's structure. YIZHI MACHINERY can grind gears to an ISO 8-9 grade of accuracy, making them perfect for high-torque uses in mining equipment where gear failure means expensive downtime.

Noise and Vibration Reduction

During operation, high-frequency transmission noise is caused by surface undulations that can't be seen. Grinding gets rid of these flaws by carefully removing material and changing the shape of the part, such as by adding end relief, tip relief, and topping. When compared to lapped gears, the resulting tooth surfaces have constant contact development, which lowers shaking amplitudes by up to 15 dB. This is very important in military helicopter gears that need to avoid structural resonance and in machine tool spindle drives that need to work without vibrations in order to meet tight tolerances for precision machining.

Compliance with International Standards

In order for global supply lines to work, high standards must be met. Through detailed process controls and CMM (Coordinate Measuring Machine) proof, precision grinding makes sure that it meets the requirements of AGMA Q13, DIN 4, and ISO 1328. As part of our production process, we check for grinding burns using Nital etch inspection according to ISO 14104, and we also do topography analysis to make sure that the profile error (fα) and helix slope error (fβ) stay within the allowed ranges. This framework for approval lowers the risk of buying and makes it easier for OEM clients to trade across borders when they buy from more than one area.

These benefits can be seen in procurement: lower total cost of ownership due to fewer repair intervals, fewer failures in the field that lower warranty risk, and supply chain stability that is necessary for just-in-time manufacturing settings.

Comparing Spiral Bevel Gear Grinding with Alternative Methods

Before making a purchase, it's important to know how the different finishing methods affect price, quality, and wait time. Each way plays a different part in the process of making gear.

Grinding Versus Lapping: Precision and Interchangeability

Running matched gear pairs against an abrasive substance during laps improves the surface finish by causing matching wear. Lapped sets get DIN 7-9 quality grades at a lower cost, but they have to stay paired for the whole service life, which makes inventory management and field substitutes more difficult. Each part is ground separately, which creates a mathematically repeatable shape that lets any pinion fit with any gear from the same production batch. This interchangeability gives buyers more choices when they're buying, which is especially helpful for maintenance spare parts programs where limits on matching parts make logistics harder.

Grinding Versus Shaving: Post-Hardening Capabilities

Equipment Considerations for In-House Versus Outsourced Grinding

Leading machine makers like Gleason, Emag, Sandvik, and Harbin make grinding centers that cost between $800,000 and $3 million, based on the size capability and amount of automation. In-house equipment gives you more control over production and faster turning times for large projects, but you need to be trained to operate it and know how to keep it in good shape. By hiring specialized service providers like YIZHI MACHINERY, you can get the latest grinding technology and steel knowledge without having to spend money on equipment. Our 15 years of production experience include working with 45# steel, SAE4340, and AISI8620, as well as modules ranging from 0.5 to 50 teeth and tooth numbers that can be changed.

When you compare these factors to production volumes, spending limits, and the need for expert help, you can find the best sourcing strategies that combine quality assurance with low costs.

How to Choose Spiral Bevel Gear Grinding Services and Machines

To choose the right grinding options, you need to look at technical skills, quality systems, and the dependability of the relationship. To lower supply chain threats, procurement teams should look at more than one factor.

Technical Capability Assessment

Check out service providers based on the specs of their tools, their knowledge with the material, and the precision grades they've earned. Ask for sample inspection records that include CMM measurements, details on surface roughness, and confirmation of hardness. YIZHI MACHINERY can make things by using heat treatments like carburizing, cooling and tempering, and induction hardening. This lets them handle everything from raw materials to finished gear all at once. Our quality control that meets ISO standards includes Barkhausen noise analysis for checking stress without damaging the part and single-side roll testing to make sure the transmission error performance is good.

Customization and Scalability

Non-standard requirements are often needed in industrial settings. Make sure that the providers can handle custom tooth counts, pressure angles (14.5° or 20°), and topological changes that are made to fit the way the housing deflects. Before a sale, our engineering team helps with design by turning customer needs into manufacturing plans that show the best contact patterns for the situations the product will be used in. Low minimum order amounts, which include production of a single piece, allow for testing and low-volume unique uses without having to pay too much.

Supply Chain Reliability and Logistics

Lead times for special Spiral Bevel Gear Grinding work are usually between 35 and 60 days, which means that purchase cycles need to be planned ahead of time. YIZHI MACHINERY solves logistics problems by mixing sea freight, air freight, and rail travel between China and Europe. They fit shipping methods to the amount of work and how quickly it needs to be done. Transport damage rates are kept below 0.1% with custom packing that includes shock-absorbing liners and wooden crates. Real-time tracking lets you see what's happening from the time the goods are loaded at the plant until they are delivered. These skills make sure that the supply chain stays stable, which is important for planning production and keeping track of goods.

Partnering with certified providers that offer full warranties and well-documented quality systems is the best way to build long-term buying relationships that give consistent performance and technical support throughout the lifecycles of products.

Optimizing Gear Performance Through Lean Improvement Techniques in Grinding

Continuous growth methods make the grinding process more efficient while keeping or even raising the quality of the results. Suppliers who are dedicated to operating success are good for both manufacturers and procurement teams.

Process Stability Through Advanced Control Systems

Traditional grinding tools depend on the skill of the operator to get uniform results. This introduces variation that raises the rate of rejection. Closed-loop feedback is used in modern CNC-controlled systems to change the grinding settings automatically based on readings taken during the process. Adaptive grinding processes change the wheel feed rates and cooling flow based on how much heat is being generated. This stops the thermal damage that leads to grinding burns. These technological improvements cut cycle times by 20–30% and raise first-pass yield rates. For customers, this means lower prices and faster wait times.

Supplier Collaboration for Application-Specific Optimization

Gear efficiency depends on how the tooth geometry interacts with the real working conditions, such as the stiffness of the housing, the clearances between the bearings, and the loads that are put on it. Because gear makers and equipment manufacturers work together, tooth changes that correct for system-level deflections can be made more fine-tuned. Because YIZHI MACHINERY has worked with turning systems, farm equipment, and small mechanical drive systems, they can make design suggestions that keep edges from getting loaded and wearing out too quickly. With this consultative method, providers go from selling parts to becoming expert partners who help make the whole system more reliable.

Quality Control Integration

The concepts of lean production stress preventing defects over finding them. By using automated measurement and statistical process control to build quality assurance directly into grinding routines, deviations can be found before they spread through production runs. Our quality control procedures use FFT (Fast Fourier Transform) analysis of transmission error patterns to find machine motion problems that cause ghost noise. This lets us do corrective maintenance before the quality of the product goes down. This cautious method lowers the number of parts that need to be thrown away and makes sure that parts always meet the requirements of the specifications.

These efforts to make things better are good for procurement groups because they lower the total cost of purchase, make delivery more predictable, and give them access to technical knowledge that improves product designs and fixes problems with field performance.

Conclusion

The important finishing step that turns heat-treated parts into high-performance transmission elements is called Precision Spiral Bevel Gear Grinding. Grinding has measurable benefits, such as longer service life, less noise and vibration, higher load capacity, and compliance with international quality standards. These benefits come from a better surface finish, accurate geometry, and controlled contact patterns. When choosing a supplier for grinding services, people who work in procurement should look at the seller's technical skills, ability to make changes, quality systems, and reliability in shipping. YIZHI MACHINERY has been making things for 15 years and uses ISO-compliant methods and a wide range of customization options. They support industrial machinery, mining, and aerospace applications with custom solutions backed by quick technical support and a global logistics infrastructure.

FAQ

1. How does grinding compare to lapping for gear finishing?

Grinding takes material from each gear component separately, which leads to mathematical consistency, DIN 5 quality, and a higher load capacity. Lapped gears have to stay paired for the whole service life, which limits the inventory's usability. Ground gears have benefits that make them easy to swap out, which is important for repair spare parts programs.

2. What makes grinding burn happen, and how can it be avoided?

When removing too much material with too much heat, which is higher than the hardening temperature of hardened steel, soft spots form in certain areas. This is called grinding burn. Controlling the Specific Material Removal Rate is needed for prevention. This can be done by making sure the coolant is delivered properly, choosing the right CBN wheels, and doing regular treatment cycles. Initial scratch inspection according to ISO 14104 is used by YIZHI MACHINERY to make sure that all areas are burn-free.

3. Can grinding accommodate large module gears?

Heavy-duty grinding tools can handle modules with more than 20 pieces, but the run times are much longer. Profile grinding with single reference methods instead of continuous production keeps large parts common in mining equipment stable at high temperatures and accurate in size.

Partner with YIZHI MACHINERY for Your Precision Gear Grinding Needs

Custom Spiral Bevel Gear Grinding is what YIZHI MACHINERY does best for industrial gearbox, mining, and aircraft needs. We use high-quality materials like 20CrMnTi, 40CrNiMo, SAE4340, and AISI8620 in our ISO 8-9 grade precise manufacturing methods to make gears with surface hardnesses between 45-50 HRC and 58-62 HRC. As an experienced Spiral Bevel Gear Grinding maker, we offer full support, from design advice to global logistics. Our services are backed by one-year warranties and quick expert help. Our custom packing options and multiple shipping methods guarantee damage-free arrival, and you can see the status of your package at any time. Contact us to sales@yizmachinery.com to talk to our engineering team about your unique application needs and to get full quotes. We accept requests for both large production runs and small prototype runs. Our 15 years of experience in manufacturing and track record of reliability in challenging industrial settings will help you reach your procurement goals.

References

1. American Gear Manufacturers Association. (2015). ANSI/AGMA 2009-B01: Bevel Gear Classification, Tolerances, and Measuring Methods. Alexandria, VA: AGMA.

2. Stadtfeld, H. J. (2014). Gleason Bevel Gear Technology: Manufacturing, Inspection and Optimization. Rochester, NY: The Gleason Works.

3. International Organization for Standardization. (2013). ISO 1328-1:2013 Cylindrical Gears — ISO System of Flank Tolerance Classification. Geneva: ISO.

4. Klocke, F., & Gorgels, C. (2011). "Hard Gear Finishing by Grinding and Honing: Current Technology and Future Developments." Gear Technology, 28(4), 42-49.

5. Litvin, F. L., & Fuentes, A. (2004). Gear Geometry and Applied Theory (2nd ed.). Cambridge: Cambridge University Press.

6. Deutsches Institut für Normung. (2012). DIN 3965: Tolerances for Bevel Gears — Part 1: Tolerances for Deviations of Individual Parameters. Berlin: DIN Standards Committee.
