Spiral Bevel Gear Grinding - Precision Manufacturing Solutions

Henan Yizhi Machinery's Spiral Bevel Gear Grinding benefit conveys enterprise-level exactness fabricating with 15 a long time of generation mastery. Our progressed 5-axis CNC crushing frameworks accomplish ISO 8-9 review precision and 58-62 HRC surface hardness for high-performance applications. With comprehensive customization capabilities crossing 12 fabric grades and conveyance inside 35-60 days, we serve multi-industry obtainment requests. Our end-to-end security framework keeps up cargo harm rates underneath 0.1%, guaranteeing your speculation arrives superbly intact.

What is Spiral Bevel Gear Grinding?

Our item speaks to the chief hard-finishing handle in progressed fabricating. This strategy characterizes the last micro-geometry, exactness, and surface quality of gears after warm treatment.

Unlike routine soft-cutting strategies, our handle employments specialized CBN (Cubic Boron Nitride) and corundum pounding wheels. These instruments accurately evacuate fabric from solidified equip flanks, killing basic fabricating challenges.

The process addresses three key industry pain points:

• Heat treatment mutilations that compromise equip work quality
• High-frequency transmission commotion from surface irregularities
• Uneven stack conveyance influencing performance

Through closed-loop fabricating rectification, we ensure kinematic accuracy fundamental for high-torque, right-angle control transmission systems.

Technical Specifications

Key Advantages

1. Superior Surface Quality

Our pounding handle accomplishes surface harshness (Ra) between 0.2µm and 0.4µm. This altogether diminishes grinding coefficients and working temperatures compared to standard wrapping up methods.

2. Enhanced Load Distribution

We make characterized flank geology with exact conclusion help, tip help, and delegated. This localizes contact designs to the tooth center, making your equip sets heartless to minor misalignments beneath overwhelming loads.

3. Noise Reduction Capabilities

The exactness pounding dispenses with high-frequency transmission commotion, assembly cutting edge NVH (Noise, Vibration, Harshness) benchmarks required in car and aviation applications.

4. Flexible Manufacturing

• Low least arrange amounts accepted
• Single-item generation capabilities
• Comprehensive fabric selection
• Custom dimensional requirements

5. Adaptable Transmission Solutions

Perfect for spatial precise transmission needs with adjusted effectiveness and accuracy over different mechanical applications.

Industrial Applications

Aerospace Systems

In helicopter main rotor gearboxes, our Spiral Bevel Gear Grinding guarantees lightweight quality with negligible vibration. The exactness avoids basic reverberation in airframes where disappointment edges are zero.

Marine Propulsion

For azimuth thrusters and detachable engine lower units, the tall surface wrap up upgrades oil film maintenance. This secures against setting in unforgiving saltwater situations beneath enormous hydrodynamic loads.

Automotive Differentials

Essential for rear-axle drives in overwhelming trucks and dashing vehicles. The exact tooth conjugate activity handles momentary stun loads whereas keeping up quiet operation required by present day car standards.

Industrial Equipment

• Steering frameworks requiring exact precise control
• Machine device shaft drives requesting tall accuracy
• Agricultural apparatus working beneath variable loads
• Compact mechanical transmission systems

Manufacturing Process

Our standardized workflow guarantees steady quality:

1. Requirements Communication - Specialized meeting and detail review
2. Design Drawings - CAD improvement and approval
3. Production Preparing - Progressed CNC pounding operations
4. Quality Assessment - Comprehensive dimensional and surface verification
5. Packaging - Custom assurance with shock-absorbing materials
6. Transportation - Multi-channel coordinations with real-time tracking

Quality Assurance

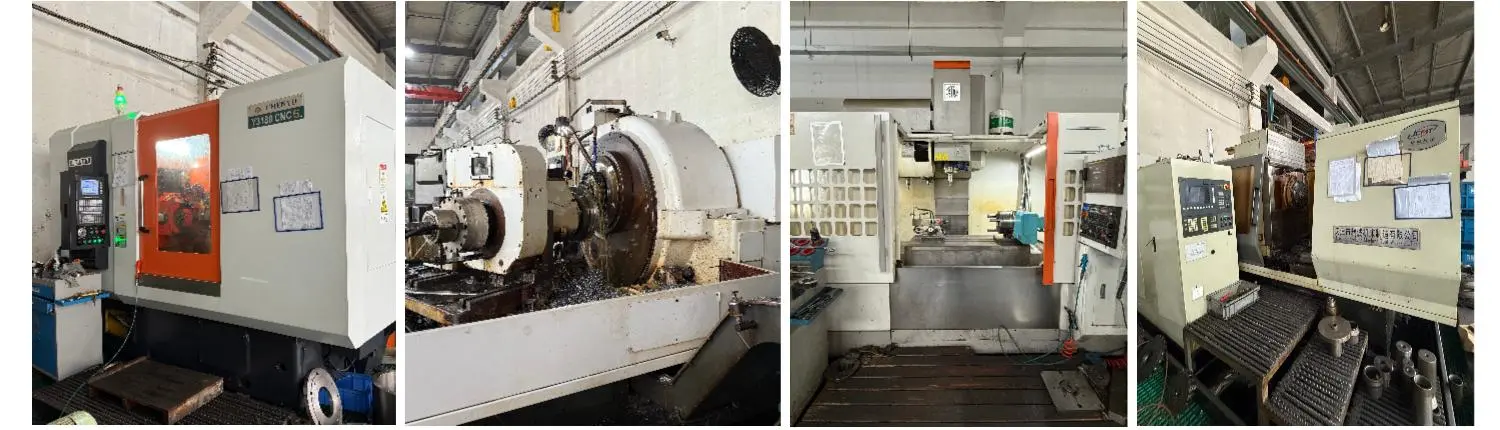

We keep up universally driving accuracy fabricating capabilities including:

• High-precision CNC equip machining centers
• Fully computerized crushing machines
• Intelligent warm treatment generation lines
• High-accuracy assessment instruments

Our ISO certification and 15-year fabricating encounter guarantee dependable quality measures. The controlled crushing prepare keeps up advantageous remaining compressive stresses, upgrading weakness life significantly.

Transport harm rates stay underneath 0.1% through our custom wooden beds and shock-absorbing padding systems.

Service Support

Pre-sales: Specialized meeting and plan drawing support

During Generation: Test arrangement, advance upgrades, quality assessment, and coordinations tracking

After-sales: One-year guarantee with quick reaction and issue resolution

Frequently Asked Questions

Q: What surface quality can you achieve with spiral bevel gear grinding?

A: We consistently achieve surface roughness (Ra) between 0.2µm and 0.4µm, meeting or exceeding AGMA Q13 and DIN 4 quality standards.

Q: Can you handle small batch orders?

A: Yes, we accept low minimum order quantities and even single-item production runs while maintaining competitive pricing.

Q: How do you prevent grinding burn during processing?

A: Our controlled grinding parameters and advanced cooling systems prevent thermal damage, maintaining beneficial residual compressive stresses on tooth flanks.

Q: What's the typical lead time for custom orders?

A: Standard delivery ranges from 35-60 days depending on complexity and quantity. Rush orders can be accommodated with advance notice.

Q: Do you provide design assistance for new applications?

A: Absolutely. Our engineering team offers comprehensive technical consultation and can develop custom solutions based on your specific transmission requirements.

Contact Us

Ready to use the Spiral Bevel Gear Grinding to enhance your transmission systems with precision-ground spiral bevel gears? Contact our technical team at sales@yizmachinery.com for expert consultation and competitive quotations.
