How does internal gear cutting differ from external gear cutting?

Geometry, tools, and grinding techniques are all fundamentally different in Internal Gear Cutting from External Gear Cutting. Internal Gear Cutting makes teeth on the inside diameter of a ring or cylinder. This lets input and output shafts line up in a small planetary design. Internal profiles can't be made with hobbing like external profiles can. Instead, they need special techniques like gear shaping, broaching, or power skiving because of limitations in geometric interference. This difference is important for meeting important design requirements in transmission density, torque-to-weight ratios, and noise reduction. It's especially useful in applications like aerospace actuators, mining equipment slew drives, and industrial planetary reducers that have to save space and carry heavy loads.

​

Understanding Internal and External Gear Cutting

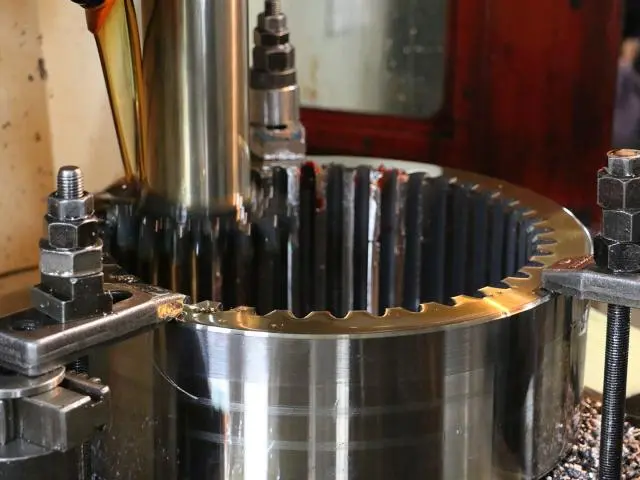

Defining Internal Gear Cutting and Its Core Applications

Internal Gear Cutting creates gear teeth inside cylindrical components, enabling planetary gear systems with high reduction ratios in compact envelopes. This method is essential for winches, machine tool feed mechanisms, and mining slew drives. Internal gears allow concentric nesting of multiple stages, increasing torque without enlarging housing width. Aerospace actuator systems and turboprop gearboxes benefit from weight reduction. Materials like 40CrNiMo and SAE4340 provide carburising response and fatigue strength.

External Gear Cutting Fundamentals and Operational Principles

External gear cutting places teeth on cylinder outside diameters, with hobbing as the dominant production method. Multi-fluted cutters create involute shapes through synchronous tool-workpiece rotation. Cycle times are significantly shorter—a standard automotive pinion takes about 90 seconds versus 4-6 minutes for internal shaping. CNC hobbing centers from Star SU and Sandvik handle 100-10,000 units per shift with setup times under 15 minutes.

Key Geometric and Tooling Distinctions

In Internal Gear Cutting, internal cutters must retract without damaging finished teeth, limiting cutter diameter relative to gear size. Tooth count differences between cutter and workpiece in Internal Gear Cutting typically exceed 10 teeth to avoid trochoidal interference. Power skiving for Internal Gear Cutting combines hobbing's continuous action with shaping's geometric capability, achieving 3-5× faster speeds than traditional shaping. Skiving cutters for Internal Gear Cutting feature complex helical geometries with precisely calculated lead and pressure angles.

Comparing Methods: Internal vs External Gear Cutting

Precision Capabilities and Tolerance Management

External hobbing consistently achieves ISO 6-7 grade accuracy with tooth-to-tooth tolerances of 8-12 microns for module 2-4 gears. Internal cutting achieves ISO 8-9 as-cut, improving to ISO 5-6 post-grinding. Thin-walled ring structures require hydraulic expansion arbors preventing distortion. Internal gears need case-hardened 58-62 HRC surfaces for higher Hertzian pressures, with case depths of 0.8-1.2mm on 20CrMnTi substrates.

Cycle Time Analysis and Production Economics

External hobbing dominates high-volume production with cycle times under 90 seconds using carbide tools at 250 m/min. Internal shaping takes 5-7 minutes for 80-tooth ring gears with 30mm face width. Power skiving reduces this to 1.5-2 minutes. Hobbing machines cost $150,000-$800,000; internal shaping equipment similar; power skiving adds 30-40% for multi-axis control. Tool life ranges 8,000-15,000 parts for hobs versus 3,000-6,000 for shaping cutters.

Equipment Investment and Maintenance Considerations

Annual maintenance budgets typically reserve 3-5% of machine value for alignment checks and component replacement. Internal shapers require monitoring of ram guides and stroke control systems. Power skiving's multi-axis complexity pays off through reduced floor-to-floor times. Hybrid platforms from Mitsubishi and Haas offer both internal and external cutting through quick-change tooling systems. YIZHI MACHINERY maintains Cpk values above 1.67 for critical dimensions.

Process Insights: How Internal Gear Cutting Works vs External Gear Cutting?

Step-by-Step Internal Gear Cutting Workflow

Blank preparation involves rough turning ring forgings to within 0.1mm of final dimensions. Setup requires expanding arbors gripping the bore diameter with runout under 0.015mm. Shaping operations run at 30-60 m/min cutting speeds with adaptive feed formulas compensating for tool wear. Relief grooves at bore bottoms allow cutter deceleration. Carburising at 920°C for 6-10 hours, quenching, and tempering achieve hardness. Grinding corrects 0.05-0.15mm thermal distortion.

External Gear Cutting Process Mechanics

Blanks clamp on three-jaw chucks with runout limited to 0.02mm. Hobs mount on separate spindles at helix angles with synchronised speed ratios. Roughing passes remove 3-5mm depth at 2.5-4.0 mm/rev; finishing removes 0.3-0.5mm. Envelope cutting action generates involute profiles through mechanical synchronisation preventing cumulative errors. Climb hobbing provides superior surface finish, reducing subsequent grinding requirements.

Addressing Common Machining Challenges

Tool deflection causes tapered tooth shapes wider at top than root. Improved clamping and reduced depth-of-cut keep axial displacement below 0.03mm. Surface defects like chatter marks arise from insufficient rigidity; vibration damping systems and precision-ground ram ways mitigate these. Hob runout and thermal expansion affect tooth spacing; real-time measurement and spindle temperature compensation maintain tolerances. Coolant management prevents thermal distortion in thin-web gears.

Advantages and Limitations of Internal vs External Gear Cutting

Strengths of Internal Gear Manufacturing

Planetary designs allow three or more pinions sharing loads simultaneously, reducing tooth stress by 30-40%. Contact ratios increase from 1.4-1.6 in external pairs to 1.8-2.2 in planetary setups, enabling smoother load transfer. Custom tooth counts and module ranges allow precise reduction ratios matching motor speeds to load requirements. Profile shifts, tip reliefs, and crowning optimise contact patterns for specific duty cycles.

Limitations and Cost Considerations

Internal Gear Cutting tooling costs 40–60% more than External Gear Cutting due to cutter designs and the necessity for more frequent resharpening. Because ring gears have less expansion space, cutters must be smaller, which wears them out quicker at the same material removal rate. The complexity of helical forms on power skiving tools makes them more costly, but their longer lifespan compensates.

Geometric restrictions restrict internal gear designs. To avoid interference, the ring gear and cutter must have different tooth counts. This normally limits internal gears to 30 teeth for module 2–5 ranges. Blind internal gears need relief lines that eat up axis space and complicate construction. This makes design more complicated than external gears.

External gear cutting can accommodate several module sizes with a few tool modifications, making it adaptable. Because shape cutters can only cut particular tooth numbers and modules, internal gear cutting requires unique setups and specialized instruments. This constraint impacts job shops with many customers since external hobbing machines may accomplish many distinct jobs with minimal changeover time.

Equipment Condition and Long-Term Reliability

Machine health affects production consistency. External hobbing machines can manage spindle bearing and way wear due to continuous radial cutting forces. Ram guides and tracking devices in internal gear shaping machines wear faster due to reciprocating shock loads, therefore they need to be examined and adjusted more regularly to maintain accuracy.

Predictive maintenance programs monitor shaking patterns, spindle temperatures, and hydraulic pressures to identify issues early. Every three months, thermal imaging checks for worn bearings and laser interferometry checks installation accuracy. This proactive approach minimizes unforeseen downtime and keeps delivery commitments within 35–60 days.

Heat treatment consistency affects gear performance as much as cutting precision. Equal-shaped exterior gears keep temperatures level, reducing distortion. After cooling, internal ring gears flex due to temperature variations caused by their unequal mass distribution—thin walls relative to diameter. Our smart heat treatment manufacturing lines employ preset quench agitation patterns and fixturing to maintain ring geometry throughout transformation, limiting distortion to 0.08 to 0.12 mm for diameters under 300 mm.

Market Solutions and Reliable Manufacturing Partnerships

Evaluating CNC and Manual Gear Cutting Equipment

CNC gear cutting systems with factory cells, automated loading, in-process inspection, and data recording for tracking are increasingly needed in mining, aerospace, and industrial hardware. These systems don't allow operators vary, so cycle durations and quality metrics are consistent between shifts and production runs.

Manual gear cutting tools are ideal for maintenance and low-volume applications when setup takes longer than cycle time. A skilled machinist can create a unique internal gear in one shift on a manual shaper. CNC programming, fixturing, and testing may take two days before the first good part is produced. We use CNC and manual tools depending on order quantity and delivery time.

CNC precision and human adaptability are combined in hybrid approaches. Modern gear shapers cut with CNC axis control but load workpieces manually. This reduces capital expenses by 30% over fully automated systems. These machines are ideal for mid-volume production runs like mining tool manufacture, which requires 50 to 500 units of each part number per year.

Kennametal, Star SU, and Sandvik premium tools last longer and provide higher surface polish. Coated carbide shaping blades with TiAlN or AlCrN coatings endure 50–80% longer than bare tools, even when temperature stops cuts. Working with sharp alloy steels like 42CrMo and AISI4140 requires lengthy tool life since tool wear influences job profitability.

Building Trust Through Technical Capability and Service

Choose a gear cutting provider based on more than catalog criteria for technical expertise. Our high-precision CNC gear machining machines offer closed-loop feedback systems that maintain 3 micron positioning accuracy across 500 mm. This matters for production tools. Fully automated gear grinding machines employ continuously dressed CBN wheels to maintain part form throughout manufacturing. This ensures the final item matches the first within 5 microns of profile tolerances.

Inspection infrastructure proves Internal Gear Cutting's power. We employ coordinate measuring equipment with software to measure Internal Gear Cutting tooth profiles at 150 points per tooth and provide statistical process control charts for form error, lead deviation, and pitch variation. Precision inspection instruments with double-flank composite checks match functional performance to verify Internal Gear Cutting gears fulfill assembly criteria beyond basic dimensional conformity.

Quality system badges indicate a company's commitment. Following ISO 9001 rules establishes process discipline. The AS9100 aircraft standards tighten material tracking, process validation, and configuration control. We understand the demands of each industry, from mining shock loads to aircraft weight reduction and backups, from our 15 years of manufacturing expertise in industrial equipment, mining, and aerospace.

Future-Proofing Through Technology Adoption

Gearmaking technology evolves swiftly. Power skiving is accelerated by machine tool manufacturers upgrading control algorithms and equipment vendors improving cutter shapes. This method allows internal gear production at almost the speed of exterior hobbing. This alters economy calculations for planetary gears.

Hard skiing, which cuts hot gears, may speed up and reduce capital requirements by replacing grinding. The best surface finish now is 1.2–1.6 microns. Hard skiving is only suitable for industrial machinery without precision. Grinding is still required for aerospace grades with Ra values between 0.4 and 0.8 microns, which are optimal for wear life.

Mixing approaches to complete machine 3D-printed near-net shapes might transform gear production in the future. For gears, metal printing technique lacks surface stability and dimensional precision, however directed energy deposition and post-processing technologies are promising. We follow industrial technology developments so our customers may benefit from better production and cheaper costs when new concepts become more entrenched.

Conclusion

Internal and external gear cutting are not just different in terms of geometry for Internal Gear Cutting; they are also fundamentally different in terms of tooling, process costs, and application fit. External gear cutting through hobbing is the most efficient way to make a lot of gears, while Internal Gear Cutting manufacturing makes it possible to make small planetary designs that are needed for high-torque uses in industrial machinery, mining equipment, and military systems that don't have a lot of room. When procurement workers and engineering decision-makers understand these technical and economic trade-offs for Internal Gear Cutting, they can choose the best manufacturing methods that meet performance needs, production rates, and budget limits. As power skiving and hard cutting technologies get better for Internal Gear Cutting, the efficiency of making internal gears keeps going up. This means that planetary transmission options can be used in more industries at lower costs through advanced Internal Gear Cutting methods.

FAQ

1. What determines whether to use internal or external gear cutting for a specific application?

The choice depends on how the transfer works and how much room is available. Internal gears are needed for applications that need small planetary setups with input and output wheels that are coaxial. When there is enough room and enough output, external gears work well with parallel-shaft setups. The decision is also affected by the required torque density, the noise level, and the bearing design.

2. How do CNC tools make accuracy better than cutting gears by hand?

Because they use programmed tool paths, stable cutting settings, and closed-loop position input, CNC systems get rid of the variation that comes from the user. Repeatability goes from ±0.05mm (manual) to ±0.005mm (CNC), which directly improves the accuracy of the tooth spacing and the regularity of the shape. Automated in-process adjustment fixes issues like tool wear and temperature effects that workers can't see or fix with the same level of accuracy.

3. Can internal gears achieve the same precision grades as external gears?

Yes, through grinding processes after the heat treatment. As-cut internal gears usually get ISO 8–9 grades, while hobbed external gears only get ISO 6-7 grades. Internal grinding raises the accuracy to ISO 5–6 grades. The things that stop it from going further are the stiffness of the workpiece during cutting and the distortion caused by heat treatment. Both of these problems can be fixed with the right tools and controlled heating.

Partner with a Trusted Internal Gear Cutting Manufacturer

YIZHI MACHINERY specializes in making precise internal gears for use in mining, aircraft, and industrial machinery. They offer unique solutions backed by 15 years of production experience. Our advanced factory has high-precision CNC gear machine centers, automatic grinding equipment, and smart heat treatment systems that make internal gears from module 0.5 to 50 out of materials like 20CrMnTi, 40CrNiMo, and SAE4340. Through controlled cooling and carburizing, we can get accuracy of ISO 8–9 grade and a surface hardness of 58–62 HRC. Our method is flexible enough to allow for low minimum order numbers, even one-piece production, so it can be used for both prototype development and high-volume production. We offer solid Internal Gear Cutting supplier partnerships with delivery times of 35 to 60 days and full support, from design advice to tracking supplies. Contact us at sales@yizmachinery.com to talk about your needs for a planetary gear reducer, a winch, or a transmission system.
