Internal Gear Cutting
2.Material:45#steel，20CrMnTi，40CrNiMo，SAE4340，42CrMo，AISI4140，18CrNiMo7，17CrNiMo6，20CrNiMo，AISI8620，20CrNi2Mo，SAE4320
3.Tooth Grinding:Yes
4.Precision Grade:ISO 8-9 Grade
5.Heat Treatment:Carburising，quenching and tempering，induction hardening
6.Processing Techniques:Cutting，hobbing，milling，grinding
7.Load Capacity:High
8.Applications:Planetary gear reducers，winches，machine tool feed mechanisms，transmission systems for lifting equipment
- Product Description

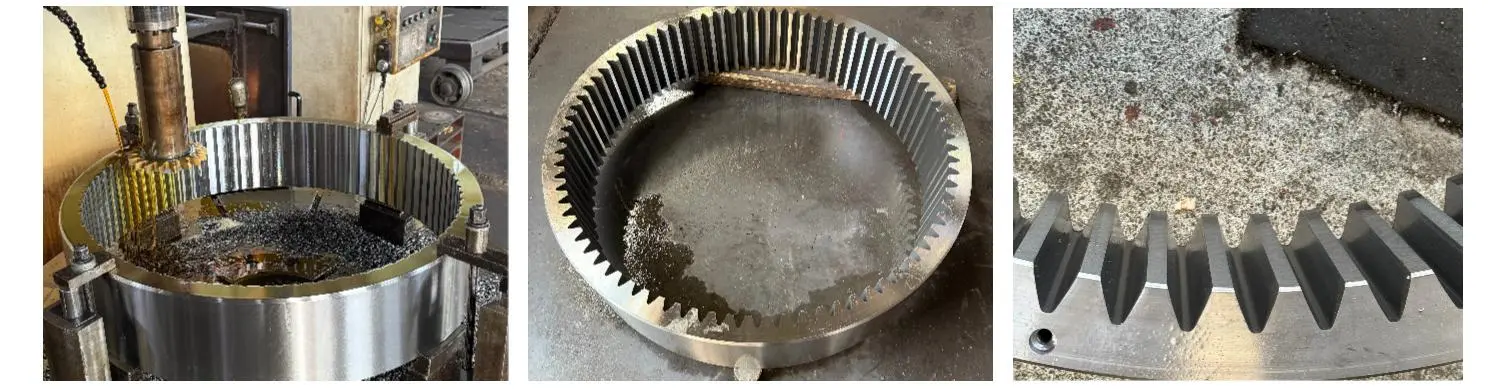

Internal Gear Cutting - Precision Manufacturing Solutions
Henan Yizhi Machinery Co., Ltd. specializes in advanced Internal Gear Cutting with over 15 a long time of accuracy fabricating involvement. Our enterprise-level arrangements provide ISO 8-9 review exactness through cutting-edge CNC equip machining centers and completely mechanized pounding frameworks. We accomplish surface hardness up to 58-62 HRC over modules extending from 0.5-50. With standardized OEM workflows guaranteeing 35-60 day conveyance times, we keep up transport harm rates underneath 0.1% through specialized bundling frameworks, serving multi-industry requests from planetary reducers to aviation applications.
What is Internal Gear Cutting?
The item speaks to a specialized machining handle that makes equip teeth on the inward circumference of round and hollow components. Not at all like outside gears, this innovation empowers coaxial input-output setups basic for planetary transmission systems.
The prepare addresses basic building challenges in present day mechanical plan. You pick up critical focal points in space utilization and torque thickness. Inside gears permit for compact transmission arrangements where conventional outside equip courses of action would be impossible.
Key Manufacturing Methods:
- Gear forming with specialized tooling
- Power skiving for high-efficiency production
- Precision broaching for particular applications
- Advanced pounding for wrapping up operations
This innovation fathoms commotion and vibration issues through made strides tooth contact designs. The concave-convex work characteristics disseminate loads more viably than customary outside adapt systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Number of Teeth | Customized to requirements |
| Module Range | 0.5 – 50 |
| Helix Angle | 5° – 45° |
| Surface Hardness | 45-50 HRC, 58-62 HRC |
| Precision Grade | ISO 8-9 Grade |
| Materials Available | 45# steel, 20CrMnTi, 40CrNiMo, SAE4340, 42CrMo, AISI4140, 18CrNiMo7, 17CrNiMo6, 20CrNiMo, AISI8620, 20CrNi2Mo, SAE4320 |
| Heat Treatment | Carburizing, quenching and tempering, induction hardening |
| Processing Techniques | Cutting, hobbing, milling, grinding |
Applications Across Industries
Our precision-manufactured inside gears serve basic capacities in requesting applications:
Automotive & Electric Vehicles
High-speed EV powertrains require inner ring gears working at 15,000+ RPM. These components kill Internal Gear Cutting whimper whereas keeping up extraordinary torque thickness in compact spaces.
Heavy Machinery
Construction gear utilizes large-module inner gears in slewing drives. These components handle extraordinary stun loads in excavators and crane systems.
Aerospace Systems
Aircraft actuators request the most noteworthy exactness inner gears. These components must keep up dimensional soundness beneath extraordinary warm cycling whereas assembly strict weight requirements.
Industrial Automation
Precision planetary reducers depend on inner adapt innovation for smooth operation. These applications advantage from diminished backfire and moved forward situating accuracy.
Manufacturing Excellence

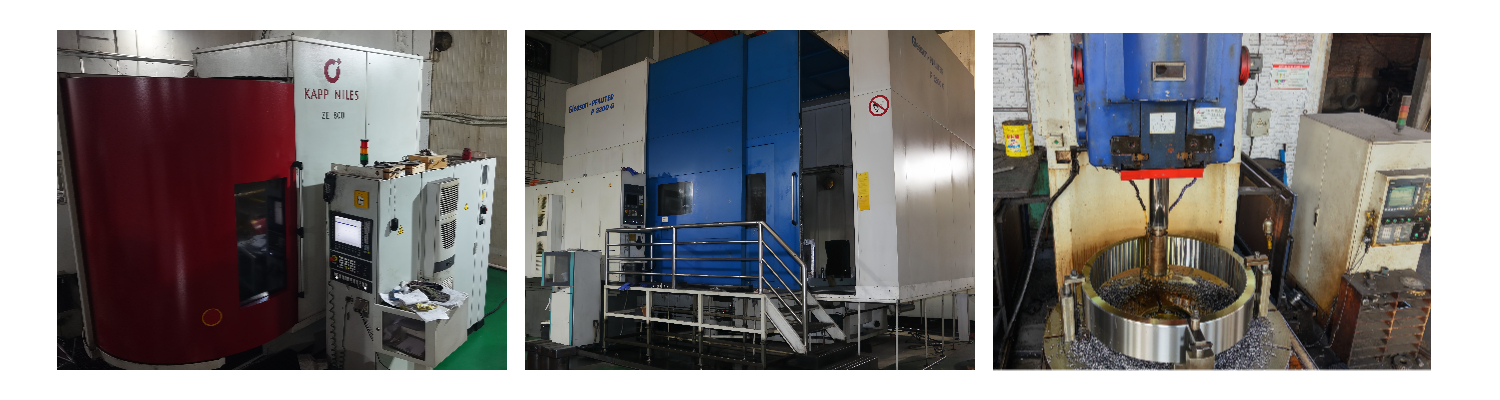

Our generation capabilities center on progressed hardware and demonstrated forms. We utilize high-precision CNC adapt machining centers nearby completely mechanized pounding systems.
Quality Assurance

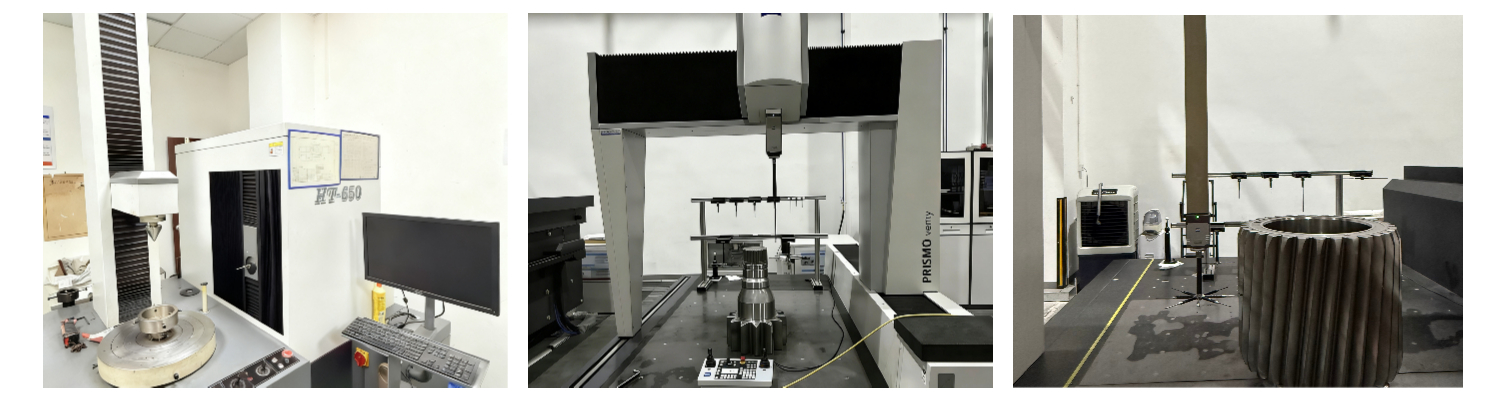

Every component experiences comprehensive assessment utilizing 4-axis CNC adapt review centers. We screen basic parameters counting pitch blunder, profile deviation, and outspread runout.
Heat Treatment Expertise
Specialized warm treatment forms guarantee ideal metallurgical properties. Our controlled carburizing and extinguishing strategies accomplish indicated hardness gradients.
Flexible Production
We oblige orders from single models to expansive generation runs. Our standardized workflow guarantees steady quality notwithstanding of arrange size.
Competitive Advantages
Compact Design Solutions
Internal adapt setups give greatest torque transmission in negligible space. You accomplish prevalent control thickness compared to conventional outside equip systems.
Enhanced Reliability
Improved stack dispersion characteristics amplify component life. The concave-convex tooth contact diminishes stretch concentrations and wear patterns.
Noise Reduction
Helical inner gears essentially decrease transmission commotion. This advantage demonstrates basic in electric vehicle applications and exactness machinery.
Custom Engineering Support
Our specialized group gives comprehensive plan help. We optimize equip parameters for your particular application requirements.
Manufacturing Process
Our standardized workflow guarantees steady results:
- Requirements Examination - Nitty gritty determination review
- Design Optimization - CAD modeling and verification
- Precision Machining - CNC cutting and forming operations
- Heat Treatment - Controlled solidifying processes
- Finish Crushing - Last accuracy operations
- Quality Assessment - Comprehensive estimation verification
- Protective Bundling - Custom shipping preparation
Quality Control Standards
We execute thorough assessment strategies all through generation. Basic estimations incorporate tooth thickness confirmation and composite blunder analysis.
Double flank roll testing recreates genuine coinciding conditions. This prepare identifies geometric abnormalities that may influence performance.
Material certification guarantees traceability for all components. We keep up total documentation for aviation and car applications.
Logistics & Support Services

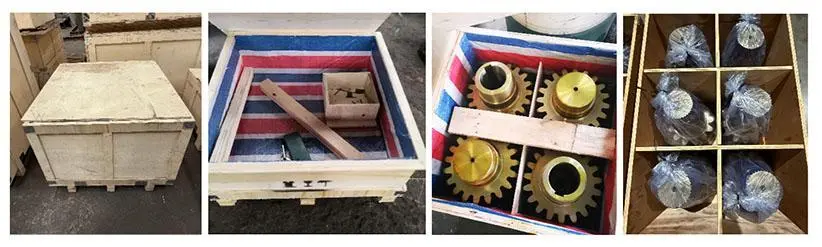

Secure Packaging
Custom wooden beds with shock-absorbing liners ensure fragile equip teeth. Our specialized bundling diminishes transport harm to underneath 0.1%.
Flexible Shipping Options
We arrange ocean cargo, discuss transport, and rail administrations. Numerous transport strategies guarantee ideal conveyance timing for your requirements.
Real-Time Tracking
Complete perceivability from production line stacking to conveyance. You get upgrades at each arrange of the shipping process.
Comprehensive Warranty
One-year guarantee scope gives peace of intellect. Our quick reaction group addresses any issues promptly.
Frequently Asked Questions
Q: What materials work best for high-load applications?
A: We recommend 18CrNiMo7 or AISI8620 for maximum load capacity. These materials provide excellent core strength with superior surface hardness after carburizing.
Q: Can you produce large-module internal gears?
A: Yes, our equipment handles modules up to 50. We specialize in heavy machinery applications requiring robust gear teeth.
Q: What's the typical lead time for custom orders?
A: Standard delivery ranges from 35-60 days depending on complexity. Rush orders may be accommodated with expedited processing.
Q: Do you provide design assistance?
A: Our engineering team offers comprehensive technical support. We optimize gear parameters for your specific application requirements.
Q: What inspection equipment do you use?
A: We utilize 4-axis CNC gear inspection centers for complete tooth geometry verification. Additional testing includes hardness mapping and material certification.
Q: Can you handle prototype quantities?
A: Absolutely. We accept single-piece orders through large production runs. Flexible minimum quantities accommodate all project scales.
Contact Us
Ready to use the Internal Gear Cutting to discuss your precision gear requirements? Contact our engineering team at sales@yizmachinery.com for expert consultation and competitive quotations.
