Custom Bevel Gear for Precision Motion: What to Know

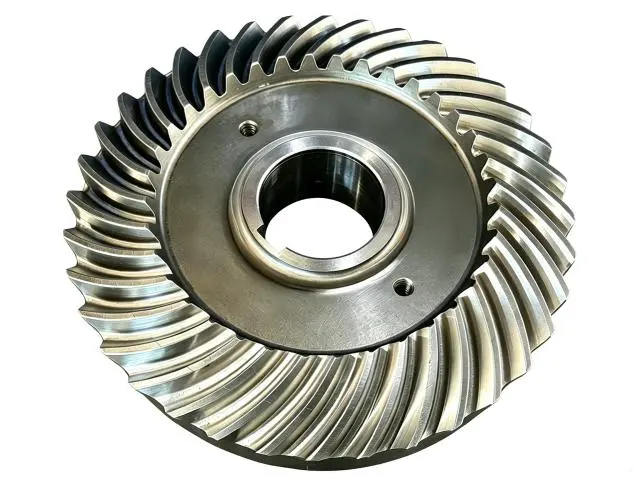

Custom Bevel Gear solutions are precision-engineered transmission components that enable accurate motion control and torque transfer between intersecting shafts, typically at 90-degree angles but customizable to non-standard configurations like 45° or 120°. These gears address critical design challenges in prototype development and specialized machinery where off-the-shelf products cannot meet unique spatial constraints, load requirements, or speed ratios. Understanding the technical specifications, material options, manufacturing processes, and procurement considerations empowers engineers and procurement professionals to make informed sourcing decisions that enhance machine performance and project timelines.

​​​​​​​

​

Understanding Custom Bevel Gears: Definition and Function

What Makes Bevel Gears "Custom"?

Bevel gears with conical tooth surfaces allow rotational motion between axes that cross. However, standard geometry can be changed to fit specific needs. Custom Bevel Gears are not like catalog items because they are made from drawings provided by the customer or during joint design meetings. This gives the customer complete control over the number of teeth, the range of modules (0.5–50), the pressure angles (14.5° or 20°), and the angle of the shaft. This adaptability solves real-world engineering problems that standard gears can't, like when designing small robotic joints that need to be mounted at odd angles, prototype farm equipment that needs to slow down at certain rates, or aerospace actuators that need to be as light as possible without losing any strength.

The Gleason-profile type is still the best for tooth shape because it makes sure that the best contact patterns happen when the machine is loaded. ISO 8–9 grade accuracy is reached by custom manufacturers through precise hobbing, milling, and grinding. This lowers transmission error and operational noise. This level of control is very important for R&D teams that are making next-generation machines where performance margins are small.

Tooth Profile Variations and Their Applications

Straight bevel gears have teeth that are lined up straight to the gear axis. For low-speed uses, these are simple and cost-effective. Spiral bevel gears have bent teeth that connect slowly, spreading the load across several teeth at the same time. If you need smooth operation in high-speed machine tool spindle drives and steering systems, spiral types are the best choice because their form lowers impact stress and noise. Hypoid gears are less common in special orders, but they let you place the shafts at an angle, which is helpful for transmission plans that are small.

When procurement teams know these differences, they can choose the right tooth profile during the quotation phase. When engineers are making specialty farm equipment, they might choose straight bevel gears because they last longer and cost less to make. On the other hand, robotics engineers would choose spiral configurations to keep precision motion control systems from vibrating too much.

Key Advantages and Materials of Custom Bevel Gears

Why Choose Customization Over Standard Options?

Tailored bevel gears have real benefits that make their time and money spent on development worth it. When machine designers have to work with limited space, like when they need to fit a lot of parts into a small space or when the angles at which the shafts intersect are not normal, custom solutions can help them find the best cone distance and face width for the job. This flexibility keeps expensive redesigns of nearby parts from being needed and speeds up the building of prototypes.

In specific uses, these parts offer the following main benefits:

• Adaptable Spatial Angular Transmission: Custom configurations can handle shaft angles other than 90°, which lets machine designs that make the best use of space come to life. This skill is very useful for custom engineering machines where layout restrictions force gears to be placed in strange ways.
• Balanced Transmission Efficiency and Precision: When the tooth geometry is built correctly, it keeps the transmission efficiency between 95 and 98% and controls the backlash very well (usually between 0.10 mm and 0.20 mm, based on the module). This balance makes sure that very little energy is lost during power transfer and that the positional accuracy that is so important for CNC-controlled machine tool spindle drives is kept.
• Strong Capability to Handle Loads: Premium alloy steels like AISI 8620, SAE 4340, and 20CrMnTi have very hard cases (58–62 HRC on tooth sides) while keeping tough cores (30–40 HRC). This structure has two different levels of hardness, so it can handle shock loads from mine and farming tools without premature pitting or tooth fracture.
• Small Structure and Easy Installation: Custom changes to the teeth and the best pressure angles make the torque density higher, which lets smaller gear sizes hold the same amount of weight. This makes the machine lighter overall and gives designers more options for making light industrial equipment and mobile machinery.

All of these benefits help OEM developers and study engineers who are working on samples with the problems they are having. When you can specify exact sizes and performance specs for Custom Bevel Gears, you don't have to make the trade-offs that come with adapting standard products.

Material Selection and Performance Impact

The choice of material has a direct effect on how long gear lasts, how noisy it is, and the highest temperature it can work at. The 45# steel version is a cheap choice for moderate-load uses where a surface hardness of 45 to 50 HRC is enough. When extreme longevity is important, like in heavy-duty mining equipment or military parts, 20CrMnTi and 40CrNiMo give better case-carburizing response, reaching 58–62 HRC surface hardness while keeping core toughness.

Stainless steel types like 17-4 PH work well in corrosive environments like those found in marine or chemical processing equipment. However, procurement teams should be aware that these steels have slightly lower maximum load capacities than carbon alloy steels. Some heat treatment methods, like carburizing, quenching and tempering, and induction hardening, change the substructure of a material to make it work better with certain pressures. When engineers know about these relationships between materials and performance, they can choose the best combinations during the design drawing phase.

Design and Manufacturing Process of Custom Bevel Gears

From Concept to Precision Component

The first step in making custom gear is communicating the needs. This is where engineers share technical drawings, operating conditions, and performance goals. Expert makers look at these specs to see if there are any problems, like standards that are too tight for the material being used or tooth shapes that can't handle warping from heat treatment. This part of collaborative planning keeps expensive changes from having to be made later in production.

CAD modeling turns accepted specs into detailed directions for making things. Software tools figure out exact tooth profiles that take into account how much the teeth bend when they are loaded. This keeps the contact pattern in the middle while the machine is running. This step in the calculation process is very important for bevel gears because their three-dimensional tooth surfaces need more complicated formulas than those for spur or helical gears.

Advanced Manufacturing Techniques

The steps used in production are organized in a way that makes sure the dimensions and surface quality are perfect. Getting the blank ready by forging or precision sawing sets the basic shape of the cone. The outer diameter, hole, and attachment surfaces are machined to almost-final sizes during rough turning. Material is left over for later finishing operations.

The most important part of the making process is cutting the gears. This is done with hobbing or milling tools that make tooth profiles that meet Gleason standards. With CNC-controlled equipment, the module and pressure angle stay the same across all teeth. This keeps pitch changes that cause noise and wear to a minimum. After heat treatment, grinding is done to fix any distortions caused by thermal processing. This gives the ISO 8–9 grade precision needed for smooth, quiet operation.

Controlled heating and cooling processes change the qualities of a material during heat treatment. Before hardening, carburizing increases the amount of carbon on the surface. This makes the hard case/tough core structure perfect for high-load applications. Carburizing is still the best way to go for complicated tooth profiles that need a uniform hardness distribution, even though induction hardening is faster for simpler designs.

Quality Control and Validation

Before they are packaged, finished gears are checked against strict checking processes to make sure they meet the requirements. Coordinate measuring machines (CMM) check the accuracy of dimensions like tooth count, module, outer diameter, and bore. Gear measuring centers check profile error, lead error, and pitch deviation against ISO 1328 standards to make sure that all output runs are the same.

The blueing test, which is important for Custom Bevel Gears, shows how the teeth actually touch each other when a load is imagined. Technicians use marking compound to cover the gear teeth, run the mesh through a controlled resistance, and take a picture of the contact patch that forms. The right patterns show toe-biased contact that centers when the load is at full, taking into account how the shaft bends and how the housing conforms. This visual check finds problems that can't be seen with just a measurement review.

Comparing Custom Bevel Gears with Other Gear Types

Performance Trade-offs and Cost Considerations

To figure out when customizing is worth the extra money, you need to compare the performance of customized options to normal ones. Off-the-shelf bevel gears are easy to get and don't cost much per unit, which makes them a good choice for established designs that need to be able to accommodate different mounting tolerances. Custom Bevel Gear solutions have longer lead times (usually 35 to 60 days) and cost more for tooling or programming, but they provide a perfect fit and the best performance that can't be found any other way.

Although they require more complex manufacturing tools, spiral bevel gears have a smoother engagement and can hold more weight than straight gears. This level of complexity raises the cost of production, but it pays off in situations where noise, vibration, and roughness (NVH) must be kept to a minimum. Machine tool builders and car experts often choose spiral configurations, even though they cost more, because they work better and are worth the extra money.

With hypoid gears, shaft offset is possible, which isn't possible with normal bevel gears. This lets transmission systems be very small. Because of sliding contact at the tooth sides, this physical benefit comes with lower efficiency (85–90% vs. 95–98% for bevel gears). Designers have to weigh the benefits of packing against the need to make more heat and grease.

Total Cost of Ownership Analysis

When procurement workers compare custom gears to standard gears, they should think about the costs that come up over the course of the gear's life. Custom gears that are made to work best in a certain environment tend to last longer, which lowers the number of replacements needed and the costs of downtime. Precision making cuts down on noise and wear, which means less upkeep is needed and longer periods of time go by between overhauls.

Being able to choose materials that are right for the job—for example, corrosion-resistant alloys for marine use and lightweight options for aerospace—keeps machines from breaking down too soon and lowering their reliability. When time is of the essence for making prototypes, custom makers that offer quick sampling and non-disclosure agreements (NDA) protection can speed up the project, making up for higher equipment costs by letting you get into the market faster.

Procurement Guide for Custom Bevel Gears

Supplier Selection Criteria

Finding makers with the right technical skills and business practices for the project is the first step to successful buying. Make sure that any potential suppliers you talk to have precision CNC-controlled gear machining centers, automated grinding equipment, and heat treatment facilities that are under control. Indirectly, these assets affect the quality of the surface finish and the tolerances that can be met.

Certification compliance shows that a process is mature and that quality management systems are in place. ISO 9001 certification shows that special orders are handled in a standard way, and industry-specific certifications (like AS9100 for aerospace or IATF 16949 for cars) show that the company has experience working with demanding clients in those fields. To check how precise the production really is, ask for sample inspection reports with CMM data and photos of contact patterns.

Managing Low-Volume and Prototype Orders

OEM developers and clients who want to do research often need small batches or single prototypes before they commit to large production runs. Manufacturers who are flexible can meet these needs without setting ridiculously low minimum order quantities because they know that today's prototype will become tomorrow's production contract. Make sure you understand the MOQ rules right away. Some sellers will take orders for a single Custom Bevel Gear, while others need at least 5–10 pieces to cover the cost of setting up the factory.

Protecting intellectual property is one of the main worries for clients who are making their own machines. Manufacturers with a good reputation will gladly sign non-disclosure agreements (NDAs) before looking at technical drawings. This keeps competitors from seeing the specifics of the design. This promise of privacy is very important for research and development teams working on new tools, since early leaks could hurt their ability to gain a competitive edge in the market.

Evaluating Lead Times and Communication

With production times ranging from 35 to 60 days, project plans need to be carefully coordinated. Quoted lead times should be broken down into steps, such as design review (3–5 days), blank preparation (1 week), machining (2–3 weeks), heat treatment (1 week), grinding and inspection (one to two weeks). Knowing this sequence helps you find possible places to speed things up if you need to shorten the schedule.

Geography affects both operations and how easy it is to work together. Suppliers with English-speaking technical support staff make it easier to talk about requirements and make changes to designs. During the multiple-week production cycle, clear lines of communication, like dedicated project managers sending weekly progress reports with photos or videos, boost trust. Some makers offer real-time tracking systems that show what stage of production an item is in, which makes it easier to see the state of an order.

Conclusion

To find the best custom bevel gear supplier, you need to find a balance between technical know-how, production flexibility, and project management you can trust. When engineers and procurement workers are making specialized machinery, they need partners who understand the challenges of each application and can help with joint design. Expertise in the materials used, precise manufacturing methods, and strict quality control make sure that the gears that are delivered meet the highest performance standards. By judging suppliers on their equipment capabilities, compliance with certification requirements, policies for protecting intellectual property (IP), and open communication, decision-makers can find parts that speed up the development of prototypes and improve the reliability of machines.

FAQ

1.How do I choose the right material for my application?

The operating loads, speeds, and environmental conditions affect the choice of material. 45# steel with a toughness of 45 to 50 HRC works well in general industrial settings with mild loads. Heavy farm equipment or mining equipment that is put under a lot of stress needs alloy steels like 20CrMnTi or AISI 8620. These steels have tough cores that can handle shock loads and a surface hardness of 58 to 62 HRC. Corrosive settings need versions made of stainless steel, even though they can hold a little less weight.

2.What production lead time should I expect for custom bevel gears?

Depending on how complicated the product is and how many are ordered, the average time to make it is 35 to 60 days. This time includes reviewing the design, forging the blank, precise machining (hobbing and milling), heat treatment cycles (hardening and carburizing), finishing the grinding, and the final inspection. For simpler geometries, rush services may shorten lead times to 4 to 5 weeks. However, standard schedules are better for complex spiral profiles with tight tolerances to ensure quality control.

3.Can manufacturers work from legacy drawings not conforming to modern standards?

On non-standard drawings, experienced suppliers do reverse engineering and design optimization. They use special software to update the tooth shape to make sure it can be made on modern CNC equipment while keeping the original speed ratios and performance traits. This skill comes in handy when updating old equipment or making old designs work with modern production methods.
