Helical Gear Gearbox vs Spur Gearbox: Which Is Better?

When evaluating transmission systems, the debate between helical and spur gearboxes consistently emerges among procurement professionals. A Helical Gear Gearbox generally proves superior for demanding industrial applications requiring smooth operation, enhanced load capacity, and reduced noise. Its angled tooth design facilitates gradual engagement, distributing stress across multiple teeth simultaneously, resulting in 20-30% higher torque capacity compared to equivalent spur models. Industries prioritizing reliability and longevity typically favor helical configurations despite their slightly higher initial investment.

Understanding Helical and Spur Gear Gearboxes

Design Fundamentals of Helical Gearboxes

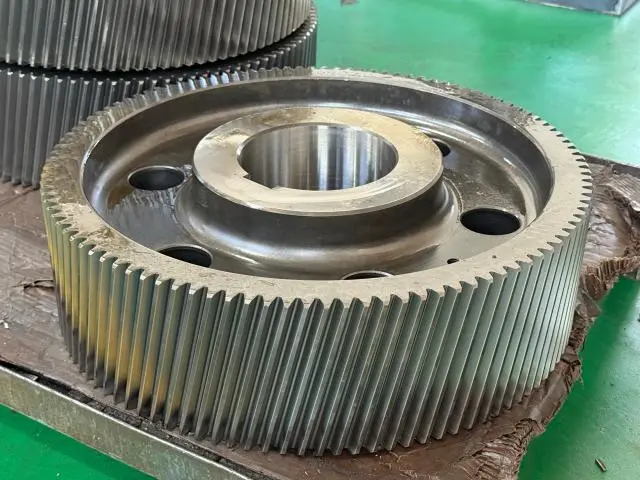

Teeth that are cut at angles, usually between 15° and 30°, to the gear axis are what make a Helical Gear Gearbox unique. This helix angle lets you engage gradually instead of making full-tooth contact right away. The steps used to make something are forging, hobbing, milling, and precision grinding. High-quality materials like 20CrMnTi or AISI 4140 are often used. After being heated to a level called "carburizing," the surface of these gears becomes 58 to 62 HRC, while the core stays tough and won't break easily. The angled shape creates axial thrust, which means that strong bearing systems, usually tapered or spherical roller bearings, are needed to handle these directional forces well.

Spur Gearbox Construction Principles

Spur gearboxes have teeth that are cut straight across and parallel to the axis of rotation. These simple shapes make manufacturing easier and lower the cost of production by a large amount. The pattern of teeth engaging right away makes noise that is typical of operations, but this design works very well in low-speed situations. Spur configurations work well when noise levels are not a big deal and saving money is the most important thing. Because they are so simple, they can be used for general industrial tasks with moderate loads and simple power transmission needs.

Core Mechanical Differences

The main difference between these types of gearboxes is the arrangement of tooth contact. Helical teeth keep sliding against the tooth face all the time, which makes motion smoother and wear more evenly. Spur teeth make line contact right away, which creates higher impact forces and more stress spots. This difference in mechanics has a direct effect on the load capacity, shaking traits, and service life. When procurement managers know these differences, they can better match the gearbox they choose to the needs of the machinery and the production environment.

Performance Comparison: Helical Gearbox vs Spur Gearbox

Efficiency and Power Transmission

Transmission efficiency is between 95 and 98% per stage with helical setups, which is better than most other designs except direct-drive systems. The gradual engagement of the teeth keeps energy loss from friction and shock loading to a minimum. Multiple teeth stay engaged at the same time, which makes the load better spread across the gear face. This property makes it possible for helical systems to handle much higher torques—often more than 50,000 Nm in industrial settings—while still being small. Spur gears work pretty well at low speeds, but they can't compete with spiral gearboxes when they have to work continuously with a lot of load.

Noise and Vibration Analysis

An important differentiator in many workplace settings is acoustic function. Helical Gear Gearboxes have a progressive engagement pattern that makes them much quieter than spur alternatives. The results of tests regularly show that sound pressure levels drop by 5 to 10 dB. This means that production sites can run much more quietly. Vibration velocity measurements also show that helical designs are better because they protect connected equipment from oscillation and make bearings last longer. These sound benefits are especially helpful in places like factories that have to follow noise rules or housing projects close to populated areas.

Durability and Maintenance Requirements

Different gearboxes wear out differently. Helical teeth wear uniformly, extending their service life. Now repair workers may plan their work based on regular wear and tear instead of waiting for abrupt breakdowns. Material selection is crucial. When heated properly, premium alloys like 40CrNiMo last over 50,000 hours at full load. Depending on whether it's synthetic or natural, oil analysis every 2,500 to 10,000 hours determines the viscosity grade, which maintains the machine running smoothly for as long as possible.

The cost calculation goes beyond the initial purchase price. Helical gearboxes cost 15–25% more than spur units, but their longer lifespan and reduced maintenance frequency make them more cost-effective. Procurement experts should consider lifespan expenses including energy usage, downtime, and replacement intervals when assessing multi-year equipment expenditures.

Application Suitability: When to Choose Helical or Spur Gear Gearboxes

Heavy Industry and Continuous Operation

Helical designs are always used in mining conveyors, cement production lines, and material handling systems. High starting torque is needed, there is a risk of abrasive contamination, and the machines have to work 24 hours a day, seven days a week. These problems can be solved by a Helical Gear Gearbox, which has a sealed design that keeps dirt out, high thermal efficiency that controls the buildup of heat during continuous operation, and reinforced output shafts that can handle heavy radial loads from the stress on the conveyor belt. When the system is first turned on with fully loaded conveyor belts, the higher load capacity is very important for getting rid of static friction.

Precision Manufacturing Applications

Helical smoothness and accuracy are good for machine tool bearings, compressors, and precision transmission equipment. For these uses, the rotational speeds must be stable, there should be little backlash, and the workpieces should not feel much vibration. When gears are made to ISO 5-6 precision grades, which can be done by grinding the teeth, profile and helix variations stay within very tight limits. Coordinate Measuring Machine (CMM) verification proves that the dimensions are correct and meet DIN/ISO quality standards. This is important for keeping the stability of the product during extrusion, injection molding, and precise machining.

Cost-Sensitive and Light-Duty Scenarios

Spur gearboxes can still be used in light industrial jobs, simple conveyor systems, and packing equipment as long as noise levels are low and loads are moderate. Their low cost comes straight from how easy they are to make, which makes them a good choice when the needs of the application don't call for more complex spiral designs. When operations are trying to balance functionality with limited capital, they often choose spur configurations for transmission paths that aren't very important.

Procurement Considerations for Helical and Spur Gear Gearboxes

Critical Evaluation Criteria

To choose the right gearbox configurations, you need to carefully look at a lot of technical factors. When figuring out load capacity, ISO 6336 and AGMA 2001 standards should be used as guides. Safety factors should be used to account for shock loads and high-loading situations. Ratings of efficiency have a direct effect on operational energy costs. This is especially true for continuous-duty uses, where even small changes in efficiency save a lot of money over the life of the equipment. In many places, noise ratings in decibels are required by law, which could limit the kinds of equipment that can be used in factories in cities.

Customization vs. Standard Solutions

Off-the-shelf gearboxes are ready to ship right away and have reasonable prices for common ratios and mounting options. When space is limited, mounting positions aren't normal, or specific ratio needs come up, customized solutions are needed. Custom production of Helical Gear Gearboxes lets them be optimized for specific application factors. Delivery times vary from 35 to 60 days, though, based on how complicated the order is. We can meet a wide range of needs because our production is flexible. We can make units with modules ranging from 0.5 to 50, helix angles from 5° to 45°, and tooth numbers that are exactly what the application needs. Low minimum order quantities, which can include production of a single unit, make it possible to develop prototypes and meet the needs of specialized machinery without having to buy in bulk.

Supplier Partnership Considerations

Supplier abilities affect purchase success as much as product demands. Production equipment quality impacts product consistency. CNC gear machining centers, heat treatment lines, and automated grinding machines provide quality. Inspection should include CMM tooth profile checks, stress-induced contact pattern checks, hardness testing, and magnetic particle metal defect detection. All parts are run-in for 4–24 hours for noise, vibration, temperature, and seal integrity before delivery. Quality assurance requires material certifications, dimension reports, and traceable test records.

Delivery reliability impacts inventory and production. Sea freight, air freight, and rail provide speed and cost flexibility. Live supply chain monitoring reduces risk and improves planning. For overseas shipping, shock-absorbing cushioning and wooden crates preserve precision-machined parts. With enough protection, transportation damage is reduced to 0.1%.

Troubleshooting and Maintenance: Ensuring Long-Term Performance

Common Operational Issues

Creating noise that isn't normal is often a sign of problems that need to be looked into. Grinding or squealing sounds mean that the oil or lubrication isn't good enough and needs to be fixed right away. Knocking patterns that repeat often are a sign of tooth loss or bearing wear. Temperature tracking lets you know early on when lubrication fails. If the oil temperature rises more than 10 to 15°C above the normal level, you should look into the viscosity matching, fill levels, and bearing pressure conditions. When velocity sensors measure too much shaking, it means that the loads aren't balanced, the machine is misaligned, or the bearings are wearing out. This needs to be fixed before a major failure happens.

Preventative Maintenance Protocols

Setting up regular inspection times keeps things from breaking down without warning and increases their useful life. Once a month, you should look at the oil level, the condition of the seals, and the torque on the mounting bolts. Vibration analysis, which is done every three months using regulated tools, finds problems before they affect operations. Lubricant change intervals are usually every 2,500 hours for mineral oils and up to 10,000 hours for synthetic formulations. This is based on oil analysis programs that test for contamination, viscosity degradation, and wear metal content. Thermal imaging scans find areas of high heat that could mean that there are problems with the bearings or the gear mesh.

Upgrade and Replacement Indicators

Several things show when it's time to replace or upgrade the gearbox. Too much tooth wear that cuts the useful tooth thickness below 30% of its original size lowers load capacity and reliability. Repeated seal failures that let dirt or oil in or cause lubricant to leak out are a sign that the housing is wearing out. Bearing noise and rising temperature, even though the bearings are properly oiled, are signs of wear life loss. Changes in production needs, like higher torque needs or speed ranges beyond what was originally planned, mean that capacity needs to be increased. When repair costs are more than 60% of the cost of new equipment, economic research that compares repair costs to replacement costs usually leads to replacement.

Conclusion

In the end, the choice between helical and spur gears relies on the needs of the application, weighing performance needs against cost concerns. A Helical Gear Gearbox can handle more weight, makes less noise, works more efficiently, and lasts longer, so it is worth the money for tough industrial uses. Spur options can still be used in situations where cost is an issue, loads are modest, and noise levels are low. Focusing only on the original buy price is not enough for successful procurement. You also need to look at technical specs, supplier skills, and lifecycle costs. Partnering with makers that offer proven knowledge, quality certifications, and full support services guarantees that equipment will work at its best throughout its entire operating lifecycle.

FAQ

1. How does load capacity differ between helical and spur gearboxes?

In helical configurations, the angled tooth design raises the contact ratio, which is the number of teeth that are engaged at the same time during operation. Because of this physical benefit, a Helical Gear Gearbox can handle 20–30% more weight than spur gearboxes of the same size. Sharing the load between multiple teeth lowers the stress on each tooth, which increases its service life in tough situations.

2. What causes overheating in helical gearbox systems?

Temperature rise is usually caused by problems with lubrication rather than problems with the way the machine was made. A difference in viscosity keeps the film from being thick enough between the teeth that are meshing, which causes too much friction. When you overfill, the rotating gears whip up the extra lubricant, which leads to churning losses. Problems with the preload on a bearing add to the friction loads. Overheating problems can be avoided by using the right oil, making sure the right amount is filled, and adjusting the bearings correctly.

3. How is axial thrust managed in helical gear systems?

The angle of the helix naturally creates force along the shaft axis when power is transferred. To deal with this, engineers use thrust bearings, which are usually tapered roller or spherical roller types and are made to handle these axial loads without bending too much. If you choose the right bearings and place them correctly, your gearbox will work reliably for a long time.

4. Are helical gearboxes suitable for back-driving applications?

In contrast to high-ratio worm gears, which automatically stop, helical designs keep their high efficiency, which means they can be driven backward. This feature makes helical systems good for hoisting tasks and regenerative braking systems where power flows backward all the time. Modern machinery systems can use energy recovery because of the two-way efficiency.
