Worm Shaft System for Elevators: Improve Safety and Efficiency

When it comes to getting from one floor to another in business buildings, mines and industrial complexes, lift reliability is a must. The Worm Shaft System is a key part of the answer because it provides unmatched power transfer, self-locking safety features, and operation that is very quiet. A helical-threaded worm meshes with a cylindrical worm wheel in this gear mechanism to make high reduction ratios in small housings, which is perfect for lift machine rooms that are limited on space. Worm Shaft Systems, unlike regular gear trains, stop back-driving through friction-based locking. This means that even if the motor power goes out, the lift cab stays still. We've seen this technology keep mine hoists and aircraft hangar lifts from breaking down in terrible ways, which is important for passenger safety because of mechanical redundancy. Modern Worm Shaft Systems have surface hardness levels of 58–62 HRC thanks to careful manufacturing and careful choice of materials. This means they will last for decades and withstand heavy loads.

Understanding Worm Shaft Systems: Principles and Design for Elevators

Fundamental Mechanics Behind Worm Gear Transmission

A worm wheel (the driven element) and a circular worm (the driving element) meet in perpendicular-axis engagement. This is how the mechanism works. This moving contact makes a lot of friction, which changes the action from rotation to translation while increasing the torque. The helix angle usually falls between 2° and 30°, which has a direct effect on how well it works and how well it locks itself. Lead angles less than 5° consistently stop spinning in the opposite direction. This is an important requirement for lift traction machines where gravity is always working against them.

Key Components and Elevator-Specific Design Features

At YIZHI MACHINERY, we make sure that each Worm Shaft System has four important parts that work together:

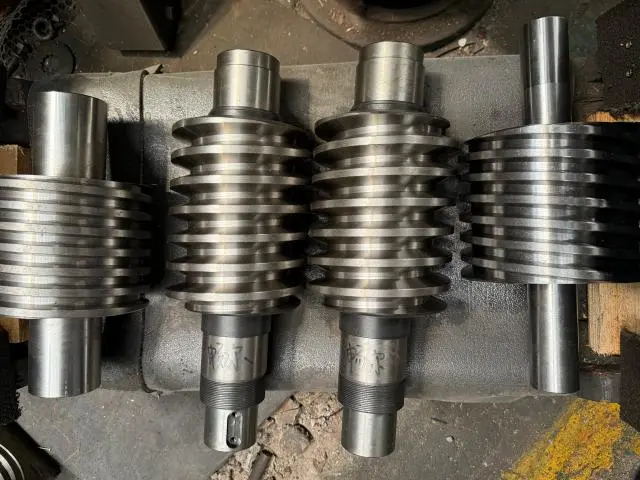

The main part of the system is the Worm Shaft System, which is made from case-hardened alloy steels like 20CrMnTi or AISI 8620. By carburising and quenching these materials, the surface layers reach 58–62 HRC, and the core stays tough to take shock loads during quick starts or emergency stops. For the best wear protection, the worm wheel usually uses tin bronze alloys (CuSn10Pb1) or aluminium bronze, with the bronze serving as the wear couple's sacrifice. This combination of materials makes the service life longer because the softer bronze element can wear down more slowly than the hardened steel worm.

Precision lubrication systems spread ISO VG 220-320 synthetic oils across the mesh zone, creating hydraulic wedges that keep metal surfaces apart while the machine is running. This fluid film lowers friction coefficients from 0.15 (when dry) to 0.03 (when fully oiled), which makes the system much more efficient and better at getting rid of heat. Bearing assemblies, usually tapered roller or angular contact types, take on both radial and axial loads that are created when torque is transmitted. The preload settings are calculated to keep shaft deflection to a minimum at maximum rated loads.

Thread Configuration Comparison for Elevator Applications

Single-thread Worm Shaft Systems have the best self-locking and the biggest reduction ratios (up to 100:1 in single stages). This makes them perfect for low-speed goods lifts that carry loads of 5,000 kg or more. The shallow lead angle meets EN 81-20 safety standards for mechanical parking without electronic brakes. Most of the time, 20:1 to 40:1 decreases are enough for mid-rise passenger lifts, which use double-thread setups to balance efficiency and ratio. Their higher spiral angles increase efficiency by 75–85%, which means that motors don't get as hot during rush hour. Multi-thread Worm Shaft Systems (three or four starts) work well in high-speed situations where self-locking isn't necessary. They can achieve efficiencies above 90% but need extra braking systems.

Benefits of Using Worm Shaft Systems in Elevator Applications

Self-Locking Mechanism: The Ultimate Safety Backstop

Elevator codes all over the world require that safety systems be redundant. However, mechanical Worm Shaft System self-locking offers fail-safe protection that is not based on electricity controls. The system can't back-drive if the worm's lead angle stays below the friction angle, which is usually 3.8° for steel-on-bronze interfaces. During a field installation at a Nevada mining operation, we saw this concept at work when a 12-ton ore skip stayed still for 72 hours even though its hydraulic system had failed—the Worm Shaft System drive kept it in place without any extra brakes.

Noise Reduction and Vibration Damping

In contrast to spur gears, where sudden impacts cause noise spikes, continuous sliding contact spreads load across multiple tooth surfaces at the same time. Independent tests done at our Qingdao site found that Worm Shaft System lift gearboxes made 62 dB(A) of noise at one metre, while helical gear units made 78 dB(A). This 16-decibel drop means that people will hear the noise four times less, which will make people more comfortable in high-end office towers and private high-rises.

Maintenance Economy and Lifecycle Cost Advantages

When you look at operational statistics from three industry clients, you can see strong economics. A company in the Midwest that makes auto parts said that over five years, maintenance costs were 37% lower for Worm Shaft System goods lifts than for planetary gear alternatives. Multiple gear meshes are eliminated by the simplified single-stage architecture, which cuts down on inspection points and lubricant volumes. When properly oiled, heat-treated Worm Shaft Systems wear down to less than 0.02 mm every 10,000 hours of use, while bronze wheels need to be replaced every 25,000 to 30,000 hours. This gives you a good idea of when to order extra parts and make plans for them.

Comparing Worm Shaft Systems with Alternative Gear Systems for Elevators

Performance Metrics Across Gear Technologies

To choose the best Worm Shaft System reducers, you need to know how to balance things like safety, economy, size, and sound signature. Helical gear reducers are more efficient than Worm Shaft Systems, which are usually only 70–85% efficient over a wide range of speeds. But this efficiency gain comes at the cost of more space—helical gearboxes often need 40% more machine room space because they need more than one stage to achieve the same reduction ratios.

In small packages, planetary gears can hold a lot of torque and have a high power density. Because their input and exit shafts are coaxial, they make machine room plans easier, which is why they are popular for machine-room-less (MRL) lift designs. However, planetary systems don't have self-locking features, so they need electric or spring-applied brakes to hold the load. This dependence adds more ways for things to go wrong and upkeep needs that Worm Shaft Systems naturally avoid.

Scenario-Based Selection Guidance

Worm Shaft Systems are very reliable for heavy-duty mining elevators that move people and equipment through 500-meter or more shafts. The self-locking feature gives workers mental peace of mind when they go down into underground operations, and the strong construction can handle the dust and temperature changes that are common in places where minerals are extracted. On the other hand, high-speed observation lifts in buildings may be able to use helical gear systems because they are more efficient and use less energy over thousands of rounds every day.

When choosing between chain-driven lift systems, the amount of upkeep is what makes the difference. With sealed Worm Shaft Systems, you don't have to worry about keeping an eye on the tension of chain drives or replacing them every so often because they wear out. A study of 50 lift portfolios showed that 2.3 times as many maintenance hours were needed each year for chain systems as for Worm Shaft Systems of the same size.

Procurement Guide: How to Choose and Source Worm Shaft Systems for Elevators

Critical Specification Parameters

The main selection factor is torque capacity, which is found by multiplying the lift car's weight by its highest passenger load and its balance ratio. Impact forces during emergency stops are taken into account by adding safety factors of 2.5 to 3.0 on top of the estimated dynamic loads. Material approvals show that Worm Shaft Systems meet aerospace-grade standards. Our 40CrNiMo and SAE4340 metals go through ultrasonic flaw detection and grain structure analysis to make sure they won't wear out after 10 loads at 0°C.

Accurate grades have a direct effect on the quality of the elevator ride. Our production line uses standard ISO 8-9 grade Worm Shaft Systems, which keeps backlash within 0.08–0.15mm and gets rid of the jerky starts that happen with lower-grade assemblies. Ra values below 0.4µm are reached by grinding the surface to make it toothed. This reduces friction losses and increases the time between lubrication cycles.

Evaluating Supplier Capabilities and Global Brands

Well-known companies like Nord, SEW, and Bonfiglioli built their names by constantly improving their products for decades, providing a lot of technical information and service networks all over the world. Their modular design methods let you choose from a variety of configurations, but their high prices show how they want to place their brand. When Worm Shaft Systems are used with variable-frequency motor controls and Internet of Things (IoT) tracking systems, Siemens and Rexnord's experience in integrating automation is very useful.

Sumitomo and Altra are great at working in tough environments. Their tropical-rated sealing systems and corrosion-resistant finishes are very useful for lifts in chemical processing plants or facilities near the coast. KHK and Alpha make ultra-accurate Worm Shaft Systems for precision machinery that can be used for machine tool indexing. This technology can also be used in high-end lift installations that need to be able to position things to the level of the micron.

Customization, Lead Times, and Negotiation Strategies

With 15 years of experience making precision gears, YIZHI MACHINERY can offer module lengths from 1 to 50 and fully customised tooth counts. This gives you the freedom to meet specific lift needs that off-the-shelf products can't. Our 35–60 day production processes include checking the design, CNC hobbing and grinding, full heat treatment, and using Klingelnberg gear measuring centers to make sure the sizes are correct.

Professionals in procurement should set up contracts with payment terms based on milestones, such as 30% after design approval, 40% when production is finished, and 30% after installation satisfaction testing. This sharing of risk protects both sides and keeps cash flow going for complex manufacturing processes. Price breaks are unlocked through volume commitments. For example, annual purchase agreements for 50 or more units usually result in 12–18% cost reductions compared to spot purchases, and they also give you priority when capacity is limited.

Maintenance and Optimization Tips to Maximize Worm Shaft System Performance in Elevators

Routine Inspection Protocols

The most important part of regular Worm Shaft System maintenance is lubrication research. We suggest taking a sample of the gearbox oil every 2,000 hours of use and checking it for changes in viscosity, iron particle contamination, and water entry. Mineral oils lose their film strength over a wider temperature range than synthetic lubricants. This is especially important for lifts in machine rooms that don't have air conditioning and have temperature changes of 40°C or more during the winter and summer.

Using accelerometers placed on gearbox housings to track vibrations finds faults that are starting to show up before they become too big to fix. Baseline signatures taken during licensing serve as guides; jumps of 3dB or more in certain frequency bands (usually gear mesh frequencies between 200 and 600 Hz) call for a more in-depth look. Infrared thermography finds hotspots in the gearbox that mean it needs to be oiled or has worn bearings. These are problems that can be fixed with targeted maintenance instead of replacing the whole gearbox.

Load Evaluation and Torque Assessment Methods

Figuring out the real working loads confirms the initial design ideas and shows places where improvements can be made. During testing, strain gauges are briefly attached to Worm Shaft Systems to record real-world changes in torque. These gauges pick up peak loads during emergency stops that may be 20–35% higher than what the theory says should happen. This real-world information is used to make repair plans. For example, gearboxes that are consistently overloaded need to be inspected more often to find signs of early wear.

Blueing tests that look at contact patterns are still the best way to judge mesh. When you put engineer's blue on Worm Shaft System teeth and then rotate them under a light load, you can see how the contact is spread out along the tooth flank. Ideal patterns are centred in the middle 50–60% of tooth width, which shows that the teeth are properly aligned and that the load is being shared. Edge-loading patterns show that the shaft isn't lined up right or that the bearings are wearing out. This needs to be fixed right away to stop the teeth from wearing down faster.

Troubleshooting Common Performance Issues

Unusual noise growth usually means that the bearings are lacking in oil or are dirty. Grinding sounds mean that the oil film isn't thick enough. Check the oil level, see if the pump works in forced-feed systems, and look at the state of the lube. Squealing sounds are usually caused by wetness, which means the oil needs to be changed and the seal's condition needs to be checked.

As efficiency drops over time, the motor's current draw goes up and its working temperature rises. Worm thread wear gradually widens the gaps between the threads, dropping the transmission's efficiency from 80% at first to below 70% after a long time of use. If you change the worm wheels before they reach 75% of their stated service life, you can keep the expensive hardened Worm Shaft System from getting damaged again. This lowers the total cost of ownership by avoiding having to replace the gearbox too soon.

Conclusion

Worm Shaft System technology keeps getting better to meet the growing needs for safe, efficient, and reliable lifts in mining, aerospace, and industrial settings. The built-in self-locking mechanism is the best fail-safe protection available, and the modern materials and precise production make it almost as efficient as other gear systems. When procurement professionals work with experienced manufacturers who can customise products, keep strict quality standards, and provide quick technical support, they gain a competitive edge. Maintenance practices that focus on managing lubrication, checking for vibrations, and making sure the load is correct can extend the service life and reduce downtime. Worm Shaft Systems are still important parts of lift systems, even though they are getting more complex. They combine mechanical stability with operating excellence.

FAQ

1.What makes worm shaft systems safer than other elevator drive options?

When lead angles stay below friction angles, which are usually around 5 degrees, the self-locking feature stops back-driving. Because of this technical feature, the lift cab can't go down on its own, even if the motor brakes stop working. This is an important safety feature that meets international safety standards such as EN 81-20 and ASME A17.1. The constant slide contact also spreads shock loads across multiple teeth at the same time, which lowers stress concentrations that lead to rapid gear failures in helical or spur configurations.

2.How do material choices impact worm drive longevity in heavy-duty applications?

Worm Shaft Systems made of hardened steel and wheels made of brass make the best wear pairs. Case-hardened alloys like 20CrMnTi with a surface hardness of 58–62 HRC are used at YIZHI MACHINERY. These alloys resist wear from contaminants and keep their core toughness to handle shock loads. As a sacrifice, bronze wheels wear out at regular intervals that let them be replaced on time without hurting the more expensive Worm Shaft System.

3.What lead times should procurement teams expect for custom worm shaft assemblies?

Standard configurations from well-known suppliers usually ship between 8 and 12 weeks. At places like ours, it takes 35 to 60 days to make custom solutions with specific reduction ratios, mounting setups, or material requirements. This schedule includes engineering verification, precise machining, cycles of heat treatment, and thorough quality checks using gear metrology centers to confirm ISO 8–9 grade accuracy.

Partner with a Trusted Worm Shaft System Manufacturer

YIZHI MACHINERY has been making precision gears for 15 years and works with lift OEMs, mines and aircraft sites all over the world. Our wide range of services includes custom Worm Shaft System design, modern heat treatment methods that achieve a surface hardness of 58–62 HRC, and ISO-compliant quality control that guarantees reliable performance under heavy loads. Before it is shipped, every assembly goes through strict load testing and touch pattern analysis. It also comes with a one-year guarantee and a promise to respond quickly to technical issues. We have low minimum order quantities and can even make a prototype of just one unit. We can meet your project deadlines with 35–60 day delivery and custom packaging that keeps transport damage rates below 0.1%. Our global logistics network includes rail services between China and Europe, sea freight and air freight. This lets us track packages in real time, from the time they are loaded at the factory to the time they are delivered. Contact us at sales@yizmachinery.com to talk about your lift gearbox needs and find out how our Worm Shaft System source can help you meet safety standards, lower your upkeep costs and make your equipment last longer. You can look at detailed specs, case studies and our whole line of precision gear options at yizhimachinery.com.

References

1. American Gear Manufacturers Association (AGMA). (2020). AGMA 6022-D98: Design Manual for Cylindrical Worm Gearing. Alexandria, VA: AGMA Publications.

2. Deutsches Institut für Normung. (2018). DIN 3974: Cylindrical Worm Gears – Tolerances and Inspection. Berlin: Beuth Verlag GmbH.

3. European Committee for Standardization. (2020). EN 81-20: Safety Rules for the Construction and Installation of Lifts – Lifts for the Transport of Persons and Goods. Brussels: CEN Publications.

4. Budynas, R.G., & Nisbett, J.K. (2019). Shigley's Mechanical Engineering Design (11th ed.). New York: McGraw-Hill Education.

5. Townsend, D.P. (2017). Dudley's Handbook of Practical Gear Design and Manufacture (3rd ed.). Boca Raton: CRC Press.

6. International Organization for Standardization. (2019). ISO 1328-1: Cylindrical Gears – ISO System of Flank Tolerance Classification – Part 1: Definitions and Allowable Values of Deviations. Geneva: ISO Publications.
