Worm Gear Reducer Gearbox for Mining Equipment: A Complete Overview

In mining activities, machines need to be able to handle harsh circumstances and keep working well. In many mining situations, a Worm Gear Reducer Gearbox is the main way that power is sent. It changes the output of a high-speed motor into the high-torque, low-speed spinning that crushers, conveyors, and lifting systems need. A threaded worm shaft and a toothed worm wheel mesh with each other at opposite directions in this special mechanism. It can achieve reduction ratios from 5:1 to 100:1 in a single, small stage. In addition to being mechanically efficient, these gearboxes have built-in safety features like self-locking that is important for vertical lifting and shock-absorbing features that are important in mining environments that are rough and dusty.

​

Understanding Worm Gear Reducer Gearboxes in Mining Equipment

Core Components and Operating Principles

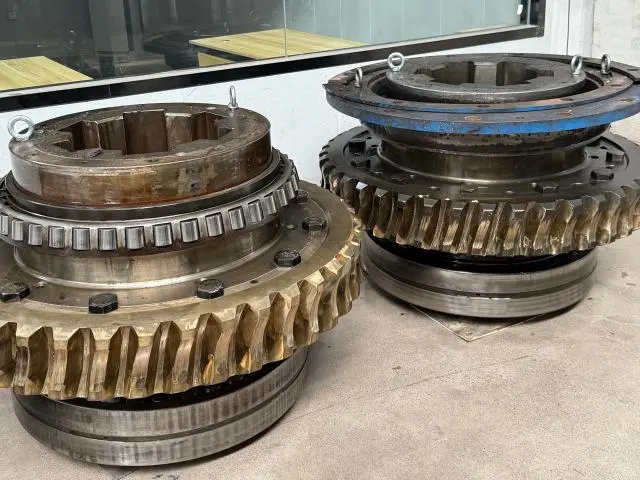

Some of the most important parts of a Worm Gear Reducer Gearbox are two main parts that move together in sync. The worm wheel is usually made of high-strength copper alloys and is connected to the worm by a precision-ground spiral screw made of case-hardened alloy steel. Instead of rolling contact like most gears do, this design works through sliding friction, which presents both heat difficulties and unique mechanical benefits.

We at YIZHI MACHINERY make worm shafts out of high-quality materials like 20CrMnTi, 40CrNiMo, and SAE4340. These materials are put through strict heat treatments like carburising and quenching to get surface hardness ratings of 58 to 62 HRC. This way of working with metals makes sure that they will last, even when they are constantly vibrating and being hit by other things, which happens a lot in mine transport systems and ore processing equipment.

Material Selection for Extreme Mining Conditions

Mineral dust that is corrosive, changes in temperature, and constant heavy loads are just some of the problems that miners have to deal with. The science of materials that makes efficient reducer gears has a direct effect on how long they last in use. High-quality alloy steels like 42CrMo and AISI4140 are very resistant to fatigue, and materials like 18CrNiMo7 are very tough for uses that involve sudden shock loads.

To reach ISO 8–9 grade accuracy, our production process uses advanced methods such as hobbing, milling, and precision grinding. These ways of processing make sure that the touch patterns between teeth stay in the best possible shape, which reduces wear and increases productivity. Advanced materials and precise production make gearboxes that can work effectively in mine equipment where dirt and other environmental factors would quickly break down less durable goods.

Design Variations and Customization Options

Mining companies are very different in terms of size and what they need to do. Single-reduction worm gear systems work well for medium-duty tasks like moving crushed ore on belt conveyors. On the other hand, double-reduction configurations provide the huge torque boost needed for heavy-duty lifting equipment and primary crushers. We make a cylindrical worm gear shape with tooth counts and modules that can be changed from 1 to 50. This lets us precisely match the gear to the speed and power needs of each customer.

During the design phase, our engineering team works directly with clients to turn operational parameters into the best gearbox specifications. This consultative method solves specific problems like mounting orientation limitations, extreme temperatures in the environment, and integrating with current drive systems. Not only can basic sizes be changed, but also special closing systems can be added to keep mine dust and fluids from getting into the internal parts.

Advantages and Application Scenarios of Worm Gear Reducers in Mining

Key Benefits in Heavy-Duty Operations

All of the motor parts in mining tools have to work very hard. Worm Gear Reducer Gearbox technology solves these problems by having a number of built-in benefits. The small size makes it easy to fit into machinery plans that are limited on room, like those used in underground mines, and the perpendicular input-output shaft arrangement makes it easier to build the drive system.

In tough mining situations, these are the main benefits this device offers:

• High Torque Density: The sliding contact mechanism multiplies torque by a large amount while taking up very little space. This is especially important for mobile equipment where weight and space directly affect how well it works.
• Self-Locking Capability: Reduction ratios greater than 40:1 usually have mechanical self-locking, which stops back-driving forces from turning the gear around. This is an important safety trait in hoisting and material handling equipment.
• Shock Load Absorption: The rolling action between the worm and wheel naturally reduces rapid load jumps that happen when materials are crushed or when conveyors run into ore pieces that are too big.
• Reduced Noise Transmission: Compared to spur or helical gear systems, continuous sliding contact makes a lot less noise when it works, which makes working conditions better in closed mining facilities.

All of these benefits work together to solve problems that mining companies have had for a long time, like equipment breaking down because of shock loads, safety concerns with vertical lifting systems, and higher upkeep costs due to noise-related component wear. Our gears work reliably even in places where there is a lot of oil and dust, which would make other gearbox systems less reliable.

Practical Mining Applications

Because they are so flexible, worm gear reducers can be used in a wide range of mining tools. In systems for moving things, these gears power conveyor tracks that move ore from where it is mined to where it is processed. They keep the speeds constant even when the load changes. When installing an inclined conveyor, the self-locking feature is especially useful because it stops material from rolling back when the power goes out.

Another important application area is crushing equipment. To break up rock bodies, primary and secondary crushers need a lot of power at slow speeds. Worm Gear Reducer Gearboxes can reach high reduction ratios, which means that multiple-stage gearbox systems are not needed. This makes mechanical design easier while also increasing reliability. For shaft operations, hoisting equipment needs these gearboxes to provide exact speed control and load-holding ability without the need for extra braking systems.

The small size and reliable power transfer of these gears make them useful for extra equipment like ventilation fans, slurry pumps, and screening mechanisms. Real-world operational data from North American mining operations shows that worm gear systems that are properly specified consistently have service lives of more than 15,000 hours under continuous duty conditions when they are paired with the right lubrication protocols.

Comparing Worm Gear Reducers with Other Gearbox Types for Mining

Comprehensive Technology Evaluation

When mining equipment buying teams try to choose the best gearbox options, they have to make hard choices. Different types of gearboxes have different pros and cons that depend on the unique needs of the application. When you know about these trade-offs, you can make smart choices that balance the initial investment with the total cost of ownership.

Helical gearboxes are more mechanically efficient than Worm Gear Reducer Gearbox systems. They usually achieve gearbox efficiencies of 95 to 98%, while worm gear systems only reach 60 to 85%. In situations where the machine is always running, this efficiency advantage means that less energy is used. But helix designs need more than one reduction stage to reach the same ratios as single-stage worm gears, which increases the size and number of parts needed.

Planetary gear reducers are good for mobile mining tools because they offer high power density and economy in small packages. However, they don't have the built-in self-locking feature that Worm Gear Reducer Gearboxes do, so they need extra safety features when they're being used for holding. Planetary systems are harder to maintain in the field than worm gear designs because their internal arrangements are more complicated.

Comparative Analysis Table

This comparison shows why Worm Gear Reducer Gearboxes are still used a lot in mining, even though they have lower efficiency scores. High reduction ability, shock tolerance, self-locking function, and moderate cost all work together to make a strong value proposition for many uses. When you compare lost efficiency to parts like external brakes and multi-stage gear trains that aren't used, the losses become reasonable.

Application-Specific Selection Criteria

To pick the best gearbox technology, you need to look at certain working factors. For continuous-duty conveyors where energy costs are the most important factor in lifecycle economics, helical or planetary systems may be worth the extra money because they are more efficient. On the other hand, worm gear self-locking and shock absorption are better for intermittent-duty hoisting equipment, where mechanical durability is more important than energy economy.

Mining crushers pose special problems when it comes to choice. Extreme shock loads created when ore fractures favour worm gear designs, even though they are less efficient. In worm gearboxes, the bronze wheel that is meant to be used as a backup works as a mechanical fuse, keeping expensive motor and structure parts from being severely damaged during jams. Planetary gears cannot replicate this type of failure mode protection.

Maintenance and Performance Optimization for Mining Gearboxes

Essential Lubrication Practices

Proper lubrication is the single most important thing that determines how long a Worm Gear Reducer Gearbox will last in a mining setting. Because the sliding friction mechanism makes a lot of heat, it needs special synthetic lubricants that can keep the film strong even at high temperatures and pressures. Polyalkylene Glycol (PAG)-based oils work better than regular mineral oils because they don't break down at high temperatures and have better anti-wear qualities.

When choosing an oil thickness, the temperature ranges that are common in mining activities must be taken into account. Underground uses usually have stable temperatures that are good for ISO VG 320 lubricants. On the other hand, surface uses in climates where temperatures change often may need seasonal changes to the viscosity. It's important to keep an eye on the oil level because not enough greasing speeds up wear and too much oil causes churning losses that raise running temperatures.

Inspection Protocols and Wear Indicators

Setting up regular inspection plans keeps mining activities from being stopped by catastrophic fails. Once a week, you should look at the breather plugs and seals visually to see if there is any oil leakage that could mean the seals are breaking down or that too much heat is building up inside the engine. Using portable analysers to do monthly vibration analysis finds early signs of bearing failure or tooth damage before they become fully broken.

The brass worm wheel is the part that wears out the most in these gears. It acts as a sacrifice to protect the hardened steel worm. Every three months, the surface of your teeth should be checked for damage like pitting, cutting, or geometric distortion. Discolouration patterns on brass surfaces show where heat is concentrating because of poor lubrication or misalignment. By taking care of these early warning signs with corrective maintenance, you can avoid having to replace expensive parts and stop production.

Troubleshooting Common Issues

Worm Gear Reducer Gearboxes most often have problems when they get too hot while they're in mining service. The main reasons are usually the wrong lubricant viscosity, not enough oil, or input speeds that are too high compared to the thermal design limits. Monitoring temperatures with infrared thermography finds units that aren't working right before heat damage damages internal components. In high-duty-cycle uses, thermal problems can be fixed by adding cooling fins or forced-air devices.

Abnormal noise growth points to a number of possible problems that need to be looked into. When metal-on-metal contact happens between the worm and the wheel, high-frequency squealing means that the edges are lubricated. There may be a problem with the bearings or too much backlash from worn teeth if there is rhythmic knocking. Quick analysis and repair keep tools reliable while limiting damage to other parts that are connected.

When the input and exit shafts are not lined up correctly, the load is spread out unevenly across the worm gear teeth. This speeds up wear and decreases efficiency. Using laser alignment tools for precise alignment during installation stops this problem from happening. Checking the flatness of the mounting surface and the torque of the fasteners make sure that the gearbox case keeps its shape under working loads.

Procurement Guide: Buying Worm Gear Reducer Gearboxes for Mining

Evaluating Supplier Capabilities

Evaluating worm gear reducer suppliers requires reviewing certifications, technical expertise, application experience, and customization capabilities. Reliable suppliers provide engineering support during specification, helping avoid costly design errors. Flexible options, including custom tooth counts, mounting designs, and single-unit production, offer greater value for mining operations with diverse equipment requirements.

Quality Verification and Lead Time Management

Professionals in procurement need to set clear quality standards that are in line with practical needs. By asking for material certifications for alloy steel and bronze parts, you can be sure that the metallurgical requirements meet the design standards. Dimensional inspection reports that confirm ISO 8–9 grade accuracy make sure that the teeth fit properly and that the service life is as expected. Being able to see the factory acceptance testing happen before the product is shipped gives you even more confidence in its quality.

Lead time issues have a big effect on mine operations, where machine breakdowns directly lower output. Standard setups usually ship between 35 and 45 days, but unique designs can take up to 60 days, based on how complicated they are. Communicating with suppliers ahead of time about production plans lets you work with planned repair windows, which keeps operations running as smoothly as possible.

Logistics and Global Supply Chain Considerations

Global sourcing of mining gearbox parts requires careful logistics planning. Customized packaging, shock protection, and reliable handling procedures prevent damage during transport. Shipping methods should balance cost and urgency, with ocean, air, and rail options serving different needs. Real-time tracking systems improve visibility, support installation planning, and reduce equipment downtime during replacements.

Conclusion

The Worm Gear Reducer Gearbox is still an important part of mining tools because it reliably transfers power in even the toughest circumstances. It solves important problems in material handling, crushing, and raising with its special mix of high torque density, self-locking, and shock absorbing. In some situations, other technologies are more efficient, but the total value proposition—balancing performance, reliability, and cost—ensures that they will continue to be widely used in mining activities around the world. Choosing the right materials, making sure they are manufactured precisely, and keeping up with maintenance can extend the life of a product and make it more reliable. Mining operations can get the most out of their equipment while keeping total ownership costs low by making smart purchasing decisions that take into account supplier capabilities, customisation options, and logistics skills.

FAQ

1.What makes worm gear reducers suitable for mining environments?

These gearboxes work great in mines because they can handle a lot of shock loads, are small enough to fit into equipment with limited room, and can self-lock to stop back-driving in vertical situations. The strong building made of strengthened metal steels can handle the rough dust and corrosive conditions that quickly break down other gearbox technologies.

2.How often should maintenance be done on mining gearboxes?

How often maintenance is done relies on the job cycle and the conditions of the environment. Visual checks are done once a week to look for oil leaks and strange noises. Lubrication research done once a month checks the state and amount of contamination in the oil. Every three months, full checks look at how parts are wearing. Heavy-duty tasks may need more frequent attention, while equipment that is only used sometimes can go longer between full inspections.

3.In mine conveyors, can worm gearbox reducers handle loads that change?

Of course. The sliding friction automatically reduces changes in load that happen when conveyors hit material swells or obstacles. This shock absorption keeps upstream motors and downstream equipment safe from torque spikes that could damage them. Worm gear systems work better than fixed spiral gear systems in situations with changing loads because they have more mechanical flexibility.

4.How much performance loss can I expect from worm gear systems?

Depending on the reduction ratio, the typical efficiency runs from 60% to 85%. Higher ratios have lower efficiency because there is more moving friction. This design doesn't work as well as helix or planetary ones, but the trade-off is usually worth it because it's smaller, locks itself, and can handle shocks better. Proper lubrication with synthetic oils maximises efficiency within the limits of the design.

Partner with YIZHI MACHINERY for Your Mining Gearbox Solutions

Choosing the right Worm Gear Reducer Gearbox supplier changes the buying process from a one-time event to a long-term partnership. After 15 years of specialised experience, YIZHI MACHINERY has been making precision gear transmission parts for mining, aerospace, and industrial machinery. Collaboration between engineers helps us meet each operation's specific needs by customising everything from initial talks about what is needed to precise machining, strict quality control, safe packing, and on-time shipping around the world.

We make worm gears out of high-quality materials like 20CrMnTi, 42CrMo, and SAE4340. Using modern heat treatment methods, we reach surface hardness levels of 58 to 62 HRC. Our production follows ISO standards and makes precise parts that can work in the harshest mining settings. You can get quality parts no matter what size of order you place because the manufacturing process is flexible enough to handle orders for a single unit or a lot of them. With delivery times between 35 and 60 days and real-time tracking of shipments, logistics planning is easy to do. Transport damage rates stay below 0.1% with our custom packaging systems that use shock-absorbing liners and wooden pallets. Contact us at sales@yizmachinery.com to talk about your unique mining equipment needs and find out how our engineered solutions can help you run your business more reliably.

References

1. American Gear Manufacturers Association. (2020). AGMA 6034-B92: Practice for Enclosed Cylindrical Worm Gear Speed Reducers and Gearmotors. Alexandria, VA: AGMA Publications.

2. Budynas, R.G. & Nisbett, J.K. (2019). Shigley's Mechanical Engineering Design, 11th Edition. New York: McGraw-Hill Education.

3. Deutsches Institut für Normung. (2018). DIN 3996: Calculation of Load Capacity of Cylindrical Worm Gear Pairs. Berlin: Beuth Verlag.

4. International Organization for Standardization. (2017). ISO 1122-1: Vocabulary of Gear Terms — Part 1: Definitions Related to Geometry. Geneva: ISO Publications.

5. Radzevich, S.P. (2021). Dudley's Handbook of Practical Gear Design and Manufacture, 4th Edition. Boca Raton: CRC Press.

6. Society of Tribologists and Lubrication Engineers. (2019). Lubrication and Maintenance of Industrial Gearboxes: Best Practices for Mining Applications. Park Ridge, IL: STLE Technical Papers.
