How to Choose a Reliable Worm Shaft System Supplier for Industry

In demanding fields like mining, aerospace, and industrial machinery, picking a reliable supplier for your Worm Shaft System has a direct effect on how well your production runs, how long your equipment lasts, and how safe it is to use. The right partner brings more than just goods; they also bring precise engineering, consistent quality, and quick help that keeps your business going smoothly. To make this choice, you need to look at scientific skills, material standards, the ability to customise, and the product's long-term dependability. Many sellers say they are the best, so procurement managers need a clear way to tell the difference between real knowledge and empty claims. This guide goes over important factors that will help you choose a Worm Shaft System provider that fits your needs and helps you reach your business goals.

​

Understanding Worm Shaft Systems and Their Industrial Relevance

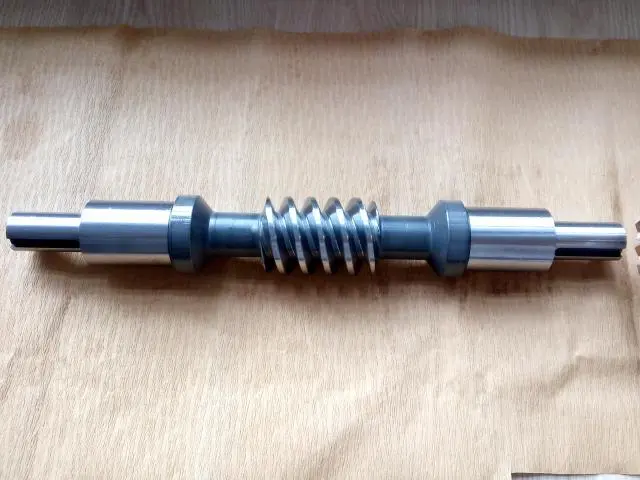

A Worm Shaft System is a special kind of gearbox system that has a threaded worm that connects with a worm wheel to make two perpendicular axes that don't cross. This makes it possible to multiply torque very efficiently in small areas. This sliding-contact device can reduce ratios from 5:1 to 300:1, which is much higher than most gear trains and takes up very little space. Industries like this setup because it solves problems that keep coming up, like not having enough space in machine housings, the risk of back-driving in lifting applications, and noise pollution in settings that need to be quiet.

Working Principles and Material Science

The worm and worm wheel mesh by continuously moving against each other instead of spinning against each other. This one-of-a-kind interaction creates high reduction ratios while keeping motion smooth and free of vibrations. The choice of material is very important for performance. Case-hardened alloy steels like 20CrMnTi, AISI 8620, or 42CrMo are used in high-quality worm shafts. These steels are heated and cooled to a surface hardness of 58 to 62 HRC. These methods make the outsides immune to wear while keeping the insides tough enough to take shock loads. Tin bronze alloys like ZCuSn10Pb1 or aluminium bronze are often used in the mated worm wheel. These alloys keep the worm shaft from galling when they slide against each other and protect the harder worm shaft.

Key Performance Metrics That Matter

Worm gear success in real-world situations is based on its efficiency rate, load capacity, and durability. Modern systems can be as efficient as 45% to 95%, depending on the reduction ratio, the quality of the lubrication, and the accuracy of the manufacturing. The quality of the contact pattern is directly related to the load capacity. Premium units spread forces across 40–60% of the tooth side area, which stops fails in specific areas. Accurate heat treatment depth, usually between 0.8 and 1.5 mm effective case depth, is what makes something durable. This can be checked through damaging tests or eddy current inspection. Surface roughness below Ra 0.4µm on the worm flanks reduces friction, which makes bronze wheels last a lot longer.

Industrial Applications Across Sectors

Worm Shaft Systems are very important in lift traction machines because they keep the doors from falling open when the brakes fail, which meets strict EN 81 safety standards. In mining conveyor systems, these units work in rough, dusty places and have small, fast motors that deliver a lot of torque. Noise reduction is good for automated production line reducers because sliding contact makes 5–10 dB less noise than spur gear hits. Precision positioning is used by machine tool indexing systems, and aircraft ground support equipment counts on their high torque density and ability to hold up against wind loads.

Defining Your Procurement Needs: What Matters Most?

Clear specifications that are in line with operational needs are the first step to successful sourcing. When needs aren't clear, solutions don't match, changes cost a lot, and the project gets held up. Start by writing down the torque needs, speed reduction ratios, duty cycles, and environmental conditions that your equipment has to deal with. This sets the stage for useful talks with suppliers that are focused on capabilities rather than general claims.

Segmenting by Torque Demand and Customization Requirements

Worm Shaft Systems that can handle 5,000 to 50,000 Nm of torque are needed for heavy-duty mining uses. These systems need strong materials like 40CrNiMo or SAE4340 that have been deep case hardened. Tolerances of ISO 8–9 grade must be met over and over again by precision automation lines, with profile error control and contact pattern stability being the most important things. Different projects have different customisation needs. Some need standard catalogue items, while others need custom module specs, gear setups, or mounting interfaces. Suppliers that give module numbers from 1 to 50 and custom tooth counts show that they are able to handle a wide range of project needs. Low minimum order quantities are important for prototyping or making specialised equipment because they allow for the production of a single unit, which is very flexible.

Decision Factors: Lead Times, Pricing, and Compliance

Standard lead times for making unique worm gears are 35 to 60 days, but things that are already in stock ship faster. When deadlines are tight, quality is often sacrificed through rushed heat treatment processes or checking procedures that aren't thorough enough. Prices are based on how much the materials cost, how hard the machine work is, and how strict the quality control is. Premium metals like AISI4140 that are fully ground during the manufacturing process lead to units that cost more but last longer. Warranty terms show how confident the supplier is. Reputable companies offer 12-month coverage for material defects and premature wear under certain operating conditions. Compliance approvals, such as ISO standards, CE marking, and AGMA 6022-C93 compliance, prove that engineers are skilled and that manufacturers follow the rules.

Comparing Against Alternative Gear Technologies

Knowing when Worm Shaft Systems work better than other options makes buying decisions easier. Spur gears are more efficient (95–98%), but for high ratios, they need more than one stage of reduction, which takes up valuable​​​​​​​ space. When compared to spur types, helical gears make less noise, but they still make more sound than worm designs. Planetary gearboxes offer small, high-ratio options, but they are much more expensive and don't automatically stop when they're not in use. Worm Shaft Systems work best when there isn't a lot of room, they need to self-lock, they need to be quiet, and they need to be moderately efficient. This makes them perfect for lifts, conveyors, and positioning systems, but not for continuous high-speed power transmission.

How to Assess Supplier Reliability and Capability

Evaluation of suppliers goes beyond looking at product catalogues and includes things like how well they make things, their quality systems, and how stable their business is. An organization's past performance shows how often they can reliably send precise parts that work as expected in real-world situations.

Reviewing Manufacturer Credentials and Certifications

Look at production experience as a basic factor. Manufacturers with 15 years or more of experience show improved processes and institutional knowledge that younger companies don't have. Quality management systems can be checked by ISO 9001 certification, but this is only the beginning. For example, AGMA or DIN 3974 compliance is needed for gear-specific standards. Ask for proof that the measuring tools were properly calibrated. This includes CNC gear metrology centers from well-known names like Klingelnberg or Gleason. These high-tech tools check for lead mistake, profile accuracy, and pitch deviation—things that can't be seen with the naked eye but are very important for performance. If they have their own in-house carburising furnaces and induction hardening tools, that means they have control over the process and don't have to rely on third-party sellers, whose quality you can't be sure of.

Material Quality and Traceability Standards

Premium suppliers give material certifications that show where the steel came from and mill test reports that confirm the alloy composition. Make sure they have a wide range of grades in stock, such as 45# steel, 20CrMnTi, 40CrNiMo, AISI4140, and special alloys for harsh circumstances. Choice of materials has a huge effect on service life; trying to save money by using cheaper alternatives that aren't as good leads to failures before they should. Insist on blueing tests that show correct contact patterns; this shows more about the accuracy of the production process than measurement reports alone. The quality of the tooth side is determined by surface finishing steps like hobbing, sanding, and grinding. Grinding gets Ra values below 0.4µm, which is needed to reduce friction, but simple milling makes surfaces harder, which speeds up wear.

Production Capacity and Supply Chain Stability

Check to see if your suppliers keep the right tools to handle your large orders without affecting delivery times. There should be high-precision CNC gear machining centers, automated gear grinding machines, and smart heat treatment lines in the facilities to meet the needs of cutting, grinding, and thermal processing. Ask if the company can handle large orders in parallel and if they are flexible for jobs that need to be done quickly. It's just as important for the supply chain to be stable. Suppliers who have established ties for getting materials and a backup stock of materials can avoid delays when the markets for raw materials change. Long-term relationships with well-known mechanical engineering companies show trust in the field and a track record of delivery.

Comparing Worm Shaft Systems: What Sets the Best Suppliers Apart?

Superior suppliers set themselves apart by offering a wide range of products, engineering support, and services that add value that generic manufacturers can't match. When projects run into technology problems or need to be optimised beyond what is normally expected, these differences become clear.

Extensive Product Ranges and Customization Flexibility

You don't have to buy cylindrical worm gears from different sellers because leading makers make them in all module ranges, from micro-miniature (module 1) to heavy-duty industrial (module 50). Customisation options for tooth count, shaft configurations, keyway placements, and mounting interfaces show how flexible engineering can be. When suppliers can make both single items and large orders, it gives you more options during the testing phase and when building low-volume specialised equipment. This ability to grow is useful for projects that go from testing an idea to full production without having to switch providers and risk quality differences.

Balancing Price and Performance Value

Don't just look at the price; also consider how easy it is to install, how often it needs to be maintained, how much energy it uses, and how often it needs to be replaced. A Worm Shaft System that costs 20% more but lasts 40% longer because it is made of better materials and is ground more precisely is a better deal. It's possible to make useful comparisons when pricing systems are clear and list material grades, heat treatment methods, and inspection routines. The value of a warranty is related to how confident the supplier is in it. Full coverage that covers premature wear under certain loads shows that the manufacturing quality is assured. Committed partners are different from transactional vendors because they offer expert help after the sale, make spare parts available, and respond quickly to operating problems.

Technological Innovation and Industry 4.0 Integration

Forward-thinking suppliers spend money on smart manufacturing technologies that make things more consistent and easier to track. Automated production lines that watch quality in real time cut down on mistakes made by people and record process data for ongoing growth. Some companies now make Worm Shaft Systems with built-in sensors that allow for predictive maintenance. These sensors can look at vibration patterns, temperature trends, and lubricant conditions to figure out what service needs to be done before they happen. These new ideas are in line with Industry 4.0 plans and give businesses a competitive edge by cutting down on downtime and making the best use of repair scheduling.

Practical Tips for Procuring the Best Worm Shaft System Supplier

Once procurement professionals have evaluation criteria, they need tactical methods to check what suppliers say and build partnerships that last beyond original orders.

Essential Questions to Vet Potential Suppliers

When talking to a seller, smart questions show how competent they are and how committed they are. Ask them how they go about optimising contact patterns; answers that go into detail about blueing procedures, load testing protocols, and correction methods show that they have a lot of engineering knowledge. Ask them how they handle dimensional errors found during production; quality-focused providers will talk about strong inspection gates and corrective action methods instead of sending out flawed parts. Ask them to explain how they check the heat treatment, making sure you understand the difference between simple hardness checks and thorough, effective case depth analysis. When suppliers talk about metallurgical testing, microstructure examination, and hardness gradient mapping, they show that they have thorough quality control instead of just surface-level compliance.

Methods to Verify Claims Through Testing and References

Before placing a big order, ask for example parts to be tested by someone else. Use standardised tools to look at contact patterns, test hardness at different levels, and measure surface roughness on samples. When claimed specifications don't match measured results, it shows that there are gaps in quality control. Ask for customer references from businesses in the same industry that are working in similar situations. Talking to current clients directly gives you a clear picture of how well suppliers handle quality issues, how quickly they respond to technical support requests, and how well they deliver on time. Third-party testing by recognised labs confirms the composition of the material, the efficiency of heat treatment, and the accuracy of its dimensions.

Building Long-Term Partnerships for Sustained Performance

When compared to strategic partnerships, transactional ties make it harder to collect value. Encourage teamwork by talking about things other than buy orders on a daily basis. For example, talk about problems with operations, share feedback on performance, and look for ways to keep getting better. Suppliers who care about the success of your relationship will offer design improvements, let you know about problems with material supply that could affect lead times, and give your urgent needs top priority when capacity is limited. Talk about framework deals that set stable prices, promise capacity allocation, and terms for technical help that make buying things easier for multiple projects. Maintenance support, parts availability throughout the lifecycle of equipment, and engineering advice during upgrades turn suppliers into extended team members who help achieve operational excellence.

Conclusion

To find a trustworthy Worm Shaft System supplier, you need to carefully look at their technical skills, quality control methods, ability to make changes, and dedication to a relationship. Instead of looking for the lowest prices at first, good buying combines the quality of the materials, the accuracy of the manufacturing, and the total cost of ownership for the Worm Shaft System. Suppliers with a lot of engineering knowledge, reliable production equipment, a lot of certifications, and a track record of success in the industry can consistently meet the needs of demanding applications. Procurement professionals find Worm Shaft System solutions that improve equipment reliability, reduce downtime, and support operational goals throughout product lifecycles by setting clear specifications, asking strategic questions, testing claims, and building long-term partnerships.

FAQ

1.What lead times should I expect for custom worm shaft orders?

Standard wait times for unique Worm Shaft Systems that use special materials, heat treatment methods, and precise grinding are 35 to 60 days. This schedule includes reviewing the planning, getting the materials, machining, heat treatment cycles, finishing grinding, checking for quality, and packing to protect them. Prioritised scheduling can cut down on lead times by 10 to 15 days for expedited production, but rushed processes could hurt the effectiveness of heat treatment or the thoroughness of inspections. Standard versions that are already in stock can be shipped within 5 to 10 days.

2.How do worm shaft systems compare to planetary gearboxes for efficiency?

Worm gear efficiency is lower than planetary gearbox efficiency, which ranges from 90 to 97%. It depends on the reduction ratio and how precisely the gears are made. On the other hand, worm systems can automatically lock themselves, are easier to build, run more quietly, and cost less to buy. Worm designs are better for applications that need high holding torque, a small footprint, and good sound performance, even though they lose some economy for these benefits. Planetary systems work better for apps that need to send data at a high speed all the time.

3.Can suppliers customize worm shaft systems for unique mounting requirements?

Reliable manufacturers allow for a lot of customisation, such as changing the shaft diameter, the keyway configuration, the mounting flange, and the coating. Customisation options include choosing a module from a range of 1 to 50, finding the best tooth count, and making sure that the material grade matches the conditions in the surroundings. Suppliers with in-house design teams and flexible machining skills can better meet specific needs than those who only sell from catalogues. Single-item production lets you make a prototype before committing to large-scale production.

Partner with YIZHI MACHINERY for Premium Worm Shaft System Solutions

YIZHI MACHINERY is ready to be your trusted Worm Shaft System maker. With 15 years of experience making precision gears and the ability to customise everything, they serve customers in the mining, aircraft, and industrial machinery sectors around the world. We use modern materials like 20CrMnTi, AISI4140, and 42CrMo alloys in our ISO-compliant manufacturing processes. These are put through state-of-the-art CNC gear machining centers and automated grinding equipment to get a surface hardness of 58–62 HRC and an ISO 8–9 grade of accuracy. We offer low 35–60 day lead times, unique packaging that protects against damage during shipping, real-time package tracking, and a guarantee that lasts for a year. Our engineering team offers design advice before the sale, synchronised production updates, and quick after-sales support to make sure your Worm Shaft Systems work reliably throughout their long and difficult operational lives. Contact us at sales@yizmachinery.com right away to talk about your unique needs and get full technical proposals that are made to fit your application.
