Where to Buy Precision Spur Gear with Certified Quality?

Finding a reliable Precision Spur Gear source for industrial transmission parts for mining, aerospace, or heavy equipment is crucial. Precision Spur Gear from specialist manufacturers with cutting-edge manufacturing processes and thorough quality control is certified. Buying teams may find personalized solutions, clear certifications, and reasonable rates from well-known gear manufactures like Henan Yizhi Machinery Co., Ltd. If you acquire these parts directly from the manufacturer, via authorized resellers, or through B2B platforms, you can verify project quality, know wait periods, and obtain technical advice to operate your company.

​

Understanding Precision Spur Gears: Definition and Key Features

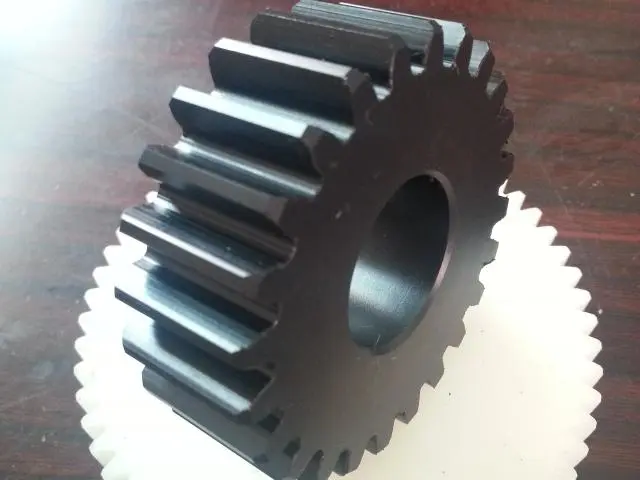

Precision Spur Gears are fundamental power-transfer mechanical parts. Teeth are straight to the gear axis. Precision Spur Gears fulfill tight tolerance standards that affect their reliability, making them distinct from commercial gears used in common operations.

What Makes a Spur Gear "Precision"

Standard and Precision Spur Gears vary largely in construction and materials. Precision Spur Gear must fulfill ISO Grade 5-6 or 8-9 criteria. These standards are crucial because even modest alterations might slow down the system or cause parts to break early. Precision Spur Gear requires casting, cutting, hobbing, milling, and grinding. The grinding stage smooths tooth surfaces and is crucial when the machine is working fast and quietly. Carburizing, cooling and tempering, and induction hardening harden the surface but toughen the core. Precision Spur Gear, which is often loaded and discharged, needs this balance.

Core Design Principles Affecting Performance

Precision Spur Gear teeth feature involute shapes to maintain velocity ratios during contact. Alignment and spacing determine tooth face load distribution. Thus, module specifications (0.5 to 50) must match matching components. Material choice affects holding capacity and durability. High-quality metals including 20CrMnTi, 40CrNiMo, SAE4340, and AISI8620 strengthen constructions for hard circumstances. Surface hardness standards of 58 to 62 HRC ensure these parts will not wear down and maintain the same size even after repeated heating and cooling cycles, which are frequent in mining and aerospace. Business measurements show B2B procurement teams' advantages. Precision Spur Gear transmissions maximize energy efficiency above 98%, reducing motor reducer and gearbox waste. Installation and maintenance are easier with their simpler design than helical or bevel gear alternatives. This lowers component ownership costs over time.

How to Choose the Right Precision Spur Gear Supplier

Selecting a Precision Spur Gear supplier requires careful consideration of technical expertise and quality control. Choice influences part performance, task timeliness, and long-term reliability.

Essential Quality Certifications and Standards

ISO accreditation ensures that production respects global quality management standards. Suppliers should at least follow ISO 9001, and ISO/TS 16949 accreditation demonstrates they can do more in automobile and industrial environments. AGMA standards, specifically AGMA 2000-A88, define Precision Spur Gear quality classes and verification techniques. We can quantify pitch accuracy and profile deviation using these criteria. Material certifications verify metal chemical and mechanical properties. Reliable suppliers provide mill certifications that demonstrate raw material tensile strength, hardness, and heat treatment parameters and can be traced to batches. This documentation is crucial for Precision Spur Gear in regulated industries like airplanes that need material monitoring.

Evaluating Manufacturing Capabilities and Testing Protocols

How effectively a provider uses sophisticated production technology affects their capacity to satisfy criteria. CNC gear machining centers, automated grinding machines, and intelligent heat treatment lines distinguish Precision Spur Gear producers from conventional gear makers. Buying teams should ensure suppliers' precision grade equipment match their application demands. Testing protocols demonstrate quality control. Dimension verification using coordinate measuring tools (CMMs) ensures the tooth profile and pitch width are within micron-level tolerances. Magnetic particle inspection and other non-destructive testing may reveal faults below the surface that might produce stress fractures when loaded. Suppliers that examine all essential factors demonstrate quality, reducing field failure risk.

Comparing Alternative Transmission Solutions

Precision Spur Gears outperform helical gears in several cases. There are no axial thrust loads, making bearing selection easier and the casing simpler. Straight-cut teeth reduce friction when engaged, improving mechanical efficiency. Precision Spur Gears are cheaper to build and compatible with proper noise levels because to their simpler shape. Timing belts may replace metal gears for certain motion duties, but they can't take as much weight or last as long. Precision Spur Gear produced from hardened steel lasts longer than polymer-based choices in mining equipment that experiences shock loads and tough circumstances. Understanding these trade-offs helps procurement specialists match components to applications.

Where to Buy Certified Quality Precision Spur Gears: Supplier and Brand Overview

You must know the manufactures, dealers, and methods industrial purchasers may acquire Precision Spur Gear to navigate the worldwide market.

Leading Manufacturers in the Precision Gear Market

KHK catalog gears with uniform specifications and guaranteed lead times are popular in Asia. Boston Gear is a major industrial supplier in North America, and popular combinations are constantly in stock. For integrated gearbox solutions, Sumitomo employs Precision Spur Gear in larger drive systems. SDP/SI specializes in instrument-grade applications with precise tolerances, whereas Martin serves agricultural and material handling clients. Customization and 15 years of experience distinguish Henan Yizhi Machinery Co., Ltd. The organization offers customized solutions rather than simply what's in a book. When standard items can't fulfill module demands, strange bore configurations, or mining and aerospace specialty materials, this approach works effectively.

Online Versus Direct Engagement Procurement Strategies

Businesses may easily locate multiple vendors and get clear costs for popular configurations using online B2B solutions. This channel works effectively for simple replacement parts or low-volume demands without customisation. Clear pricing enables you create rapid budget estimates, but communication issues might complicate technical conversations. Working directly with the manufacturer advantages bespoke and large sales. Technical guidance before ordering ensures the specifications meet application demands. Suppliers may provide material recommendations, design improvements that simplify production, and production dates. Negotiating bulk pricing reduces per-unit expenses significantly compared to dealer markups.

Procurement Logistics Considerations

Suppliers have extremely varying minimum order quantities. Big catalog producers' MOQs sometimes prevent testing and small-batch manufacturing. By taking single-item orders, Yizhi Machinery allows engineering teams to test concepts before mass manufacturing. Material acquisition, machining, heat treatment, and quality testing require time. Industry typical for bespoke Precision Spur Gear delivery is 35–60 days. Suppliers who can handle all manufacturing phases have more precise timetables than those that outsource essential operations. How successfully suppliers manage international transportation affects their worldwide market reach. Customers have alternatives with integrated freight options including sea freight for inexpensive shipments and air freight for fast orders. Real-time tracking technologies that notify customers of loading, transportation, and delivery make cross-border shopping safer.

Ensuring Quality Assurance: Measurement, Tolerances, and Verification

When buying Precision Spur Gear, quality assurance is more than just getting the seller certified. It also includes measured standards and ways to check the accuracy of the gear.

Critical Dimensional Parameters

Pitch width precision impacts gear system center distance, which affects backlash and load distribution. Deviations that are too large or minor generate early wear patterns on the tooth edges instead of the face width. How well torque travels during contact relies on tooth shape accuracy. Deviations accelerate bearing wear with vibration and noise. Runout data illustrate how concentrically the Precision Spur Gear blank travels around the bore, changing dynamic balance at operating speeds. Surface finish specifications, measured in Ra values, determine friction coefficients and grease film development, which affects performance and wear. A Precision Spur Gear that fulfills pitch accuracy but not runout criteria would not perform properly.

Tolerance Grading Systems and Performance Implications

There are 15 AGMA quality categories, and higher numbers need lower tolerances. General industry employs Class 10–12 gears because they balance price and performance. High-speed airplane actuators and precise instruments need Class 13-15 criteria for positioning precision. Europe uses DIN standards. DIN 3-6 resembles AGMA 13-10. Understanding these areas helps purchasing teams establish standards. When the application doesn't need great precision, over-specifying tolerance classes wastes money. Under-specifying leads to field issues and warranties that cost more than updating the components.

Manufacturing Quality Controls

Heat treatment procedures must be precise regarding when and how hot to get the required hardness values without damaging the material. Carburizing adds carbon to the top layers, making casings strong and non-degradable and cores robust and impact-resistant. Quenching and tempering develop desired microstructures. To balance hardness and brittleness, tempering temperatures are varied. Grinding removes defects and ensures accurate measurements after heat treatment. CNC-controlled grinding tools maintain pressure and traverse speeds, ensuring consistent surface finishes throughout output batches. Production statistical process control detects errors before they influence numerous units. This reduces waste and maintains quality.

Procurement Tips: Maximizing Value While Minimizing Risk

Strategic buying of Precision Spur Gear requires integrating several elements to maximize ROI and meet project timelines.

Balancing Cost and Quality for Long-Term Value

Price discrepancies between vendors are frequently due to true differences in ability, not merely additional expenditures. Precision Spur Gear grinding tools are expensive yet function well. Low-cost choices may fit the drawing, but they may wear out quicker or lose form. Verified Precision Spur Gear's total cost of ownership shows its value. Even if a part costs 50% more, it costs less per hour of usage since it lasts three times longer. Less regular maintenance and no unforeseen downtime provide value that is hard to estimate.

Managing Lead Times and Supplier Capabilities

Coordinating the production schedule is crucial for fast-paced tasks. providers with excess capacity may be able to speed up delivery for a greater price, whereas full-capacity providers are inflexible no matter how soon a client requires something. Knowing supplier limitations prevents plan surprises. Design freeze dates must allow for prototype approval. If adjustments are needed, ordering production quantity before testing them may require a lot of costly effort. Suppliers that can create small test batches before major orders reduce this risk, although project deadlines will be longer.

Specifying and Negotiating Custom Orders

Clear specifications prevent misconceptions that delay shipment or make defective products. Specifications should specify material grade, heat treatment, surface finish, and inspection processes in addition to measurements. Giving providers program information enables them recommend adjustments that make things better or simpler. purchasers have greater negotiation leverage with larger orders, but even small purchasers may receive exceptional rates by signing multi-year supply agreements or merging many components with one vendor. Technical collaboration does more than cut costs. Suppliers who understand application issues may simplify or improve design to save costs or increase reliability.

Conclusion

Look at suppliers' abilities, quality processes, and procurement tactics to identify certified Precision Spur Gear. Normal and Precision Spur Gear variants operate differently due to manufacturing tolerances, material selection, and quality standards. A smart procurement process balances technical objectives with budgetary considerations and tailors supplier relationships for dependable delivery. Working directly with specialist manufacturers like Henan Yizhi Machinery gives you better specific specs, professional assistance, and complete manufacturing transparency than buying from a catalog. Procurement teams can locate durable parts for demanding production environments by understanding tolerance requirements, testing techniques, and the market.

FAQ

1. Why Do ISO and AGMA Certifications Matter for Precision Gears?

ISO 9001-certified companies utilize document control, corrective action, and continuous improvement. AGMA standards specify Precision Spur Gear production restrictions and inspection methodologies. They give quantifiable standards for component performance. These licenses reduce purchasing risk by ensuring suppliers follow the same manufacturing standards instead of letting inspectors decide.

2. Can Precision Spur Gears Handle High-Speed Applications?

Precision Spur Gears are more efficient than noisy at low speeds. Applications with pitch line speeds above 15 m/s may benefit from helical designs that disperse stresses over numerous teeth. Choose the proper materials, heat them, then dynamically change them to enhance speed. Sometimes aerospace-grade Precision Spur Gear may reach 20 m/s.

3. How Do Material Choices Affect Gear Performance and Durability?

When alloy steels like 20CrMnTi and AISI8620 case-harden, their surfaces resist wear and their cores resist impact. Hardening grades like AISI4140 are ideal for applications that need a regular hardness. Consider operating temperatures, stress loads, and external considerations like corrosion exposure when selecting a material. How well material attributes fit application demands determines service life.

Partner With Henan Yizhi Machinery Co., Ltd. for Your Custom Precision Spur Gear Needs

Henan Yizhi equipment Co., Ltd. has been producing machines for 15 years and can tailor them to satisfy mining, aerospace, and industrial equipment clients worldwide. Advanced CNC machine centers, automated grinding equipment, and clever heat treatment technologies allow us create ISO 5-6 and 8-9 grade Precision Spur Gear. We can fulfill your development requirements even when larger firms say no since we can manage single-item orders. Choose the right material for your load and application from 45# steel to SAE4340 and AISI8620. Our specialized packing with shock-absorbing liners and shipping damage rates of less than 0.1% ensure items arrive intact.​​​​​​​ Get in touch with our engineering team at sales@yizmachinery.com to talk about your needs with a reliable Precision Spur Gear maker. We offer expert advice, synchronized production updates, and a one-year warranty that turns buying gear from a transactional purchase into a strategic relationship.
