Where to buy high-quality worm gear pairs online

It can be hard to find high-quality Worm Gear Pairs online because there are so many providers, specs, and quality standards to keep track of. As a technical purchasing manager or reducer design engineer, you need a partner who knows how important these gearbox parts are for your lifting equipment, automated production lines or lift traction machines. Worm Gear Pairs of the highest quality from reputable companies like YIZHI MACHINERY are guaranteed to work well thanks to careful machining, high-quality materials like 20CrMnTi and SAE4340, and strict adherence to ISO 8-9 grade standards. This help walks you through the most important things you need to think about when looking for these important parts.

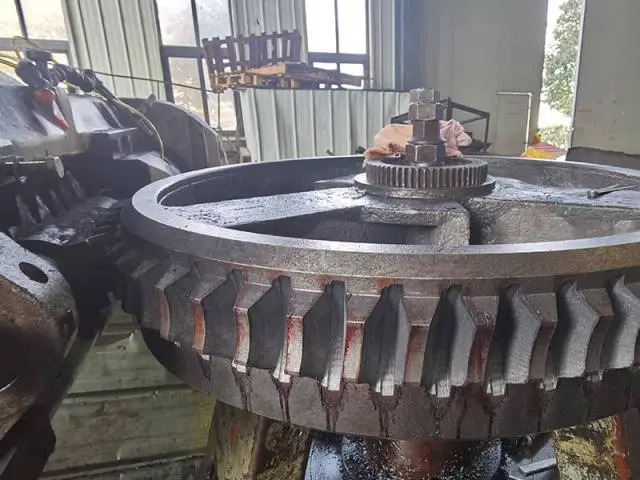

Understanding Worm Gear Pairs: Key Features and Benefits

Worm Gear Pairs are a unique method of power transfer in which a worm, which looks like a screw thread, joins with a worm wheel at an angle. This special arrangement gives these parts mechanical benefits that make them essential in many different types of industries.

How Worm Gear Mechanisms Work

The worm acts as a drive that turns the worm wheel, which is the basic functionality. Worm Gear Pairs work by sliding against each other instead of rolling against each other like most gear systems do. Engineers use this sliding motion to make performance traits that are unique for certain uses. The worm's helical threads engage with the worm wheel's teeth, transferring rotational motion while slowing it down a lot at the same time. The mechanical benefit and the self-locking qualities of the assembly are both based on the lead angle of the worm threads.

Unique Advantages for Industrial Applications

There are several unique things about Worm Gear Pairs that make them an excellent deal. The small size makes it possible to fit into machinery with limited space without lowering performance. It is possible to get high reduction ratios in a single stage, from 5:1 to over 300:1. This means that complicated multi-stage gear trains are not needed. Back-driving is not possible because the self-locking feature stops the motor from turning. This is an important safety feature for lifting and positioning tasks. The slide contact nature makes operation smooth and quiet. It also absorbs shock loads and dampens sound. Because of these qualities, Worm Gear Pairs are very useful in lift traction machines, stage lifting equipment and machine tool indexing mechanisms that need to be very safe and precise.

These gearbox parts are used in many fields, from aerospace to mining. Heavy machinery makers like how well it absorbs shocks and can handle a lot of power. Robotics experts like how precise the placement and backlash control are. They are used in steering mechanisms and window actuators in cars. Worm Gear Pairs are very useful because they can solve several engineering problems at the same time, such as limited space, high torque gearbox, safety requirements, and noise reduction, all in a single, reliable part.

Criteria for Selecting High-Quality Worm Gear Pairs

The choice of material is what makes a Worm Gear Pair work well and last a long time. The harsh working conditions demand that the materials used for the worm and wheel be carefully matched.

Material Considerations for Durability

The worm part of Premium Worm Gear Pairs is made of hardened steel so that it can handle the high contact stresses and wear. After the right heat treatment, like carburising and quenching to get a surface hardness of 58 to 62 HRC, materials like 20CrMnTi, 40CrNiMo, and AISI4140 are very strong. Bronze alloys like CuSn12Ni or phosphor bronze are often used in worm wheels because they are very resistant to wear and don't cause galling when they slide against each other. For cost-effectiveness in less demanding settings, some high-load applications may call for cast iron worm wheels. The way the materials are paired directly affects the assembly's coefficient of friction, the amount of heat it makes, and its overall service life.

Critical Design Parameters

A Worm Gear Pair will either meet your operational needs or not based on a number of technical specifications and the materials they are made of. The tooth size and load capacity are set by the module range from 1 to 50. Precision grade approval to ISO 8-9 standards makes sure that the dimensions are correct and that the meshing is smooth. Backlash tolerance changes how accurate positioning is and how much noise is made. The center distance needs to match the specs of your tools, and the pressure angle affects how the load is spread across the tooth surfaces. The highest load capacity should be higher than your working needs by a safety factor that is right for you.

Performance Metrics That Matter

To evaluate Worm Gear Pairs, you need to look at performance indicators that can be measured. Efficiency ranges from 50% to 98% based on the lead angle, surface finish, and level of lubrication. Noise levels, which are recorded in decibels, show how well the teeth fit together and how precisely the machine was made. The design's ability to handle heat is shown by how much the temperature rises during operation. Estimates of the service life based on load cycles help to justify the costs of the initial investment. Reliable suppliers give out thorough technical datasheets that list these characteristics. This makes it possible to compare goods in an unbiased way.

People who work in procurement should ask for test papers that show the results of the heat treatment, measurements of the hardness depth, and a study of the tooth contact pattern. These quality control documents show that the manufacturing processes were done properly, which means that you can be sure that the Worm Gear Pair will work reliably in your setting.

Comparing Worm Gear Pairs with Alternative Gear Solutions

When looking for the best gear technology, it's important to know the pros and cons of each gearbox method. Each type of gear meets different technical needs based on how it is set up mechanically, how efficient it needs to be, and how it can be used.

Worm Gear Pairs Versus Spur and Helical Gears

Spur gears are very efficient—often more than 95%—but Worm Gear Pairs are more compact and can handle higher reduction ratios. Because their teeth meet at an angle, helical gears work more smoothly than spur gears, but they still need more than one stage to reach the reduction ratios that worm mechanisms offer in a single, small unit. Some types of worm gears are safer than others because they can lock themselves, which spur and helical gears can't do without extra stopping mechanisms. However, the moving contact in Worm Gear Pairs makes more heat and lowers efficiency than the rolling contact in spur and helix options.

Alternative Transmission Technologies

Bevel gears are great for moving power between shafts that cross each other, but they only have a few reduction ratios. Planetary gear systems are very efficient and have coaxial input-output arrangements that work for inline installations, but they are more complicated and cost more. Rack and pinion mechanisms change rotary motion into linear motion, which is used for very different tasks. Each technology fills a different role in the bigger picture of gearbox.

When uses require high torque multiplication, small packing, self-locking safety, and shock absorption capabilities, Worm Gear Pairs are a smart choice. When you look at the mechanical benefits and cost savings from getting rid of extra stages or safety devices, the slightly lower efficiency isn't a big deal. Technical purchasing managers can choose gearbox options that meet operational needs and price limits if they understand these trade-offs.

Where to Buy Worm Gear Pairs Online: Trusted Suppliers and Brands

Finding trustworthy places to buy high-quality Worm Gear Pairs requires looking at more than just the price at first. When you work with the right supplier, you can count on consistent quality, quick technical support, and reliable delivery over many years.

Evaluating Supplier Credentials and Capabilities

Industry certifications, advances in production equipment, and customer examples from well-known makers show how reliable they are. Check to see if the processes follow the standards set by the ISO quality management system. CNC gear hobbing machines, precision grinding equipment, and advanced heat treatment facilities are just a few of the manufacturing capabilities that show the technical ability to make complex shapes with tight tolerances. Inspection tools, like coordinate measure machines, make sure that all of the production batches are the same size and shape.

With 15 years of experience making custom Worm Gear Pairs and precision gearbox parts, YIZHI MACHINERY is a great example of these qualifications. Their building has some of the most accurate CNC gear machining centers in the world, as well as fully automatic gear grinding machines and smart heat treatment production lines that can do induction hardening, cooling and tempering, and carburising. This wide range of tools makes sure that the quality is always the same, even when working with different types of materials, from 45# steel to special metals like 18CrNiMo7 and 20CrNi2Mo.

Customization and Technical Support

Mid-sized manufacturers with sales between $3 million and $50 million need suppliers who can work with their specific needs instead of forcing them to choose from a small number of standard catalogues. You should be able to choose the material, the number of teeth, the range of modules, and the surface treatments that work best in different operating settings. Getting technical help during the planning phase can help you find the best gear specs for your needs, which could save you money or make the system work better.

Professional suppliers are different from commodity vendors because they offer pre-sales engineering support. Manufacturers with a lot of experience can give you design drawings, check to see if your idea will work, and suggest materials based on your load conditions and duty cycles. During production, synchronised progress updates and quality inspection reports let you know how the order is going. Long-term protection for your investment comes from support after delivery, such as startup help, troubleshooting help, and guarantee coverage.

Global Logistics and Delivery Reliability

Cross-continental procurement makes shipping more complicated, which slows down projects and damages parts. For custom Worm Gear Pairs, suppliers that work with international markets should give clear lead time estimates. These can be anywhere from 35 to 60 days, depending on the complexity of the design and the availability of materials. Delivery dependability comes from long-term transportation relationships and methods of protective packing.

YIZHI MACHINERY handles these issues by using custom packing that includes shock-absorbing cushioning liners and wooden boxes that are made to protect the surfaces of gear teeth while they are being shipped. They offer a variety of ways to move goods, such as by sea, air, and China-Europe goods trains. The capacity and speed of these choices can be adjusted to meet your needs and your budget. Real-time tracking systems let you see shipments from the time they are loaded at the factory until they are delivered, which makes planning production less uncertain. This thorough method lowers the rate of damage during transport to less than 0.1%, making sure that parts come ready to be installed.

How to Make a Confident Purchase: Step-by-Step Buying Guide

A organised way of buying things lowers risks and raises the value of your Worm Gear Pair purchase. Following a set of steps in a planned way increases trust in the supplier pick and product specs.

Defining Technical Requirements

Start by writing down exactly what your operational parameters are. Figure out the load needs, taking into account scenarios like peak torque, continuous torque, and shock loads. Set the speeds at which the input and output shafts will turn. Find out what factors in the environment, like extreme temperatures, water exposure, or the chance of contamination, affect the choice of material. Find out how long the parts need to last and how often you can do maintenance that won't affect your business. These specifications are the basis for having a meaningful conversation with a supplier and getting accurate quotes.

The load capacity and overall size are affected by the module choice, while the reduction ratio is set by the number of teeth. The mounting restrictions should match the profile type specifications. For general industrial use, cylindrical worm gears are common. The worm's surface must be between 58 and 62 HRC to make sure it can withstand wear for long periods of time.

Supplier Evaluation and Sample Validation

Shortlist potential suppliers based on their technical capabilities, industry reputation, and customer references. Ask for specific scientific datasheets that show certifications for the materials, how they were heated, and the results of quality checks. Look at how the guarantee terms, minimum order amounts, and payment terms affect the total cost of acquisition. If you can, ask for samples or set up factory tours to directly check the factory's manufacturing capabilities.

During this review step, YIZHI MACHINERY keeps its processes open and clear. Their standard process starts with communicating what they need, then moves on to design drawings, production machining, quality control, protective packaging, and coordinated shipping. Low minimum order quantities allow for pilot installations, and the ability to make just one item helps with developing prototypes and making replacements in case of an emergency. This flexibility works well for mid-sized manufacturers who have to balance the costs of keeping inventory with the need to keep making things.

Establishing Long-Term Partnerships

It's easy to know what to expect when you negotiate full terms that include technical specs, shipping dates, quality guarantees, and price structures. Talk about what you will do if there are changes to the design or rush orders that come up during the product development cycle. Make sure that communication protocols and escalation procedures are clear so that support can be quick to respond to questions. Building these kinds of relationships with experienced suppliers makes procurement more stable, which lowers the work needed to find things over time and raises the reliability of parts by letting the supplier know about your specific application needs.

Conclusion

When looking for high-quality Worm Gear Pairs online, you need to pay close attention to the technical details, the supplier's skills, and the possibility of forming a long-term relationship. Because these gearbox parts are so important to lift traction systems, lifting tools and automatic production lines, they should be carefully looked over before being bought. The reliability and service life of a product are directly affected by the materials used, how precisely they are manufactured, and how well they are heat treated. The best value goes beyond the original price factors. It comes from established providers who offer customisation options, full technical support, and reliable global logistics. Technical purchasing managers get gearbox parts that meet strict operational needs and build strong long-term relationships with manufacturers by following structured procurement processes and working with experienced companies.

FAQ

1.How do I select suitable worm gear pairs for my specific application?

Before you can choose the right Worm Gear Pairs, you need to carefully consider your load needs, which should include both high shock loads and constant working torque. The working environment impacts the choice of materials. For example, corrosive conditions might need special coatings, and extreme temperatures can change the choice of lubricants. The number of teeth and lead angle requirements are based on the reduction ratio. By matching these factors with what the provider can do, you can be sure that it will work with your processes and tools. Talking to manufacturers with a lot of experience, like YIZHI MACHINERY, can help you figure out how to improve performance without making things too specific, which can drive up costs.

2.What lead times should I expect for custom worm gear manufacturing?

Lead times for handmade Worm Gear Pairs are usually between 35 and 60 days, but the exact delivery date depends on a number of factors. Machining time is affected by how complicated the design is, especially when the teeth don't have standard shapes or when the heat treatment needs to be done in a certain way. Different materials aren't always easy to get. Common alloys like AISI4140 ship quickly, but more specialised grades might take longer to get. The number of orders affects the schedule because bigger batches get made first. Telling suppliers about your goals early on in the quote process helps them make sure they have enough production capacity and materials to meet your project targets without lowering quality standards.

3.What technical support and after-sales services are available?

Reputable makers offer full help for the entire span of a product. As part of the pre-sales consultation, design drawings are made, technical specifications are looked over, and material suggestions are made based on your needs. During production, updates on progress and records of quality checks keep the project visible. Post-delivery services usually include help with installation, troubleshooting for problems with integration, and getting spare parts. A warranty, which usually lasts for one year, guards against problems with the way the product was made. This technical support cuts down on equipment downtime and speeds up the resolution of problems that come up during setup or use.

Partner with YIZHI MACHINERY for Premium Worm Gear Pair Solutions

To make high-quality gearbox parts, you need to work with experienced manufacturers who know how important it is to send power precisely. YIZHI MACHINERY has been making custom Worm Gear Pairs for 15 years for lift makers, crane builders and people who put together automatic production lines. Our ISO-certified processes make sure that the quality is the same for all materials, from 45# steel to SAE4340. We can also grind with precision up to ISO 8-9 grade accuracy and a surface hardness of 58–62 HRC.

As a company that only makes Worm Gear Pairs, we can handle projects of all sizes. Our low minimum order quantities make it easy to make prototypes, and our production capacity can be adjusted to meet the needs of both small and large OEM clients. Our full customisation services cover the whole process, from communicating your needs to creating detailed design drawings to precision machining using cutting, hobbing, milling, and grinding techniques, as well as strict quality control and organised global shipping. Our 35–60 day delivery window is both efficient and quality-assured, and the protective packaging keeps damage rates during shipping to less than 0.1%.

Technical guidance helps you make choices about what to buy by giving you design advice, material suggestions, and technical insights that are special to your application. Contact us at sales@yizmachinery.com about your Worm Gear Pair needs, get full technical specs, or get quotes that are specific to your business.
