Where to buy high-quality precision gear shafts

When looking for places to buy high-quality Precision Gear Shafts, the best ones are specialised gear manufacturers with verified ISO certifications, authorised distributors with experience in the aerospace or robotics industries, and direct OEM suppliers who can make any changes you want. Companies like YIZHI MACHINERY are good examples of trusted sources because they use advanced manufacturing infrastructure, strict quality standards, and open supply chain management to meet the needs of industries that need parts that meet ISO Grade 6 tolerances and complex material specs.

​

Introduction

Modern industrial gearbox systems depend on Precision Gear Shafts, which have a direct effect on how reliable, efficient, and long-lasting they are in critical applications. These engineered parts have to accurately transfer torque while also being able to handle high loads, changes in temperature, and continuous operation cycles. When purchasing these important parts, procurement managers and engineers have to deal with a lot of problems. They have to make sure that the material certifications are real, that the tolerances for size and shape meet the requirements, that the supplier's manufacturing skills are evaluated, and that the quality of each production batch is the same.

Manufacturing companies that make aerospace parts, robotic joint assemblies, and CNC machine tool production have the most to lose. Even tiny changes can cause catastrophic system failures or expensive downtime. To help R&D directors, supplier development engineers, and quality assurance managers find their way around the complicated world of procurement, this detailed guide gives them the tools they need to make smart buying decisions that protect both operational performance and long-term investment value.

Understanding Precision Gear Shafts and Their Industrial Value

What Defines a Precision Gear Shaft

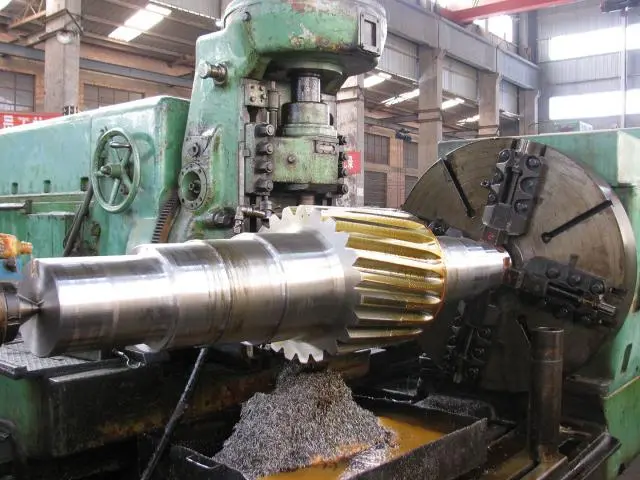

A Precision Gear Shaft is a single mechanical part that has a rotating shaft and machined gear teeth. It is designed to transfer torque and rotational motion with very high accuracy in dimensions and very little backlash. Unlike most market shafts, these parts must meet strict tolerance levels, usually ISO Grade 6 or AGMA Quality Class 10. This is done by using advanced grinding techniques after heat treatment. The shaft spins on bearing surfaces while the gear teeth engage with matching parts to transfer power. The rigid design of the gear prevents bending and torsion forces that could throw off gearbox systems.

Materials and Manufacturing Excellence

The steps used to make Precision Gear Shafts are carefully planned and start with choosing the right material from high-grade metal steels. Some common materials are AISI 4140, 20CrMnTi, 40CrNiMo, and SAE 4340. Each was chosen because it has a certain set of mechanical properties and can be used in a certain way. The production process includes forging to set the grain structure, rough machining on CNC turning centers, gear cutting by hobbing or milling, and heat treatment steps like quenching, tempering, and carburising to reach the target surface hardness of 58 to 62 HRC while keeping the core flexible.

In the finishing step, precise grinding is used to get rid of any distortions caused by the heat treatment and achieve finished dimensions that are accurate to within microns. This multi-step process makes sure that parts meet strict requirements for tooth shape accuracy, surface finish quality, and stability in size under operating loads. Because of this, a part that makes machines work better, lasts longer (up to hundreds of thousands of hours), and needs a lot less maintenance than regular gearbox elements is made.

Industry Applications and Value Proposition

Some of the industries that depend on these important parts are heavy construction equipment, medical devices, industrial robotics, and automotive drivetrains. In precision machine tool wheels, these shafts allow for setting accuracy down to the micron level, which is necessary for smooth surfaces. Zero-backlash properties make sure that precise articulation and repeatability are achieved in robotic joint applications. Their high strength-to-weight ratios and ability to work reliably in temperatures ranging from -65°F to 400°F are important for aerospace systems.

Precision Gear Shaft vs. Other Gear Shaft Types: Making the Right Choice

Performance Distinctions Across Shaft Categories

To choose the right gearbox parts, you need to know the basic differences in how Precision Gear Shafts work compared to standard alternatives like worm gear shafts, bevel gear configurations and basic spur shaft designs. When it comes to important measurements, Precision Gear Shafts offer tolerance accuracy of only 5–10 microns, while commercial-grade options offer tolerance accuracy of 50–100 microns. This accuracy directly leads to less shaking, less noise, and better power transfer efficiency of over 98% in properly installed systems.

Another important difference is load capacity. Precision-manufactured shafts go through a lot of heat treatment steps that make the surfaces case-hardened with leftover compressive stresses that make them last 300–400% longer than options that are through-hardened or not treated. This extra longevity is very important in situations where there are cycle loads, shock loads, or constant high torque operations, where failure too soon could cause production to stop, which would cost thousands of dollars per hour.

Quality Standards and Compliance Requirements

International standards set the rules for judging the quality of parts and making sure they work with parts from different manufacturers. Tolerance classes for gear precision are set by ISO 1328 and AGMA 2015. These classes include profile deviation, helix variation, pitch uniformity, and runout tolerances. Components that meet the standards for ISO Grade 6 are examples of excellent manufacturing and can be used in difficult industrial settings. On the other hand, ISO Grade 4-5 components are used in aerospace and medical systems where ultra-precision is needed.

Material certifications and paperwork that shows how the materials were made add to the quality guarantee. Suppliers you can trust will give you mill test reports that confirm the chemical makeup, mechanical property test results that include tensile strength and hardness values, and heat treatment records that show time-temperature patterns. With this paperwork, quality managers can check the authenticity of materials and track parts throughout their entire working lifecycle.

Cost-Benefit Analysis for Procurement Decisions

To find the right balance between the initial investment and the total costs of ownership, you need to look at more than just the purchase price. Premium Precision Gear Shafts cost 40–70% more per unit than standard options. This is because they are made using more advanced techniques, better materials, and stricter inspection procedures. But this initial investment pays off in a big way by extending service intervals, lowering the frequency of downtime, saving energy through better efficiency, and preventing damage to other parts that are meant to work together.

Over three years, a robotics company that used precision-grade shafts in joint assemblies saw an 85% drop in warranty claims and a 60% drop in field service calls. The higher reliability allowed for tighter production schedules and less need for spare parts inventory, which saved the company more than five times the cost of the extra part. These kinds of cases show how important it is for businesses to prioritise machine uptime and total cost optimisation.

Where to Buy High-Quality Precision Gear Shafts: Key Considerations

Identifying Trusted Manufacturing Partners

Finding trustworthy suppliers starts with checking their manufacturing credentials and experience in the field. Look for businesses that have ISO 9001 quality management certification and use systematic ways to keep processes under control and make improvements all the time. Suppliers to the aircraft industry usually have AS9100 certification, which shows that they can meet the quality standards of the flight business. CNAS-accredited labs use regulated instruments that can be traced back to national standards to do full tests on materials and make sure they are the right size.

Production infrastructure shows what kinds of things can be made. Advanced factories have multi-axis CNC machining centers with thermal compensation systems, CNC gear grinding machines that can achieve sub-micron accuracy, computer-controlled heat treatment furnaces that make sure the metal's properties stay the same, and coordinate measuring machines (CMMs) that can check all dimensions. Companies that buy this kind of tools show that they care about quality and can meet strict requirements.

Tenure in the industry and ties with clients are two more signs of trust. Long-term partnerships between suppliers and well-known aerospace manufacturers, auto OEMs, or industrial machinery brands show that the suppliers can consistently deliver quality products and are technically competent. Ask for client references and case study materials that show how successful projects have been done with similar needs to yours.

Pricing Structures and Procurement Planning

Understanding the parts of a cost makes budgeting and negotiating with suppliers easier. The base price is based on the cost of materials, the difficulty of making the product, the standard grade needed, and the number of orders. Customisation adds costs for engineering design time, making specialised tools, and inspecting the first product. When you buy more than 100 units, you can usually get a volume deal. For annual agreements that cover 500 or more pieces, you can get price cuts of 15 to 30 percent.

Different sellers have very different rules about the minimum order number. Large manufacturers may need at least 50 to 100 pieces to start, but specialised job shops can work with prototypes of one piece and small production runs. YIZHI MACHINERY can handle different order sizes, even for just one item. This means that they can meet the needs of research and development projects, test production phases, and secondary service needs without needing to keep a lot of inventory on hand.

When planning lead times, production cycle needs must be taken into account. Precision Gear Shafts usually take 35 to 60 days from the time the order is confirmed until the final inspection. This is because of the forging processes, the heat treatment cycles needed for proper transformation and stress release, and the precision grinding processes that need multiple setups and inspection steps. It may be possible to get rush production at a higher cost, but rushed plans could hurt quality by not giving enough time for cooling or inspections.

Logistics and Post-Purchase Support

Transportation issues have a big effect on both the total cost of procurement and the reliability of delivery. Care must be taken when packing international packages so that they don't get damaged while being handled or in transit. Specialised sellers use custom-made wooden boxes with shock-absorbing padding to keep parts from moving and to keep the surfaces of delicate gear teeth from getting scratched or damaged by impacts. YIZHI MACHINERY's customised method to packing keeps transport damage rates below 0.1%, which cuts down on expensive returns and production delays.

The choice of shipping way strikes a balance between cost and arrival time. Ocean freight is a cheap way to send large packages, but it takes 4 to 6 weeks for trans-Pacific routes. Air freight speeds up delivery to 5–7 days, but it costs a lot more and is only good for urgent needs or high-value, low-weight packages. China-Europe goods trains are a good middle-ground choice because they have decent travel times and reasonable prices for destinations on the continent.

Warranty coverage and technical support keep your investment safe and make sure that problems are fixed quickly. One-year guarantees that cover manufacturing flaws, material fails, and non-conformance with measurements are included. Quick technical support teams help with installation, fixing problems with how things work, and sending new parts when needed. When suppliers offer this much support, it shows that they believe in their products and want their customers to succeed.

Best Practices for Procuring Precision Gear Shafts Online and Offline

Comprehensive Supplier Evaluation Framework

A structured supplier evaluation framework reduces procurement risk by verifying certifications through official databases, reviewing quality system documentation, and conducting facility audits to assess equipment condition and operational discipline. Reputation should be cross-checked via industry forums, professional networks, and third-party reviews for delivery reliability and service quality. Technical competence is further evaluated through targeted engineering questions on heat treatment, inspection methods, machining control, and traceability systems.

Specification Communication and Customization

Clear technical communication is essential for successful procurement, including detailed drawings with tolerances, material and heat treatment requirements, hardness targets, and inspection criteria, along with functional data such as load, speed, environment, and service life. Supplier collaboration can improve design efficiency through geometry optimization or material substitution. Before mass production, first-article inspection and physical samples should verify performance, fit, and quality.

Negotiation Strategies and Relationship Building

Bulk order negotiations enable better pricing and stable supply, with volume discounts typically ranging from 15% (500+ units) to 30% (2,000+ units), depending on complexity. Long-term partnerships improve delivery priority, capacity allocation, and technical support. Payment terms balance cash flow and risk, commonly using 30–50% advance with balance on delivery, while net terms or letters of credit support trusted or new international buyers.

Why Choose YIZHI MACHINERY as Your Precision Gear Shaft Supplier

Advanced Manufacturing Capabilities and Quality Assurance

YIZHI MACHINERY uses advanced CNC gear machining centers, automated grinding, and smart heat treatment systems to achieve micron-level precision, Ra 0.4 surface finishes, and consistent hardness control. Quality assurance includes incoming material inspection, in-process checks, and final verification with CMM and gear analyzers under ISO 9001 standards. With 15 years of engineering experience, the team provides full technical support from design to after-sales optimization.

Comprehensive Product Range and Customization

Our Precision Gear Shafts come in a variety of shapes and sizes to meet the needs of a wide range of applications. Specifications for the product include tooth counts ranging from single digits for pinions to large ring gears, modules from 0.5mm for small mechanisms to 50mm for heavy industrial use, and helix angles from 5° to 45° to get the best load capacity and noise levels. You can choose a surface hardness between 45 to 50 HRC for modest loads and between 58 to 62 HRC for heavy loads that change quickly or that need to be applied continuously.

Among the materials available are a wide range of alloy steels, such as 20CrMnTi for uses that need a hard surface and a tough core, 40CrNiMo and AISI 4140 for balanced strength and ductility, and special grades like 18CrNiMo7 for tough aerospace uses. Some heat treatment methods are carburising, which makes the surface as hard as possible, cooling and tempering, which makes the material harder all the way through, and induction hardening, which only treats the surface.

Custom engineering services solve problems that only apply to certain applications. Our design team works with customers to come up with the best solutions. These solutions include special features such as integral flanges, precision-ground bearing journals, specialised tooth shapes, and surface treatments that make the parts less likely to rust or slip. Flexible manufacturing can handle small quantities for prototypes, small production batches, and high volumes of series production. The quality is the same for all order sizes.

Reliable Logistics and Comprehensive Service Support

Reliable logistics ensure safe and timely delivery through customized protective packaging, multiple transport options (sea, air, and rail), and real-time tracking, keeping damage rates below 0.1%. Comprehensive service support spans pre-sales engineering advice, production progress updates, and post-delivery warranty and technical assistance. Long-term partnerships in aerospace, robotics, and industrial sectors reflect consistent quality, strong technical capability, and dependable customer support.

Conclusion

To find high-quality Precision Gear Shafts, you need to carefully consider what each supplier can do, be clear about your technical needs, and build strong relationships with them. The choice affects not only the costs of the current parts, but also the overall efficiency of operations, the dependability of the equipment, and the costs of long-term upkeep. A good procurement process combines technical requirements with the manufacturing skills, quality control systems, and service commitments of the provider. Companies that put these factors ahead of the lowest unit price always have better results, like less downtime, longer component life, and better system performance. The supplier you choose will eventually decide whether gearbox parts become assets for reliability or liabilities for ongoing upkeep.

FAQ

1.What distinguishes precision gear shafts from standard gear components?

Precision Gear Shafts have to meet stricter tolerances, usually ISO Grade 6 or better. This is done by grinding the shafts after they have been heated to remove any warping. Dimensional changes that happen to standard parts are 5–10 times bigger because they can only be honed or shaped. Less vibration, less noise, and better economy are all results of this accuracy.

2.How does material selection affect component performance?

Choice of material affects how much weight it can hold, how well it resists wear, and how it reacts to heat treatment. Alloy steels like 20CrMnTi have very hard surfaces because they are carburised, but they are still tough in the middle. For through-hardened uses, AISI 4140 has a balanced strength. Matching the right materials to the right operational loads keeps things from breaking down too soon and greatly extends their useful life.

3.Can I order small quantities for prototyping or testing?

Yes, YIZHI MACHINERY can handle different order sizes, such as making just one piece for prototypes, test runs, and extra parts needs. Because of this, you don't have to commit to big stocks before you know for sure that the idea will work or that the market will want it. This lowers the financial risk during the development stages.

Partner with YIZHI MACHINERY for Superior Precision Gear Shaft Solutions

YIZHI MACHINERY makes high-quality Precision Gear Shafts that meet strict ISO Grade 6 standards. These shafts are made from high-quality alloy steels using advanced CNC machining and controlled heat treatment methods. Our 15 years of experience working with aerospace suppliers, robotics manufacturers, and original equipment manufacturers (OEMs) in precision machinery makes sure that we fully understand the needs of demanding applications. We can make any size order, even a single piece, and we can send it anywhere between 35 and 60 days. We also offer full customisation from the design meeting to the final inspection. Contact us at sales@yizmachinery.com to talk about your needs and find out why top manufacturers choose YIZHI MACHINERY as their precision gear shaft supplier.

References

1. American Gear Manufacturers Association. (2019). AGMA 2015-1-A01: Accuracy Classification System - Tangential Measurements for Cylindrical Gears. Alexandria, VA: AGMA Publications.

2. International Organization for Standardization. (2020). ISO 1328-1:2013: Cylindrical Gears - ISO System of Flank Tolerance Classification. Geneva: ISO Standards Catalogue.

3. Dudley, D.W. (2018). Handbook of Practical Gear Design and Manufacture (3rd ed.). Boca Raton: CRC Press.

4. Radzevich, S.P. (2021). Theory of Gearing: Kinematics, Geometry, and Synthesis (2nd ed.). Boca Raton: CRC Press.

5. Budynas, R.G. & Nisbett, J.K. (2020). Shigley's Mechanical Engineering Design (11th ed.). New York: McGraw-Hill Education.

6. Davis, J.R. (Ed.). (2017). Gear Materials, Properties, and Manufacture. Materials Park, OH: ASM International.
