Double-Enveloping Worm Gear Guide: Design, Benefits & Applications

When precise and high power density are needed for big machinery, the Double Enveloping Worm is the best gearbox choice. The hourglass-shaped worm in this one-of-a-kind gear design goes around the gear wheel while the wheel also encloses the worm. This makes contact across multiple teeth at the same time, instead of just one point engagement found in most cylinder designs. This two-wrapping geometry spreads the load across 3 to 11 teeth at the same time, greatly lowering contact stress and allowing small drives to handle high loads in mining hoists, metallurgical rolling mills, and tunnel boring machines that have to work in tight spaces and tough conditions.

​

Understanding Double-Enveloping Worm Gear Design

What Makes Double-Enveloping Geometry Unique

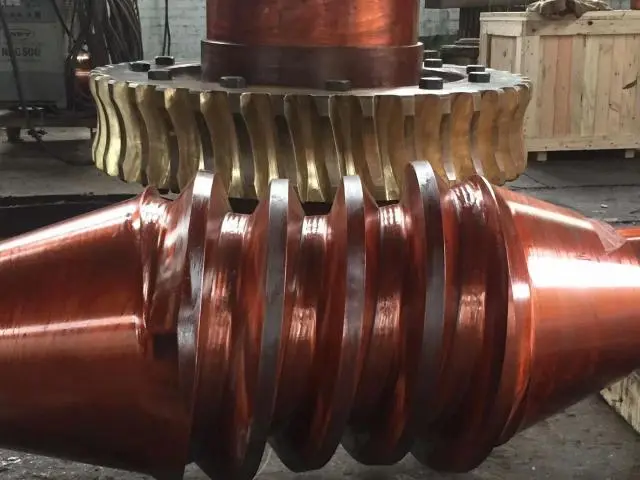

One thing that sets a Double Enveloping Worm apart from single-enveloping or cylindrical types is its globoidal shape. The worm's throat is not the same diameter all the way along; instead, it is concave to fit the curve of the gear wheel it is attached to. This makes area contact instead of line contact, which changes the way stress is distributed in a basic way. Its teeth bend to fit the shape of the worm, creating what engineers call "conjugate action"—a mathematical relationship that makes sure power moves smoothly across the mesh zone.

Complex machining skills are needed to make something with this shape. To get ISO 8–9 grade accuracy at YIZHI MACHINERY, we use cutting, hobbing, milling, and precise grinding. The worm is usually hardened by carburising or induction to a surface hardness of between 58 and 62 HRC. This makes an interface that doesn't wear out and can last for decades of continuous use in heavy industrial environments with shock loads.

Material Selection and Heat Treatment Protocols

Pairing materials has a direct effect on how long they last and how well they work. For the worms in our Double Enveloping Worm parts, we use high-quality alloy steels like 20CrMnTi, 40CrNiMo, SAE4340, and 42CrMo. For the gear wheels, we usually use tin-bronze or aluminum-bronze alloys that are centrifugally cast. After case-carburizing, quenching, and tempering, the steel worm gets a hard, wear-resistant surface while keeping its tough, shock-absorbing core. This combo is very important when drives suddenly lose their load, like when mine hoists stop fully filled skips.

The toothed surface finishing process gets rid of tiny flaws that make wear start more quickly. Precision grinding lets us get surface roughness values below 0.8 Ra, which makes it easier for hydraulic oil films to form even at slow slide speeds. This focus on surface quality is what sets industrial-grade globoidal gearing apart from commercial versions. For strategic procurement managers looking at lifetime economics, this means longer periods of time between upkeep and a lower total cost of ownership.

Customization Capabilities for Specialized Applications

Modules range from 1 to 50, and the number of teeth can be changed to fit your specific reduction ratio needs. If your metallurgical rolling mill auxiliary drive needs a 60:1 ratio in a small space or if your port crane slewing mechanism needs a 120:1 ratio with zero-backlash positioning, double-enveloping architecture can handle both while keeping the structure strong. During the requirement communication phase, our engineering team works directly with your R&D department to turn operational factors into optimised gear shape. This is done through iterative design drawings that are made before production processing starts.

This versatility goes beyond just size requirements. For environments that are corrosive, special coatings can be used. Non-standard mounting setups can be used to fit different housing shapes, and different materials can be used for environments with high temperatures. We have low minimum order quantities and can make one-unit runs because we know that in the capital equipment industries, prototype development and retrofit projects often come before large-scale purchases.

Key Benefits and Performance Advantages

Load Capacity and Torque Density

Because double-enveloping designs have multiple teeth that engage, they can handle about 300% more torque than cylindrical worm gearboxes of the same size. This huge improvement comes from spreading the Hertzian contact stress over a lot more surface areas. When the cutting head of a tunnel boring machine hits an unexpected rock formation, the shock loads that are created spread out over many teeth at the same time, rather than focusing on a single point of contact that could cause a tooth to break.

Because it can handle loads better, smaller drive units are possible. Designers of equipment can make gearboxes lighter and smaller while keeping or increasing their power ratings. This can free up space for extra systems or lower the overall weight of the machine. Manufacturers of mining hoists really like this feature because smaller gear housings make it easier to do repair in headframe installations that aren't very big, and they also meet strict safety factor standards for uses that move people.

Efficiency and Operational Smoothness

Double-enveloping gear sets can achieve efficiencies of 75% to 85% under normal operating conditions, even though they have sliding contact. The important thing is to keep the right hydrodynamic lubrication conditions by choosing the right oil density and flow rates. Heavy-duty compounded oils or synthetic polyglycol lubricants with extreme pressure additives make strong fluid films that separate tooth surfaces. This keeps metals from touching directly, which would cause heat and speed up wear.

Compared to straight-tooth cylindrical designs, smooth gearbox characteristics lower the levels of noise and vibration. Impact shocks aren't a problem with this type of gearing because the teeth slowly connect and disengage as they move through the mesh zone. This is especially obvious when the speed is low and the torque is high. This technical improvement makes the crane cabins more comfortable for operators and extends the life of nearby structure parts that are loaded and unloaded over and over again.

Self-Locking Capability and Safety

In setups with a ratio of more than 50:1, the gear cannot backdrive the worm when the system is still. This is called self-locking behaviour. This technical advantage makes pulling equipment fail-safe, so when the power goes out, the load doesn't fall without control. Elevator traction machines and construction hoists use this property to add to electromechanical brake systems instead of replacing them. This adds extra safety layers that are important for moving people and equipment.

But buying teams should know that friction ratios change depending on weather, the amount of lubrication, and the level of wear. Self-locking doesn't replace the need for dedicated holding brakes in safety-critical situations, but it does reduce brake wear during normal operation and offer backup protection in case of an emergency that purely reversible gear trains can't.

Comparison & Decision-Making: Choosing the Right Worm Gear

Double-Enveloping Versus Single-Enveloping Designs

When cylindrical worms engage with throated wheels in single-enveloping worm gears, line contact instead of area contact is made. This simpler geometry is easier to make and works well for moderate loads and duty cycles that come and go. When budgets are tight and practical needs stay within conservative service factors, strategic procurement managers should choose single-enveloping options.

On the other hand, the Double Enveloping Worm is worth the extra cost when uses need the highest torque density, the longest service life under constant duty, or the least amount of backlash for precise positioning. The 2-3 times longer lifespan means less downtime and replacement costs, which are important factors for heavy equipment operators when they look at the total cost of ownership over a 20-year asset lifecycle.

Broader Gear Type Comparisons

Helical and bevel gears are more efficient—often by more than 95%—but globoidal worm systems are better for their small size and high ratio. To get a 100:1 reduction with helical gearing, you need more than one stage with middle gears and bearings. This makes the system more complicated, heavier, and more likely to break. Applications that value simplicity and space efficiency like double-enveloping architecture, even though it has some small performance costs.

Planetary gears have a high power density, but they are much more expensive and can't self-lock as well. When positioning accuracy and holding torque needs meet budget constraints that make planetary systems impractical, machine tool indexing mechanisms and automated production line reducers often call for double-enveloping solutions.

Supplier Evaluation Criteria

OEM reputation and the ability to customise are what set capable manufacturers apart from commodity suppliers. Before committing, you should judge potential partners based on how well they can provide design drawings and technical advice during the pre-sales phase. This shows that they understand engineering. Ask about the capabilities of CNC gear machining centers, automated gear grinding machines, and inspection equipment to make sure they can consistently meet precise requirements.

Support after the sale is what sets strategic suppliers apart from transactional ones. Your investment is safe because technology problems are quickly fixed, there is a one-year warranty, and there are clear rules for quality review. Long-term partnerships with a reputation for working together among mechanical engineering companies show dependability across all stages of a project, from the initial prototype to mass production and support after the sale.

Procurement Insights for B2B Clients

Order Quantities and Lead Time Management

To balance inventory costs and production schedules, you need to know how long it usually takes to deliver items. Because of the many precision machining and heat treatment steps that go into making them, custom-engineered double-enveloping gear sets usually take 35 to 60 days from the time the order is confirmed until the final inspection. During the early stages of designing equipment, procurement managers should start sourcing activities. This will give potential design changes time to be made before critical path milestones.

When setting prices and making plans, volume factors affect both. We can take orders for just one unit to make a prototype, but for orders of 10 or more sets, we often have tiered price systems that take into account economies of scale in buying materials and paying for setup. Talk openly about annual volume projections during negotiations to get better prices while still being able to adapt to changes in demand that are common in markets for capital equipment.

Quality Assurance and Inspection Protocols

The way that double-enveloping gear sets are inspected is different from how normal gearing is inspected. It is still necessary to do the contact pattern blueing test. This is the only way to be sure that the wrapping principle works as intended. It physically checks that tooth contact under virtual load conditions centers properly and covers 50% to 70% of the tooth face width. Using dial indicators on output shafts with locked inputs to measure backlash makes sure that positioning accuracy meets requirements, usually less than 3 arc minutes for high-precision series.

Checking the Rockwell C values on the sides of worm threads and the Brinell hardness on brass wheel teeth proves that heat treatment works. Checking the pitch sizes for runout stops cyclic gearbox mistakes that show up as vibration or wrong placement while the machine is running. Reliable suppliers write down these measurements in detailed quality inspection reports that come with every shipment. This lets you keep track of them, which meets both your internal receiving protocols and the needs of your customers further down the line.

Building Strategic Supplier Relationships

Buying things in a transactional way means missing out on chances to use supplier expertise. Through collaborative relationships, manufacturers can offer design improvements that lower costs or boost performance based on how well they can make the product, which you may not fully understand. When suppliers are involved early on in the concept stages, they can often find standard features that meet specific needs at lower tooling costs, which shortens the time it takes to develop a product.

Setting up preferred supplier status with qualified manufacturers makes it easier to buy from them again, and it also makes sure that you get first-class scheduling when capacity is limited. Suppliers show their appreciation by keeping you informed about available materials, process changes, and new technologies that can be used in your product roadmaps. This strategic alignment is especially helpful for businesses in fast-changing industries where quick innovation cycles give them a competitive edge.

Conclusion

Double enveloping worm gear technology solves important gearbox problems in big industrial settings by offering higher load capacity, smaller packing, and built-in safety features. Knowing about design principles, material science, and manufacturing processes helps engineering and procurement teams come up with the best solutions that meet operational needs and are cost-effective over the product's life. The decision framework that compares single-enveloping options and wider gear types makes it clear when globoidal design is the best choice. Strategic buying practices that focus on quality assurance, working together with suppliers, and building long-term relationships ensure a steady supply of parts that help you stay competitive in tough markets where gearbox failure has unacceptable results.

FAQ

1.What efficiency can I expect from double-enveloping worm gears?

Under normal conditions, systems that are well-designed and well-oiled usually work 75% to 85% of the time. The real values depend on the reduction ratio, the speed of the sliding, the quality of the lubrication, and the size of the load. Because of more slipping, higher ratios tend to be less efficient. Synthetic lubricants with extreme pressure additives, on the other hand, work better than mineral oils. Most of the time, continuous duty applications are limited by thermal ratings before mechanical capacity limits become important.

2.How does maintenance differ from single-enveloping designs?

The Double-Enveloping Worm needs the same amount of lubrication care, but because it has less contact stress per unit area, it can go longer between service intervals. Monitoring the amount of wear particles and the loss of viscosity in oil analysis tools helps figure out when repair needs to be done. Compared to petroleum-based options, synthetic polyglycol lubricants last longer between changes. The frequency of bearing inspections stays the same, but the gear teeth last two to three times longer before they need to be replaced under the same loading conditions.

3.Can these gears handle reversing applications?

Of course. The multiple teeth spread out shock loads well when the direction changes, which makes them good for reverse drives in support systems for metallurgical rolling mills and crane slewing mechanisms. In precision positioning applications, backlash specifications need to be carefully managed to keep positioning errors to a minimum when the position is reversed. Lubrication systems should keep the flow going well during starting and reversal events, which happen when border lubrication conditions are present for a short time before hydrodynamic films fully form.

Partner with YIZHI MACHINERY for Precision Double Enveloping Worm Solutions

Customised globoidal worm gear options from YIZHI MACHINERY are made for heavy-duty uses in the mining, metallurgy, and naval industries. Our manufacturing facility is ISO-compliant and uses cutting-edge CNC machining centers and precision grinding tools to make parts that exactly match your needs. With 15 years of experience in production, we've formed relationships with some of the world's best mechanical engineering companies. During the pre-sales phase, we offer design consultation and technical drawings. During production, we provide synchronised production updates and quality inspection documentation. After delivery, we offer responsive one-year warranty support. We have reasonable prices for both small trial runs and large production runs. Our customised packing keeps transport damage rates below 0.1%, and you can watch your shipments in real time via sea freight, air freight, or rail. For more information on how our Double Enveloping Worm manufacturer services can help you meet tight delivery deadlines for your next project, please contact us at sales@yizmachinery.com.

References

1. Dudley, D.W. (1991). Handbook of Practical Gear Design and Manufacture. CRC Press, Boca Raton, Florida.

2. Townsend, D.P. (Editor) (1991). Dudley's Gear Handbook: The Design, Manufacture, and Application of Gears. McGraw-Hill, New York.

3. Colbourne, J.R. (1987). The Geometry of Involute Gears. Springer-Verlag, New York.

4. American Gear Manufacturers Association (2018). AGMA 6034-B92: Practice for Enclosed Cylindrical Wormgear Speed Reducers and Gearmotors. Alexandria, Virginia.

5. Litvin, F.L. and Fuentes, A. (2004). Gear Geometry and Applied Theory, Second Edition. Cambridge University Press, Cambridge, United Kingdom.

6. Radzevich, S.P. (2012). Dudley's Handbook of Practical Gear Design and Manufacture, Second Edition. CRC Press, Boca Raton, Florida.
