What is the shock absorption performance of a bevel gear reducer?

When industrial machinery is hit by rapid torque spikes or impact loads, how well a Bevel Gear Reducer absorbs shocks is very important for protecting your equipment investment. Shock absorption is the reducer's ability to spread out and lessen sudden forces that happen during start-stop cycles, changes in load, or mechanical hits. A well-made Bevel Gear Reducer can handle these shocks because of the shape of its gear teeth, the qualities of its material, and the way it is built on the inside. This keeps the gearbox and any machinery that is attached to it from getting damaged. This feature directly leads to longer equipment life, lower upkeep costs, and higher operating dependability in tough industrial settings.

​

Introduction

Power transfer systems in factories, mines, and spacecraft are always having to deal with problems like changing loads and mechanical shocks. A very important part of these systems is the Bevel Gear Reducer, which changes the speed of spinning and sends power at angles while also protecting against damaging forces. Knowing how well shock absorbers work helps procurement workers choose tools that will have the least amount of unplanned downtime and repair costs.

Working with industrial clients for years, I've seen how poor shock absorption can cause gear teeth to break early, damage to bearings, and major machine breakdowns. This guide gives you detailed information about how angular transmission devices deal with impact loads and why this feature should affect your choice of purchase. This knowledge will help you properly judge how well something can absorb shocks whether you're looking for parts for conveyor systems, industrial equipment, or mining equipment.

Understanding Shock Absorption in Bevel Gear Reducers

The Fundamental Mechanics of Shock Mitigation

Shock absorption is the reducer's ability to handle rapid torque changes without transmitting damaging forces. Transient loads from crushers or conveyor stops can reach 200-300% above normal torque. The Bevel Gear Reducer must dissipate these energy spikes. Spiral bevel designs allow continuous multi-tooth contact, spreading loads across several teeth simultaneously. Material choice using 20CrMnTi alloy steel with carburising achieves 58-62 HRC surfaces with tough cores for impact absorption.

How Housing Design Contributes to Shock Resistance?

Properly engineered housings provide structural rigidity preventing deflection under shock loads, maintaining gear alignment during transient events. Housing stiffness directly relates to force distribution through gear mesh. Procurement teams should request finite element analysis validation under dynamic loading. Modern manufacturers use ribbing configurations and strategic wall thickness variations for optimal stiffness-to-weight ratios with damping properties. Flexible mounting systems with rubber isolators further attenuate shock transmission to sensitive components.

Key Factors Affecting Shock Absorption Performance in Bevel Gear Reducers

Gear Design Types and Load Distribution Characteristics

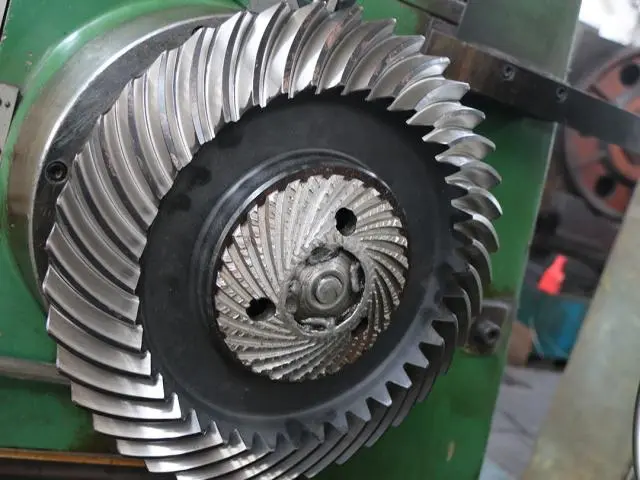

Spiral bevel gears with curved teeth provide gradual load engagement and superior shock absorption versus straight bevels with full-width instant engagement. Spiral angles between 15° and 35° affect noise and load capacity, with higher angles improving shock resistance but requiring complex manufacturing. Hypoid bevel configurations offset the pinion, enabling higher reduction ratios and enhanced load capacity with more uniform contact stress distribution under shock conditions in mining applications.

The Critical Role of Gear Ratio and Torque Capacity

Higher reduction ratios amplify shock load effects by concentrating greater torque at the output shaft. Units operating near capacity limits lack reserve for temporary overloads, accelerating wear. Conservative sizing with service factors between 1.5 and 2.5 provides robust capacity for transient overloads without exceeding material stress limits. The relationship between maximum torque capability and actual application loads directly determines shock survival capability and long-term reliability.

Noise and Vibration as Performance Indicators

Properly functioning reducers should produce sound levels below 75 dB(A) under normal operation. Rapidly increasing noise or high-frequency whining indicates gear mesh damage from shock-induced tooth damage or misalignment. Vibration analysis provides detailed insight: increased low-frequency vibration indicates bearing degradation from repetitive shock loading, while high-frequency vibration suggests gear tooth surface damage. Procurement teams should request vibration data and establish baseline measurements for ongoing monitoring.

Comparative Analysis: Bevel Gear Reducer vs. Other Gear Reducers for Shock Absorption

Performance Comparison with Worm Gear Units

Worm gear reducers offer self-locking and high reduction ratios but perform poorly under shock loads compared to Bevel Gear Reducer units. Sliding contact in worm designs generates friction with 50-70% efficiency versus 95-98% for Bevel Gear Reducer systems, creating heat that accelerates wear during shock events. Bronze or brass worm wheels are vulnerable to impact damage compared to hardened steel Bevel Gear Reducer components. Worm reducers suit positioning tasks but are unsuitable for heavy shock applications where Bevel Gear Reducer designs provide superior durability in industrial gearboxes.

Advantages Over Helical and Planetary Configurations

Helical gear reducers require additional components when changing power direction, adding complexity and potential shock load paths. Pure bevel designs transmit angles directly with fewer parts. Planetary gear systems offer compact high-torque solutions with excellent shock absorption through load sharing among planet gears but cost significantly more. Bevel designs provide optimal balance of shock resistance, efficiency, and cost for industrial right-angle power transmission applications.

Single-Stage versus Two-Stage Considerations

Single-stage bevel reducers handle modest ratios up to 5:1 with maximum efficiency and minimal backlash, directly transmitting shock loads through fewest mechanical contacts. Two-stage systems combining bevel and helical stages achieve higher ratios up to 25:1, distributing shock loads across multiple gear meshes. Multi-stage designs may provide superior shock absorption through progressive impact damping but add complexity and cost. Application severity determines optimal configuration choice.

Maintenance Tips to Enhance Shock Absorption Performance

Maintaining shock resistance over the life of the equipment requires careful repair methods that take into account the unique weaknesses of angular motion systems. Here are some proactive steps that buying and maintenance teams can take to improve shock absorption performance.

Establishing Proper Lubrication Schedules

Lubricant type and maintenance directly affect shock absorption capability. Oil film between gear teeth cushions contact during mesh engagement. Synthetic gear oils with extreme pressure additives maintain film strength during transient load spikes. Oil analysis detects contamination and additive depletion before shock resistance degrades. Harsh mining environments may require 1,000-2,000 hour intervals, while cleaner factory settings may extend to 4,000-5,000 hours between changes.

Early Detection Through Condition Monitoring

Abnormal noise or vibration patterns indicate shock-induced damage before catastrophic failure. Establishing baseline measurements during commissioning enables comparison during routine inspections. Vibration amplitude trends reveal developing problems through handheld monitors or permanently mounted sensors. Temperature monitoring detects shock-related issues through increased friction from lubricant breakdown or bearing damage. Thermal imaging identifies hot spots requiring investigation during normal operation.

Component Upgrades and Material Enhancements

Upgrading components extends shock resistance without complete replacement. Synthetic seals with enhanced temperature and chemical resistance prevent contamination. Heavy-duty bearings with shock load ratings improve reliability. Premium steel grades like SAE4340 or 42CrMo with advanced heat treatment provide tougher cores and harder wear surfaces. Procurement teams must evaluate cost-benefit ratios based on application severity and equipment criticality for optimal investment decisions.

Selecting the Right Bevel Gear Reducer for Optimal Shock Absorption

Evaluation Parameters for Procurement Professionals

Torque capacity must accommodate both steady loads and transient spikes with adequate safety margin. Service factors of 2.0 or higher suit mining and crushing applications. Gear type selection considers shock load frequency and severity. Material specifications using alloy steels with 58-62 HRC surface hardness provide superior shock resistance. ISO 8-9 precision grades affect load distribution across tooth surfaces. Operational efficiency impacts heat generation during shock events.

Supplier Credentials and Quality Assurance

Along with product specs, a supplier's review should look at how well they can make the product and have quality systems in place to make sure that the shock absorption works consistently. ISO approval shows that production processes are uniform, but procurement professionals should check the specific testing procedures for shock load proof. Manufacturers with a good reputation test production units for noise and shaking and look at tooth contact patterns.

The terms of the warranty for a Bevel Gear Reducer show that the maker is confident in the shock resistance. Standard one-year warranties for Bevel Gear Reducer offer basic security, while choices for longer coverage or performance promises show that the product is more reliable. Request proof of testing the hardness of the Bevel Gear Reducer gear teeth, certifications of the materials used, and physical inspection records that show the product meets the requirements that affect how well it absorbs pressure.

Customization Capabilities for Application-Specific Needs

Standard store items might not be the best way to absorb shock for a specific purpose. Manufacturers that offer customization services can make changes to the gear teeth, make the case stronger, or set up special fixing arrangements that make the product more resistant to shock. At YIZHI MACHINERY, we've spent a lot of time designing custom rotational motion solutions for harsh industrial settings where shock loads are higher than what standard products can handle.

Our design team works with clients to look at the unique shock features of their uses. They then suggest changes to the tooth geometry, the choice of material, or the reinforcement of the structure that will make it work better. A structured workflow guides the customization process: communicating the requirements sets exact shock load parameters and operating conditions; design drawings show proposed solutions along with engineering justifications; advanced techniques, such as precision grinding and optimized heat treatment, are used in production; quality inspection confirms shock resistance through thorough testing; special packaging keeps items from getting damaged during transport; and tracked shipping makes sure they arrive on time.

We can make custom units that meet ISO 8-9 precision grades and have surface hardness requirements that are based on the seriousness of the application. Our production skills include high-precision CNC gear machining centers, automatic gear grinding equipment, and intelligent heat treatment systems. Module ranges from 0.5 to 50 modules meet a wide range of size needs, and pressure angle choices of 14.5° or 20° improve the way loads are distributed. Because of this, buying teams can choose rotational transmission devices that are exactly right for their shock absorption needs instead of having to settle for off-the-shelf options.

Conclusion

In conclusion, when buying angular transmission parts for industrial tools, mining equipment, and aerospace uses including Bevel Gear Reducer, shock absorption ability is one of the most important factors to consider. How well Bevel Gear Reducer systems can spread out contact forces and lessen transient loads has a direct effect on how reliable equipment is, how much it costs to maintain, and how long it can keep running. Understanding the technical principles behind shock resistance in Bevel Gear Reducer, such as the shape of the gear teeth, the properties of the material, and the design of the housing, helps buyers make smart choices that balance the need for performance with the ability to spend.

To get the most shock absorption out of your equipment over its entire life, you should compare the pros and cons of different types of reducers, set up preventative maintenance plans, and only buy from sellers with proven quality systems. When you buy power transmission parts that are properly described and kept, you get a steady return on your investment through less downtime, longer service life, and higher productivity in tough industrial settings.

FAQ

1. How can I assess the shock absorption capabilities of a bevel gear reducer before purchase?

How can I test a Bevel Gear Reducer's pressure absorption before buying? Ask the manufacturer for detailed technical parameters, including service factor advice, material certificates showing the alloy's composition and heat treatment, and vibration and noise test data. Good suppliers offer tooth contact pattern analysis data and discuss shock-resistant design characteristics. Request performance data from comparable systems with similar shock loads in the field. Shocks are better handled by 20CrMnTi or other carburized alloy steels with 58–62 HRC surface hardness and ISO 8–9 precision grades. Ask for samples to test at your workplace before purchasing in bulk.

2. What maintenance routines best support shock absorption performance?

Shock absorbers need what type of care? The manufacturer suggests changing synthetic gear oils with high pressure additives every 1,000 to 2,000 hours in tough conditions or 4,000 to 5,000 hours in clean industrial environments. Vibration analysis every three months may detect new issues before they become significant. Check operating temperatures for shock-related wear-induced friction. Examine gear tooth contact patterns annually and replace seals before they get contaminated and reduce shock resistance. Establish baseline performance measurements during commissioning to compare during frequent inspections.

3. Are bevel gear reducers more effective than worm or helical types for shock absorption?

Do Bevel Gear Reducers absorb stress better than worm or helical ones? Spiral bevel configurations operate better than worm reducers in shock-sensitive circumstances because they have more moving contact, a greater efficiency (95–98%), and are composed of hardened steel instead of bronze, which is weaker. In spiral patterns, multiple-tooth contact distributes impact loads more uniformly than point contact in worm gears. Bevel designs transmit power directly without parts, unlike helical units. This implies shock circumstances have less potential problems. Planetary systems absorb shocks well since they distribute the load, but they are expensive and only used for parallel shafts. Application requirements such shock type, reduction ratio, and shaft design determine the optimal option.

Choose YIZHI MACHINERY as Your Trusted Bevel Gear Reducer Supplier

To find the best angular transmission partner, you need to do more than just compare technical specs. You need to find a Bevel Gear Reducer supplier with a track record of making shock-resistant designs and offering customizable options. For 15 years, YIZHI MACHINERY has been designing and making precise gear parts for industrial machinery, mining operations, and aircraft uses where the ability to absorb shock is very important to the success of the operation. Our production skills cover the whole customization process, from working together to figure out what the needs are to precise machining, full quality assurance, safe packing, and real-time tracking of the goods' whereabouts. We meet production deadlines of 35 to 60 days while keeping quality standards that are in line with ISO standards to ensure uniform shock resistance. Our global logistics skills include custom packing with shock-absorbing padding that keeps transport damage rates below 0.1%, multiple shipping choices that keep lead times under control, and visual tracking from start to finish to make the whole supply chain clear. Contact us at sales@yizmachinery.com about your unique shock load needs and get solutions that are made just for you. Our solutions come with a one-year warranty and fast support.

References

1. Dudley, D.W. (1994). Handbook of Practical Gear Design and Manufacture. CRC Press, Boca Raton, Florida.

2. ISO 6336-1:2019. Calculation of Load Capacity of Spur and Helical Gears — Part 1: Basic Principles, Introduction and General Influence Factors. International Organization for Standardization, Geneva.

3. Stadtfeld, H.J. (2014). Gleason Bevel Gear Technology: Manufacturing, Inspection and Optimization. The Gleason Works, Rochester, New York.

4. American Gear Manufacturers Association. (2013). AGMA 2001-D04: Fundamental Rating Factors and Calculation Methods for Involute Spur and Helical Gear Teeth. AGMA, Alexandria, Virginia.

5. Brecher, C., Löpenhaus, C., & Knecht, L. (2017). "Dynamic Behavior Analysis of Spiral Bevel Gears Under Shock Load Conditions." Journal of Mechanical Engineering Science, Vol. 231, No. 18, pp. 3347-3362.

6. Litvin, F.L. & Fuentes, A. (2004). Gear Geometry and Applied Theory, 2nd Edition. Cambridge University Press, Cambridge, United Kingdom.
