What Is the Difference Between Right Hand and Left Hand Helical Gear

When sourcing replacement components for imported equipment, understanding the directional orientation of helical gears is not merely a technical detail—it determines whether your machinery operates correctly or grinds to a halt. The fundamental difference between right-hand and left-hand helical gears lies in the direction of the tooth helix angle. A left hand helical gear features teeth that slant upward and to the left when viewed along the axis, creating a specific thrust force direction during rotation. Conversely, right-hand gears twist in the opposite direction. This seemingly small variation profoundly affects how gears mesh, distribute loads, and generate axial forces, making proper identification critical for equipment reliability and procurement success.

​

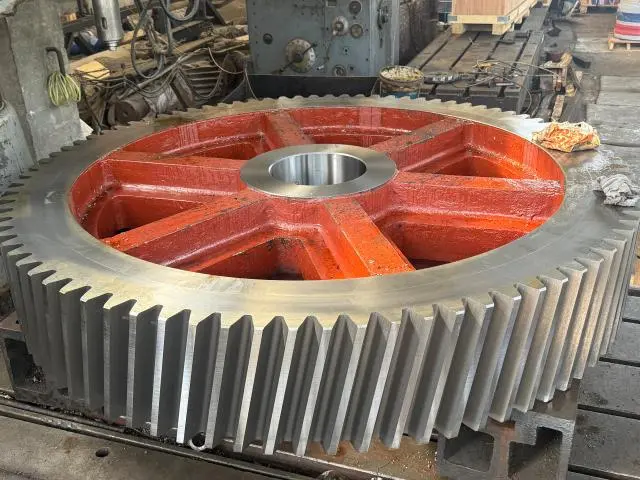

Understanding Helical Gears: Basics and Key Concepts

By getting around the problems that come with straight-toothed spur gears, helical gears have changed the way mechanical power is transmitted. In spur gears, the teeth engage quickly across their whole width. Helical gear teeth, on the other hand, are cut at an angle to the gear axis, which makes the engagement pattern more gradual. This tooth shape with angles, called the helix angle, usually falls between 15° and 45°, but this can change based on the needs of the application.

How Helical Gears Function in Power Transmission

Progressive tooth contact is the main idea behind how helical gears work. As the gear turns, each tooth makes contact with the next, starting at one edge and moving across the face width. When compared to spur gears, where all of the tooth faces hit each other at the same time, this gradual contact lowers shock loading and vibration. This makes the torque transfer smoother, lowers the noise level (often by 10 to 15 decibels), and lets the motor handle higher rotational speeds without wearing out too quickly.

Because of the helix angle, the contact ratio is usually higher than 2.0, which means that at any given time, more than two teeth are sharing the load. Helical gears can transfer more power in the same space because the load is spread across more teeth at the same time. Studies in the business world have shown that helical gears can carry about 40% more weight than similar spur gears while staying the same size and weight.

Identifying Left Hand Versus Right Hand Orientation

Knowing how, you can discern which hand a piece of gear is on by looking at it. Maintain gear axis straightness. Watch the teeth elevate the gear. Left-hand helical gear teeth resemble "A." The gear is right-handed if its teeth slant right.

Wear patterns on secondhand gear may identify goods. Helical gear tooth contact patterns are unusual. Left-hand helical gears wear diagonally from tooth root to tip clockwise from input. Gear wear signatures differ from right-hand.

Helix angle drawings let buying professionals replace foreign components without misunderstanding. Manufacturing designs identify hands, preventing costly sourcing errors. European and Japanese specialty instruments with non-standard configurations need precision.

Left Hand vs Right Hand Helical Gears: Core Differences and Design Principles

There is a lot more to the difference between left- and right-hand helical gears than just mirror imaging. The choice between angles is an important engineering decision because these differences have a big effect on how the metal behaves, how it is made, and what kinds of uses it can be put to.

Helix Angle Direction and Axial Thrust Generation

Axial thrust force creation technology varies most. Angled teeth on left-hand helical gears provide a force parallel to the shaft axis. Helix hand and spin direction affect this push. Rotating left-hand helical gears clockwise from the input produces an axial force away. Consider this thrust force while selecting bearings and housings.

Helix angle affects axial thrust. At 20° helix angles, axial forces generate 36% of tangential load. At 30°, 58% of the transmitted load is created. Heavy loads need thrust bearings. Tapered roller or angular contact ball bearings handle radial and axial stresses.

In parallel shaft applications, a left-hand helical gear and a right-hand mate provide opposing thrust forces that may partly cancel each other out depending on gear ratio and load distribution. These layouts reduce gears and bearings. Understanding thrust dynamics while changing imported gears ensures bearing assemblies can withstand stresses.

Material Selection and Manufacturing Processes

Spur gears and left-hand helical gears need specialized process management and equipment. Innovative hobbing technologies from YIZHI MACHINERY match the appropriate helix with a precise cutting tool angle. Left-hand cutting requires a particular hobbing machine and tools.

Material choice impacts gear performance and durability. Popular high-performance alloy steels include AISI4140, SAE4340, 20CrMnTi, and 42CrMo. The shock-resistant core and wear-resistant top layer (58–62 HRC) are preserved by carburizing. After carburizing, 0.8–1.2 mm of carbon remains. Prevents tooth bending and contact wear.

Accuracy grinding following heat treatment corrects defects and provides ISO 5–6 accuracy. Helical gears need this finishing because helix angle uniformity influences noise and load distribution. Grinding removes 0.1 to 0.3 mm but improves gear quality, reducing transmission error and prolonging service life in difficult situations like machine tool wheels and precision transmission equipment.

Design Considerations for Specific Operating Environments

Left hand helical gear configurations are better for some uses than others. Two left-hand gears can work together to move things when the shafts cross each other at a 90-degree angle but don't meet. This set-up is used in small packaging machines and textile machines that can't have normal right-angle bevel gear arrangements because of space limitations.

Whether you choose left- or right-hand direction also changes how lubrication oil flows through sealed gears. The helical tooth angle makes the oil move along the tooth face by pushing it during spinning. When left-hand gears rotate in certain ways, they can improve oil flow to key bearing areas, which makes cooling and greasing work better in high-speed situations.

Comparative Analysis: When to Choose Left-Hand or Right-Hand Helical Gears

To choose the right gear orientation, you need to look at things like the order of the shafts, the direction of spin, your ability to control pressure, and the operating environment. This choice has a direct effect on how reliable the equipment is and how it is bought.

Application-Specific Selection Criteria

Industrial reducers, vehicle gearboxes, and conveyor systems use parallel shaft gear drives with opposing shaft gears. Placement determines left- or right-hand helical gear replacements for previous left-hand ones. Improper handedness causes gear breakdown quickly.

Matching handedness lets tiny machines with crossing axes traverse non-parallel shafts. Less loaded and slower than parallel shafts. Perfect for timing, auxiliary motors, and positioning.

Spur gears are louder than helical. Helical geometries minimize industrial noise by 10–20 dB. Safety-sensitive or loud equipment needs this. When properly made and fitted, the Left Hand Helical Gear sounds like the Right. Only thrust direction varies with handedness, not sound.

Doppelhelix gears reduce axial force using one gear body's left- and right-hand helices. This design offers higher power density and simpler bearing arrangements but is more sophisticated and costly. Whether 40–60% thrust load reduction is worth it over single helical devices is debatable.

Procurement Considerations and Supplier Capabilities

When looking for Left Hand Helical Gear replacements for foreign equipment, the technical skills of the provider become very important. Due to higher market demand, many makers focus mostly on making right-hand models and only have a small amount of tooling and experience for making left-hand variants. This lack of skill often leads to longer wait times, lower minimum order quantities, or not being able to meet left-hand needs at all.

When judging potential suppliers, the following should be taken into account:

• Flexible manufacturing: Can the vendor create left-hand variations without raising setup or delivery costs? Custom hob-and-grind gearmakers outperform parts makers both ways.
• Commonly imported single-piece equipment. Maintenance is costly for 50-100-piece MOQ vendors. YIZHI MACHINERY parts are cheap when bought individually.
• If equipment documentation is destroyed, measurement and reverse engineering companies may develop Left Hand Helical Gear standards from legitimate samples. Discover discontinued tools and parts using this service.
• After design evaluation, material acquisition, milling, heat treatment, and fine grinding, handmade helical gears require 35–60 days. Although rush fees apply, structural and material suppliers may expedite urgent requests.
• SKF and Timken manufacture bearing-mounted gears; Boston Gear manufactures helical gears. Despite great items, some manufacturers limit quantities and don't allow imported equipment. Custom manufacturers provide flexibility, quantity, and technical assistance for brand exposure.

Procurement Guide for Left-Hand Helical Gears

To buy Left Hand Helical Gear parts, you have to find a balance between technical accuracy, the supplier's abilities, cost control, and quality assurance. This methodical approach lowers the risks and makes sure that the equipment is restored successfully.

Quality Evaluation and Supplier Verification

Part quality impacts equipment reliability and maintenance. Solicit supplier quality management system certification. Initial ISO 9001 certification is suggested. AGMA quality class scores and ISO 1328-1 gear accuracy ratings restrict gearmaking quality.

Technical data sheets should provide module range (0.5mm to 50mm), helix angles (5° to 45°), surface hardness (58–62 HRC for carburized surfaces), and accuracy ratings (ISO 5–6 for high-performance applications). Without certain specifications, suppliers may not be able to create exact helix gears.

Another ranking criterion is inspection. For dimensions, tooth form, and surface polish, manufacturers use CMMs, gear rolling tests, and profile measurement machines. Get sample inspection reports to verify tolerances. Helix angle fluctuation, lead inaccuracy, and profile correctness affect noise and load distribution, making this crucial.

Custom Manufacturing and Engineering Support

Helical Gear parts are noncompliant, requiring Asian and European left-hand construction. Customization steps: Talk about module, teeth, helix angle, hole diameter, face width, and materials. Tangible samples enable designless reverse engineering. High-resolution tooth shape images from different angles facilitate initial examination. Manufacturer experts assess the design. This method employs cheaper materials without sacrificing performance. Delivery times and costs may drop. A prototype or sample production analyzes the design before full production if requirements are unknown or the application is important. Two- to three-week samples avoid overproduction. Manufacturing includes rough machining, hobbing, heat treatment, end grinding, and testing. Bar stock preparation and forging are manufacturing. Every level needs certain equipment and skills. Integrated manufacturing with process control trumps outsourcing for quality and schedule. YIZHI MACHINERY is swift and precise. Details, design approval, component cutting, quality control, part protection, and delivery. Process and communication risks are eliminated by systematic offshore procurement.

Cost Optimization Strategies

Left-hand helical gear parts cost extra since they need specific tools and are limited. Some things may decrease the cost of purchasing them:

Flexibility in material standards saves money. Switching from 45# steel or 42CrMo to AISI4140 or 18CrNiMo7 may lower material costs by 15–30% without impairing moderate-duty performance when loads and operating circumstances allow.

Buying numerous replacement parts spreads fixed expenses. Listing all potential gear replacements and purchasing them all at once might help you obtain better rates and perhaps cheaper shipping costs when making repair plans.

Partnering with competent bespoke manufacturers provides long-term rewards. When suppliers know your equipment and demands, you may save needless engineering, decrease lead times, and negotiate better rates for returning clients. Businesses with many foreign tools benefit from this connection value.

Technical Maintenance and Troubleshooting for Left-Hand Helical Gears

The service life and dependability of a Left Hand Helical Gear depend on how well it is installed, oiled, and maintained. By knowing about common failure types, you can take action before catastrophic failures stop production.

Installation Best Practices and Alignment Procedures

Helical gears must be aligned during installation. Misaligned shafts stress tooth sides instead of faces. Teeth may shatter due to wear. Parallel shafts must align to 0.05 mm/100 mm face width. Dial marks or laser alignment may confirm this.

Thrust bearing preload must include helix angle-induced axial forces. Poor preload moves the axial shaft too much, causing uneven tooth contact and early wear. Preloaded to 60–70% of predicted axial force, safe thrust bearings. Frictionless, the limit is ample.

OEM mounting torque. With minimal bolt pressure, loaded gears may slide, breaking bearing seats and going out of line. Overbending housings may crack cast iron or misalign. Calibrated torque wrenches and tightening patterns ensure proper assembly.

Lubrication Requirements and Heat Management

Rolling and sliding helical gear teeth generate more friction heat than spur gears. Heat release and wear prevention require lubricants. Industrial gear oils protect helical gear meshes against severe contact stresses using extreme pressure (EP) compounds.

Viscosity controls pumping losses and film strength. Higher viscosity oils (ISO VG 320–460) offer strong lubrication films for heavily loaded slow-speed applications but cause too much churning loss at high speeds. ISO VG 150–220 oils work effectively in light-load, high-speed conditions. The optimal thickness varies with temperature and operation.

Based on use, enclosed gear drives need oil changes every 2,000–5,000 hours. Lubricants degrade over time due to wear, moisture, and heat. Oil analysis tools measure viscosity, impurities, and additive loss for condition-based oil changes. Maintenance and lubrication are reduced.

Troubleshooting Common Issues

Helical gear generates strange sounds. Noise from Rapid Left Hand Helical Gear systems is troublesome. Tooth damage may result from improper alignment, pollution, overload, and non-lubricated border friction.

Run anything at various speeds and listen for noises to diagnose. By multiplying turning speed by teeth, gear mesh frequency noise reveals tooth surface issues. Thrust or rotational wear may cause bearing frequencies. Accelerometer vibration analysis may detect gear issues.

Constant wear signals issues. Even face width wear implies alignment and tension. Adjustment is needed when tooth ends wear down. Surface abrasion holes are caused by nature. Unclean, greasy, or overworked surfaces may pit quickly.

Wear patterns indicate Left Hand Helical Gear repair issues. Gear replacement without alignment, lubrication, or loading difficulties causes early damage and poor machine uptime.

Conclusion

Professionals in charge of buying and handling foreign goods need to know the basic differences between right-hand and left hand helical gear orientations. The left-hand helical gear creates thrust forces that go in certain directions, needs to be mated with the opposite hand for parallel shafts, and needs to be carefully chosen as a source to ensure quality and supply. When something is made, things like using special tools, heat treatments that make the surface hard (58–62 HRC), and precise grinding to ISO 5–6 grades have a direct effect on how well it works and how long it lasts. Successful procurement strategies focus on a supplier's abilities in technical support, small batch production, and custom manufacturing. This lets non-standard parts be replaced cost-effectively while keeping the system's reliability.

FAQ

1. How can I quickly identify whether my gear is left-hand or right-hand orientation?

Place the gear so that the shaft axis is straight up and down. Keep an eye on the tooth angle as it goes up the gear body. If the teeth slope up to the left, like the left side of the letter "A," you have a left-hand helical gear. Teeth that are angled to the right show that the person is using their right hand. You can also look at the original equipment paperwork, which will tell you the direction of the helix, or contact the manufacturer with photos of the gear from different angles to get clear identification help.

2. Can I replace a right-hand helical gear with a left-hand helical gear directly?

In parallel shaft applications, direct substitution is not possible because mating gears need to be opposite-handed in order to mesh correctly. When you install same-hand gears, they interfere with each other and stop the spinning. Crossed-axis configurations need to match the handedness of the parts. In addition to meshing geometry, thrust bearing arrangements made for one direction of the helix might not be able to handle thrust forces that are going the opposite way. Before changing the gear handedness, the gear train configuration and bearing capabilities must be carefully looked at.

3. What advantages does a Left Hand Helical Gear offer in specific applications?

The only thing that differs between left-hand and right-hand orientations is the direction of the thrust force. This has no effect on the load capacity, efficiency, or noise. The choice is mostly important for getting the right meshing in parallel shaft drives and controlling the direction of axial thrust to get the best bearing setups. When the axes are crossed, both gears must share the same handedness. The choice of orientation is not based on which hand performs better in terms of performance, but on what the system needs.

Partner with YIZHI MACHINERY for Reliable Left-Hand Helical Gear Solutions

To replace parts of foreign equipment, you need a Left Hand Helical Gear source with both technical know-how and manufacturing flexibility. Custom helical gear production is what YIZHI MACHINERY does best. They offer precision-ground parts made from high-quality materials like 20CrMnTi, 42CrMo, and AISI4140 alloy steels. We can do everything from casting and hobbing to heat treating to a surface hardness of 58 to 62 HRC and end grinding to ISO 5-6 precision grades. We're better than others because we can take orders for just one piece, work with modules from 0.5mm to 50mm, and make helix angles from 5° to 45° that are exactly what you want. Production times of 35 to 60 days include full engineering support to ensure accurate measurements and reliable performance. If you need to talk about Left Hand Helical Gear, contact us at sales@yizmachinery.com to see all of our precision transmission parts made for tough industrial uses.
