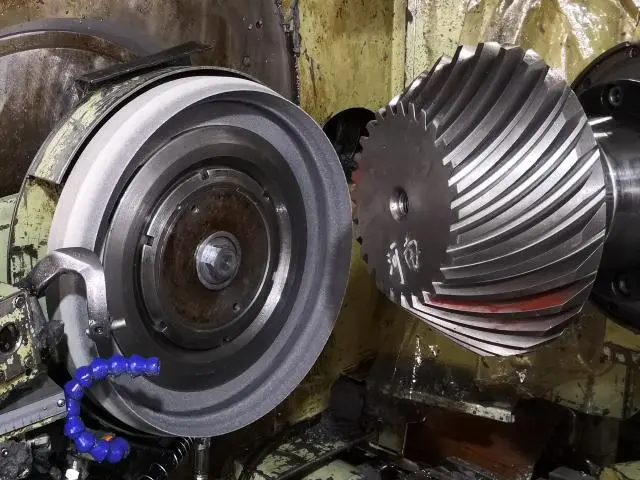

Bevel Gear Grinding: Methods, Machines & When It Is Required

Bevel Gear Grinding represents a critical precision finishing operation performed after heat treatment to correct geometric distortions while achieving exceptional surface quality. This process removes post-hardening warpage and delivers the exact tooth flank micro-geometry required for demanding applications in aerospace, automotive differentials, and industrial powertrains. Unlike lapping, which creates matched pairs, grinding produces interchangeable components with controlled topological modifications—meeting DIN 5-6 grade accuracy levels essential for high-speed, low-noise transmission systems where dimensional precision directly impacts operational reliability and service life.

​

Understanding Bevel Gear Grinding: Basics and Benefits

What Makes Grinding Essential for High-Precision Gears

Gear flats will always be warped when they go through heat treatment methods like carburizing and quenching. These thermal processes create surfaces that are hard enough for load-bearing uses (usually 58–62 HRC), but they also change the shape of the teeth too much for acceptable tolerances. By machining each gear directly to mathematical coordinates instead of depending on mating changes, Bevel Gear Grinding fixes these deformations in a way that is always the same.

This method can be used for spiral Bevel Gear Grinding, hypoid configurations, and Zerol designs that are popular in steering systems, machine tool spindle drives, and small mechanical transmission systems. We've seen that procurement managers put Bevel Gear Grinding at the top of the list when projects need accurate results that can be proven with full inspection reports. This step of finishing only takes away 0.05 to 0.15 mm per side, so the solid case depth is kept while the contact pattern is improved.

Core Advantages Driving Investment Decisions

Bevel Gear Grinding improves performance in a way that makes up for the higher cost compared to soft-finishing options:

• Noise and Vibration Reduction: The process makes the surface rougher than Ra 0.4 µm, which gets rid of high-frequency gear whine in electric vehicle drivetrains and precision robotics where background noise isn't a big deal. This feature solves the most common quality issue we see from aircraft providers.
• Enhanced Load Capacity: Bevel Gear Grinding moves stress away from tooth edges by making the contact patch better through controlled crowns and bias correction. Compared to gears that are finished normally in the same area, this change raises the power density by 15–25%.
• Predictable Dimensional Control: CNC Bevel Gear Grinding systems keep the pitch accuracy within 5 microns throughout production runs. This makes sure that all parts can be used interchangeably, which is a must for high-volume car uses and replacement part stocks.

These benefits directly lead to longer gear life, fewer guarantee claims, and better system performance. When quality directors are looking at outsourcing partners, they usually ask for a sample of the Bevel Gear Grinding to make sure the process can work before committing to large amounts of production.

Bevel Gear Grinding Methods and Techniques

Modern CNC Versus Conventional Approaches

These days, Bevel Gear Grinding is done by computers that control machines that make tooth surfaces using either the generating method (continuous indexing) or the form method (single indexing). The way the profiles are made is similar to the way gears and tools are supposed to move when they roll, which makes profiles that are true to Gleason and Klingelnberg standards.

CNC systems can change the topology in a number of ways, such as:

• Longitudinal crowning to make up for shaft deflection when it's under load
• Profile relief keeps the edges from touching when the mesh is engaged.
• Making adjustments to the bias will center the contact pattern across the width of the tooth face.

Even though they aren't used as much for precision work, manual Bevel Gear Grinding machines are still useful for making prototypes and small fixes where setup freedom is more important than cycle time. If you need to make more than 50 pieces a year, we suggest CNC solutions because the higher capital investment is recouped in just two production cycles.

Critical Process Parameters and Quality Control

To grind well, you need to carefully control the rates at which material is removed so that heat damage doesn't happen. Bevel Gear Grinding burn, which is when the hardened surface is re-tempered in one spot, happens when heat production is higher than heat dissipation. Some ways to prevent this are:

High-pressure coolant (60–80 bar) pumped at the Bevel Gear Grinding zone keeps the surface smooth while flushing out chips. When working with materials like AISI 4140 and 18CrNiMo7, vitrified CBN (cubic boron nitride) wheels are better at withstanding heat than regular aluminum oxide abrasives.

Conformance is checked by inspection protocols using coordinate measuring machines that compare the actual tooth topography to models that are based on theory. We use nital etch tests according to ISO 14104 to find any changes in the metal's structure below the surface that can't be seen by measuring its dimensions alone. Single-flank roll testing measures transmission error, which is the factor most closely linked to NVH performance in gears that have already been put together.

Troubleshooting Common Grinding Defects

Waviness patterns show that the times between wheel dressings need to be changed, and systematic pitch errors show that the machine's calibration is drifting. Procurement teams should make sure that service providers keep written preventative repair plans and that all inspection equipment has certificates that can be tracked back to the company that made it. During AS9100 audits or when establishing approved supplier status, this paperwork is a must.

Bevel Gear Grinding Machines: Types, Features & Selection

Evaluating Machine Capabilities for Your Application

Modern CNC Bevel Gear Grinding centers use closed-loop feedback systems to keep an eye on wheel wear and thermal expansion, as well as multi-axis interpolation. Process engineers should put these technical specs at the top of their list when looking at different pieces of equipment:

• Control System Architecture: Six-axis simultaneous control lets you make complicated changes to the flanks that you couldn't do with older three-axis machines. Look for platforms that allow parametric programming, which makes switching between gear families easier.
• Spindle Power and Rigidity: For applications Bevel Gear Grinding modules bigger than 8, you need 30+ kW Bevel Gear Grinding spindles with hydrostatic bearings to keep the surface finish even when removing a lot of stock. Parts of agricultural machinery that are used less often can handle less sturdy construction.
• Automation Integration: Robotic loading systems get rid of the need for human handling, which lowers direct labor costs and improves accuracy in dimensions. When more than 5,000 units are produced each year, this trait stops being expensive.

Our building has high-tech CNC gear Bevel Gear Grinding tools that can handle modules from 0.5 to 50, so they can work on everything from small instrument gears to big mining equipment. We can serve a wide range of industries with this range's flexibility without lowering the quality standards.

Manual Machines: Niche Applications and Limitations

Repair shops and research facilities that need to be able to set up quickly and easily can still use manual Bevel Gear Grinding. Operators change the cutting settings in real time based on measurements taken during the process. This takes into account changes in the material or odd shapes. When the number of pieces is less than 20, where CNC programming costs more than the savings per unit, this method works out to be cost-effective.

In production settings, the limits of precision become clear. Most manual processes only reach DIN 7 quality, which is the same as AGMA Q12 but not as good as the DIN 5–6 grades needed for aerospace and high-end automotive uses. Process capability studies show that three-sigma variation is 40% higher than the same operation done on a CNC machine.

Supplier Selection Criteria Beyond Equipment Specifications

Reliable Bevel Gear Grinding service providers show what they can do by having licenses and quality systems that are written down. ISO 9001 certification sets the standard for process control, and AS9100 compliance shows that you know about the traceability requirements for aircraft materials and the methods for dealing with nonconforming materials.

Ask for inspection records from recent production runs and pay close attention to the Cpk values for important factors such as surface finish and pitch accuracy. Values above 1.67 mean that the process is well controlled and there is a low chance that parts will not meet specifications. We keep Cpk above 2.0 for most ground gear characteristics by keeping an eye on the statistical process and doing preventative machine maintenance.

Comparing Bevel Gear Grinding with Other Gear Finishing Processes

Technical Distinctions Across Finishing Methods

Hobbing and milling can make the basic shapes of gear teeth, but they can't get the surface quality or accuracy in dimensions that are needed after heat treatment. Most of the time, these soft-machining processes produce DIN 8–9 quality, which is good enough for moderate-speed industry uses but not for high-performance transmissions.

Honing uses rough tools in a way that is similar to Bevel Gear Grinding, but it takes off less stock—usually only 0.02 to 0.05 mm per side. The process works well for gears that only need a little more accuracy and doesn't need the heat risks that come with intense Bevel Gear Grinding. Honing can only fix small geometrical mistakes, so it can only be used on gears that have well-controlled heat treat distortion.

Lapping uses an abrasive substance and controlled meshing processes to make the surfaces of two gear pairs touch closely. Lapped gears have a very smooth surface (Ra 0.2 µm is possible), but they can only be used as matched sets and can't be switched out. This restriction makes it harder to manage inventory and do field service work.

Cost-Effectiveness Analysis for Different Production Volumes

Bevel Gear Grinding usually costs 30–50% more per piece than honing for the same batch sizes, so it's more expensive per piece than other finishing methods. When does the effort pay off?

• Noise standards need surfaces to be less rough than Ra 0.5 µm.
• The load needs to be more than what the soft-finished gear can handle in the space available.
• Interchangeability gets rid of the prices of selective manufacturing
• High-speed operation is needed (input shaft speed >3,000 rpm).

We set our prices so that we can stay competitive for production runs ranging from a single prototype to batches of 500 pieces. We also accept low minimum order quantities that bigger companies won't. This versatility comes in handy during the development of a product, when design changes need small test lots before they can be committed to full production.

Process Selection Guidelines for Procurement Teams

Instead of setting the default to the highest level of accuracy, match the finishing process to the needs of the program. Gears in farm equipment that work at moderate speeds can handle DIN 7 quality that is achieved by carefully hobbing and heat treating the metal, which saves money on Bevel Gear Grinding costs that aren't necessary.

On the other hand, electric car reducers, helicopter transmission parts, and machine tool spindles are good investments because they don't need to be serviced as often and have less guarantee risk. During the design phase, quality leaders should work with suppliers to choose the best production process. For example, they could add features that decrease heat treat distortion and finishing limits.

Procurement Insights: Buying and Sourcing Bevel Gear Grinding Solutions

Essential Supplier Qualification Criteria

• To do effective sourcing, you must first understand what your suppliers can do in Bevel Gear Grinding, not just what they say they can do. Ask for specific information about the following parts of the evaluation:
• Material Processing Range: Make sure the company has experience working with the metals you want, like 42CrMo, SAE 4340, or carburizing grades like 20CrMnTi. Different materials react differently to different Bevel Gear Grinding parameters, and when suppliers don't know these parameters, they run the risk of quality problems during production ramp-up.
• Module and Size Capacity: Make sure that the specs of your gear are within the range of sizes that the seller has proved they can make. We can process modules from 0.5 to 50, but our equipment and tools collection is most complete between 2 and 20 modules, which is where we get the most work done.
• Heat Treatment Integration: Suppliers who give full processing, from basic cutting to final Bevel Gear Grinding, make it easier to keep an eye on warping and are more accountable. Cutting, hobbing, milling, carburizing or quenching and tempering, and then final Bevel Gear Grinding are all part of our combined process. This gives us better geometric accuracy than operations that split work between multiple suppliers.
• Inspection Equipment and Protocols: Coordinate measure tools, gear roll testers, and surface finish instruments are big purchases that show a strong commitment to quality. Ask for calibration certificates and sample inspection reports that show you can measure things accurately enough to meet your tolerance needs.

Navigating Precision Grade Specifications

Understanding how quality grade systems work keeps people from misunderstanding each other during technical talks. The DIN 3965 and ISO 1328 standards set the acceptable ranges for pitch accuracy, profile shape, and tooth alignment. When it comes to production Bevel Gear Grinding, DIN 5 grade (equivalent to AGMA Q13–Q14) is the upper limit. On the other hand, DIN 4 needs a level of process control that is usually only available to measurement masters.

Our standard ground gears meet ISO 8 Grade quality standards. Tighter tolerances are available when the needs of the application call for more process controls and inspection. Make sure you tell providers exactly what you need—load capacity, speed, and noise levels—so they can suggest the right quality levels instead of over-specifying grades that add cost without improving performance.

Building Long-Term Supply Partnerships

Relationships that work well go beyond simple purchase orders. Use these signs of a good partnership to judge potential suppliers:

• Customization: Being ready to work with unique design elements or special materials shows that an engineer is flexible. We can work with non-standard pressure angles, changed tip and root shapes, and experimental alloy trials that help customers with their innovation projects.
• Communication responsiveness during the sampling and quotation phases predicts the quality of collaboration during the production phase. Giving detailed technical comments on filed drawings by suppliers adds value that goes beyond just making the product.
• Being clear about production ability helps procurement teams set start dates that are more realistic. We give lead times of 35 to 60 days for custom ground gears, and we offer expedited options for those who need them quickly. This openness makes it easier for everyone in the supply chain to work together, instead of providers making promises they can't keep.

Conclusion

Precision Bevel Gear Grinding turns heat-treated bevel gears into transmission parts that are reliable and meet the high standards of aerospace, automotive, and industrial uses. In addition to fixing heat distortion, this process provides surface quality and physical accuracy that can't be achieved with other finishing methods. Procurement professionals can make smart sourcing choices by combining technical needs with financial limitations when they know about Bevel Gear Grinding methods, machine capabilities, and quality verification processes. Picking qualified suppliers with proven experience, the right certifications, and the ability to do thorough inspections is the only way to make sure a project goes smoothly, from the prototype stage to mass production.

FAQ

1.What materials are suitable for bevel gear grinding?

After the right heat treatment, high-carbon and alloy steels can be Bevel Gear Grinding well. 45# steel, AISI 4140, SAE 4340, and carburizing types like 20CrMnTi and 18CrNiMo7 are all common standards. Surface hardness between 58 and 62 HRC is best for Bevel Gear Grinding because it balances how fast material is removed with how much the wheel wears down. Materials that are softer than 45 HRC tend to load Bevel Gear Grinding wheels, while materials that are harder than 64 HRC wear out wheels faster without improving quality in the same way. When choosing a material, you should think about more than just how easy it is to Bevel Gear Grinding. You should also think about the loads and conditions of the surroundings.

2.How do you verify grinding quality without specialized equipment?

A close-up look through a microscope shows Bevel Gear Grinding burn through discoloration, with blue or straw-colored spots showing that the temperature was too high. When profilometers are not available, surface roughness comparison examples can be used as tactile measures. Functional testing by measuring noise while the machine is running on a bench is a useful way to make sure it works, but it can't separate Bevel Gear Grinding quality from assembly variables. For professional verification, you need coordinate measuring machines and gear roll testers that can give you quantitative data that can be tracked back to international standards. Reliable suppliers include full inspection reports with ground gear deliveries, so customers don't have to worry about measuring.

3.Is CNC grinding cost-effective for prototype quantities?

Programming costs that are spread out over many pieces make bigger batches more appealing, but current CAM systems make setup time much shorter. For complicated topological changes or tight tolerances, CNC Bevel Gear Grinding saves money even when only one piece is being made because it eliminates the need for multiple rounds of manual adjustments. We take orders for prototypes to help with product development because we know that today's sample is often tomorrow's production part. It depends on how precise you need the parts to be. For example, if you only need ten pieces of a simple gear geometry with loose tolerances, you may be able to get away with Bevel Gear Grinding them by hand.

Partner with YIZHI MACHINERY for Precision Bevel Gear Grinding Solutions

YIZHI MACHINERY has been providing high-precision ground bevel gears to aerospace suppliers, automakers, and industrial equipment builders around the world for 15 years. Our ISO-certified building has high-tech CNC Bevel Gear Grinding centers that can handle processing modules ranging from 0.5 to 50 and have been shown to meet DIN 5–6 quality standards. We help you with your projects from the first design consultation all the way through production delivery. We do this by reviewing technical drawings, giving you advice on material choices, and keeping detailed records of all inspections. Custom services can work with odd shapes and have open minimum amounts that let you order just one piece. Contact us at sales@yizmachinery.com to talk about your Bevel Gear Grinding needs and get a full technical quote.

References

1. Stadtfeld, H.J. (2014). "Gleason Bevel Gear Technology: Manufacturing, Inspection and Optimization." The Gleason Works Technical Publication.

2. Klingelnberg GmbH. (2018). "Bevel Gear Grinding: Process Technology and Quality Assurance." Klingelnberg Technical Manual Series.

3. ISO 1328-1:2013. "Cylindrical Gears – ISO System of Flank Tolerance Classification – Part 1: Definitions and Allowable Values of Deviations Relevant to Flanks of Gear Teeth." International Organization for Standardization.

4. Dudley, D.W. (1994). "Handbook of Practical Gear Design and Manufacture." CRC Press, Boca Raton, FL.

5. Radzevich, S.P. (2016). "Dudley's Handbook of Practical Gear Design and Manufacture, Third Edition." CRC Press, Boca Raton, FL.

6. AGMA 2009-B01. (2019). "Bevel Gear Classification, Tolerances, and Measuring Methods." American Gear Manufacturers Association.
