Mastering the Bevel Gear Grinding Process: A Practical Step-by-Step Guide

Precision grinding transforms hardened bevel gears into reliable power transmission components that withstand extreme conditions in aerospace, mining, and industrial machinery. Bevel gear grinding removes heat-treatment distortions and achieves the micro-geometry tolerances essential for high-speed, low-noise operation. Unlike traditional lapping that creates matched pairs, grinding produces interchangeable gears with deterministic accuracy—a game-changer for industries demanding both performance and consistency. This guide walks you through the complete workflow, from blank preparation to final inspection, helping procurement teams and engineers make informed decisions about grinding technology investments.

​

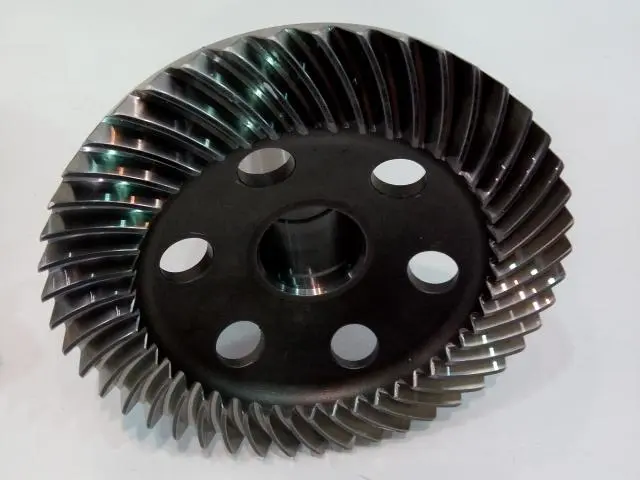

Understanding the Bevel Gear Grinding Process

The last and most important step in making accurate spiral bevel and hypoid gears is grinding. When gear blocks go through heat treatments like carburizing or induction hardening, they twist and change size. Surface finishes below Ra 0.4 µm and quality grades up to ISO 4 or AGMA Q14 can be achieved with Bevel Gear Grinding to fix these deformations.

The Mechanics Behind Precision Grinding

High-speed vitrified cubic boron nitride (CBN) wheels grind today. These wheels scrape material deliberately. The technique creates the CAD-modeled tooth flank form. This ensures optimal contact patterns while loading the machine. Cutting, milling, and other soft machining processes operate on hardened (58–62 HRC) surfaces. Compressive residual stresses from grinding increase wear resistance.

Advanced CNC systems from Gleason and Klingelnberg constantly monitor wheel position, cutting force, and temperature. These machines rapidly correct worn wheels and temperature variations, maintaining micrometre precision throughout manufacturing cycles. High-volume automotive components and low-volume aviation parts that require reliability may employ the technique.

Material Selection and Performance

Material choice greatly affects grinding and gear life. Common alloy steels include 20CrMnTi, 42CrMo, SAE4340, and AISI8620. Each has different hardness, stiffness, and heat reactivity. We employ 45# steel for commercial application and 18CrNiMo7 for heavy-duty mining at YIZHI MACHINERY.

Grinding is ideal with carburised steels with case depths between 0.8 and 1.5 mm due to their surface hardness and core stiffness. The grinding stock limit is commonly 0.1–0.30 mm each side. To eliminate heat-treat distortion without cutting the hardened layer, this is carefully assessed. Buying something with the proper material requirements will save money on maintenance and ensure the gears fit the application's load capability.

Machine Technology Comparison

Multi-axis CNC grinders simplify crowning, bias correction, and tip relief modifications. These mathematical advancements optimise contact patterns as they flex, minimising noise and enhancing load dispersion. CNC technology reduces trash, speeds cycle times, and allows for module sizes from 0.5 to 50 without any retooling.

The Step-by-Step Bevel Gear Grinding Workflow

To get constant grinding results, you have to follow strict, tried-and-true steps. From the raw blank to the finished part that is ready to be put together, each step builds on the one before it.

Pre-Grinding Inspection and Setup

Perform Rockwell testing at numerous tooth locations to ensure heat-treated blanks fulfil hardness requirements. For carburised gears, surface hardness should be 58–62 HRC. Through-hardened parts should be 45–50 HRC. Heat treatment leaves adequate grinding stock, according to dimensional inspections.

Setting up the machine involves installing the grinding wheel, checking the cleaning tools, and entering the correct cutting data into the gear program. Wheel choice depends on gear material and module. Aluminium oxide wheels perform well with lighter surfaces, whereas CBN wheels work best with hardened steels. Wheel vibrations that cause finish faults cease when balanced.

The coolant system is verified for flow rate and percentage. High-pressure water in the grinding zone swiftly removes heat and chips, preventing thermal damage. The material reduction rate (Q-prime) must keep within limitations to prevent grinding burn, a metal imperfection that causes gears to malfunction.

Primary Grinding Techniques

There are three main ways to make things, and each one works best for a different shape or amount of work:

• Continuous indexing: The gear keeps turning while the grinding wheel moves across the tooth surface thanks to continuous tracking. In high-production situations where minimizing cycle time is important for the bottom line, this method works well. This method gives surfaces a great shine and spreads heat over several teeth, which lowers the risk of burns.
• Plunge grinding moves the wheel around in a fixed tooth slot, finishing one tooth at a time before moving on to the next. This method gives you more control over the shape and works well with units that are bigger than 10 mm. For this method to work, the machine needs to be very stiff so that it can fight cutting forces without bending.
• Oscillation grinding moves the wheel back and forth in small circles, which breaks up heat patterns and makes it easier to remove stock. This mixed method strikes a good balance between speed and surface quality, which makes it popular in aircraft uses that need both.

The right way is chosen based on the requirements of the equipment, the amount of work to be done, and the quality goals. During the planning part at YIZHI MACHINERY, our engineering team looks at these factors and adjusts process parameters to get the best results before production starts.

Real-Time Quality Control Measures

Tracking devices in modern grinding machines detect issues before they spread. Acoustic emission sensors detect excessive wheel glass and cutting forces. Thermal imaging may detect low temperature before a grinding burn. Statistical process control charts monitor key elements and notify when trends approach limitations.

Tooth-to-tooth composite variance indicates indexing and wheel dress issues. Single-side roll tests assess gearbox error, the kinematic irregularity that produces service noise and shaking. These metrics assist in adjusting the approach to keep critical trait capability indices above 1.67.

A new initiative showcases these principles in action. A mining equipment manufacturer sent us bevel gears that were prematurely pitting in haul truck differentials. The grinding burn softened the surface, reducing contact failure strength, according to the metallurgical analysis. Continuous tracking with reduced Q-prime values and appropriate coolant supply was set up. The new method produced smooth 0.3 µm endpoints without burn defects. Field testing showed 40% longer gear life.

Final Inspection and Documentation

Post-grinding testing maps tooth flank topography at grid sites over the active profile using coordinate measurement instruments (CMM). Software compares recorded data to a theoretical master geometry to determine pitch, profile, and lead variations using ISO 1328 standards. Gears that satisfy ISO 8 grade criteria have profile variances of less than 10 µm and overall composite errors of less than 25 µm for most automobile modules.

Documentation packages include measurement reports, material certifications, heat treat records, and surface finish data. Quality systems in medical and military environments require this monitoring to keep part history current throughout service life.

Comparing Grinding with Alternative Finishing Methods

When making choices about what to buy, it helps to know how grinding compares to other tools. Each method fits into a specific area that is set by the level of accuracy needed, the cost of production, and the limitations of the application.

Grinding vs. Hobbing and Cutting

Before heat treatment, gear hobbing makes tooth shapes in soft forms. The process is very fast and doesn't cost much per piece, but it can't get the surface finish or consistency needed for high-performance uses. After being heated, hobbing usually has a profile deviation of 30 to 50 µm, which is fine for industrial gearboxes but not good enough for aircraft or precision robots.

Bevel Gear Grinding fixes these flaws to limits of a few micrometers while making finishes that look like mirrors and don't micropit. The better surface quality directly leads to 20–30% more load capacity compared to gears with only hobs. This ability makes grinding worth the higher cost per unit in situations where dependability is more important than original cost.

Lapping vs. Deterministic Grinding

In traditional lapping, a gritty substance is used to pair two gears together. This creates matched pairs through wear on each other. Because lapping is random, the touch patterns and noise features are always changing. Modern bevel gear grinding machines grind each part separately to exact mathematical measurements. This lets different parts be put together without having to choose which ones fit.

Grinding also lets you make changes to the topology, like capping, biasing, and ease-off, that make the contact behave better when the load is applied. In electric car transmissions, where motor speeds go over 15,000 RPM and background noise can't hide gear whine, these design options are very important. Lapping can't make these managed changes to the shape happen again.

Manual vs. CNC Grinding Economics

Manual cutting tools are 40–60% less expensive than CNC options, which attracts buyers on a budget. But labor, scrap rates, and output are all part of the total cost mix. Manual machines need skilled workers who are paid more, make more variation, which means it costs more to check, and take two to three times longer to cycle than automatic systems.

No matter how experienced the user is, CNC grinding always gives the same results, can work in lights-out shifts without control, and works well with both upstream and downstream automation. For shops that work multiple shifts or make gears above ISO 6 quality grades, the return on investment usually happens in 18 to 24 months. Smaller specialty manufacturers may still be able to make money by grinding by hand, especially if being able to use different kinds of gears is more important than raw output.

Selecting the Optimal Grinding Solution for Your Operation

To find the right grinding technology for a business, you need to carefully look at the technical specs, the costs, and the supplier's abilities. If mistakes are made in this part of the review, equipment or skills that aren't being used can hurt the company's ability to compete.

Critical Machine Selection Criteria

Most purchasers prioritise accuracy. Machines must have capability indices (Cpk) over 1.67 during observed runoff testing for specific quality grades. Verify output statistics, not catalogue assertions. Make sure the grinding area suits your module range and allows for product expansion.

Unit costs and shipment timeframes depend on processing speed. Cycle time depends on module, material roughness, grinding stock, and surface polish. Most factory grinders finish 3–8-gear modules in 4–8 minutes. High-speed versions get things done in two to three minutes but cost more. Speed should be considered against batch sizes to avoid paying for capacity you won't utilise.

Automation ranges from loading and unloading assistance to fully integrated production rooms with statistical process management and computerised verification. More technology reduces human labour but increases equipment costs and maintenance. Automation works well for companies that create comparable gears, whereas job shops that operate with several shapes may choose hand loading with automated grinding.

Supplier Evaluation Framework

Reputation and installations indicate reliability and quality. Find out how long firms have made Bevel Gear Grinding machines and how many your company uses. Established merchants store obsolete machine parts and engage application experts to handle your concerns.

Key partners stand out from delighted consumers with after-sales support. Check the advertised technical assistance response times, services that may enhance operations, and operator and support staff training. YIZHI MACHINERY provides comprehensive commissioning assistance and process guidance to help clients maximise equipment performance throughout its lifespan.

Technology roadmap alignment is crucial for long-term expenditure. Look for providers that are always learning about automation, process monitoring, and energy efficiency. Upgradeable platforms protect capital investments as requirements evolve.

Build vs. Buy Economic Analysis

For in-house grinding to work, you need to buy the right tools, set up the right facilities, hire skilled workers, and keep buying supplies. Include the price of the machine, its installation, the cost of the tooling package, training, and the growth of the process in the total fixed cost. Labor, wheel usage, energy, coolant, upkeep, and quality assurance are all part of the annual running costs.

By outsourcing to specialized grinding services, set costs become variable expenses. This improves cash flow and gets rid of the risk of technology becoming obsolete. Service providers offer economies of scale by having high usage rates and process knowledge that has been built up over many different applications. In exchange, wait times are longer, tasks need to be coordinated better, and process control is lessened.

Maximizing Business Value from Precision Grinding

Being good at the technical side of grinding gives real benefits all along the value chain, from being able to change the design to being reliable in the field. These benefits add up over the lifetime of a product, which is why grinding investments are worth making even when the starting costs are higher than simpler options.

Operational Performance Improvements

Better gear accuracy reduces gearbox error and vibration, making the machine quieter and meeting stringent noise standards. This characteristic is great for electric vehicle producers since engine noise can't mask driveline noises. Precision ground gears provide high-quality sound that distinguishes products in competitive marketplaces.

Surface quality and touch patterns reduce failure rates. Ground gear tooth sides are loaded more uniformly, reducing stress and wear fractures. According to mining field statistics, correctly honed bevel gears survive 30 to 50% longer between service intervals than conventional gears. Maintenance and unexpected downtime are cheaper.

Extended product lifespans benefit the environment and economy. Durable gears consume fewer raw materials and manufacturing resources during their lifespan. The company's environmental aims and purchasing departments' increasing focus on total cost of ownership are met by this efficiency.

Emerging Technology Trends

Collaborative robots fill occupations while humans improve quality and process efficiency. These cobots are simple to integrate into production layouts and pose little safety risks, allowing smaller businesses to automate.

AI algorithms may now enhance grinding settings live. Sensor data helps them estimate wheel wear, modify feeds, and prevent defects. By adjusting to changing circumstances, these technologies prolong wheel life and reduce wheel replacement. Early users report 15–25% quality and 10–15% productivity increases.

New rough materials promise to remove stock quicker and at lower temperatures. Improved crystal structures and binding systems make CBN grains sharper and last longer. These modifications have reduced cycle times and extended dress intervals, improving production efficiency.

Strategic Supplier Partnerships

Having long-term relationships with grinding professionals provides advantages beyond parts. Collaborative partners study your application issues and product plans. They also advise engineers throughout design, when form optimisation is most important.

Provider process expertise aids quality improvement. Software experts at YIZHI MACHINERY collaborate with client teams to analyse output data, discover improvements, and implement them. This collaborative strategy has helped several companies achieve six-sigma quality and minimise inspection costs by using statistical process control.

When capacity is constrained, strategic alliances that prioritise your demands make the supply chain more robust. Preferred clients get priority scheduling, capacity allocations, and supply chain trouble notification. These relationships are important when the market is good since spot buyers have longer lead times and lower quality.

Conclusion

For competitiveness in tough industrial, aerospace, and mining uses, mastering Bevel Gear Grinding opens precision and performance possibilities. Modern CNC grinding is predictable, which means that it can make replaceable parts with surface finishes and mathematical accuracy that can't be achieved by cutting or lapping alone. Even though they take more money and are more complicated technically than easier ways, the operational benefits—less noise, longer service life, and higher load capacity—make the investments worth it for manufacturers who value quality and dependability. Strategic relationships with experts in grinding speed up the development of new skills while lowering the risks of application. As robotics and AI keep getting better, the first companies to use them will have a long-term competitive edge thanks to better products and more efficient production.
