Internal Helical Gear for Machine Tools: Enhancing Feed Mechanism Precision
When machine tool processes need to be very precise, the choice of gear technology is very important. Internal Helical Gears are a unique answer for feed mechanism uses that can't trade on accuracy, compactness, or dependability. These parts have teeth cut into the inside of a cylinder-shaped body at a certain helix angle. This makes a unique engagement pattern that lowers noise and vibration while increasing torque transfer efficiency. In fields like mining and aircraft, where even small changes can cause expensive problems or safety issues, picking the right Internal Helical Gear design has a direct effect on how well it works and how long it lasts.
Understanding Internal Helical Gears and Their Role in Machine Tools

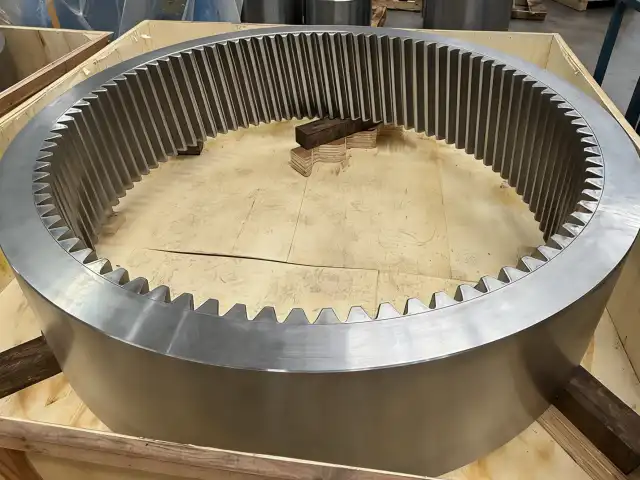

An Internal Helical Gear is very different from most other external gear arrangements in how it is built. When teeth are carved into the inside of a ring or cylinder and connect with an outside pinion, a concave-convex meshing relationship is formed that has clear mechanical benefits.
What Makes Internal Helical Gears Unique?
In contrast to spur gears, which have straight teeth, helical configurations have teeth that are angled, which lets them connect gradually during spinning. This shape spreads the contact forces across several teeth at the same time, which raises the contact ratio by 20–30% compared to similar spur designs. The gradual contact pattern cuts down on impact shock and transmission error by a large amount. This means that the machine runs more quietly and the power is delivered more smoothly, which are both important for CNC machining centers' precision feed systems.
In machine tool settings, the helix angle, which is usually between 10° and 35°, sets the balance between axial load generation and transmission ease. Larger helix angles make it so that more contacts meet, but they also create stronger push forces that need to be supported properly. Choosing the right materials is also very important for how well they work. When heated properly through the carburizing or induction hardening processes, alloy steels like 20CrMnTi, SAE 8620, and 42CrMo have the right mix of core toughness and surface hardness.
Application in Feed Mechanisms
For cutting processes to stay accurate in terms of size, machine tool feed systems need motion that is smooth and doesn't backlash. Because of their small size, Internal Helical Gears are ideal for these uses because they can fit into small areas inside gearbox assemblies and spindle housings. The internal design cuts down on the distance between mating gears, which makes it possible for more compact mechanical setups that don't lose torque capacity.
These gears make machines like milling machines, turning centers, and cutting tools more stable. The constant tooth contact keeps the position from moving too much during feed movements. This directly leads to a better surface finish and better holding tolerances on finished workpieces.
Comparing Internal Helical Gears with Alternative Gear Types for Machine Tools
Before making a purchase choice, you need to know how different gear technologies compare to the needs of a particular application. Each type of gear has its own unique qualities that make it better for certain situations.
Internal Helical vs. External Helical Configurations
Internal helical gears reduce system size by 25-40% by enclosing the pinion—ideal for space-constrained designs. They naturally dampen vibrations transmitted to structures, enabling quieter operation in precision manufacturing where sensor accuracy and worker comfort matter. Testing data shows helical designs operate 15-25% faster than spur gears before reaching critical noise levels, expanding production flexibility and machine utilization.
Spur Gears vs. Helical Alternatives
With their straight teeth that don't create any axial push loads, spur gears are simple and easy to make. But when they connect quickly, impact forces are created that make more noise and speed up the rate of wear. Due to their curved tooth contact, Internal Helical Gears overcome these drawbacks and increase their useful life and servicing frequency.
Helical designs can work at 15–25% faster speeds than similar spur configurations before they hit critical noise levels, according to testing data from industrial applications. This efficiency gap means that production can be more flexible and machines can be used more efficiently.
Specialized Gear Types: Bevel, Planetary, and Worm Designs
Bevel gears suit intersecting shafts—not parallel-axis feeds. Planetary offers high reduction in compact packages but requires complex setup with multiple mesh points. Worm gears provide self-locking but generate heat with 50-75% efficiency. Internal Helical Gears maintain 95%+ efficiency with precision and simplicity for machine tool designs. Heat-treated surfaces (58-62 HRC) resist contact stress and pitting better than worm gear materials.
Enhancing Feed Mechanism Precision Through Optimized Internal Helical Gear Selection
To get the best performance from a feed system, you need to pay attention to a lot of interconnected factors that affect both the accuracy at first and the stability over time.
Critical Selection Metrics
Torque capacity determines maximum cutting forces feed systems handle. Internal Helical Gears from alloy steels (40CrNiMo, SAE 4340) handle heavier loads than carbon steels. Backlash tolerance directly affects positioning accuracy—ISO 5-6 grade precision-ground gears achieve below 0.02mm for consistent multi-axis machining. Noise impacts user comfort and measurement accuracy—vibration from gear mesh causes touch probe errors. Verified quality grades ensure transmission error below 10 micrometers per revolution.
Manufacturing Precision and Heat Treatment
Modern CNC grinding keeps profile (F±) and helix (F²) deviations within 5-8 micrometers for high-precision feeds. Tooth flank modifications (crowning) compensate for misalignment and spread contact loads. Carburizing creates wear-resistant surface with tough core—case depths 0.8-1.5mm based on module size. Through-hardening AISI 4140 suits medium-duty applications. Heat treatment transforms base materials into reliable performance characteristics for demanding feed system applications.
Addressing Common Failure Modes
Wear, fatigue, and misalignment cause gear failures. Surface hardness 58-62 HRC prevents wear in harsh conditions; 45-50 HRC suffices for lighter duties. Magnetic particle testing finds subsurface cracks before growth. Misalignment creates edge loading—precision assembly with dial indicators ensures alignment within 0.02mm per 100mm face width, increasing gear life 40-60%. Case studies show precision-ground internal helical gears reduced scrap by 32% and increased rebuild intervals by 45% in aerospace manufacturing.
Procurement Guide for Internal Helical Gears: Ensuring Quality, Cost Efficiency, and Timely Delivery
To get through the buying process, you have to balance technical needs with practical business issues. Smart buying strategies know that the original purchase price is only one part of the total cost of ownership.
Evaluating Supplier Qualifications
Certifications are concrete proof of the ability to manufacture and the development of the quality system. ISO 9001 approval shows basic quality management skills, while membership in the American Gear Manufacturers Association (AGMA) usually means specialized knowledge in making gears. If a supplier provides material traceability documents and heat treatment certificates, it's easier to be sure that all production batches will have the same qualities.
After-sales help is very important when custom changes or technology troubleshooting are needed. Suppliers with their own engineering teams can help with figures for gear selection, provide CAD models for assembly proof, and suggest changes to solve problems in specific applications. This level of technical ease lowers the risk of development and speeds up the project timeline.
Standard vs. Custom Gear Options
Standard catalog gears have faster wait times and lower unit prices, which makes them a good choice for repair or prototyping needs. Machine tool feed systems, on the other hand, often need module sizes, tooth counts, and bore setups that aren't available in common products. In these situations, being able to make things to order becomes very important.
Usually, the decision point depends on how much is being made and how precise it needs to be. Custom production is usually needed for uses that need helix angles other than the standard 15° to 25° range, special materials like 18CrNiMo7, or tight tolerances greater than ISO 6 grade. Custom gears have lead times that range from 35 to 60 days, based on how complicated they are and how busy the factory is right now. This is something that needs to be thought about when planning the project.
Cost Drivers and Pricing Considerations
The prices of raw materials change with the world steel market, but the costs of handling stay mostly the same. The cost of gear grinding processes is high, especially when the units are big and the tolerances need to be very tight. The total cost of manufacturing is also affected by heat treatment methods, especially carburizing, which needs longer oven times.
By making production more efficient and lowering the cost of setup, volume agreements make it possible for better prices. When buying more than one unit, buyers can discuss price cuts of 15 to 25 percent compared to buying a single unit. Long-term supply deals keep prices stable and give production slots priority during times of high demand, which lowers the risk in the supply chain.
Technical paperwork like material certificates, dimensional inspection reports, and records of heat treatment should be standard deliverables. Depending on how serious the application is and how confident the seller is in the product, warranty plans usually cover material and manufacturing flaws for anywhere from one year to the expected service life of the part. Clear guarantee terms keep buyers safe from early failures and encourage makers to keep quality standards high.
Future Trends and Innovations in Internal Helical Gears for Machine Tools
The business that makes gear is always changing because of new technologies and shifting market standards about connectivity and sustainability.
Advanced Materials and Coatings
New study in material science is focusing on alloy formulas that make things stronger against wear while also making them lighter. Powder metallurgy methods allow for production in a nearly net form with controlled porosity for better lubrication retention. By using special layers like diamond-like carbon (DLC) or titanium nitride (TiN) on the surface, friction coefficients can be cut by 30–50%. This lowers power use and makes it possible to go longer between cleaning cycles.
Digital Manufacturing Precision
Closed-loop adjustment is possible with CNC machining centers that have measurement systems built in. This means that when cutting gears, the tool paths are instantly changed to stop thermal drift and tool wear. Power skiving technology has changed the way Internal Helical Gears are made. Compared to old ways of shaping, it cuts cycle times by 3–5 times and gives better surface finishes. This increase in speed directly leads to lower costs and shorter delivery times.
Although additive manufacturing isn't quite ready for production gear teeth yet because of issues with surface finish, it can be used to make quick prototypes of gear plates and housing parts. This feature shortens the time it takes to build something and lowers the cost of tools used during design testing stages.
Predictive Maintenance and IoT Integration
Putting sensors inside gear assemblies makes it possible to check their state and predict breakdowns before they happen. Analysis of vibrations, tracking of temperatures, and identification of acoustic emissions give real-time information on performance that helps plan maintenance. In industrial settings, these features cut unexpected downtime by 25–40%, making tools work better overall.
Connecting to the cloud lets you do remote diagnostics and performance benchmarking across groups of equipment. This helps you find systemic problems and improve your repair strategies by giving you data-driven insights. Machine learning algorithms can find small trends of performance decline that humans might miss until something goes horribly wrong.
Sustainability Initiatives
Lower working carbon footprints are caused by better energy efficiency through less friction loss and better gear shapes. Recycled steel use and conflict-free mineral certification are examples of responsible material buying practices that meet the needs of buyers who care about the environment for supply chain openness.
Optimization of the manufacturing process cuts down on trash and energy use per unit made. Closed-loop heat treatment systems and water-based quenchants have the least effect on the environment while still meeting mechanical quality standards. These measures for sustainability make sure that buying things is in line with the company's environmental goals, without affecting technical performance.
Conclusion
There are a lot of technical, business, and strategy things to think about when choosing the right Internal Helical Gear for machine tool feed systems. Because of their unique shape, these parts are small, precise, and quiet, all of which directly improve the quality of cutting and the life of the equipment. When you know how the choice of material, the accuracy of the production process, and the heat treatment process all work together, you can make smart purchasing decisions that lower the total cost of ownership instead of just the initial cost. New technologies in materials science, digital manufacturing, and predictive maintenance promise to keep making things work better while also meeting standards for sustainability. Buyers can take advantage of these improvements while lowering supply chain risks by working with experienced makers who can show they have technical know-how, quality approvals, and full support services.
FAQ
1. How does helix angle selection impact gear performance?
Helix angles between 15° and 25° are the best for most machine tool uses because they offer smooth contact without too much axial force. Larger angles make the contact ratios higher and the noise lower, but they need stronger support for the thrust bearings. Smaller angles, less than 10°, give up some of the benefits of smoothness while lowering axial loads. This is useful when limited axial room limits bearing capacity.
2. What inspection methods verify gear quality?
Measure profile deviation, helix deviation, and pitch errors against limits that have been set by coordinate measuring tools that have software that is designed to work with gears. Magnetic particle screening can find cracks and grinding burns on the surface that make something less resistant to wear and tear. Optical emission spectroscopy certification of the material proves that the alloy makeup meets requirements. Hardness testing shows that the heat treatment works on both the tooth surfaces and the core regions.
3. Can internal helical gears be repaired or must they be replaced?
If there is enough material above the case depth limit, it may be possible to fix minor surface damage caused by contamination or short-term lubrication loss by grinding again. But cracking, flaking, or broken teeth usually mean that the whole thing needs to be replaced. Because of how precise repairs need to be and how dangerous it could be for parts that have only been slightly fixed to work in important uses, replacing Internal Helical Gears is usually cheaper than fixing them.
Partner with YIZHI MACHINERY for Your Internal Helical Gear Requirements
With 15 years of experience making custom gears, YIZHI MACHINERY provides high-quality gearbox parts to the mining, aircraft, and industrial machinery industries. We can make Internal Helical Gears out of modules ranging from 0.5 to 50, helix angles between 5° and 45°, and materials such as 20CrMnTi, SAE 8620, and 42CrMo. We can also heat treat these materials to make the surface hardness reach 58–62 HRC. Our ISO-compliant quality systems make sure that the precision always meets Grade 5–6 standards, and our full customization process, which includes requirement analysis, CAD design, CNC grinding, and thorough inspection, gives you solutions that are made just the way you want them. Flexible minimum order amounts allow for both prototype development and large-scale production. Delivery times range from 35 to 60 days, and transportation expertise includes custom packing, multiple shipping choices, and real-time tracking. Contact us at sales@yizmachinery.com to talk about your needs and find out why top makers choose YIZHI MACHINERY as their Internal Helical Gear provider for mission-critical feed mechanism uses.
