How to source precision internal gear wheels for aerospace projects

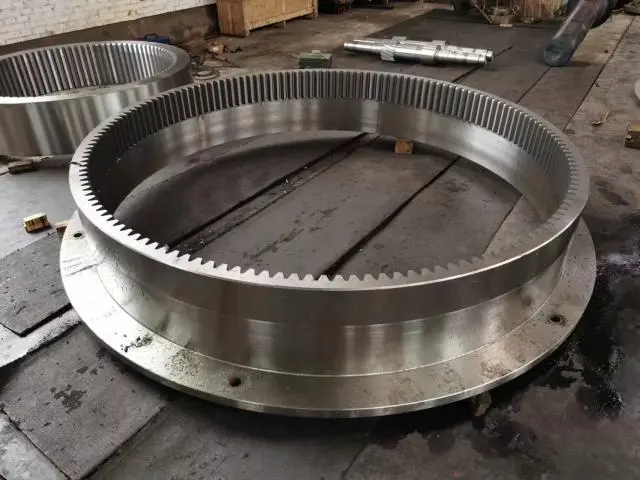

To find precise Internal Gear Wheels for aircraft projects, you have to carefully look at things like material requirements, manufacturing tolerances, source certifications, and the dependability of the supply chain. An Internal Gear Wheel has teeth cut into the inside of a cylinder-shaped body. These teeth mesh with external pinions to easily transfer power in small spaces. For aerospace uses, parts must meet strict standards like AS9100 and be made of materials like 20CrMnTi or AISI8620. They must also have advanced heat processes and ISO 6 Grade perfection to make sure they work well even when they are under a lot of stress and at high temperatures.

​

Understanding Precision Internal Gear Wheels in Aerospace

Why Internal Gear Wheels Matter in Aerospace Systems?

Aerospace Internal Gear Wheels allow coaxial rotation in compact layouts, improving torque density for planetary reducers and actuators. Unlike external gears, they reduce noise through higher contact ratios and concave-convex meshing. Engineers choose them not just for mechanics but also for stealth and passenger comfort, where every gram and dB matters.

Design Principles and Material Requirements

Aerospace internal gears endure -50°C to 150°C using alloys like 42CrMo or 18CrNiMo7. Carburizing creates 58-62 HRC surfaces, while cores stay tough. Precision meets ISO 1328 Grade 5, with grinding correcting heat distortion. Corrosion resistance comes from stainless steel or coatings protecting against hydraulic fluid and moisture in landing gear systems.

Comparison and Selection Criteria for Aerospace Internal Gear Wheels

Evaluating Gear Types for Aerospace Applications

Which of internal, planetary, spur, and bevel gears to use depends on the gearbox needs. Planetary gear sets, which have internal ring gears, can multiply torque very well while taking up very little radial room. This makes them perfect for electric airplane propulsion systems and helicopter rotor drives. Spur gears are easy to use and efficient, but they take up more room and make more noise. Bevel gears can handle intersecting shaft angles, but they make aircraft construction more difficult.

When designs call for bidirectional input-output shafts and high reduction ratios without multiple gear steps, Internal Gear Wheels shine. The circular shape naturally protects the mesh zone, lowering the risk of damage from foreign objects. This is very important for planes that fly in areas with a lot of sand or other waste. But making them is harder and costs more for tools than making external gears, so source knowledge is very important.

Material Selection and Manufacturing Precision

Alloy steels like 20CrNiMo balance strength and weight; titanium suits ultra-light needs. Modules range 0.5-50, helix angles 5°-45°. Precision manufacturing uses hobbing, CNC cutting, and grinding. Heat treatment requires careful control to avoid distortion, often using plug quenching for thin rings. AS9100-certified suppliers ensure aerospace-grade traceability.

Quality Assurance and Standards Compliance

Aerospace parts are inspected in very specific ways. Contact pattern analysis checks that all of the teeth are properly engaged across the width of the face. Coordinate measuring tools (CMMs) check the correctness of leads, involute profiles, and pitch deviations. Non-destructive testing finds flaws below the surface that were created during casting or heat treatment. ISO 6 Grade certification shows that a seller can regularly deliver gears that meet these high standards. This lowers the number of rejected gears and delays in projects.

How to Source High-Quality Internal Gear Wheels for Aerospace Projects?

Defining Procurement Specifications

Detailed technical paperwork is the first step to successful buying. Requests for Quotations (RFQs) should include information about the number of teeth, the module, the helix angle, the material grade, the heat treatment needs, and the inspection reports that are needed. Assemblies that use aerospace Internal Gear Wheels often need to be certified by the FAA or EASA. This is why packages must include material certificates, heat treatment records, and measurement inspection reports for tracking purposes.

Managers in charge of buying things should talk about operating factors like expected load cycles, temperature ranges, lubrication methods, and repair times. Suppliers who have worked with aircraft know how these things affect the choice of materials and the requirements for the surface finish. When you talk about possible interference problems during design reviews, you can avoid having to do expensive repairs. To avoid involute and trochoidal interference, make sure that the tooth counts of the pinion and Internal Gear Wheel are different enough (usually ΔZ ≥ 12).

Evaluating Supplier Capabilities and Certifications

Aerospace projects are less likely to fail when they work with expert makers. Check if a provider has the right certifications. For example, AS9100 compliance shows that they know how to use aircraft quality systems, and ISO 9001 compliance is a good way to make sure they can make things in general. Look at case studies or reference projects that show how internal ring gears have been used in aircraft parts for things like actuation systems, gearbox retrofits, or custom transmission solutions.

Technical skills are more important than diplomas. Suppliers who have power skiving or gear shaping equipment can make internal teeth more quickly than those who only use broaching equipment. The ability to grind in-house makes sure that the finished measurements meet the requirements even after heat treatment has changed them. Calibration of inspection tools and its ability to be traced back to national standards ensure accurate measurements, which is very important when errors are only a few microns.

Here are the main benefits that high-tech aircraft companies offer:

• Design Collaboration: Having engineering help during the design phase helps choose the best materials and make changes to the teeth, which stops mistakes in the field and shortens the development cycle.
• Prototype Flexibility: Low minimum order amounts let you try prototypes before committing to large-scale production, which lets you prove the concept in real-world settings.
• Supply Chain Transparency: Tracking orders and getting reports on production progress in real time lets you manage your plan proactively, which is very important when working with airframe assembly schedules.
• Global Logistics Expertise: Custom packing made of shock-absorbing materials and anti-corrosion treatments keeps precision surfaces safe during international shipping, so quality is kept from the plant to the installation site.

All of these skills lower the risk of procurement, making sure that aircraft projects get parts that work reliably for their whole useful life.

Pricing, Lead Times, and Supply Chain Considerations

Aerospace Internal Gear Wheels are costly due to strict material standards and testing. Raw material, heat treatment, cutting, and inspections drive costs. Value engineering—modifying non-critical specs—reduces expenses without affecting performance. Custom gears require 35–60 days for forging, machining, heat treatment, grinding, and inspection. Stocked alloy billets accelerate production; framework agreements streamline repeat orders; buffer stocks guard against urgent retrofits. Sea freight suits bulk shipments, air freight for urgency, China-Europe rail balances speed and cost. Proper crating keeps damage below 0.1%.

Best Practices for Maintenance and Longevity of Aerospace Internal Gear Wheels

Routine Inspection and Preventive Maintenance

Internal Gear Wheels face temperature cycles, vibration, and peak loads. Regular checks examine wear patterns and fretting; magnetic particle inspection finds subsurface cracks; backlash measurements track wear, triggering replacements before actuator accuracy degrades. Lubrication is critical—centrifugal forces push oil from mesh zones—so pressure-fed systems ensure film thickness. Spectrometric oil analysis identifies wear debris, signaling if teeth, bearings, or seals need service.

Addressing Common Challenges

Material wears after thousands of flight cycles, especially in landing gear systems. Repair guides specify inspection intervals; dimensional checks verify tooth thickness remains above limits. Proper storage with desiccants prevents corrosion. Large ring gears may show heat-treatment ovality; plug quenching reduces this risk. OEM collaboration provides wear limits and upgrade options, boosting fleet reliability and extending component life.

Case Studies and Future Outlook for Internal Gear Wheels in Aerospace

Real-World Applications and Lessons Learned

A local aerospace company recently improved chopper transmission gearboxes by swapping out spur gear trains that were fixed on the outside with small planetary sets that have precision-ground ring gears inside. The reworking cut the weight of the gearbox by 18% while improving its torque capacity by 25%. During the sourcing phase, collaborative engineering improved tooth changes for higher load conditions, and testing of the prototype confirmed gains in noise reduction that made passengers more comfortable. The project showed that choosing the right Internal Gear Wheels strategically can directly lead to better performance and more efficient operations.

In a different case, an unmanned aerial vehicle (UAV) actuator system had to work perfectly in temperatures ranging from -40°C to +85°C. By using 20CrNiMo material that has been deeply carburized and then frozen to keep its shape, the stiffness and dimensions stayed the same. The supplier's AS9100-certified process controls made sure that the same parts would be used in each lot. This is very important for UAV teams because it makes upkeep easier in the field.

Emerging Technologies and Industry Innovations

Additive manufacturing has the potential to completely change how aircraft gear is made. Selective laser melting (SLM) and electron beam melting (EBM) make it possible to create complex internal shapes that would not be possible with traditional machining. These geometries can be made lighter by optimizing the structure or adding lubrication channels. Fine-pitch gears can't be directly made with metal printing at the moment because of its low resolution, but hybrid methods that combine printed blocks with machined teeth show promise for low-volume aircraft uses.

With Industry 4.0 technologies, quality control is improved throughout the whole manufacturing process. Laser scanning and machine vision systems are used for in-process tracking, which finds deviations during machining and fixes them automatically before the parts leave limits. Digital twin models guess how a gear will behave under real-world loads, which helps designers choose the best materials and tooth shapes. Blockchain-based traceability makes sure that full material pedigree paperwork is kept from the mill license to the final inspection, which is very important for agencies in charge of aircraft certification.

As flight tries to be more environmentally friendly, sustainable products and methods are becoming more popular. Lifecycle effects can be dealt with through research into bio-based oils and gear materials that can be recycled. Electric propulsion systems have new working features, like higher RPMs and different thermal properties. This has led to the creation of specialized internal gear designs that work best with these new powertrains.

Conclusion

To find precise Internal Gear Wheels for aerospace projects, you have to find a balance between technical requirements, provider skills, and the dependability of the supply chain. Knowing the special benefits of internal gear configurations—like small size, high power density, and quiet operation—helps engineers choose the best transmission options. Selecting the right materials, making sure they are made precisely to ISO 6 Grade standards, and getting AS9100 certification all make sure that aircraft parts can handle the pressures of operation. For procurement to work well, there needs to be clear communication about project needs and deadlines, detailed RFQs, and careful review of suppliers. Internal Gear Wheels are now recognized as essential parts of the next generation of aerospace systems thanks to best practices for maintenance and new technologies that offer continued gains in performance.

FAQ

1. What materials work best for aerospace internal gear wheels?

Alloy steels like 20CrMnTi, 42CrMo, AISI8620, and 18CrNiMo7 are often used in aerospace because they have great strength-to-weight ratios and respond well to heat treatment. Carburizing makes the surface hard (58–62 HRC) so it doesn't wear down easily while keeping the heart tough. Titanium metals are used for very light uses, even though they are more expensive. The choice of material is based on the operating temperatures, load cycles, and corrosion exposure that are unique to each aircraft system.

2. How do internal gears compare to planetary gear systems?

Planetary gear sets use sun gears, planet gears, and ring gears together to make high reduction ratios in a small space. Internal Gear Wheels are the ring gear part of these sets. Internal gears that work on their own mesh with a single shaft, making things simple for modest reduction needs. Planetary systems can multiply power more effectively, but they need to be carefully put together and the load must be spread out among several planets. The choice relies on how much room you have, what gear ratios you need, and how much torque you need.

3. What factors influence lead times for custom aerospace gears?

Lead times of 35 to 60 days include getting the materials, preparing the casting or block, CNC machining, heat treatment processes, precision grinding, and thorough inspection protocols. Availability of materials for aerospace applications, production lines at specialized heat treaters, and the difficulty of inspections all have an effect on plans. Most of the time, suppliers who keep strategic alloy stocks and combined manufacturing skills can deliver faster. Getting people involved early and agreeing on frameworks for regular parts help keep track of deadlines.

Partner with YIZHI MACHINERY for Your Aerospace Internal Gear Wheel Needs

For aerospace projects, precise parts must be supplied on time and with the help of scientific knowledge. After 15 years of specialized experience, YIZHI MACHINERY can make unique Internal Gear Wheels that meet aerospace-grade standards. Our production methods are ISO-compliant and include CNC machining, advanced heat treatment, and precise grinding. These methods allow us to reach ISO 6 Grade tolerances, which are necessary for aircraft parts. We can make internal gears out of 20CrMnTi to SAE4340 materials, with surface hardnesses up to 62 HRC and modules running from 0.5 to 50 to meet your exact needs. As a reliable producer of Internal Gear Wheels, we offer low prices, fast delivery (35–60 days), and full transportation services, such as custom packaging to protect delicate surfaces during shipping around the world. Before you buy, our engineering team gives you advice on design and keeps you up to date on production throughout your project. Contact us at sales@yizmachinery.com to talk about your needs and get a full quote for your next aerospace transmission job.
