How Does a Worm Gear Reducer Work and What Is It

A Worm Gearbox Reducer is a special kind of machine that changes high-speed, low-torque rotary input into low-speed, high-torque output by a threaded worm shaft and a toothed worm wheel, which are usually placed at right angles. This power transmission mechanism is great at reducing speeds by large amounts—often up to 100:1 in a single stage—while still taking up very little space. This makes it an essential part of industrial machinery, mining operations, and aerospace applications that need to save space and increase torque.

​

Introduction

Modern industrial processes need power transmission systems that are reliable, efficient, and able to handle heavy loads in limited areas. Worm Gearbox Reducers have become very important in this situation because they can effectively lower speeds and increase power in many areas, such as in automatic production lines, lifting equipment, and conveyor systems. Whether you're in charge of a mining operation that needs to move big loads or an aerospace manufacturing plant that needs to do precise indexing, knowing how these reducers work affects the tools you choose and how well your business runs.

This detailed guide goes over the main ideas behind how things work, the specifics of construction, the benefits in terms of performance, and the selection criteria that procurement professionals and engineering teams care about the most. We want to give you useful information that you can use to make smart decisions, cut down on downtime, and get the most out of your investment in gear gearbox parts. You'll get a better idea of when a Worm Gearbox Reducer is the best choice compared to other gearbox designs after reading this.

What Is a Worm Gear Reducer?

Core Components and Construction

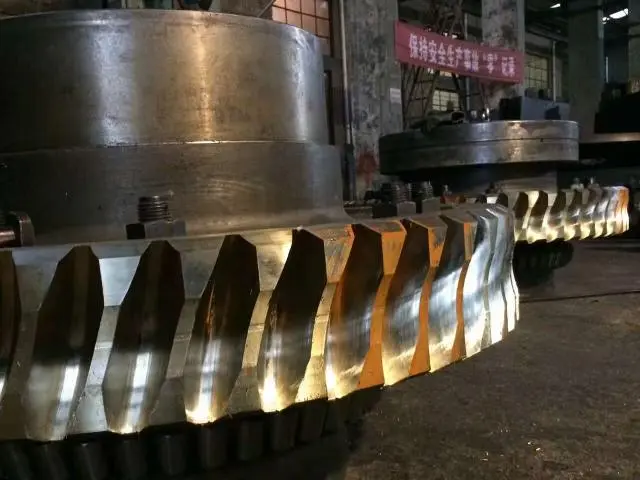

The Worm Gearbox Reducer is made up of several carefully designed parts that work together. The input driver is the worm shaft, which is a threaded screw made of hardened alloy steel. The worm wheel is a toothed gear that is usually made of brass or special copper metals to reduce friction and wear. This shaft fits into the worm wheel. The housing, which is usually made of cast iron or die-cast aluminium, makes the structure stiff and helps heat escape while the machine is running.

Supporting parts include strong sealing systems made of NBR or FKM materials to stop lubricant leakage and precision bearings that keep the shaft in place and reduce rotational friction. These seals are especially important in harsh industrial settings where contaminants can damage equipment. We at YIZHI MACHINERY make Worm Gearbox Reducers out of high-quality materials like 20CrMnTi, 40CrNiMo, and AISI4140, which makes them very durable even in harsh situations. Carburising, cooling and tempering, and induction hardening are some of the harsh heat treatments our parts go through to get their surface hardness to between 58 and 62 HRC, which meets ISO 8-9 precision grades.

Material Selection and Performance Impact

The choice of material directly affects how long a Worm Gearbox Reducer lasts and how much weight it can hold. Case-hardened alloy steels like SAE4340 or 42CrMo are often used for the worm shaft because they are very good at resisting wear from the sliding friction that comes with using a Worm Gearbox Reducer. The choice of material for the worm wheel strikes a balance between strength and anti-galling qualities. Centrifugal bronze, which is made up of tin and nickel, works better than cast iron options. The thermal management abilities of housings are affected by the materials used. For moderate-duty uses, aluminium metals offer lighter construction and better heat absorption, while cast iron offers better rigidity and thermal mass for heavy industrial settings.

Typical Industrial Applications

Worm Gearbox Reducers are used a lot in many different fields. They move belts and rollers in conveyor systems, and their right-angle shape lets the motors be mounted parallel to the conveyor line, which saves valuable floor space. Elevator traction machines use their high power output and ability to self-lock to make moving up and down safely. Automated production line reducers depend on their small size and reliable operation, while machine tool tracking systems like how smoothly and precisely they can control motion. In mines, these units are used in crushing equipment and systems for moving materials, where strong load capacity is important. Specialised reducers are used in actuator systems and ground support tools used in aerospace that need precise motion control and little slack.

How Does a Worm Gear Reducer Work?

Mechanical Operating Principle

The basic function is for the Worm Gearbox Reducer shaft's spiral thread to engage with the worm wheel's teeth in a straight line. When the input gear turns, the worm's thread pushes against the teeth of the worm wheel, slowing the wheel's rotation compared to the input speed. The rolling contact in spur or helical gears is very different from this sliding contact. The reduction ratio is based on the angle of the worm thread lead and the number of teeth on the worm wheel. A worm with only one thread that turns once moves the worm wheel forward by exactly one tooth. This set-up gives you a 40:1 reduction ratio with a 40-tooth worm wheel.

Efficiency Factors and Friction Management

The Worm Gearbox Reducer works mainly through sliding friction between the worm and wheel, while other types of gearboxes work mostly through rolling contact. This device makes a lot of heat, especially when the load and decrease ratio are high. Depending on the ratio, lead angle, and quality of the oil, efficiency usually falls between 50% and 90%. When the ratio is between 5:1 and 20:1, it's usually more efficient. When the ratio is above 60:1, it gives up efficiency for size and power multiplication.

Proper lubrication is absolutely necessary for long-lasting use and smooth operation. The lube needs to create a protected film between the moving parts so that metal doesn't touch metal and frictional heat is released. In high-load situations, synthetic polyglycol lubricants often work better than mineral oils because they keep their viscosity over a wider temperature range. Our research team at YIZHI MACHINERY suggests the best lubricant grades for your application based on its working temperature, load, and job cycle to get the best performance and service life.

Torque Calculation and Speed Reduction

When engineers choose Worm Gearbox Reducers, they need to know how to do simple math for performance. When you multiply the input torque by the reduction ratio and the efficiency factor, you get the output torque. At a 40:1 ratio and 75% efficiency, 10 Newton-meters of input torque leads to about 300 Newton-meters of output torque. The output speed is equal to the input speed split by the reduction ratio. For example, an output speed of 45 RPM is made when a 1,800 RPM motor drives a 40:1 reducer. These figures help you choose the right size reducer so it can handle the loads you expect it to without going over its heat or mechanical limits.

Noise Reduction and Maintenance Considerations

The vibrations at the mesh contact cause operating noise. Precision manufacturing tolerances have a direct effect on noise levels. When tolerances are tight, operation is quieter. Aligning the fitting correctly stops too much shaking and wear before its time. We use advanced CNC gear machining centers and fully automated gear grinding machines in our production to get the best tooth surface finishing. This lowers operational noise and increases the life of the parts. Regular maintenance, like lubrication and checking for signs of wear, helps find problems early on, before they become expensive failures.

Advantages of Worm Gear Reducers Compared to Other Gear Types

When looking at different ways to send power, knowing their relative strengths helps match the technology to the needs of the application. The main reasons why Worm Gearbox Reducers are better than other types are listed below:

1. Exceptional Space Efficiency: The layout of the perpendicular shafts allows for small placements where axial length limits are present. In-line mounting is needed for helical and planetary gears, which takes up more linear room. This right-angle form is very useful in industrial gear and material handling systems where there is a lot of equipment in a small space.

2. High Single-Stage Reduction Ratios: A reduction ratio of 60:1 or higher in a single stage gets rid of the need for complicated and expensive multi-stage designs that are needed for helical or bevel shapes. This simplifies things so there are fewer parts, fewer possible failure points, and fewer maintenance needs. It also lowers the cost of buying everything at first.

3. Self-Locking Capability: The system can self-lock so that the output shaft can't back-drive the input when the worm lead angle stays small enough, usually below 5 degrees. This passive braking is very useful for lifting and inclined conveyors because it increases safety without adding any extra brakes. However, dynamic situations and vibration can make static self-locking less reliable, so extra stopping systems should be added to safety-critical uses.

4. Smooth, Quiet Operation: The constant slide engagement causes less vibration than spur gears' tooth contact that happens every so often. Precision applications and noise-sensitive areas benefit from this feature, but proper lubrication is still needed to keep these benefits throughout the service life.

These benefits successfully solve production problems in sites with limited room, tasks that need to slow down a lot, and situations where safety requires stopping reverse rotation. Worm Gearbox Reducers are perfect for lift systems, conveyor drives and positioning devices in the mining and industry sectors because they are small, can handle high ratios and may be able to self-lock.

Performance Comparison with Alternative Gearbox Types

Helical gearboxes usually get between 85 and 98% efficiency through rolling contact, but they need more than one stage for high reduction ratios, which makes them bigger and costs more. Planetary gearboxes are very efficient (95–98%) and have small, high-ratio designs, but they cost more and are harder to understand. Bevel gears can send power at right angles 95–98% of the time, but they usually can't handle ratios lower than 6:1 in single steps. The Worm Gearbox Reducer gives up some efficiency in exchange for its unmatched single-stage ratio capability, small footprint, and low cost, which are more important in situations where these factors are more important than efficiency.

How to Select the Right Worm Gear Reducer for Your Application

Critical Selection Parameters

To choose the right Worm Gearbox Reducer, you must first clearly define what you need it for. Torque capacity needs are based on load factors like size, variation, and shock loading. The operating speed determines the thermal load and the expected level of efficiency. Physical size limits and shaft orientation preferences are set by the mounting requirements. Temperature, humidity, and the amount of contamination in the air are some of the environmental factors that affect the choice of material and the closing requirements.

Evaluating Manufacturers and Supply Partners

There are many Worm Gearbox Reducer manufacturers with different types of capabilities on the global market. Well-known names like SEW, Bonfiglioli, Nord, Sumitomo, WEG, and Motovario offer standard goods with large support networks. However, their products are usually more expensive and can't be customised as much as other brands. Because OEMs work with specialised makers, they can make custom solutions that meet the needs of specific applications that catalogue goods can't.

Professionals in procurement should look at providers in more than one way, not just by price per unit. Technical help, such as technical advice during the development of specifications, keeps expensive mistakes from happening. Customisation lets you fit mounting arrangements, shaft sizes, and ratio needs that aren't standard, which is common in retrofit and specialised equipment projects. Reliability in lead times keeps project plans on track, which is especially important for planned repair shutdowns and starting up new equipment. Warranty terms and the ability to get help after the sale protect your investment and keep downtime to a minimum when problems do happen.

YIZHI MACHINERY distinguishes itself through comprehensive customization capabilities spanning requirement communication, design drawing development, production processing, quality inspection, and logistics coordination. Our 15 years of production experience combined with ISO-compliant quality systems ensures reliable performance across demanding applications in industrial machinery, mining, and aerospace sectors. We accommodate low minimum order quantities including single-unit production, providing flexibility unmatched by large-volume-focused competitors.

Balancing Cost and Performance

The initial purchase price is only one part of the total cost of ownership. Energy use over the unit's lifetime can be higher than its purchase price, so efficiency is still an important thing to think about, even though Worm Gearbox Reducers aren't very efficient by nature. Maintenance tasks like adjusting oil intervals, replacing seals, and checking things on a regular basis add up to labour costs and possible downtime costs. Unplanned downtime costs, which often far outweigh the cost of the tools in work settings, are directly affected by reliability.

Buying in bulk can lower the cost per unit while still making sure that extra parts are available for important uses. Too much merchandise, on the other hand, wastes money and puts tools at risk of becoming obsolete as it gets better. Strategic partnerships with suppliers offering tailored solutions, responsive technical support, and predictable delivery performance often provide superior value compared to strictly price-focused procurement approaches.

Maintaining and Troubleshooting Worm Gear Reducers

Lubrication Best Practices

Proper lubrication is essential for extending worm gearbox life. Correct oil levels prevent overheating and seal failures, while synthetic lubricants provide better performance in harsh conditions. Maintenance intervals depend on load and operating conditions, with initial oil changes after break-in and later replacements based on lubricant type, usage, and temperature monitoring.

Inspection Procedures and Warning Signs

Regular checking finds problems before they become major ones. Visual inspection should show oil leaks around seals, which mean the seals are worn out or were not installed correctly. Strange noises like grinding, clicking, or a lot of whining could mean that the bearings are wearing out, the teeth are wearing down, or the lubricant isn't good enough. Vibration rises usually happen before a full failure, so they should be looked into right away. Temperature tracking sets the normal working temperatures. Long-term rises above the normal levels show problems that need to be fixed.

Common Issues and Solutions

Too high of an operating temperature can be caused by not enough lubrication, the wrong choice of lubricant, or too much load. Some solutions are to make sure the oil amount and grade are correct, lower the load or job cycle, or get a larger Worm Gearbox Reducer. Noises that don't make sense are usually caused by old gears, not enough oil, or pollution. To fix these problems, the oil needs to be analysed for metal bits, the lube needs to be replaced, and the gears may need to be replaced if the wear is too high. Leaking oil happens when seals wear out, when they aren't installed correctly, or when there is too much pressure inside the engine because it's overfilled or air vents are blocked. Fixing the problem means replacing the seals using the right methods and making sure the breather works right.

Gear misalignment causes accelerated wear and efficiency loss. This condition may result from improper installation, foundation settling, or thermal expansion issues. Correction requires re-alignment to manufacturer specifications using precision measurement tools. When troubleshooting exceeds in-house expertise or involves major component replacement, engaging professional service providers prevents additional damage and ensures proper repair execution.

Conclusion

Worm Gearbox Reducers deliver reliable speed reduction and torque multiplication across diverse industrial applications through their unique perpendicular shaft design and sliding mesh engagement. Understanding their operating principles, comparative advantages, and proper selection criteria empowers engineering and procurement teams to specify optimal solutions matching application demands. While efficiency considerations require careful evaluation, the combination of compact design, high single-stage reduction capability, and potential self-locking functionality makes these reducers indispensable throughout industrial machinery, mining operations, and specialized equipment.

Proper maintenance including scheduled lubrication, routine inspection, and proactive troubleshooting maximizes service life and operational reliability. Material selection, precision manufacturing, and quality heat treatment directly impact performance and longevity, making supplier selection a critical procurement decision affecting total cost of ownership beyond initial purchase price.

FAQ

1.What materials are best for worm gear reducers in heavy-duty applications?

Heavy-duty applications benefit from hardened alloy steel Worm Gearbox Reducer shafts such as 20CrMnTi or SAE4340 achieving 58-62 HRC surface hardness through carburizing and quenching. The worm wheel should utilize high-grade bronze alloys containing tin and nickel for superior wear resistance and anti-galling properties. Cast iron housings provide excellent rigidity and thermal mass for demanding environments, while precision bearings and robust seals complete the assembly.

2.How often should I change the lubricant in my worm gear reducer?

Change mineral oil after an initial 500-hour break-in period, then every 2,500 hours under normal operating conditions. Synthetic lubricants extend intervals to approximately 5,000-10,000 hours depending on load and temperature. High-temperature operation, heavy loads, or contaminated environments require shorter intervals. Always monitor oil condition and temperature; abnormal findings warrant immediate oil analysis and potential change regardless of scheduled intervals.

3.Can worm gear reducers handle shock loads as effectively as planetary gearboxes?

Worm Gearbox Reducers absorb shock loads reasonably well due to their sliding mesh engagement, which provides inherent damping. However, planetary gearboxes generally handle shock loads more effectively through load sharing across multiple planet gears. Application specifics including shock magnitude, frequency, and duty cycle determine which technology suits your requirements. Consulting with experienced engineers ensures proper specification for shock-prone applications.

Partner with YIZHI MACHINERY for Custom Worm Gearbox Reducer Solutions

As a reliable Worm Gearbox Reducer maker, YIZHI MACHINERY designs and makes custom Worm Gearbox Reducer solutions that are made to your exact specs. With 15 years of experience in production, state-of-the-art CNC machining centers, automated grinding equipment, and a wide range of heat treatment options, we can make sure that the precision parts we make meet ISO 8-9 quality standards. We make reducers out of high-quality materials like 20CrMnTi, SAE4340, and AISI4140, and the surface hardness is between 58 and 62 HRC, which means they will last a very long time.

Our production is flexible enough to handle unique tooth counts, modules from 1 to 50, and designs that are best for industrial tools, mining equipment, and aerospace uses. We make sure your parts get to you safely and on time by offering delivery times between 35 and 60 days, custom packing that protects against damage during shipping, and multi-channel logistics that includes real-time tracking. Contact us at sales@yizmachinery.com to get expert advice, unique design drawings, and quotes that are made just for your project. You can learn more about our full range of services and how our one-year warranty and quick after-sales support can protect your investment by visiting yizhimachinery.com.

References

1. Dudley, D.W. (1994). Handbook of Practical Gear Design and Manufacture. CRC Press.

2. American Gear Manufacturers Association (2020). AGMA 6034-B92: Practice for Enclosed Cylindrical Wormgear Speed Reducers and Gearmotors.

3. Deutsches Institut für Normung (2012). DIN 3996: Calculation of Load Capacity of Cylindrical Worm Gear Pairs with Rectangular Crossing Axes.

4. Townsend, D.P. (1991). Dudley's Gear Handbook: The Design, Manufacture, and Application of Gears. McGraw-Hill Professional.

5. Radzevich, S.P. (2016). Dudley's Handbook of Practical Gear Design and Manufacture (3rd Edition). CRC Press.

6. Budynas, R.G., & Nisbett, J.K. (2015). Shigley's Mechanical Engineering Design (10th Edition). McGraw-Hill Education.
