How Does a Shaft Mounted Gearbox Work in Conveyor Systems?

A shaft-mounted gearbox operates by mounting directly onto the driven shaft of conveyor equipment, eliminating the need for traditional motor bases, couplings, and alignment procedures. The shaft mounted gearbox uses helical gears to reduce motor speed while increasing torque, with power transmitted through V-belt drives. A torque arm absorbs reaction forces, allowing the unit to float on the shaft while maintaining proper belt tension. This design simplifies installation, reduces vibration-related failures, and delivers efficient power transmission for belt conveyors, bucket elevators, and screw conveyors in demanding industrial environments.

​

Understanding Shaft Mounted Gearboxes: Basics and Operation Principles

Knowing how shaft-mounted reducers work is important for procurement professionals looking for reliable, low-cost solutions when they are looking at drive systems for material handling tasks. These unique units are different from the usual ways of mounting things, and they offer mechanical benefits that are perfect for conveyor applications.

Direct Mounting Architecture

The way that this technology is mounted is what makes it unique. The gearbox doesn't bolt to a hard base like foot-mounted units do; instead, it uses two tapered joints to connect directly to the conveyor's driven shaft. These precisely machined bushings fit around both sides of the output shaft, making a strong mechanical link and stopping fretting corrosion, which is a frequent maintenance problem where tiny movements between metal surfaces wear them down. The housing "rides" on the shaft because it is supported by the structure of the conveyor itself. This saves money and time by not having to make separate drive stands.

Power Transmission Mechanics

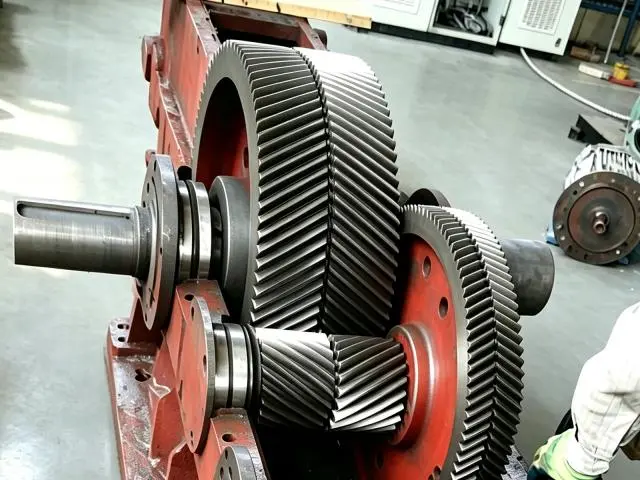

Inside the sealed housing, alloy steels like 20CrMnTi or 42CrMo are used to make precision-ground helical gears that slow things down and increase torque. Through a process called carburizing, the gears get a surface hardness of 58 to 62 HRC while keeping their tough core. This dual-hardness shape is very resistant to pitting and wear, even under the repeated loading conditions that are usual in conveyor service. As a result of the spiral tooth design, the operation is smooth and quiet, and the transmission efficiency is usually between 96% and 98% per reduction stage. This means that there aren't many energy losses, which directly affects running costs.

Torque Arm Function

The torque arm is an important part that is often forgotten. It is a steel piece that connects the gearbox housing to a fixed anchor point on the conveyor frame. This arm stops the housing from turning with the driven shaft, but it still lets the housing move a little so that the belt can be tightened automatically. Being able to turn a little lets belts stretch and wear without having to be adjusted by hand, so the drive stays as efficient as possible throughout the belt's life.

Variant Configurations

Modern designs mostly use helical gear arrangements because they can handle more weight and run smoothly at the higher speeds that industrial conveyors usually need. Parallel shaft configurations work well for situations where power needs to run in a straight line, while right-angle configurations are better for situations where room is limited. Worm gear versions are less common because they are less efficient (usually 50–70%), but they are useful in low-speed, high-ratio situations where self-locking features stop backdriving, like in inclined conveyor systems that move heavy things.

When engineering teams understand these basic operating principles, they can see when shaft-mounted designs are clearly better than other drive setups. This is especially true for retrofit situations or new installations that don't have a lot of structural support.

Key Advantages of Shaft Mounted Gearboxes in Conveyor Applications

Shaft-mounted drivetrains answer practical and economic issues, so buying managers choose them. Benefits of mechanical design and industrial installation and maintenance.

Instant savings without flexible connections and alignment. Laser-aligning foot-mounted devices to a thousandth of an inch requires special equipment and skill. Misalignment causes early seal, bearing, and vibration failure. Mount shaft-mounted devices, tighten tapered bushings, and connect the torque arm. A two-person crew can install identical foot-mounted devices in two hours, but otherwise it takes all day.

Another benefit is space efficiency. Low floors and ceilings characterise industrial structures. When large drive platforms won't fit, compact shaft-mounted retrofits with reduction gearing, an output shaft, and a mounting mechanare usedrate. With safety routes and conveyor lines, shaft-mounted layouts boost building productivity.

Truck torque and shock load tolerance are required. Fully laden belt conveyors spike as material rushes down chutes or emergency brakes are applied. Flexible belt-drive input reduces motor and gear tooth stress. Right-sized devices can endure 150% of rated torque during transients with AGMA service factors.

Easy to maintain and cheap. Bulk material quarrying and processing may harm inner parts from dust, moisture, and temperature. Their airtight container protects them. Longer drain intervals—5,000 hours or more—reduce synthetic oil maintenance. Modular design lets technicians remove the Shaft Mounted Gearbox without altering conveyor alignment or belt tracking, saving downtime. Fix seals and joints using field tools.

Due to its durability, quick installation, and convenience of use, shaft-mounted reducer technology is perfect for heavy-duty conveying applications where downtime immediately impacts production flow.

How to Select the Right Shaft Mounted Gearbox for Your Conveyor System

To pick the right reducer, you need to carefully look at a number of technical factors that affect each other. To get the best results, procurement professionals have to find a balance between engineering needs and business concerns.

Torque Requirement Calculation

First, find out how much power is needed at the driven shaft. To do this, you need to figure out the belt pull force by multiplying the material weight by the drum radius and the conveyor length by the angle of tilt. Use the right service factors. The AGMA suggests using 1.5 to 2.0 for conveyors that start with heavy loads or reverse often. Undersizing guarantees early replacement, while conservative sizing keeps things from breaking down too soon but adds costs that aren't needed. Suppliers with a lot of experience offer selection software that does these numbers automatically, which cuts down on specification mistakes.

Ratio and Speed Considerations

By choosing the right ratio, you can match the motor speed to the speed you want the conveyor belt to go at. For belt speeds between 100 and 500 feet per minute, reduction ratios of 5:1 to 25:1 are common for motor speeds of 1,750 or 1,150 RPM. Higher ratios give you a bigger mechanical advantage, but they may need to be reduced in two steps, which adds to the cost. Whether you need a single-reduction or double-reduction unit depends on how the input speed, ratio, and output speed relate to each other.

Mounting Configuration

The shaft's width and keyway measurements must match those of the driven shaft of the conveyor. Standard bushings can fit shafts with a diameter of 1.5 inches to more than 6 inches. Custom bushings can be made for sizes that aren't standard. Check that there is enough radial space between the gearbox housing and the structure next to it that supports the conveyor. If there isn't enough clearance, the fitting or connection of the torque arm won't work right. The torque arm attachment point needs to be stiff; flexible fixing points let the housing rotate, which throws off the alignment of the belt and causes it to wear out too quickly.

Environmental Protection

The operating environment determines the sealing and lubrication requirements. For outdoor setups in wet areas, you need coatings that don't flake and synthetic lubricants that don't harden at high or low temperatures. When working in dusty areas, you need high-quality shaft seals to keep the gears and bearings inside from getting worn down. Most industrial uses IP65 or IP66 ratings for water protection are fine, but food processing may need stainless steel housings and food-grade oils.

Manufacturer Comparison

Each global supplier has benefits. SEW-Eurodrive uses European technology and many ratios. Durable but more pricey than comparable brands. Nord gear reducers have fast-upgradable parts. Rexnord specialises in shock-tolerant mining. Bonfiglioli provides cheap daily professional support. ABB-owned Dodge has good North American distribution and readily available parts. Siemens uses mechanical and electrical components for complex control.

Better procurement techniques go beyond unit price. Consider delivery times, replacement parts, local servicing, and bulk discounts. Standard catalogue units ship in 2–4 weeks; however, custom installations may take 10 weeks. Select suppliers' framework agreements preserve price and prioritise peak demand production slots.

Maintenance and Troubleshooting Tips for Optimal Gearbox Efficiency

Structured preventive maintenance and quick responses to warning signs are needed to extend service life and maximize uptime. Well-maintained units usually last longer than 10 years of continuous use, while equipment that isn't taken care of breaks down early, causing costly unplanned downtime.

Lubrication Management

A long-lasting shaft mounted gearbox requires proper lubrication. Most utilise ISO VG 220 or 320 synthetic gear oils, depending on ambient temperature. Lubrication intervals should match working hours, not date/time. Frequently used apps require servicing more often than occasionally used ones. Check the oil level weekly with glasses; dropping levels indicate worn seals that require immediate repair to prevent pollutants from entering the housing. Oil samples are lab-tested annually for metal particles, moisture, and viscosity loss. These analyses alert you to bearing or seal failure before it's too late.

Inspection Protocols

Check torque arm bolts for tightness monthly. Stress and movement might result from loose bolts. Check shaft seals for oil leaks or dust near the machine's exit. Check for noise changes. New grinding, whining, or clicking noises indicate difficulties. Check case temperature using infrared thermometers. Too much heat (over 180°F) might indicate worn bearings, poor lubricant, or overloading.

Accelerometers should be used at regular measurement sites to conduct vibration studies every three months. Trending vibration data demonstrates a steady decline that you can't observe. Vibrations that increase 25% or more from baseline should be investigated immediately. Check belt tension and position. Misaligned belts increase load and wear.

Troubleshooting Common Issues

Low oil, dirt, and aged bearings cause noise. Check oil quality and levels quickly. Metallic grinding requires checking for excessive wear. Gear tooth contact pattern issues may cause high-pitched whines. Incorrect torque arm positioning might twist the case.

Numerous factors may create significant vibrations. Broken gears, bushings, and mounting nuts may create vibrations. Unaligned belts or pulleys may cause engine vibrations. Complete evaluations employ frequency analysis to find the vibration cause and replace components.

Heat outside typical operating temperatures indicates system overload, airflow issues, or grease breakdown. Check conveyor components for material buildup that makes rolling difficult and compare operating load to rated capacity. Open the housing to airflow. Small installations may need forced air. Replace degraded lubricant immediately and investigate why.

Follow these planned maintenance procedures and respond quickly to warning lights to extend equipment life and prevent costly incidents that halt output.

Real-World Applications and Case Studies

By looking at real installations, we can see that choosing the right reducer and using it correctly can lead to measured operating improvements in a wide range of material handling situations.

Bulk Material Handling

Several 36-inch belt conveyors move gravel from crushers to storage bins at a Midwest limestone mine. The flexible upper conveyor supports caused bearing failure every 18 months, requiring extensive modifications to the original foot-mounted gearboxes. After switching to shaft-mounted devices for alignment, the system has lasted over five years without bearing replacement. Instead of 16 hours per conveyor, annual maintenance was less than 4 hours. This saved each conveyor $8,000 yearly.

Moving mounts solved the early failure problem by not loading the bearings. The simpler design allowed plant maintenance staff to replace whole assemblies in three hours, compared to two shifts for standard units. Unplanned production downtime was greatly reduced.

Packaging Line Integration

Low-profile conveyors transport packaged food past quality-checking machinery in food processing operations. Space restrictions prevented standard motor placement under the conveyor frame. Small hollow-output shaft-mounted devices let the conveyor driving shaft pass through the reduction. The motor left the conveyor centerline. The temperature-controlled facility needed quiet operation; therefore, this arrangement fit inspection equipment.

The fitment adjusts belt tension without motor movement, another benefit. When the belts expanded during break-in, workers removed the torque arm and let the gearbox weight apply tension. They tightened the arm. Trial-and-error changes were needed for rigid-mounted systems. Innovation eradicated this.

Emerging Technology Integration

Facilities that look ahead check conveyor health. Modern sensors measure oil, vibration, and temperature. Sensors feed tracking centers. IoT systems may foresee faults days or weeks in advance, scheduling downtime fixes. Predictive analytics compares operational trends to historical data to see minute changes individuals can't.

An auto parts firm watched 47 conveyors. Unplanned downtime dropped 73% in year one. The system signalled maintenance three weeks before a bearing broke. A weekend outage with fresh parts may solve everything. Unproductive midweek emergency maintenance cut tracking system costs.

These examples show that the right reducer, periodic maintenance, and modern monitoring technology provide long-term practical and economic benefits.

Conclusion

Shaft Mounted Gearbox technology simplifies conveyor drive system installation, protects against shock loads, and reduces maintenance. The direct-mount design eliminates alignment issues and provides consistent torque transmission in severe industrial environments. You must consider torque, ratio, mounting choices, and external elements important to the conveyor application to determine the proper decision. Structured maintenance and meticulous repair extend tool life better than the industry average. Reliable mechanical condition monitoring technologies work well with predictive maintenance plans and are improving. This improves reliability and efficiency in competitive manufacturing and material handling businesses.

FAQ

1. What distinguishes shaft-mounted gearboxes from foot-mounted alternatives?

The main difference is in how the parts are mounted and how they need to be aligned. Foot-mounted units are attached to rigid bases with bolts and need to be carefully lined up with their own motor and coupling parts. Shaft-mounted designs use tapered bushings to connect directly to the driven shaft, so they don't need separate motor bases or flexible couplings. This makes installation easier, stops failures caused by misalignment, and lets the structure move without damaging the bearings.

2. Can shaft-mounted gearboxes be customized for unique conveyor requirements?

For specific uses, there are a lot of customization options. We make custom helical gears at YIZHI MACHINERY using materials like 20CrMnTi, 42CrMo, and AISI4140. Our modules range from 0.5 to 50, and our helix angles range from 5° to 45°. Custom bushings can fit shaft sizes that aren't standard, and finishes and sealing arrangements that are made for tough conditions are available. Before products are made, our engineering team gives advice on design and makes detailed drawings to make sure that solutions exactly meet the needs of the application. Single-piece production lets you order even prototypes or replacement parts.

3. What are typical lead times for bulk orders?

Standard catalog setups usually ship from reputable sources within two to four weeks. Lead times are longer for custom-engineered products. YIZHI MACHINERY takes 35 to 60 days to make customized shaft-mounted gearbox components. This includes analyzing customer needs, getting approval for the design drawing, forging, precision machining (such as hobbing and grinding to ISO 6 Grade standards), heat treatment to reach 58 to 62 HRC surface hardness, quality inspection, and protective packaging. We place importance on scheduling production for bulk orders, and we keep you up to date on our work throughout production to help with project planning.

Partner with YIZHI MACHINERY for Reliable Shaft Mounted Gearbox Solutions

The gearing solutions that YIZHI MACHINERY makes are precisely engineered to meet the needs of demanding material handling applications. We have been making Shaft Mounted Gearboxes since 2016 and have both advanced manufacturing skills and quick expert help. To make parts that meet ISO 6 Grade precision standards, our factories use CNC gear machining centers, automated grinding equipment, and smart heat treatment lines. Every helical gear goes through carburizing, cooling, and tempering to get the best surface hardness while keeping the core stiffness for long life and higher load capacity.

Our process for customization is organized into a set of steps: we talk to you about your needs, make detailed design drawings, use forging and grinding to make sure the parts are made precisely, check the quality thoroughly, protect them with shock-absorbing materials and custom wooden pallets, and track their progress in real time. We have flexible minimum order quantities, and for special requests, we can even make just one piece. Multi-channel logistics, which includes choices for sea freight, air freight, and rail freight, makes sure that delivery times are manageable and fit your project plans.

Contact us at sales@yizmachinery.com to talk about the details of your conveyor drive. We offer expert advice before the sale, updates on output that are timed to match, a one-year warranty, and quick responses to any concerns. Let us help you make decisions about what to buy by providing you with our proven expertise and dependable partnership.
