What Is a Planet Gear Carrier? Function, Design, and Uses

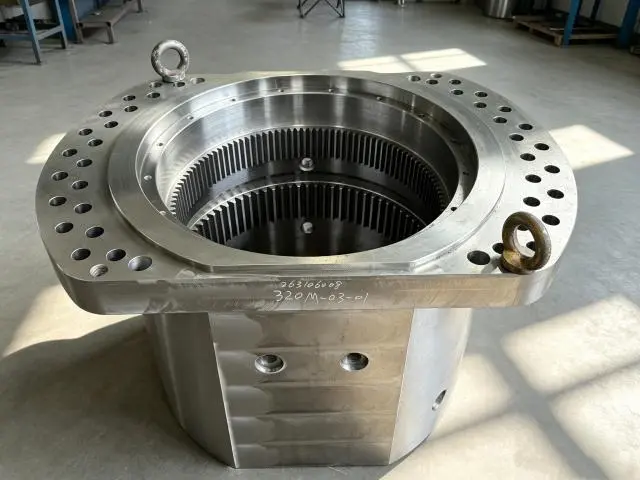

A Planet Gear Carrier serves as the structural backbone of planetary gear systems, functioning as the rotational framework that secures and positions multiple planet gears around a central sun gear. This critical component ensures precise alignment, balanced load distribution, and efficient torque transmission across the entire epicyclic gear train. Manufactured from robust materials like 42CrMo or AISI4140 alloy steel, the carrier maintains positional stability under high-torque conditions, enabling compact yet powerful gearbox designs used in construction machinery, robotics, and precision transmission systems.

​

Understanding the Planet Gear Carrier and Its Role in Planetary Gearboxes

The Planet Gear Carrier is one of the most important parts of a planetary gearbox assembly that doesn't get enough attention. In contrast to simple gear housings, this part has to support several spinning parts at the same time while also dealing with strong torsional and rotational forces.

Structural Components and Basic Design

At its heart, the carrier system is made up of several parts that fit together and work together. The main structural support comes from the carrier body, which has precisely machined pin holes that keep the pins spaced and aligned. The planet pins are housed in these bores. The planet pins are what the planet gears turn on and off. Bearing seats built into the shape of the carrier can hold needle or roller bearings that reduce wear and friction during use.

The mounting contact links the carrier to the output shaft or case, effectively moving power while keeping the bearings in place. This interface usually has splined links or fixed flanges that are made to handle constant cycling loads. Modern carrier designs have oil galleries inside that send lubricant directly to the planet bearings. They do this by using the centrifugal force created by rotation to keep the lubrication consistent, even when the speeds change.

How Planet Gear Carriers Enable Power Transmission

In a planetary gear system, the operational mode of the gear train is set by the position of the carrier. The design works as a speed reducer with high torque multiplication when the carrier is the output member and the ring gear stays still. On the other hand, if the carrier stays in place, the system can either speed up or change direction, depending on which element gets power.

How well the carrier can keep the exact positional tolerance—usually between 0.01mm and 0.03mm for pin bore alignment—affects how the load is shared between the planet gears. Misalignment causes uneven load distribution, which pushes different gears to carry different amounts of weight. This speeds up wear and tear and shortens the life of the system. Quality carriers made to ISO 5-6 precision grades make sure that the gear mesh is in sync, which reduces noise, vibration, and roughness while increasing efficiency.

Core Functions and Design Principles of Planet Gear Carriers

To make a Planet Gear Carrier that works well, you have to balance a lot of performance factors that have an immediate effect on how well the gearbox works and how long it lasts. Knowing these design principles helps people who buy things figure out what suppliers can do and choose parts that meet specific operational needs.

Load Distribution and Torsional Rigidity

The carrier has to spread the input torque evenly across all planet gears, which are usually between three and six gears in industrial settings. When compared to single-mesh gear setups, this ability to share the load makes the power capacity much higher. When there is a lot of force, a well-designed carrier keeps the structure stiff. This stops the pin from deflecting, which would load the edges of the gear teeth.

During the design phase, finite element analysis finds stress concentration points. This lets engineers choose the best thickness of material and where to put the ribs. Carriers made by forging have better grain flow patterns than cast alternatives. This means they are more resistant to fatigue, which is important for applications that use shock loads or a lot of start-stop cycles.

Material Selection and Heat Treatment Processes

The choice of material has a big impact on how well the carrier works and how long it lasts. For moderate-duty uses, 45# steel is a common material. 20CrMnTi is used for carburizing, which needs a hard surface, and 40CrNiMo or SAE4340 is used for heavy-duty uses that need both core strength and surface durability.

The qualities of a material can be changed by heat treatment to meet certain performance needs. Carburizing makes the outside layer harder (58–62 HRC) while leaving the inside tough and flexible so it can handle impact loads. By quenching and hardening, the part becomes uniformly hard (usually between 280 and 320 HB), making it good for uses that need high rotational strength. Induction hardening selectively makes spline teeth or bearing surfaces harder. This makes the parts last longer and makes the manufacturing process more efficient.

Fixed Versus Floating Carrier Configurations

Based on the needs of the product, design engineers choose between fixed and movable carrier types. Fixed carriers attach directly to bearings that are positioned in a certain way around the axis. This provides the highest level of torsional stiffness for big machinery like mining equipment or backhoe end drives. Strength and exact positioning control are the most important things in these designs.

Floating carriers are connected by splined connectors that allow a small amount of radial movement. This lets the carrier center itself when it's loaded. This arrangement works well in multi-stage planetary systems or situations where the shaft needs to bend, like in wind turbine yaw drives. The floating design accounts for changes in tolerance and temperature expansion over time, making sure that the load is shared evenly even when working conditions are tough.

Benefits and Applications of Planet Gear Carriers in Industry

Planetary gear arrangements are essential in many industrial fields because they offer unique benefits. Carriers that are built to high standards unlock these benefits and improve performance in challenging applications in a way that can be measured.

Compact High-Torque Transmission Capability

Within the same envelope dimensions, planetary gearboxes can handle three to five times more torque than parallel shaft configurations. This small size comes from the carrier's ability to connect multiple planet gears at the same time, spreading the load across many tooth contacts. The structural design of the carrier allows this load multiplication to happen without making the housing proportionally bigger.

Robotic joint motors are a good example of this benefit because they can get the most power out of a small package size. Tight positional limits are used to make precision frames that make sure motion is smooth and free of backlash, which is necessary for robotic accuracy. The small arrangement makes the whole system lighter, which increases its payload capacity and lowers its energy use.

Enhanced Durability Through Optimized Load Sharing

When the carrier is designed correctly, each planet gear takes an equal amount of the total load. This keeps overloaded parts from breaking down too soon. Sharing the load lowers the contact stress on each gear tooth, which makes them last a lot longer than single-mesh arrangements. Precision grinding is one of the manufacturing processes that keeps the tight tolerances needed for good load distribution.

This longevity is very helpful for construction equipment that works in difficult conditions. Drivetrains in excavators, loaders, and drilling rigs are put through a lot of shock loads, dirt, and temperature changes. When carriers are made from materials like AISI8620 and have the right surface treatments, they can handle these conditions and keep their shape.

Diverse Industrial Applications

Before looking at individual usage, carrier technology's wide range of applications highlights its flexibility and importance:

• Automotive and E-Mobility Systems: Electric vehicle transmissions employ carriers within single-speed reduction gears that can handle over 15,000 RPM. These carriers feature sophisticated lubrication channels and accurate micron-level machining for excellent NVH performance. The carriers used to build EVs must be high-quality to operate silently without engines.
• Renewable Energy Generation: Wind turbine gears' massive rotor blade torque loads are handled by multistage planetary combinations. Towers and shafts may shake and flex hundreds of feet above ground; therefore, floating carrier designs accommodate for this. Reliability is crucial since maintaining these sites is difficult and costly.
• Heavy Industrial Machinery: Mining machinery, steel mill drives, and marine propulsion systems employ 18CrNiMo7 carriers. The carrier must operate at maximum capacity with limited rest in these conditions. Surface treatments like phosphating reduce corrosion in harsh working environments.

These examples demonstrate how enhanced Planet Gear Carrier design immediately improves system efficiency, maintenance, and operating life across several industries.

Comparing Planet Gear Carrier Types and Materials

To choose the right carrier standards, you need to know how differences in design and material qualities affect performance and the total cost of ownership.

Material Trade-offs and Performance Characteristics

Different types of alloy steel have different amounts of strength, toughness, and ability to be machined. The 20CrMnTi metal works great for carburizing because it makes case depths that are good for high-contact-stress situations while keeping the core tough. It is great that both the 42CrMo and AISI4140 metals can harden all the way through, which makes them perfect for parts that have to handle both twisting and torsion loads.

For example, 17CrNiMo6 is recommended for better fatigue resistance, and SAE4320 is recommended for better impact strength. Instead of just using standard grades, procurement professionals who work with custom carrier manufacturers should talk about choosing materials based on specific loading conditions, operating temperatures, and expected service life.

Surface Finishing Options and Functional Benefits

Surface processes keep base materials safe and improve certain performance traits. Blackening gives some resistance to rust and lowers the glare that happens when things are being put together. When you phosphorate something, you make a porous surface that holds on to lubricants and stops galling while the material is breaking in. Hard chrome finishing is better at resisting wear and has lower friction coefficients, but it makes production more difficult and costs more.

Which of these finishing choices to use depends on the operating setting and the level of performance that is most important. Chrome plating is a good way to protect against corrosion in marine or offshore applications. Polished surfaces help high-speed applications because they cut down on windage losses and heat production.

Evaluating Fixed and Floating Designs for Specific Applications

Aside from the technology differences we already talked about, cost and upkeep issues also play a role in design choice. Fixed carriers usually cost less to make because they have simpler bearing setups and only need to meet tighter tolerances at the mounting surfaces. They work well in situations where the external alignment can be managed and kept up over the course of the service life.

Floating carriers are more expensive because they can self-center and have more complicated splined connections. This investment pays off in systems where shaft movement is unavoidable or where it's important to spread the load as evenly as possible across multiple steps. Less sensitivity to differences in the assembly can lower the cost of installation and cut down on field adjustments.

Maintenance, Common Issues, and Procurement Considerations

To get the most out of a carrier's service life, you need to know how it breaks down and use preventative maintenance strategies. Just as important, decisions about procurement have a big effect on the total cost of ownership over time.

Preventive Maintenance and Inspection Protocols

Regular lubrication keeps the oil film between moving parts in place, which keeps metals from touching and wearing down. Depending on the purpose and ease of access, planetary gears usually use circulating oil systems or grease that is added on a regular basis. By taking samples of the oil on a regular basis, you can find contamination or degradation before they cause damage.

Visual inspection at regular maintenance times finds early warning signs like planet pins wearing in strange ways, discoloration that means they're getting too hot, or cracks spreading from places where stress is building up. Checks of the pin bore positions' dimensions make sure they stay within the specifications, since wear over time can cause clearances to grow and make load sharing less effective. Fixing small problems during regular maintenance keeps big problems from happening, which would require emergency fixes and more downtime.

Common Failure Modes and Root Causes

Premature carrier failure frequently has multiple causes. Without appropriate rotational stiffness, pins flex too much, placing stresses on gear teeth' edges instead of dispersing them throughout the face width. Edge loading accelerates micropitting and tooth fracture. This happens when carriers aren't sturdy enough or built of excellent materials.

Dynamic runout generates vibration and cycle stress variations when the carrier axis and connecting shaft centerlines are misaligned. This is usually caused by poor installation or worn-out supporting bearings. Cracks form over time, particularly at stress risers like keyways or spline roots.

Abrasive wear on pins and bearings is accelerated by external or internal contaminants. Particles may enter the gear mesh if not sealed or screened. Three-body wear increases gaps and noise fast. The suitable seals and proper maintenance prevent this deterioration.

Strategic Procurement and Supplier Evaluation

Suppliers should be considered when finding OEM assembly or aftermarket carriers. CNC machining centers, gear grinding machines, and heat treatment facilities are assessed during manufacturing capacity review. Suppliers without the expertise may outsource critical processes, resulting in quality difficulties.

Quality certification shows your continuous approach and ongoing improvement. Business-specific standards show sophisticated expertise, whereas ISO 9001 sets minimum criteria. Important measurements like pinhole positioning and surface polish should be noted. Suppliers with coordinate measuring instruments and clear calibration instructions are more consistent.

Manufacturing skills and lead time management affect project timelines and material needs. YIZHI MACHINERY's normal manufacturing takes 35–60 days, depending on job complexity and order volume. Our production processes and strategic material inventory enable us to respond quickly to urgent requests. Low minimum order quantities and single-piece production enable prototyping and small batches without expensive setup expenses.

Customisation differentiates application-specific providers from cataloguers. Project success is guaranteed by full customization—analyzing needs, creating design drawings, controlling manufacture, assessing quality, packaging, and transporting. Technical assistance during design defines the carrier's needs to meet performance goals and reduce manufacturing time.

Conclusion

The Planet Gear Carrier is an important part of many industrial applications that need to send power quickly and efficiently. Its design has a direct effect on how the load is distributed, how long the system lasts, and how reliably it works. Knowing about carrier duties, materials, and design variations helps engineers and procurement workers make smart choices that improve gearbox performance while keeping costs low. Long-term value from these important parts is ensured by following the right maintenance procedures and choosing the right suppliers. Precision-engineered carriers that meet strict standards will continue to be an important part of progressing mechanical power transmission technology as industries need more complex transmission solutions.

FAQ

1. What factors most significantly affect carrier lifespan?

Service life is mostly determined by operating factors like load size, job cycle, and exposure to the environment. When compared to sporadic duty at modest loads, continuous operation near maximum rated torque speeds up the buildup of fatigue. Fatigue strength and wear resistance are directly affected by the quality of the material and how it is heated. Carriers made from fine alloy steels and properly carburized reach a surface hardness of 58 to 62 HRC, which is a lot harder than parts that weren't handled properly and last a lot longer. The quality of the lubrication and control of contamination have a big effect on how fast bearings and pins wear out.

2. Can carriers be customized for specialized applications?

Custom carrier design takes into account specific needs, such as non-standard sizes, special mounting interfaces, built-in sensors or lubrication features, and the choice of the right material for the job. The first step in the customization process is to analyze the customer's needs in order to understand their working conditions and performance goals. This is followed by engineering design that improves geometry for efficient manufacturing. Testing the design on a prototype lowers the risk in serious situations before going into full production.

3. How do I choose between fixed and floating carrier designs?

Fixed carriers work best in situations where the external alignment can be kept, and the highest level of torsional rigidity is needed. Fixed forms are often used in heavy industrial tools and mining equipment. Floating carriers help systems that have to deal with shaft movement, changes in heat expansion, or need to make the best use of load sharing in multi-stage setups. Even though they cost more at first, floating designs are better for wind turbines and precision machinery.

Partner With YIZHI MACHINERY for Precision-Engineered Planet Gear Carrier Solutions

YIZHI MACHINERY specializes in making custom Planet Gear Carriers for tough industrial uses all over the world. Our ISO-compliant quality systems and 15 years of production experience make sure that you always get carriers made to ISO 5-6 precision grades. Our wide range of materials includes 42CrMo, AISI4140, 18CrNiMo7, and special metals. We also use cutting-edge heat treatment methods such as carburizing and induction hardening. Our custom packaging with shock-absorbing liners keeps items from getting damaged during transport, and our multi-channel logistics, which include sea freight, air freight, and rail options, make sure that deliveries are always on time. Real-time shipment tracking lets you see the whole process from the plant to your location. As a Planet Gear Carrier Seller with a lot of experience, we help with projects from the first concept meeting all the way through production, quality control, and shipping around the world. Contact us at sales@yizmachinery.com to talk about your individual carrier needs and find out how our technical know-how can help your transmission system work better.

References

1. Lynwander, P. (1983). Gear Drive Systems: Design and Application. Marcel Dekker, New York.

2. Muller, H. W. (1982). Epicyclic Drive Trains: Analysis, Synthesis, and Applications. Wayne State University Press, Detroit.

3. Dudley, D. W. (1994). Handbook of Practical Gear Design and Manufacture. CRC Press, Boca Raton.

4. Budynas, R. G., & Nisbett, J. K. (2011). Shigley's Mechanical Engineering Design, Ninth Edition. McGraw-Hill, New York.

5. International Organization for Standardization. (2013). ISO 6336: Calculation of Load Capacity of Spur and Helical Gears. Geneva, Switzerland.

6. American Gear Manufacturers Association. (2004). AGMA 6123-B06: Design Manual for Enclosed Epicyclic Gear Drives. Alexandria, Virginia.
