How does a ball mill girth gear work?

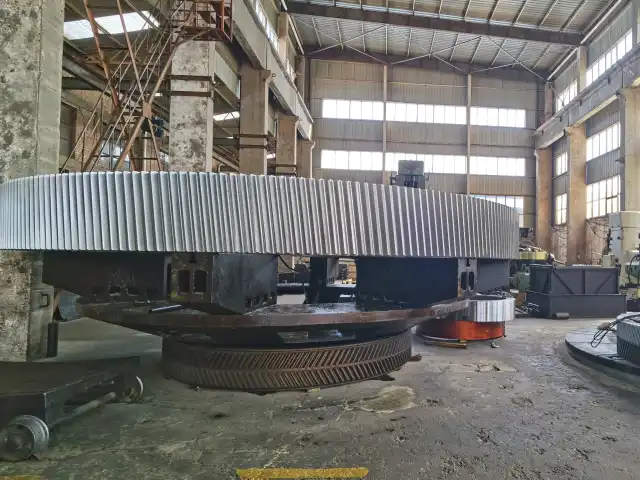

The Ball Mill Gear, also known as the size adapt or ring equip, is the enormous transmission portion that is joined to the exterior of the ball process shell. It interfaces with a drive pinion to send tall control from the engine, which permits the ball process to keep turning whereas crushing coal, mineral minerals, and cement clinker. This huge adapt, which is more often than not made as a goad or helical shape with partitioned parts, can handle torques higher than 5,000 kNm and can too twist and grow due to warm. Its durable plan and correct tooth geometry make beyond any doubt that control exchange works well in cruel situations like mining, building materials, and metallurgy.

​

Understanding the Function and Working Principle of Ball Mill Girth Gears

The smooth working of the girth gear system is essential for the ball mill to work. Knowing how this part works helps buying workers make smart choices that have a direct effect on how well operations run and how long equipment lasts.

The Fundamental Role of the Girth Gear in Ball Mills

A ball process circumference adapt encompasses the process shell and exchanges rotational control from the pinion equip to the barrel. This development lifts and drops the pounding media, permitting crude materials to be smashed through affect and contact. Steady revolution, ordinarily between 15 and 25 RPM, is fundamental for effective crushing execution. Any lessening in adapt effectiveness straightforwardly influences item fineness, throughput, and vitality utilization, making the circumference equip a key component in solid processing operations.

Mechanical Interface Between Girth Gear and Pinion

The Ball Mill Gear and pinion form a classic external gear transmission system. The smaller pinion rotates at high speed, while the larger girth gear delivers lower speed with greater torque for grinding operations. Typical gear ratios range from 4:1 to 6:1, allowing motors to run efficiently while producing the required force. Accurate alignment is essential because poor meshing causes uneven load distribution, vibration, and tooth wear. YIZHI MACHINERY manufactures gears to ISO 5–6 precision standards to improve stability, reduce vibration, and extend service life.

Types of Girth Gears: Spur Versus Helical

Spur and helical gears are the two primary circumference equip plans utilized in industry. Goad gears have straight teeth, making them simpler and more prudent to make, particularly for steady working conditions. Helical gears utilize calculated teeth for smoother engagement, lower commotion, and decreased vibration beneath overwhelming ceaseless loads. Fabric choice too influences toughness. YIZHI Apparatus employments amalgams such as 42CrMo, AISI4140, and 20CrNiMo with warm medicines counting carburizing and acceptance solidifying to accomplish hardness levels between 45 and 62 HRC for long-term wear resistance.

Common Problems, Failure Signs, and Maintenance Tips for Ball Mill Girth Gears

Mining and cement companies lose thousands of dollars every hour when their ball mills stop working for no reason. Knowing the early warning signs and following the rules for preventive repair will protect your investment and keep output going.

Identifying Critical Failure Signs

Abnormal grinding, squealing, or knocking noises often indicate lubrication failure, gear misalignment, or tooth damage. Uneven wear patterns such as pitting or scoring suggest improper load distribution or contamination inside the lubrication system. Excessive vibration may result from loose teeth, imbalance, or structural problems. Increased backlash can indicate mounting wear or thermal damage. Temperature monitoring is also important because hot spots on gear surfaces usually signal friction caused by poor lubrication or alignment issues. Thermal imaging inspections help identify these problems before serious operational damage occurs.

Practical Maintenance Recommendations

Effective maintenance programs combine regular inspections with proper lubrication practices. Open gear lubrication systems commonly use high-viscosity grease with extreme-pressure additives, applied weekly or monthly depending on operating conditions. Dust and grinding debris must be controlled because contamination accelerates wear. Tooth surfaces should be visually inspected every month, while dye-penetrant crack testing is recommended every six months. Annual dimensional inspections should confirm proper tooth contact patterns, ideally covering at least 70% of face width and 50% of profile height for stable gear performance.

Troubleshooting Common Girth Gear Issues

Accurate troubleshooting helps identify root causes and prevents unnecessary component replacement. Vibration analysis can distinguish between bearing and gear defects through different frequency patterns. Acoustic emission monitoring detects crack propagation before tooth failure occurs. Lubrication analysis reveals contamination levels and wear conditions that affect remaining service life. If unusual wear, sudden noise changes, or surface cracks appear despite proper lubrication, professional support is recommended. Experienced manufacturers such as YIZHI MACHINERY provide technical guidance based on extensive field experience to determine whether adjustment, repair, or replacement is required.

Comparing Ball Mill Girth Gears With Other Gear Types for Optimal Procurement Decisions

To make the best buying decisions, you need to know how the different parts of a gear system work together and how differences in design affect performance and cost.

Girth Gear and Pinion Gear Relationships

The Ball Mill Gear and pinion operate together as one transmission system. Their gear ratio controls mill speed and torque, with standard ratios generally ranging from 4:1 to 6:1. Material compatibility is also important. A hardened girth gear paired with a softer pinion allows the lower-cost pinion to wear first, reducing maintenance expenses because pinions are easier and cheaper to replace. Procurement teams should source both components together to ensure optimized tooth geometry, pressure angles, and matching performance characteristics under actual operating loads.

Helical Versus Spur Gear Performance Comparison

Spur gears are generally 15–20% less expensive because of their simpler manufacturing process. However, they generate higher noise and vibration levels due to sudden tooth engagement. In continuous-duty operations, this can shorten component life. Helical gears cost more initially but provide smoother engagement, lower vibration, and quieter operation. Noise levels can decrease to 75–85 dB, while vibration may drop by 30–40%. Improved transmission efficiency also reduces energy losses, allowing helical gear systems to recover additional investment costs through operational savings over time.

Material Analysis and Manufacturer Benchmarking

Material quality strongly affects gear strength and wear resistance. Cast steel materials such as ZG45 are suitable for lighter-duty applications, while forged alloy steels like 42CrMo and AISI4140 provide tensile strengths above 900 MPa and superior durability. Forged gears also benefit from grain structures aligned with tooth geometry, improving fatigue life. Leading manufacturers such as FLSmidth and Metso are known for extensive field experience and documentation. YIZHI MACHINERY offers ISO-compliant customized solutions with precision grinding and complete heat treatment processes while maintaining competitive pricing and shorter lead times.

Procurement Guide for Ball Mill Girth Gears: How to Choose and Buy Efficiently

A good buying process takes into account more than just the original price. Reliability, the ability to customize, and supplier support all have a big effect on the total cost of ownership.

Key Selection Criteria for Suppliers

Reliable suppliers should demonstrate certified quality management systems, advanced manufacturing equipment, and strong engineering capabilities. ISO 9001 certification is the basic requirement, while CNC gear hobbing, precision grinding, and controlled heat treatment facilities indicate higher production quality. Standard production cycles typically range from 35 to 60 days, although suppliers with material stock can shorten delivery times. Custom engineering support is also important for retrofit projects. YIZHI MACHINERY maintains complete technical records for every gear produced, enabling long-term support for installation, maintenance, and replacement requirements.

Understanding Cost Drivers and Negotiation Strategies

Raw materials generally account for 30–40% of finished gear costs, while machining, heat treatment, and inspection contribute another 35–45%. Understanding these cost structures helps buyers evaluate quotations more effectively. Bulk purchasing agreements, flexible specifications, and extended lead times can reduce overall costs. Combining orders for related components such as pinions and couplings also increases purchasing efficiency. During quotation development, YIZHI MACHINERY works closely with customers to identify cost-saving opportunities through optimized material selection, tolerances, and manufacturing methods without reducing required performance standards.

Quality Verification and Warranty Considerations

Strong inspection procedures are essential before accepting any gear shipment. Dimensional verification ensures tooth profiles, pitch, and lead remain within tolerance for proper load distribution. Non-destructive testing methods such as ultrasonic and magnetic particle inspections identify hidden defects or cracks. Material certificates should confirm chemical composition, hardness, and mechanical properties with full traceability. Blueing tests also verify correct tooth contact with the matching pinion. Warranty coverage varies by supplier, but comprehensive protection against manufacturing defects and heat treatment failures helps minimize operational risks and unexpected downtime costs.

Future Trends and Innovations in Ball Mill Girth Gear Technology

As technology keeps getting better, it changes how Ball Mill Gear are designed, made, and maintained. This gives operations chances to make them more reliable and cut costs.

Advanced Materials and Surface Treatments

Metallurgical study is making alloy formulas that work much better than standard materials. Micro-alloyed steels that contain vanadium and niobium have smaller grain structures that make them stronger and tougher without making the heat treatment process more complicated. Using powder metallurgy, you can make materials with hard, wear-resistant surfaces and tough, shock-absorbing cores. This lets you get the best qualities in a way that traditional processing can't.Surface engineering techniques make things last a lot longer. Physical vapor deposition coatings use very thin layers of ceramic that are only 2 to 5 microns thick. These layers are very hard and reduce friction by 40% and wear by up to 300% compared to gears that are not coated. Laser coating fixes worn tooth surfaces by adding wear-resistant alloys that fix the shape of the gears without having to buy new ones. These technologies change the economics of upkeep by turning expensive replacement projects into chances to fix things up.

Design Enhancements for Improved Performance

Computational design tools make improvement possible in ways that were not possible with older methods. Finite element analysis models how stress is distributed under real working loads. This helps find places to take material from that aren't under a lot of stress while strengthening areas that need it. This makes gears that are lighter, which lowers the inertial loads on drive systems while keeping power where it's needed. Topology optimization algorithms create organic forms that traditional design methods would never think of. They can sometimes reduce weight by 20–30% without affecting sturdiness.Changing the shape of teeth is another area of progress on the cutting edge. Traditional involute profiles assume that the mounting is stable and that the profiles are perfectly aligned, which is not always the case in real installs. Modern changes to micro-geometry include small topping or tip relief that makes up for deflections and misalignments. This keeps the best contact patterns even when things aren't perfect in the real world. These improvements cut down on noise, vibration, and wear while also adding 40 to 50 percent to the service life in tough situations.

Smart Monitoring and Predictive Maintenance Technologies

Adding monitoring technologies to tools for data analysis is changing the way maintenance is done. Wireless accelerometers attached to gear housings constantly check for shaking patterns. They compare real-time data with standard patterns to find problems weeks or months before humans would notice symptoms. Acoustic emission monitors can see cracks moving at tiny levels, which lets problems be fixed before they get too big.Using infrared panels or integrated thermocouples, temperature tracking systems can quickly spot lubrication problems or misalignment situations, sending out alerts before any damage happens. These systems connect to plant control networks and give maintenance teams detailed equipment health dashboards that show what needs to be changed based on its current state instead of a set schedule. The effect on the economy is big: companies that use predictive maintenance see 35–45% less unexpected downtime and 20–30% lower maintenance costs compared to those that use reactive or time-based methods.These technological improvements give B2B clients smart chances to set their businesses apart by making them more reliable and efficient. By working with providers who actively create and implement these new ideas, businesses can stay ahead of the curve and gain competitive benefits that go far beyond just lowering costs.

Conclusion

In conclusion, the Ball Mill Gear is a critical component that directly influences grinding efficiency, equipment reliability, and overall operating costs. Understanding its working principle, material options, maintenance requirements, and performance differences between gear designs helps buyers make informed procurement decisions. By selecting high-quality gears, implementing preventive maintenance, and embracing advanced monitoring technologies, companies can reduce downtime and extend service life. Partnering with an experienced manufacturer such as YIZHI MACHINERY ensures dependable Ball Mill Gear solutions that support long-term productivity, lower ownership costs, and improved performance in demanding industrial environments.

FAQ

1. What inspection intervals optimize girth gear reliability?

How often you inspect relies on how dangerous and important the operation is. Once a month, you should look at the sides of your teeth visually to see if they have any cracks, pits, or other signs of wear. For ongoing activities, detailed checks that include vibration analysis and dimensional proof work best every three months. Non-destructive tests and precise measurements should be part of yearly thorough assessments to keep track of wear trends and exactly predict how much service life is left.

2. What causes most Ball Mill Gear failures?

About 40% of early failures are caused by not enough grease, which lets metals touch each other and causes too much friction and heat. Another 30% is caused by misalignment between the girth and pinion gears, which leads to uneven load distribution and stress peaks. About 15% is due to flaws in the material or bad heat treatment. The other 15% is due to overloading, contamination, or mistakes made during installation. Taking these things into account through proper design, installation, and upkeep greatly increases the life of gear.

3. Can existing mills convert from spur to helical girth gears?

Technically, conversion is possible, but it needs to be carefully looked at by engineers. When you have different helix angles, you get axial thrust loads that spur gears don't have. This means that you might need to update your bearings or add thrust limits. Different tooth shapes may mean that center lengths need to be changed. Most of the time, the investment pays off for businesses that want to cut down on noise or improve efficiency. This is especially true when changing worn spur gears instead of switching functional units. Talking to experienced makers makes sure that the technical needs and cost-benefit studies are properly evaluated.

Partner With YIZHI MACHINERY for Superior Ball Mill Gear Solutions

YIZHI MACHINERY offers precisely built Ball Mill Gear solutions backed by 15 years of excellent manufacturing and full customization options. Our state-of-the-art factories have high-precision CNC gear machine centers and automatic grinding equipment. This lets us make gears with ISO 5-6 Grade accuracy from modules 0.5 to 50 in materials like 42CrMo, AISI4140, and 20CrNiMo. We offer full technical support from the first design meeting to final delivery, including reports on the progress of production, quality checks, and custom packaging that keeps the goods safe during shipping. As a reliable Ball Mill Gear seller, we offer short wait times (35 to 60 days) and don't require large minimum orders. In fact, we can make just one unit for urgent replacements or prototypes. Our one-year guarantee and quick response methods keep your business running smoothly. Contact us at sales@yizmachinery.com to talk about your unique needs and find out how our engineering know-how and flexible production options can help you improve your grinding processes while lowering the total cost of ownership.
