Herringbone Gear OEM Solutions for Industry

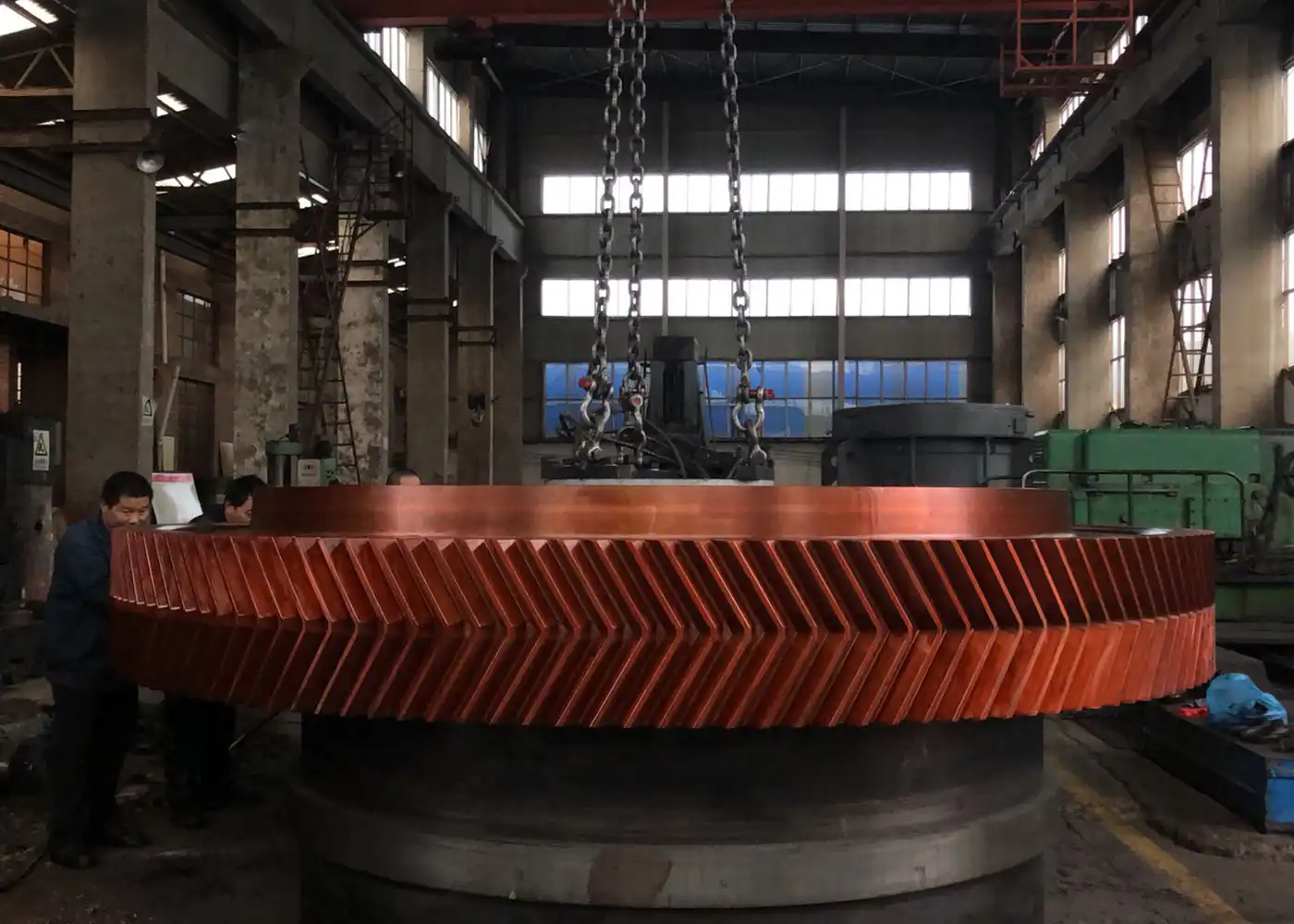

When industrial operations demand reliable power transmission under extreme conditions, Herringbone Gear Transmission emerges as the engineering solution that balances performance, durability, and operational efficiency. This specialized double helical gear system features opposing helix angles arranged in a distinctive V-shaped pattern, which eliminates axial thrust forces internally while delivering smooth, quiet operation. Industries spanning mining, aerospace, and heavy machinery rely on these transmissions to handle massive torque loads without the vibration and noise issues common in alternative gear configurations, making them indispensable for mission-critical applications.

Understanding Herringbone Gear Transmissions and Their Industrial Value

The Core Design Philosophy Behind Herringbone Gears

The main benefit of Herringbone Gear Transmission is that its teeth are equal. Single-helical gears move horizontally when they're working, but herringbone versions have left- and right-hand helices on the same gear body. This opposite design makes a self-balancing system that cancels out axial thrust. This gets rid of the need for heavy thrust bearings and makes the gearbox simpler. The constant tooth contact while the shafts are turning makes sure that power runs easily between them. This reduces shock loads that shorten the life of bearings and cause them to fail early in tough conditions.

Material Selection and Manufacturing Excellence

Modern creation of herringbone gears uses modern metals to meet high standards of performance. At YIZHI MACHINERY, we use high-quality alloy steels like 20CrMnTi, 40CrNiMo, SAE4340, and 18CrNiMo7, which are chosen based on the load needs and weather conditions of the job. Forging is used to make sure the structure is strong, precision hobbing and milling are used to make sure the tooth profiles are correct, and grinding is used to get ISO 5-6 grade precision. Using heat to treat metals, like carburizing, cooling and tempering, and induction hardening, can raise the surface hardness from 45 to 50 HRC for everyday use to 58 to 62 HRC for heavy-duty situations. This multi-stage process makes sure that each gear can handle cycle loads and keep its shape over long periods of time between servicing.

Comparative Advantages Over Alternative Gear Types

When comparing different ways to transfer power, herringbone gears are clearly better in a number of important ways. Spur gears are easier to use and cost less, but they make a lot of noise and can't handle high speeds without vibrating too much. Standard helical gears make less noise, but they put rotational loads on the housing, which makes it harder to build. Bevel gears are great at transmitting angles, but they can't handle the power that big industrial loads need. Herringbone Gear Transmission combines the smooth meshing benefits of helical gears with the load distribution benefits of wider face widths. It can produce noise levels 8–12 dB lower than spur gears and support torque densities that are 30–40% higher than bevel configurations in the same size envelope.

Key Considerations for Choosing the Right Herringbone Gear Transmission OEM Solution

Performance Specifications That Define Quality

To pick the proper Herringbone Gear Transmission, examine the functioning aspects. The torque number indicates whether a gear can bear high loads without breaking teeth. Our precision grinding procedures provide full-face contact patterns that appropriately distribute stress throughout the tooth profile. Tighter backlash tolerances reduce wasted motion in servo-driven devices but need greater manufacturing control. In aeroplanes and precision machinery, noise levels are regulated. The grade of heat treatment and material determines durability. Correct case hardening generates a robust core that can tolerate touch and a tough top layer.

Balancing Cost, Customization, and Lead Times

Professionals in B2B purchasing must fulfil technical criteria and reduce total cost of ownership. OEM solutions from YIZHI MACHINERY are versatile and fulfil real-world demands without adding complexity. Our modules, from 0.5 to 50, work with high-precision sensors and large mining vehicles. Change helix angles from 5° to 45° to obtain the optimal axial stiffness-load capacity balance. Custom tooth counts and face sizes for existing shaft designs save reworking costs. Because our production cycles run 35–60 days, we have reliable delivery schedules that leverage just-in-time manufacturing. After purchase, our one-year warranty and fast technical support will secure your investment.

Scalability for Evolving Production Demands

To adapt, organisations must adjust their communication strategies. Herringbone gear systems' scalability relies on OEM manufacturing. We have ample manufacturing capability to handle tiny prototype batches (we accept orders for one item for research and development) and big production runs that take advantage of scale savings. This independence is important for testing new equipment designs or boosting production following a successful product launch. Our normal customisation procedure includes requirements assessment, design approval, production machining, quality inspection, protective packaging, and delivery. This ensures quality regardless of order volume.

Optimizing Performance and Efficiency in Herringbone Gear Transmissions

Engineering Solutions to Common Operational Challenges

There are known performance limits for Herringbone Gear Transmission systems that can be fixed by using best engineering techniques. During high-speed action, heat builds up and breaks down the lubricant's qualities, speeding up wear. We fix this by making changes to the optimized tooth profiles that lower slide friction at mesh contact points. This cuts heat production by 15 to 20 percent. The way you lubricate is very important. Splash lubrication is fine for normal speeds, but for high-speed uses, you need pressurized oil delivery methods that keep the film width the same across the tooth flanks. Wear patterns show that there are problems with the alignment. Our precise production makes sure that the apex alignment stays within 0.02mm across the whole face width. This keeps the load from being unevenly distributed, which would put stress on just one helix.

Material Innovations Driving Durability Gains

Recent progress in gear forging has made it possible for herringbone patterns to be used in more situations. Vacuum-degassed steels, such as AISI4140 and 42CrMo, are much cleaner on the inside, so they don't have any flaws that could cause cracks. Controlled atmosphere heat treatment stops surface decarburization, which makes tooth roots less strong when they are bent. When you shot peen something, you leave behind positive compressive residual stresses that make it 40–50% more resistant to failure than parts that haven't been handled. When paired with precise grinding that achieves surface roughness below 0.8 Ra, these material treatments make gears that can work continuously for more than 50,000 hours, which is a lot longer than the usual 20,000 hours for heat-treated parts.

Installation Protocols and After-Sales Support

If you put a Herringbone Gear Transmission correctly, it will work as well as it was meant to. To keep edge loading from happening, the alignment of the shaft must stay within 0.05 mm across bearing spans. We provide thorough installation plans that show the key measurements and tolerance stack-ups. Noise levels and service life are both affected by the preload settings of bearings. Too much preload leads to more friction losses, while not enough preload lets the shaft move freely. Our expert consultation support walks customers through the first steps of setting up their systems, such as run-in routines that find the best contact patterns before the system goes into full-load mode. After installation, our synced production progress updates and quality inspection records create an audit trail that helps with efforts to make things better and settle guarantee claims.

Industry Applications and Case Studies of Herringbone Gear OEM Solutions

Power Generation and Heavy Machinery

Herringbone patterns are probably put to the most difficult test in steam engine reduction gears. High-speed turbine output—often more than 8,000 RPM—has to be slowed down to 1,500 to 3,000 RPM for generator connection while 50 MW or more of power is sent through small gearbox envelopes. Since Herringbone Gear Transmission doesn't have any axial thrust, it doesn't need the big thrust bearing assemblies that would take up important axial room and cause parasitic losses. We designed a unique system for a combined-cycle power plant requiring 18CrNiMo7 material and module 16 gears. It achieved 98.7% transmission efficiency and kept noise levels below 82 dB at full load, which met strict utility environmental standards.

Mining Equipment and Material Handling Systems

Normal gear teeth break because of wear cracking in conveyor drives and crusher gearboxes when they are hit with shock loads. A big mining company came to us because they needed new gears for their main crusher drive because they had been having trouble with gears from overseas suppliers. The analysis showed that the heart wasn't hard enough, which let it bend when hit. For our answer, we used SAE4340 steel that had been deeply carburized to a case depth of 1.8 mm. This made a hardness gradient that absorbs shock energy without causing the surface to chip. The new Herringbone Gear Transmission has been in use for 38 months without any unplanned repair. This is three times as long as the old setup, and it has also cut down on bearing failures caused by vibrations in equipment nearby.

Aerospace and Precision Manufacturing Applications

Positioning accuracy for machine tool wheels is measured in microns, so gears need to have very little backlash and stay thermally stable. A company that makes accurate aircraft parts needed a small transmission for their five-axis mill that could hold positioning repeatability within ±2 arc-seconds and give 200 Nm of power at 3,000 RPM. We made a custom 40CrNiMo herringbone set with module 3.5 that was ground to ISO 5 accuracy class and had special tooth changes made to it that took into account thermal expansion. The installation cut cycle times by 18% by allowing higher feed rates made possible by the smooth power delivery. At the same time, scrap rates dropped by 60% because finished aircraft parts had better surface finish consistency.

How to Procure High-Quality Herringbone Gear Transmissions: A B2B Buying Guide

Evaluating OEM Manufacturer Qualifications

To find qualified suppliers, you have to look beyond stated specs to see what the suppliers can actually make. ISO compliance is the starting point—reliable industry sellers keep ISO 9001 quality systems as the minimum requirement. Check out the process certifications more closely. Does the maker have heat treatment certifications that prove the right way to calibrate the oven and test the metal? Because we've been making things for 15 years, we have set up organized quality control processes that go above and beyond what is usually done. Using CMM profiling to check the apex alignment finds geometric mistakes that can't be seen with other checking methods. After grinding, a magnetic particle analysis finds flaws below the surface before they cause field problems. Testing the tooth contact pattern under virtual load conditions proves that designs that work in theory also work in practice.

Logistics Capabilities and Delivery Assurance

When you buy things from around the world, there are risks in shipping that can damage fine parts. These worries are taken care of by multi-layered protected boxes made just for shipping gear. Custom shock-absorbing cushioning layers keep damage from happening during handling, and precisely cut wooden boxes keep multiple parts in combined packages in the right place. Transport damage rates have dropped to below 0.1% thanks to our custom packing methods. This is a million times better than the average for the industry. Multiple shipping methods, such as sea freight, air freight, and rail services between China and Europe, give you the freedom to match the urgency of your arrival with your budget. Real-time order tracking systems send progress updates at every step, from loading the plant to delivering the last package. This gives procurement teams information that helps them plan production.

Building Sustainable Supplier Partnerships

Long-term ties for getting parts offer value that goes beyond one-time purchases. We base our relationship with you as a customer on knowing your business context, which includes not only your current needs but also your plans for future growth and changing technical requirements. This partnership method helped us build working relationships with many mechanical engineering companies that come back for more projects. Our standard OEM customization process makes project timelines that are reliable and work with your product development plans. Getting technical help during the planning process helps avoid making mistakes that cost a lot of money, and giving samples lets you make sure everything works before committing to large quantities of production. Post-delivery support includes methods for resolving problems that get tech resources to the scene of the problem within 24 hours of it being found. This keeps production from stopping too much.

Conclusion

Herringbone Gear Transmission technology is a stable but always-evolving answer to problems in industrial power transfer. Because these systems cancel out axial thrust, have a high power capacity, and run smoothly, they can't be replaced in situations where dependability directly affects how much money the business gets. Getting these theoretical benefits in real service situations depends on choosing the right OEM partner. Quality production methods, knowledge of materials, strict inspection routines, and a wide range of support services are what set good providers apart from great ones. As the needs for industrial equipment get stronger (higher speeds, higher power densities, longer service intervals), working with skilled Herringbone Gear Transmission makers becomes even more important for staying ahead of the competition.

FAQ

1. What makes herringbone gears different from standard helical gears?

The opposite helix angles are what make them unique. Left and right helices on the same gear body create rotational forces that cancel each other out. Standard helix gears create thrust loads that need extra bearing support, which makes the gearbox more complicated and bigger. This internal force is eliminated by herringbone shapes, which makes housing designs easier while keeping the smooth meshing properties that lower noise and vibration. True continuous herringbone gears don't have the center relief groove that double-helical designs do. This means that the useful face width is maximized, which means they can hold more weight.

2. How long does custom herringbone gear production typically take?

Production times rely on how complicated the order is and how long the production queue is at the moment, but for most special orders, it takes 35 to 60 days from approval of the design to shipment. This plan includes getting the materials, forging, precise machining using different techniques (such as hobbing, milling, and grinding), heat treatment cycles with cooling times, final inspection, and safe packing. If there is enough space, rush orders may be able to be processed faster. We give procurement teams synchronized production information throughout the cycle so they can keep an eye on shipping dates.

3. What surface hardness specifications are appropriate for different applications?

For general industrial uses with low duty cycles, 45–50 HRC surface hardness is usually enough to provide good wear protection and core toughness. For situations with a lot of stress or ongoing use, like mining tools, power plants, or heavy manufacturing, the hardness needs to be between 58 and 62 HRC. This can be achieved through case hardening processes. This makes a tough body that takes shock loads and a layer of material that doesn't wear down easily on top of it. The choice of material and the way it is heated must be in line with the hardness goals. We offer metallurgical consulting to help you find the best specs for your unique needs.

Partner with YIZHI MACHINERY for Your Herringbone Gear Transmission Needs

YIZHI MACHINERY can help you with your biggest power transmission problems because they have been making accurate gears for 15 years. Our wide range of services includes making double helical gears, unique mechanical solutions, and smooth global shipping. All of these are backed by quality systems that are ISO-compliant and the latest manufacturing technology. We have customers all over the world who work with industrial machinery, mining, and aircraft. We give them unique solutions that balance technical performance with business needs. Our flexible manufacturing method can meet your needs, whether you need a single sample for research and development (R&D) or a lot of them to keep your business running. Email our technical team at sales@yizmachinery.com to talk about your unique need. We can help you turn your transmission problems into competitive benefits because we are a reliable Herringbone Gear Transmission provider.

References

1. Dudley, D.W. (1994). Handbook of Practical Gear Design and Manufacture. CRC Press.

2. Stadtfeld, H.J. (2014). Gleason Bevel Gear Technology: Manufacturing, Inspection and Optimization. The Gleason Works.

3. ISO 1328-1:2013. Cylindrical gears — ISO system of flank tolerance classification — Part 1: Definitions and allowable values of deviations relevant to flanks of gear teeth. International Organization for Standardization.

4. AGMA 2015-1-A01. Accuracy Classification System — Tangential Measurements for Cylindrical Gears. American Gear Manufacturers Association.

5. Lynwander, P. (1983). Gear Drive Systems: Design and Application. Marcel Dekker Inc.

6. Shipley, E.E. (1967). Power Transmission by Gears. Machine Design Magazine Technical Series.
