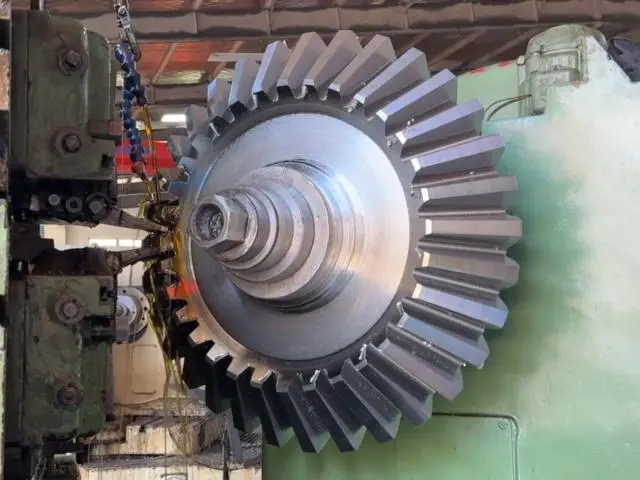

Gear Teeth Cutting: A Complete Guide to Precision Gears

When we talk about transforming forged or cast blanks into fully functional transmission components, Gear Teeth Cutting stands at the heart of that transformation. This specialized manufacturing process shapes precise tooth profiles on gear blanks through material removal, creating the intricate geometries that enable smooth, reliable power transmission. Whether you're managing a contract manufacturing operation or overseeing production for industrial machinery, understanding gear teeth cutting helps you make better outsourcing decisions and maintain competitive quality standards while controlling costs.

Understanding Gear Teeth Cutting: Process and Methods

Making accurate tooth profiles that fit together perfectly under load is what Gear Teeth Cutting is all about. It's not enough to just remove material; you need to make shapes that limit transmission error, lower noise, and increase load capacity across the tooth face width.

Core Principles of Precision Tooth Generation

There are two main ways that Gear Teeth Cutting works: generating and forming. Generating processes make tooth shapes by moving the cutting tool and workpiece together in a way that looks like gears meshing naturally. During the forming process, tools that are formed exactly like the tooth space are used to cut one gap at a time. Both ways are accurate, but they are used for different things depending on the amount of work being done, the type of gear, and the quality standards.

The choice of material has a direct effect on how well it cuts. We often work with 45# steel, 20CrMnTi, 40CrNiMo, and SAE4340, all of which have different machinability properties. Blanks that are softer, like 42CrMo (pre-hardened to about 280–320 HB), cut easily but need to be heated again afterward. For harder materials, you need carbide tools and parameters that are adjusted to keep the surface intact and stop the tools from wearing out too quickly.

Primary Cutting Methods and Their Applications

Outer hobbing fits spur and helical gears. Rotate the tool and workpiece to cut worm-shaped hobs. It supports 0.5–50 module vehicle gears and heavy-duty industrial engines. Hobbing is fast and precise, so we do it frequently. ISO 6-7 ratings are common for our projects.

Hub, shoulder, cluster, and flanged gears missing. Spin the workpiece, and the pinion-shaped cutter cuts vertical teeth steadily. Shaping is necessary for tough procedures when geometry restricts tool access, even if it takes longer than hobbing.

Milling prototypes and small quantities using formed cutters. Module and tooth count range cutters close one tooth gap every sorting cycle. It makes magnificent buildings but is too slow for mass production.

Carburising or chilling following heat treatment. After profile and production grinding remove 0.05-0.15 mm each side, surface hardness is 58–62 HRC and ISO 5–6 precise. Final-stage aeroplane actuators and correct instrument transmissions need micropitting resistance and noise reduction.

Factors Influencing Cutting Performance

The best cutting speed relies on the material of the item and the tools being used. We usually run hobbing machines at 80–120 m/min with covered carbide hobs for 20CrMnTi blanks, making sure that tool life and cycle time are equal. Depending on the size of the module and the surface finish that is needed, feed rates can be changed from 2.5 mm to 4.5 mm per turn of the part. Heavier feeds make the machine more productive, but they may leave chatter marks that need to be fixed by grinding again.

As an application gets more serious, tolerance standards go up. Most industrial transmissions accept DIN 7-8 quality, which can be reached by just hobbing. Differentials in cars need DIN 6 grade, which means that cutting conditions must be controlled and tools must be inspected regularly. For wind turbine planetary stages that are constantly under a lot of stress, they need to be DIN 5 quality through post-hardening grinding, which gets rid of pitch variations smaller than 8 microns.

Comparing Gear Teeth Cutting Techniques for Informed Decision-Making

Picking the right method for making teeth affects both the short-term costs and the long-term performance of the part. Knowing the difference between these terms helps production managers choose outsourcing partners who have the right skills.

Accuracy and Finishing Trade-Offs

Proper hobbing guarantees precise pitch and profile, with F± errors typically within 8-12 microns for intermediate modules. Tool marks—fine helical lines around the tooth flank—may need to be ground off for silent applications.

Gear teeth cutting forms change surface qualities while moving. In difficult grinding planetary systems, intermittent cutting smooths and hides internal ring gear tool marks. Profile accuracy equals hobbing; however, output is 40% slower.

Hardened gears are ground precisely. Profile grinding repeatedly shapes teeth and maintains surface roughness below 0.4 microns. Subsurface tensions cause micropitting under boundary lubrication. This last method restores concentricity after heat treatment.

CNC vs. Manual Machine Considerations

These days, CNC gear cutting centers can do hobbing, chamfering, and deburring all in one setting. This cuts down on handling time while keeping the tools in the same place. These machines can instantly fix worn-out tools, change cutting settings based on real-time tracking, and save programs for repeat production. These are all big benefits when working with tight tolerances on batches of 50 to 500 pieces.

Manual machines are still useful for making prototypes and fixing things. Operators with a lot of experience change feeds, speeds, and cutting levels based on sound, chip formation, and the way the surface looks. This is useful when working with new materials or shapes that aren't standard. But when tasks are done by hand, there is variation between workers and shifts, which makes quality control harder for precision parts.

Software Tools Enhancing Cutting Accuracy

Before production starts, simulation software figures out what the cutting forces, tool deflection, and thermal expansion will be. These tools determine the best hob positioning angles, change the relief angles for certain helix angles, and simulate chip evacuation paths that keep you from having to recut. When we talk to clients about difficult projects, we use these examples to show that the process is possible and to find potential problems before investing in new tools.

When used with coordinate measuring machines (CMMs), measurement software can do a full inspection of a gear, looking at things like involute profiles, helix deviations, and tooth thickness variations across the whole part. This method is based on data and finds regular mistakes like moving tool offsets, thermal growth patterns, and fixturing inconsistencies so that they can be fixed before whole batches are made that don't meet specifications.

Gear Teeth Cutting Applications Across Industries

Gear tooth accuracy, surface cleaning, and material qualities are all needed in different industries in different ways. Knowing about these differences helps match the production skills with the needs of the program.

Automotive and Aerospace Precision Requirements

Speedy and affordable automotive transmissions are created. Passenger automobile gearboxes commonly state DIN 6-7 quality and 58–60 HRC surface hardness after case carburising. Due to heat treatment warping, cutting must leave enough stock (0.08–0.12 mm per side) for completing grinding without wasting material.

Aerospace applications must be consistent. 100% of flight control actuator gears are examined, and every measurement is traceable. These pieces are made from vacuum-melted AISI 9310 or 17CrNiMo6. We maintain profile errors below 5 microns by managing work area temperature and statistically monitoring the process. Cutting is only one step in a quality chain that begins with material certification and finishes with magnetic particle inspection.

Heavy Machinery Durability and Post-Cutting Treatments

Mining and construction gears suffer shock loads, abrasive impurities, and intermittent lubrication, which prioritise tooth root strength and surface durability above precision. Quenched and tempered alloys like SAE4340 or 42CrMo are usually utilised to create these gears. The tooth surfaces of these gears are hardened by flame or induction after cutting, and the cores are hardened to 280 to 320 HB.

Making teeth for large gears presents challenges. Large modules (15–50) need stiff machines with powerful spindle motors to cut. We utilise climb hobbing on hardened blanks to increase surface quality and reduce tool loading. The hob lasts longer. Shot peening removes compressive stress after cutting, and blackening or hard chrome protects against corrosion outside.

Plastic Gear Considerations and Special Machining

Machining consumer items and light-duty engine thermoplastic gears presents different challenges. Acetal, nylon, and polycarbonate stretch when cut and transfer heat poorly. Conventional cutting generates too much heat, melting the material instead of shearing it. This causes roughness and instability.

These issues may be resolved with specialised cutting. Sharp, polished cutting edges reduce cutting forces. Heat escapes between passes at 20–40 m/min and with intermittent feeding. Selecting the appropriate coolant is crucial. Air blast cooling stabilises portions swollen by water-based fluids. Dimensionally, plastic Gear Teeth Cuttings are less precise than metal ones. Average tolerances decrease to DIN 8-9, which is adequate for low-stress plastic gear applications.

Post-Processing and Maintenance Essentials

After cutting, deburring removes sharp edges that may cause stress and injury. Thermal, vibratory, and mechanical deburring wheels work for distinct parts and output numbers. Deburring is essential to cutting; thus, it's not an accident. Due to burr form, heat treatment and coating stickiness are directly affected.

Regular maintenance maintains cutting precision across thousands of manufacturing cycles. Hobbing machines should have their spindle alignment checked weekly, gear train backlash assessed monthly, and accuracy tested every three months using master gears. How frequently you examine cutting tools depends on material hardness and production. Carbide hobs for normalised steel can manufacture 800–1200 pieces before resharpening. Preventive maintenance schedules prevent accuracy from steadily declining, which may not be noticed until many rejected parts accumulate.

Procuring Gear Teeth Cutting Solutions: Equipment, Services, and Suppliers

To choose between in-house and outsourced gear cutting services, one must carefully consider the amount of work that needs to be done, the availability of cash, and the level of professional knowledge. Many companies that can forge or cast find it more strategic to work with suppliers that specialize in cutting gears instead of buying their own equipment for making teeth.

Equipment Selection Criteria

Equipment purchases depend on productivity. Leasing is cheaper than purchasing, installing, and maintaining idle hobbing equipment for enterprises that manufacture fewer than 5,000 gears. Medium-volume enterprises that generate 5,000 to 50,000 pieces may use CNC hobbing equipment for modules and tooth counts. Some big automakers can afford multi-axis transfer machines for particular gear families to improve throughput and changeover time.

Machine compatibility depends on module range and diameter. Standard industrial hobbers can handle 1–8 modules and 400 mm widths, plenty for most automobiles and machinery. Mining and energy need heavy-duty equipment with sturdy constructions and motor systems for larger units. YIZHI MACHINERY tools can handle 0.5–50 mm modules, including instrument gears and industrial components. We can fulfil all customers.

When Outsourcing Makes Strategic Sense

By outsourcing teeth cutting, forging, and casting, companies may focus on their competencies and get gear machining services. This method works when seasonal production or project-based demand makes capacity needs unclear. Flexible workers and less equipment save money.

Another reason to outsource is technical competence. Coding, fixture design, and problem-solving are needed to make precise gears. It takes years to master these skills. Working with well-known gear cutting businesses lets you use their skills instantly. This eliminates costly learning mistakes. We provide material options that save money without sacrificing performance and heat treatment procedures that decrease distortion to assist our customers in cutting better.

Sourcing Affordable, High-Quality Tooling

Cutting tools considerably affect costs. Premium European hobs cost two to three times more than Asian ones but last longer and are better. A quality hob that can manufacture 1,500 pieces before having to be resharpened costs less per piece than a cheap tool that has to be changed after 600 pieces, although costing more upfront.

Tools last longer when repaired and re-coated. Before losing its tooth form, a carbide hob may be resharpened three to five times. Resharpening with modern coatings (TiAlN, AlCrN) costs 40% less than a new tool. We work with dependable tool vendors that know our production needs and can supply tool specs for each material and quality objective.

Identifying Trustworthy Suppliers and Partners

Assessing supplier pricing, expertise, quality, and communication reliability. Machinery listings, inspection equipment stocks, and quality certificates show manufacturing infrastructure. On-site inspections show how workplace organization, equipment maintenance, and operator skill affect production.

Before significant purchases, samples establish expectations. Detailed evaluation of 5–10 goods evaluates vendor competence. Misreading design tolerances, not having fittings, or not having adequate measurement equipment are found during this two- to four-week inspection before tossing away hundreds of pieces.

Location balances tech and transit costs. Local shops respond swiftly and reduce shipping expenses. International partnerships bring skills and resources unavailable at home. Due to lengthier lead times and communication issues, they must be scheduled. YIZHI MACHINERY combines sea, air, and rail freight to meet delivery goals and budgets. Transit users receive real-time cargo tracking.

Automation and Industry 4.0 Integration

Gear manufacturing uses automatic loading systems, robotic part handling, and built-in measurement devices to save labour and improve consistency. Lights-out manufacturing increases equipment use by producing during shifts without workers. These features are important for mass production because labour costs impact piece price.

Data connectivity provides predictive maintenance and process improvement. To forecast and avoid errors, advanced analytics software evaluates linked machine data, including spindle loads, sound patterns, and temperature during operation. Reducing unplanned downtime that impacts supply plans is proactive. Process data shows how to improve things like preserving tools or reducing run time without sacrificing quality.

Conclusion

Through carefully controlled processes of removing material, Gear Teeth Cutting turns forged and cast blanks into precise transmission parts. Learning the differences between hobbing, shaping, milling, and grinding helps buying workers choose manufacturing partners who have the right skills for their needs. The performance, longevity, and cost-effectiveness of the finished part are all affected by the material choice, the tolerance standards, and the treatments done after cutting. It doesn't matter if you're looking for external gears for car transmissions, internal ring gears for planetary sets, or large-module gears for heavy machinery. Matching production methods with application needs will get you the best results while keeping costs low.

FAQ

1. What is the difference between gear hobbing and gear shaping?

Hobbing uses a worm-shaped cutter that rotates and makes teeth by moving continuously. This makes it a very useful method for making spur and helical gears that go on the outside. For shaping, a pinion-shaped cutter that moves back and forth creates teeth by making short vertical strokes. This is needed for internal gears or gears with shoulder constraints that can't be reached with hobbing tools. Hobbing usually works on parts more quickly, but it can't get to tight shapes that shaping can.

2. Can gear teeth cutting be performed after heat treatment?

It is called hard grinding or hard skiving to cut gears that have been heat treated and then hardened. This method fixes any flaws that happened during carburizing or cooling on blanks that are hardened up to 62 HRC. It achieves DIN 6-7 quality while cutting cycle times by a large amount compared to grinding. This process is made possible by specialized carbide tools and rigid machine building. It is becoming more and more popular in the aircraft and automotive industries for jobs that need to be both hard and precise.

3. How do I select the best cutting method for steel gears?

The choice is based on the type of gear, the amount being made, and the level of accuracy needed. When there are medium to high amounts of external gears, hobbing is the most productive method. Even though cycle times are slower, shaping is needed for internal gears or complex parts. Milling is a flexible tool that works well for prototype and low-volume work. Grinding is needed as a closing step after heat treatment for jobs that need a surface hardness of more than 58 HRC and precise grades ISO 5-6. Talking to suppliers of gear cutting tools with a lot of experience can help you find the best methods for your needs.

4. What maintenance keeps gear cutting equipment operating efficiently?

Spindle runout checks should be done once a week, gear train backlash tests should be done once a month, and full accuracy checking should be done every three months using calibrated master gears. How often you check your cutting tools depends on how hard the material is. For example, carbide hobs can usually cut between 800 and 1200 pieces before they need to be resharpened. Mechanical parts are kept in good shape by keeping an eye on the coolant content, maintaining the filtration system, and sticking to the lubrication plan. Regular maintenance costs a lot less than fixing things when they break, and it keeps quality problems from happening that cause whole production batches to be thrown out.

Partner with a Trusted Gear Teeth Cutting Supplier

YIZHI MACHINERY has been helping manufacturers cut precision gears for their forged and cast blanks for 15 years. We can work with modules ranging from 0.5 to 50 and have ISO 5-6 grade accuracy. We have advanced CNC hobbing centers, precision grinding equipment, and full heat treatment facilities that include quenching, carburizing, and induction hardening. When production managers outsource tooth cutting, the things that matter most to them are making sure that the sizes are the same from batch to batch, keeping intellectual property safe with strict privacy rules, and giving you predictable lead times of 35 to 60 days that work with your production schedules. Our custom packing with shock-absorbing padding and special wooden pallets keeps damage rates during transport below 0.1%. Our multi-channel logistics choices find a good mix between speed and cost-effectiveness. Whether you need a single prototype or ongoing production support, processing blanks in materials ranging from 45# steel to SAE4340, we keep you informed of progress in real time and offer technical advice when you need it. Contact us at sales@yizmachinery.com to talk about your unique gear teeth cutting needs and see all of our services.
