Gear Teeth Cutting

Precision Gear Teeth Cutting Solutions for Industrial Applications

Henan Yizhi Machinery Co., Ltd. specializes in enterprise-grade Gear Teeth Cutting administrations, conveying extraordinary exactness with ISO 5-6 review exactness. Our progressed fabricating capabilities incorporate fashioning, cutting, hobbing, processing, and pounding forms. With 15 a long time of generation involvement, we handle module ranges from 0.5-50 and accomplish surface hardness of 58-62 HRC. Our standardized workflow guarantees 35-60 day conveyance times whereas keeping up transport harm rates underneath 0.1%. We serve machine apparatus axles, accuracy instrument transmission frameworks, and automated joints.

What is Gear Teeth Cutting?

Our product represents a specialized fabricating handle that makes exact tooth profiles on equip spaces. This subtractive fabricating procedure employments creating forms like hobbing and forming to accomplish high-tolerance micro-geometry.

Unlike essential shaping strategies, equip teeth cutting conveys uncommon precision. You get exact involute profiles that guarantee ideal control transmission. The handle characterizes transmission proficiency and load-carrying capacity for your applications.

Our cutting strategies unravel basic industry challenges. We dispose of transmission mistakes caused by pitch deviations. Your gears will have diminished acoustic clamor and made strides surface wrap up quality.

Technical Specifications

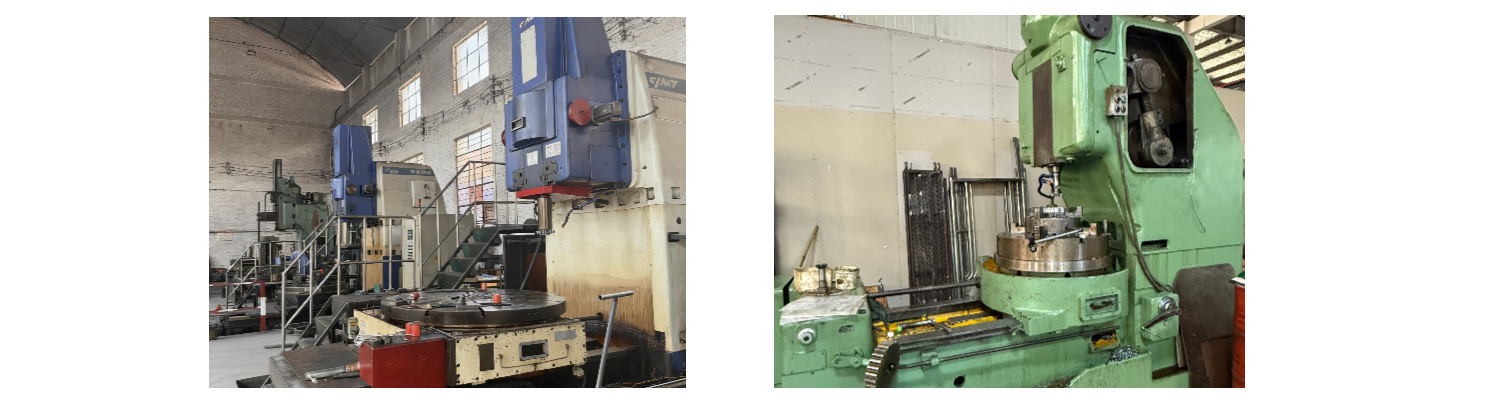

Manufacturing Processes

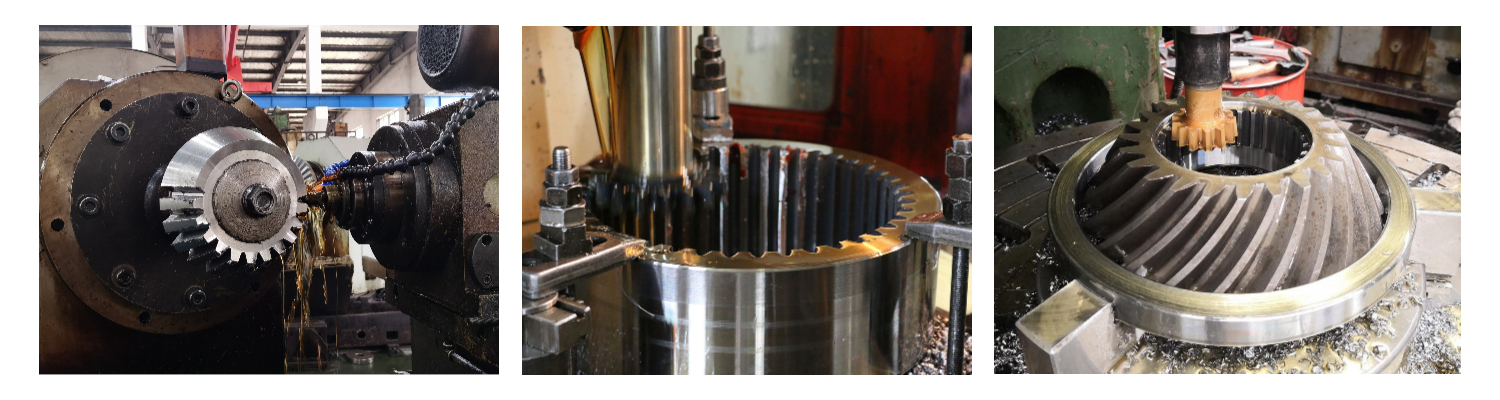

Core Cutting Methods

We utilize different cutting methods for ideal comes about. Hobbing gives ceaseless era for outside gears with tall efficiency. Forming handles inside gears and complex geometries where clearance is limited.

Our processing operations make custom tooth profiles. Crushing conveys predominant surface wrap up for requesting applications. Each prepare is chosen based on your particular requirements.

Heat Treatment Options

Our warm treatment administrations upgrade adapt performance:

• Carburizing: Increments surface hardness whereas keeping up center toughness
• Quenching and Treating: Optimizes strength-to-weight ratios
• Induction Solidifying: Gives specific solidifying for particular wear zones

Surface Finishing

We offer proficient surface treatments:

• Blackening: Gives erosion resistance and progressed aesthetics
• Hard Chrome Plating: Conveys uncommon wear resistance and dimensional stability

Material Selection

Our extensive material portfolio includes:

• Carbon Steels: 45# steel for general applications
• Alloy Steels: 20CrMnTi, 40CrNiMo, 42CrMo for enhanced strength
• International Standards: SAE4340, AISI4140, AISI8620, SAE4320
• High-Performance Alloys: 18CrNiMo7, 17CrNiMo6, 20CrNiMo, 20CrNi2Mo

Each fabric is chosen based on your application prerequisites. We consider components like stack capacity, working environment, and solidness needs.

Key Advantages

Precision and Efficiency

Our item conveys uncommon control transmission effectiveness. You advantage from tight resiliences that diminish vitality misfortunes. Exact tooth geometry guarantees smooth operation and expanded benefit life.

Customization Capabilities

We give comprehensive customization administrations. Your one of a kind details are obliged through adaptable fabricating forms. Single-item generation is acknowledged nearby expansive volume orders.

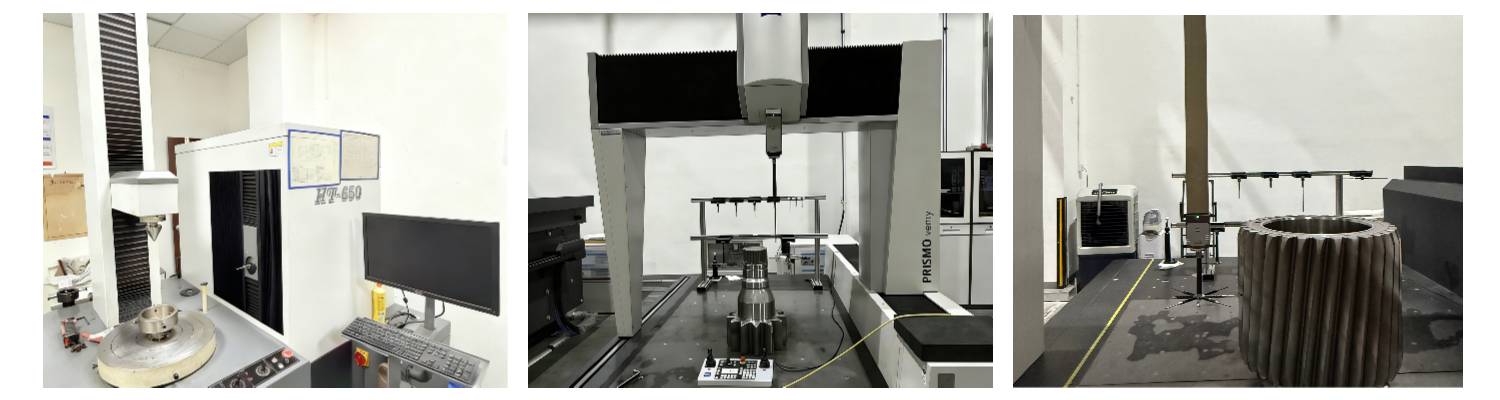

Quality Assurance

Our quality control process includes:

• Coordinate Measuring Machine (CMM) verification
• Surface temper inspection using Nital Etch testing
• Magnetic Particle Inspection (MPI) for crack detection
• Contact pattern analysis through rolling tests

Durability and Reliability

Heat-treated gears illustrate uncommon solidness. Your hardware works dependably beneath requesting conditions. Appropriate metallurgical treatment anticipates untimely disappointment modes.

Applications

Our Gear Teeth Cutting serves diverse industries:

Machine Device Shafts: High-precision cutting requests precise equip profiles. Our fabricating guarantees negligible runout and ideal control transmission.

Precision Instrument Transmission: Research facility and estimation gear requires uncommon precision. We convey gears that keep up exactness over amplified working periods.

Robotic Joints: Computerization frameworks require dependable, low-backlash components. Our cutting forms make gears reasonable for servo applications.

Wind Turbine Gearboxes: Large-module gears handle enormous torque loads. Our hobbing and pounding capabilities create components for renewable vitality applications.

Quality Control Standards

We keep up thorough quality guidelines all through generation. Essential equip review utilizes progressed measuring centers. Surface keenness testing guarantees metallurgical prerequisites are met.

Our assessment prepare confirms profile exactness, lead deviation, and pitch consistency. Contact design examination affirms legitimate coinciding characteristics. Each equip meets universal benchmarks for your particular application.

Service Support

Pre-Sales Support

Our specialized group gives plan discussion and drawing advancement. We help with fabric choice and prepare optimization for your particular requirements.

Production Monitoring

Real-time advance overhauls keep you educated all through fabricating. Quality assessment reports archive compliance with your specifications.

After-Sales Service

We give one-year guarantee scope with quick reaction for issue determination. Our specialized back group remains accessible for meeting and troubleshooting.

Frequently Asked Questions

Q: What cutting methods do you use for different gear types?

A: We utilize hobbing for outside goad and helical gears due to tall efficiency. Forming is utilized for inner gears or components with bear limitations where hobbing apparatuses cannot clear the workpiece.

Q: Can you perform cutting on hardened materials?

A: Yes, we offer hard machining capabilities up to 62 HRC. This process corrects heat-treatment distortions while maintaining DIN 6-7 quality grades, significantly reducing cycle times compared to grinding.

Q: How does module size affect your cutting approach?

A: Little modules beneath 1mm utilize fine hobbing or rolling strategies. Medium car modules (1-6mm) utilize hobbing and skiving. Expansive modules over 10mm require heavy-duty slicing taken after by shape grinding.

Q: What surface roughness can you achieve?

A: For common mechanical applications, we accomplish Ra 1.6-3.2µm. High-performance car and aviation gears get extra crushing or cleaning to reach Ra 0.2-0.4µm for diminished grinding and micropitting resistance.

Q: How do you control gear noise during cutting?

A: Commotion control includes optimizing micro-geometry counting tip help and delegated amid cutting or wrapping up stages. These adjustments compensate for tooth avoidance beneath stack, avoiding difficult contact amid work section and exit.

Contact Us

Ready to discuss your Gear Teeth Cutting requirements? Contact our technical team at sales@yizmachinery.com for detailed consultation and quotation.
