Gear Grinding for Precision Gears and When to Use It

Gear Teeth Grinding represents the premier hard-finishing process utilized in precision manufacturing to machine gear tooth flanks to exact final dimensions after heat treatment. This abrasive machining technique corrects distortions inevitable during the hardening process, ensuring the gear geometry meets stringent micro-geometric tolerances. Unlike soft-machining methods, grinding employs specialized wheels to remove material from hardened surfaces, typically achieving surface hardness levels of 58–62 HRC. Ideally suited for high-performance transmission systems, this process addresses critical industry challenges including noise and vibration issues in drivetrain systems, premature contact fatigue failure caused by surface irregularities, and transmission inefficiencies arising from pitch and profile errors that compromise operational reliability and longevity.

​

Understanding Gear Grinding and Its Importance for Precision Gears

The process of making gears in tough industrial settings has changed a lot because of Gear Teeth Grinding. We at YIZHI MACHINERY have seen how this finishing process bridges the gap between making standard gears and meeting the demanding needs of aircraft, mining, and industrial machines. The difference isn't just how it looks on the outside; it's also in how well it works, which has a direct effect on your business bottom line.

Why Gear Grinding Outperforms Traditional Methods

Traditional gear manufacturing methods such as hobbing and shaping are effective for rough machining but cannot achieve the precision required after heat treatment. Gear Teeth Grinding removes controlled amounts of hardened material to correct deformation and restore accurate tooth geometry. This process produces smoother contact surfaces that improve lubrication film formation and reduce wear during operation. Poor surface finish often causes misalignment and premature component failure in industrial equipment. Precision ground gears maintain tighter tolerances, better load distribution, and longer service life, especially in mining and heavy-duty machinery exposed to severe operating conditions.

Surface Finish Quality and Tolerance Control

Gear Teeth Grinding significantly improves surface finish and dimensional stability for high-performance gear systems. Surface roughness values below Ra 0.4 µm and Rz 3.0 µm reduce friction, vibration, and heat generation during operation. Tight tolerance control is especially important for machine tool spindles and high-speed transmission systems where deviations greater than 0.01 mm can reduce performance. Advanced coolant delivery systems and temperature monitoring prevent grinding burn and thermal damage. Careful process control ensures that materials such as 42CrMo, SAE4340, and 18CrNiMo7 maintain their designed hardness, strength, and residual stress characteristics after finishing.

When to Use Gear Grinding: Key Scenarios and Applications

To figure out when Gear Teeth Grinding is important instead of just helpful, you need to know what the application needs. Precision grinding is not necessary for all gears, but in some operational situations it is necessary to meet performance goals and lifetime standards.

High-Speed and Heavy-Load Applications

Aerospace gearboxes and mining equipment require Gear Teeth Grinding because these systems operate under extreme mechanical and thermal stress. Aircraft gears made from materials such as 20CrNiMo and AISI8620 must maintain precise tooth geometry and hardness levels between 58 and 62 HRC to ensure safe operation. In mining applications, large-module gears face heavy shock loads and abrasive contamination that quickly expose manufacturing defects. Precision grinding improves load distribution across tooth surfaces, reducing micropitting and spalling. Companies using Gear Teeth Grinding often achieve significantly longer service life and lower operating costs in demanding industrial environments.

Noise-Critical Transmission Systems

Noise-sensitive machinery depends on Gear Teeth Grinding to achieve smooth and quiet operation. Precision robots, automatic assembly equipment, and electric motor transmissions require minimal transmission error to prevent vibration and unwanted noise. Grinding reduces deviations in gear tooth geometry that would otherwise create irregular meshing motion and audible gear whine. High-speed gears operating above 10,000 RPM especially benefit from advanced grinding modifications such as tip relief, root relief, and crowning. CNC-controlled Gear Teeth Grinding allows engineers to optimize tooth contact patterns under load, improving both acoustic performance and overall transmission durability in precision systems.

Gear Grinding Techniques and Best Practices for Precision Gears

How well Gear Teeth Grinding works varies a lot on which method is used and how the process is carried out. There are different ways to grind, and each has its own benefits for different gear shapes and output rates.

Profile Grinding Versus Generation Grinding

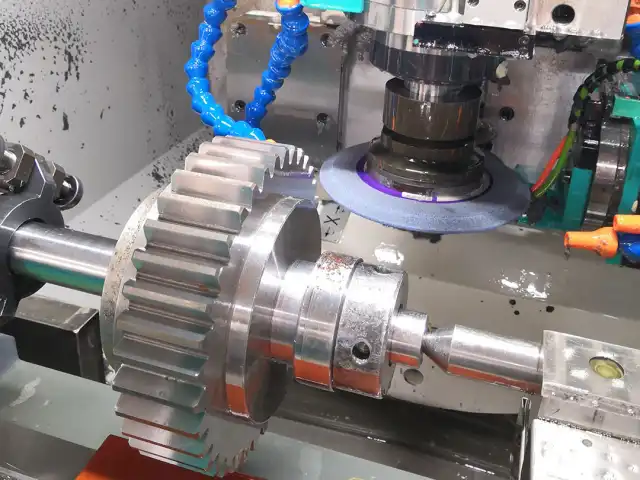

Profile Gear Teeth Grinding uses specially shaped grinding wheels to machine each tooth space individually, making it ideal for prototypes, internal gears, and customized large-module designs. This method supports flexible production with minimal tooling changes for gears ranging from small to very large modules. Generation Gear Teeth Grinding uses threaded grinding worms that continuously mesh with the workpiece, offering higher productivity for medium and large production volumes. CNC-controlled systems carefully manage material removal allowances after heat treatment, typically between 0.2 mm and 0.4 mm per flank, to eliminate distortion while avoiding thermal damage and excessive cycle times.

Process Optimization and Quality Control

Successful Gear Teeth Grinding depends heavily on machine maintenance, wheel dressing, and strict process monitoring. Grinding wheel dressing restores cutting efficiency and prevents excessive pressure that may cause grinding burn or surface damage. Dressing frequency depends on material hardness, grinding parameters, and production requirements. Comprehensive quality control systems inspect tooth profile accuracy, lead deviation, and surface roughness using high-precision measuring equipment. Early detection of process drift prevents defects from spreading through production batches. Maintaining stable process conditions helps manufacturers achieve ISO-compliant quality standards while ensuring long-term reliability, dimensional consistency, and high-performance gear operation.

Selecting Gear Grinding Solutions: Machines and Services for B2B Procurement

Choosing where to buy Gear Teeth Grinding services and tools has a big effect on both the short-term success of a project and its long-term ability to run. The review method should find a balance between the need for precision and the need for production rate, while also taking into account the total cost of ownership.

Equipment Evaluation Criteria

Modern CNC Gear Teeth Grinding centers are very accurate and can be automated, which makes them worth the money for jobs that need regular high-quality output. When choosing tools, you should pay close attention to the level of automation. For example, automatic loading systems, in-process measurement, and adaptive control all cut down on labor costs while making accuracy better. The fully automated Gear Teeth Grinding machines and high-precision CNC gear machining centers in our building show how this integration works. It's what lets us keep our production times between 35 and 60 days, even for complicated special orders.

When choosing tools, you should make sure it works with the shapes and size ranges of the gear you already have. For example, machines designed for car gears might not have the strength or capacity needed for big mining equipment gears, and aerospace-specific Gear Teeth Grinding centers might not be the best use of money for general industrial uses. Our production equipment is set up to handle modules from 0.5 to 50, so we can meet the needs of customers in industrial machinery, mining, and aircraft without having to sacrifice quality or capability.

Outsourcing Custom Grinding Services

For many procurement pros, hiring the Gear Teeth Grinding is a better option than buying new equipment. Custom Gear Teeth Grinding services let you use specialized skills without having to worry about owning the equipment, knowing how to maintain it, and making sure that the full capacity is being used. Expertise verification should check the material experience of Gear Teeth Grinding service providers. Working with alloys like 40CrNiMo, AISI4140, and 17CrNiMo6 needs process knowledge that keeps the metal's purity and stops grinding burn.

A production capacity estimate makes sure that the service providers can meet your number needs in a reasonable amount of time. With 15 years of experience making specialized gear, we've built capacity management systems that regularly deliver finished parts within the promised 35–60 day window. These systems are backed up by synced production progress updates that keep everyone in the loop throughout the manufacturing cycle. Having access to technical advice during the planning phase is very helpful because it helps improve both performance and ease of manufacture before committing to production tools.

Cost-Effective Gear Grinding Strategies and Procurement Tips

Every procurement worker who has to make decisions about where to buy gear has to deal with the problem of balancing a need for precision with a limited budget. When it comes to Gear Teeth Grinding procurement, strategic methods aim to minimize the original purchase price while also maximizing the total cost of ownership.

New Equipment Versus Service Provider Economics

Whether to buy Gear Teeth Grinding equipment or hire service providers depends on how much you can predict your production rate and how technically skilled you are in-house. It makes economic sense to own equipment when the annual number is high enough to justify the investment in capital and your company has the maintenance skills to keep the equipment running well. Aside from the purchase price, other things to think about in a lifecycle are the costs of consumables like Gear Teeth Grinding wheels, coolants, and dressing tools, as well as the costs of preventative upkeep and the final end of a technology's usefulness.

When you hire a service provider, these duties are given to them, and you may be able to use more advanced tools than your own budget would allow. Our custom services are set up to handle both large-scale production runs and small prototype amounts. Our price models take into account the economies of scale that come with bigger orders while still making them affordable for production of a single item. This adaptability helps buying tactics at all stages of a project, from testing the first prototype to putting the whole thing into full-scale production.

Building Reliable Supply Partnerships

Long-term ties with suppliers based on technical know-how and reliable shipping add value that goes beyond transactional cost savings. When you contact a provider, be sure to include all of your application requirements, such as load conditions, speed ranges, and weather factors that affect gear specification. This clarity lets you choose the right material—like 45#steel, 20CrMnTi, or SAE4320 depending on the performance needs—as well as the right surface finishing, like blackening, phosphating, or hard chrome plating.

Our standard OEM customization process walks clients through communicating their needs, making design drawings, production machining, quality checking, packing, and shipping. At each step, there are clear links for them to communicate with us. Transparency in the process builds trust and makes it possible to solve problems before they affect delivery dates. We offer a one-year guarantee and a promise to respond quickly. This shows that we are confident in the Gear Teeth Grinding process and protects your investment against quality problems that may arise. These service elements set suppliers who are truly committed to relationship apart from those whose only goal is to complete a deal.

Conclusion

Gear Teeth Grinding is an important closing step for situations where performance, dependability, and life make it worth the money to use better manufacturing methods. Functional gears are different from those that can keep working well in harsh industrial settings because they can't fix flaws caused by heat treatment, get perfect surface finishes below Ra 0.4 µm, or make complex topological changes. Gear Teeth Grinding makes measured changes that have a direct effect on your working success, whether it's for meeting the reliability needs of flight equipment, the durability needs of mining equipment, or the accuracy needs of industrial machinery. By making smart buying decisions that balance spending money on equipment with working with service providers and carefully checking out suppliers based on their technical skills and dedication to the partnership, your company will be able to take advantage of grinding's benefits while lowering overall costs throughout the gear's lifecycle.

FAQ

1. How does gear teeth grinding differ fundamentally from hobbing?

Hobbing is a type of soft cutting that is done before the metal is heated. A hob tool is used to remove material from the workpiece to make the basic shape of the gear teeth. After heat treatment, Gear Teeth Grinding is done as a hard-finishing step to fix any flaws that happened during hardening and get a better surface quality and tighter standards. Hobbing usually meets AGMA quality levels Q8–Q10, but Gear Teeth Grinding meets Q12–Q15, which is why Gear Teeth Grinding is necessary for high-performance uses that need very little transfer error and noise.

2. What maintenance frequency ensures consistent grinding quality?

The state of the Gear Teeth Grinding wheel has a big effect on how the process works, so dressing intervals need to be changed depending on the hardness of the material and the Gear Teeth Grinding settings. We use condition-based dressing methods instead of set time intervals and keep an eye on wheel performance signs like increased grinding force and worsening surface finish. During production times, machine alignment is checked once a week, and full geometric accuracy checks are done every three months. This strict repair schedule stops quality drift and gets the most out of wheel usage.

3. Can outsourcing gear teeth grinding prove practical for prototype or small-batch requirements?

Yes, outsourcing has clear benefits for developing prototypes and making small amounts of products when the costs of owning tools aren't in your favor. YIZHI MACHINERY clearly supports low minimum order sizes by accepting requests for single items that let designers test their work before committing to mass production. Our production timeline of 35 to 60 days applies to all order sizes, and we offer design advice to help you choose the best specs for performance and manufacturing efficiency. This means that you can use our professional Gear Teeth Grinding services at any point in the development of your product.

Partner with YIZHI MACHINERY for Superior Gear Teeth Grinding Solutions

YIZHI MACHINERY has been making precision parts for 15 years and offers world-class Gear Teeth Grinding services to companies in the mining, aircraft, and industrial machinery industries around the world. Our advanced CNC Gear Teeth Grinding, ISO-compliant production methods, and wide range of material knowledge with metals like 42CrMo, SAE4340, and 18CrNiMo7 guarantee that your precision gear needs will be met with the highest level of technical excellence. We can work with unique specs for anything from a single prototype to large production runs. We keep our 35–60 day delivery promises and offer real-time progress tracking and visual logistics monitoring to back them up. As a reliable provider of Gear Teeth Grinding, we offer full design advice, technical support, and a one-year guarantee that turns business relationships into real partnerships. Contact us at sales@yizmachinery.com to talk about your precision gear needs and find out how our services can improve the performance of your transmission system.

References

1. Klocke, F., & Brecher, C. (2018). Gear Grinding: Fundamentals and Applications in Manufacturing Technology. Berlin: Springer-Verlag.

2. Stadtfeld, H. J. (2014). Advanced Gear Manufacturing and Finishing: Classical and Modern Processes. Rochester: American Gear Manufacturers Association.

3. Radzevich, S. P. (2016). Dudley's Handbook of Practical Gear Design and Manufacture (3rd ed.). Boca Raton: CRC Press.

4. Litvin, F. L., & Fuentes, A. (2004). Gear Geometry and Applied Theory (2nd ed.). Cambridge: Cambridge University Press.

5. American Gear Manufacturers Association. (2015). AGMA 2015-1-A01: Accuracy Classification System - Tangential Measurements for Cylindrical Gears. Alexandria: AGMA Publications.

6. International Organization for Standardization. (2013). ISO 1328-1:2013 Cylindrical Gears - ISO System of Flank Tolerance Classification. Geneva: ISO Standards.
