What are the advantages of using a girth gear and pinion?

Choosing the right power transfer system has a direct effect on how well and how much it costs to maintain big rotary equipment used in mining, cement production, or aircraft ground support. For heavy-duty tasks, the Girth Gear and Pinion device is the most reliable option. This drive system has a huge torque transmission capacity, lasts a long time in harsh conditions, and can be used in a wide range of industry settings. Girth gear sets are different from other types of gear systems because they can handle loads of more than 100 tons while still being precise at slow spinning speeds of 3 to 15 RPM. Because of these features, they are necessary for rotating kilns, ball mills, and dryers that need to run continuously with little downtime in order to make money.

​

Understanding Girth Gear and Pinion: Key Concepts and Design Principles

What Is a Girth Gear and Pinion System?

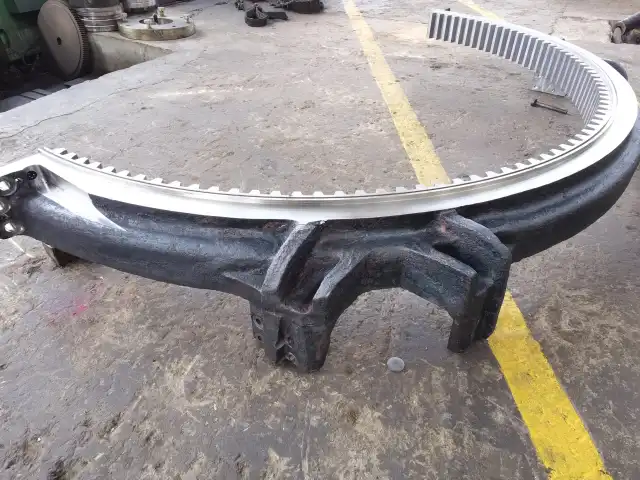

The transmission system is made up of a big ring gear that is attached to the outside of rotating cylinders and is turned by one or two smaller pinion gears that are linked to motor-gearbox units. This setup changes the output of a fast motor into the slow but strong spinning that kilns and mills need to work with materials. The way it works depends on the Girth Gear and Pinion teeth fitting together perfectly, which makes sure that the force is spread evenly across the contact area. Unlike direct-drive systems, this setup allows for thermal expansion in machinery that works at shell temperatures of up to 400°C and structural deflections that are normal for large-diameter spinning vessels.

Strict standards for measurement accuracy are used when making these parts. Most designs follow AGMA 10-12 or ISO 7-9 accuracy grades, which makes sure that the load is evenly spread across the gear teeth. Advanced changes to the profile and the shape of the capped teeth make up for mismatch that happens during operation. This keeps the edges from being loaded, which speeds up wear.

Material Selection and Heat Treatment Standards

The makeup of the material and how it is heated have a big impact on how long a component lasts. High-quality alloy steels like 42CrMo, SAE4340, and 18CrNiMo7 have the core strength to keep structures from breaking when they are hit with shock loads. At YIZHI MACHINERY, we use 20CrMnTi, 40CrNiMo, AISI4140, and 20CrNi2Mo as materials. These were carefully chosen based on the load patterns and weather conditions of each application.

Carburizing, cooling and tempering, and induction hardening are all types of heat treatment that make the surface harder. For pinions, the best surface hardness is between 58 and 62 HRC, and for Girth Gear and Pinions, it's between 45 and 50 HRC. This difference in hardness makes sure that the pinion wears more evenly, so the smaller, less expensive part gets replaced more often. Surface finishing methods like hard chrome plating, blackening, and phosphating make things even more resistant to rust in places like chemical plants and mines that are dirty.

Advantages of Using Girth Gear and Pinion in Industrial Applications

Putting these communication systems to use in cement plants, mines, and places that process materials has clear practical benefits. For heavy industrial tools, Girth Gear and Pinion sets are the best choice because of the following:

1. High Torque Transmission and Load Capacity: The large contact area between gear teeth evenly spreads forces, allowing transfer of torque levels that are not possible with belt or chain systems. Mining ball mills often put shock loads on materials when they start up and when they tumble, which would destroy other ways of transmitting the material. The strong design can handle short-term overloads while keeping the structure's integrity, which keeps equipment further down the line from getting damaged.

2. Precision Power Transmission Efficiency: Gear sets that are made correctly and kept up to date have a mechanical efficiency of over 95%, which means that they lose very little energy through friction. When the tooth shape is correct, the teeth stay in touch with each other throughout the meshing cycle. This stops the sliding that happens with friction-based drives. This efficiency directly leads to less power being used in processes that need a lot of it, like making clinker in cement ovens. Less friction leads to lower working temperatures, which extends the life of parts and lowers their cooling needs.

3. Customization and Scalability: Each rotating kiln or mill has its own size limits and performance requirements. Split-gear designs make it easier to place on current equipment shells without taking everything apart. Engineers can make drive systems work best for certain tasks by changing the number of teeth, the specs of the modules, and the materials that are used. At YIZHI MACHINERY, we can make modules from 0.5 to 50 with special tooth configurations, so they can work with a wide range of machines, from small dryers in the lab to large mining mills in the mines. We can make single custom parts when repair plans call for non-standard specs and low minimum order numbers.

4. Operational Reliability Under Harsh Conditions: Drive parts in cement kilns are exposed to dust in the air, heat radiation, and changes in temperature. Mining mills are always running outside, with little cover from the weather. Girth Gear and Pinion systems are built to be strong. They have crowned teeth that keep proper contact even when the shell bends, open-gear lubrication systems that keep metal-to-metal contact from happening during cold starts, and self-aligning pinion housings that account for foundation settling over decades of equipment life.

These benefits lower the total cost of ownership, cut down on unplanned downtime, and make the process more consistent. When power transfer is reliable and production plans stay on track, equipment workers in competitive industries gain a lot of practical influence.

Maintenance and Longevity Benefits of Girth Gear and Pinion

Practical Maintenance Strategies

To keep things running at their best and extend their useful life, they need to be oiled and inspected regularly. Open-gear materials used in automatic spray systems make protection films that keep metals from touching, especially when the speed is low and the hydrodynamic lubrication films are thin. Extreme-pressure chemicals in high-viscosity lubricants keep working even when they get dirty with dust and process materials. Every month, maintenance teams should look at the teeth of gears for pitting, scoring, or other odd wear patterns that could mean the gears aren't aligned right or aren't well oiled.

Design Features That Minimize Failure Risks

Tooth bending fatigue from pressure, surface pitting from contact stress, and scoring from not enough lubricant are all common ways that things break. These risks can be avoided with good production by choosing the right materials, heating them, and cutting them precisely. The difference in hardness between the pinion and the gear keeps the bigger, more expensive Girth Gear and Pinion from wearing out by concentrating wear on the replacement pinion. Changes to the profile, such as tip relief and root fillet optimization, lower the stress levels that cause cracks. Forging, hobbing, milling, and grinding are some of the manufacturing methods that can get the dimensions right for even load spread.

Lifecycle Cost Analysis

When we make gear sets at YIZHI MACHINERY, we use ISO 5-6 grade accuracy to make sure they meet strict quality standards. Modern tools for heat treatment makes the hardening even, so there are no soft places that wear out faster. Before being packed, each part goes through a thorough quality check. Measurement checks and hardness tests are recorded so that they can be tracked. You can save money in the long run by buying high-quality parts made from premium materials, even if they cost more at first. The more often inferior gear sets need to be replaced, the more money is spent on both parts and downtime. When cement kilns or mine mills stop working, they lose thousands of dollars worth of output every hour.

How Girth Gear and Pinion Compare with Other Gear Systems

Performance Comparison with Alternative Gear Types

Bevel gears are great at moving power between wheels that cross each other, but they can't handle the weight of big rotating equipment. Their smaller contact area focuses stress, which makes it harder to transfer torque compared to Girth Gear and Pinion systems where teeth meet in a wider area. Worm gears have high reduction ratios and are small, but they are less mechanically efficient because they slide against each other, which makes heat that needs to be cooled all the time. When energy costs are high and operating costs are low, the efficiency penalty becomes too expensive to use in big power uses.

Chain and belt drives can be put in a lot of different places and can absorb shock, but they aren't as precise or reliable as gear systems. Chains get stretched out over time, so they need to be tightened up and replaced every so often. When belts are under a lot of weight, they slip, losing energy and changing speeds in surprising ways. Neither can stand the dirty working conditions that are common in mine and cement production. Positive contact of gear teeth stops slippage, maintaining a steady rotating speed important for process control in rotary kilns where material dwell time directly impacts product quality.

Supplier Evaluation Considerations

When choosing a source for transmission parts, you need to look at their producing skills, quality certifications, and customer service. Some of the biggest companies in the world spend a lot of money on high-precision tools like CNC gear hobbing centers and automatic grinding machines that can work smoothly and quietly. Quality systems that are approved to ISO standards give customers trust in consistent production methods and the ability to track down materials. When setting up custom configurations or fixing speed problems, the amount of technical help you can get is important. When designing tools, it's helpful to work with suppliers whose engineering teams have experience in a wide range of workplace settings.

For 15 years, YIZHI MACHINERY has built its name by making high-precision gears for users in the mining, aerospace, and industrial machinery industries. Some of the tools we use for production are high-precision CNC machining centers, fully automatic gear grinding machines, and smart heat treatment production lines. Because we have these skills, we can make unique gear solutions that meet all of our customers' exact needs. In addition to high-quality manufacturing, we offer full technical support during pre-sales talks, synchronized production updates during fabrication, and quick help after the sale, all backed by a one-year guarantee. Our standardized OEM customization process makes sure that orders are filled quickly, from the time we talk about the needs to the time they are delivered.

Procurement Insights: Choosing the Right Girth Gear and Pinion Supplier

Essential Supplier Selection Criteria

Quality approvals make sure that the methods used to make parts always meet the requirements set by the designers. ISO compliance shows that quality control is being done in a planned way, and material standards show what the materials are made of and how they work. The level of customization a provider offers shows whether they can work with non-standard sizes, materials, or hanging arrangements. When shipping to faraway mine sites or foreign project sites that need customs knowledge and freight forwarding skills, global logistics help is very important.

Ordering Process and Lead Time Management

There are several steps in the process of making a custom Girth Gear and Pinion, from the initial casting steps to the final grinding and checking steps. Realistic lead times range from 35 to 60 days, based on the difficulty of the part and the production queue. To avoid expensive production delays, people who work in procurement should place orders well before planned repair breaks. Suppliers that offer fast handling for emergency repairs are a great way to protect yourself against failures that come up out of the blue. Clear communication about specs, such as detailed sketches with tolerances, material needs, and surface finish standards, stops mistakes and delays in rework that cost a lot of money and time.

At YIZHI MACHINERY, we walk customers through every step of the process: communicating their needs sets the technical specifications; engineering teams create detailed design drawings for approval; production machining turns raw materials into precision parts; strict quality control checks the parts' dimensions and material properties; custom packaging keeps parts safe during shipping; and coordinated transportation makes sure they arrive on time.

Partnership Benefits with Established Manufacturers

Having long-term ties with trustworthy providers is more valuable than just one transaction. Well-known makers keep detailed records of all the orders they've received in the past. This makes it easier to place repeat orders and allows for proactive management of obsolescence. Customers can get the best gear standards for their needs by using technical knowledge gained from working in a variety of settings. Service teams that are quick to respond answer questions about installation, suggest the best ways to do upkeep, and fix problems with performance. These intangible benefits make a big difference in improving operating dependability and lowering the total cost of ownership.

Conclusion

Choosing the right power transfer method affects how reliable the equipment is, how much energy it uses, and how much it costs to maintain over its entire life. Using Girth Gear and Pinion assemblies in heavy industrial settings has many benefits, including unmatched torque capacity for handling heavy loads in mining and cement production, precision manufacturing that ensures power transmission with minimal energy loss, the ability to be customized to fit different equipment specifications, and reliable performance even in harsh operating conditions. Maintenance that is done correctly makes parts last longer, and choosing a supplier carefully makes sure that you can get quality goods and quick technical help. By knowing about these benefits, procurement workers can make smart choices that protect capital investments and improve the performance of tools.

FAQ

1. How often should girth gear systems undergo inspection?

Visual checks once a month find problems as they start to happen before they become major problems. Check for strange wear patterns, the right amount of lubricant covering, and temperature jumps that don't make sense. Every three months, there should be thorough checks with measures of backlash. As part of yearly full exams, magnetic particle tests may be used to find cracks below the surface. When the Girth Gear and Pinion works in rough conditions or is loaded and unloaded often, it needs to be inspected more often.

2. What causes premature girth gear failure?

The main reason is that teeth don't have enough lubricants, which lets metals touch and damage each other quickly. When the pinion and gear are not lined up correctly, loads are concentrated on the tooth edges, which speeds up wear. Material flaws caused by poor manufacturing create weak spots where cracks can start. When you use tools beyond its original load limits, you put too much stress on its parts. Most early problems can be avoided with regular upkeep and getting good parts.

3. Can girth gear specifications be customized for unique applications?

Of course. Specifications for custom tooth numbers, module shapes, material choices, and heat treatment meet the needs of different operations. Split-gear designs make it easier to put on equipment that is already in place. YIZHI MACHINERY specializes in custom solutions. They make parts from customer models or work with designers to make sure that the specs are best for each application. We can work with units ranging from 0.5 to 50, and we can use a variety of materials, including special metals made for harsh conditions.

Partner with YIZHI MACHINERY for Superior Transmission Solutions

Your business's success depends on transmission parts that work consistently even when conditions are tough. YIZHI MACHINERY has been making custom Girth Gear and Pinion systems for industrial, mining, and aircraft users around the world for 15 years. Our modern CNC cutting, ISO-compliant production methods, and full-service heat treatment facilities make sure that the quality of our parts meets the highest standards. We can customize a wide range of materials and specs for projects ranging from single replacement parts to whole drive system kits. In addition to high-quality manufacturing, our full-service offering includes expert advice before the sale, real-time reports on production, guaranteed delivery times between 35 and 60 days, and a warranty that protects you for a year. As a reliable company that makes Girth Gear and Pinions, we offer unique packaging, a range of foreign shipping choices, and visual tracking throughout the delivery process. Contact us at sales@yizmachinery.com to talk about your transmission needs, get complete specs, or get a full quote. Find out how working with YIZHI MACHINERY can make your supply chain stronger and your tools more reliable.
