Straight and Spiral Bevel Gear for Mining Machinery Drives

When mining companies need to reliably send power across pits that cross each other, bevel gears are a must. Straight and Spiral Bevel Gears are the most important parts of mining equipment drives. They shift spinning force at exact angles, usually 90 degrees, to power things like crushers, conveyors, and other systems. Straight bevel gears have teeth that are cut along the cone axis and are a cheap way to solve problems with low speeds. Spiral bevel gears have curved and angled teeth that make engagement easier and increase load capacity. This makes them perfect for heavy-duty industrial situations where reducing noise and shaking is important. Knowing these differences helps buying teams choose the best transmission option for cost-effectiveness and long-term use.

​

Understanding Bevel Gears in Mining Applications

Dust, shock loads, extreme temperatures, and constant duty cycles are just some of the harsh circumstances that mining equipment has to work in. Bevel gears move power between shafts that are perpendicular or intersecting. This makes it possible to use small drive systems in underground equipment that has to work in tight areas. Their conical shape makes it easy to shift power while keeping the mechanical edge.

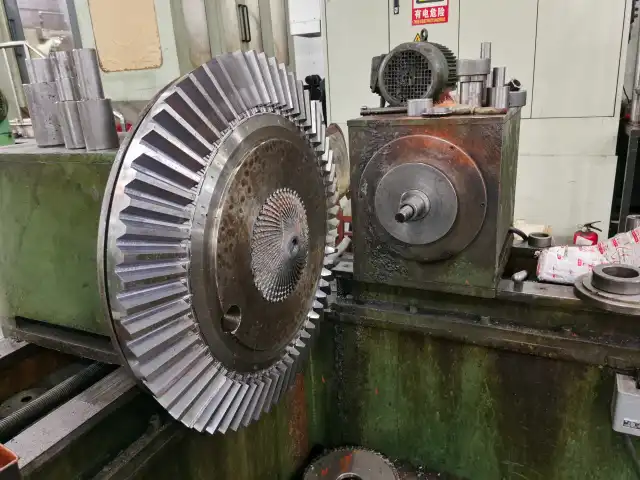

Geometric Fundamentals of Straight Bevel Gears

The teeth on a straight bevel gear are lined up to face the cone's tip. Tooth contact happens quickly across the whole face width, transferring load right away. Planing or shaping methods make this form easier to make, which lowers the cost of production. When cost is more important than performance, straight bevel gears are the best choice for secondary mining drives like manual gate openers, low-speed conveyors, and positioning systems. Their very small axial thrust makes choosing bearings easier, which reduces the complexity of housings in small units.

Operational Characteristics of Spiral Bevel Gears

Spiral bevel gears have bent, oblique teeth that connect gradually instead of all at once. This progressive contact has overlap ratios higher than 2.0, which means that loads are spread across more than two teeth at the same time. The spiral tooth path lets the pitch line go faster—over 10,000 feet per minute—without getting too hot or wearing out too quickly. In mining, spiral designs are used in main cone crushers, ball mill drives, and dragline swing mechanisms, all of which need to deliver power smoothly and absorb shocks. The spiral angle is usually between 35 and 45 degrees, which is a good balance between effectiveness and managing the axial pressure.

Mining Equipment Deployment Examples

Because they are cheap and work at low speeds, straight bevel gears are often used for hand adjustment devices in jaw crushers. On the other hand, a gyratory crusher's main drive uses big spiral bevel gears to handle the changing force that comes from breaking rock while keeping the bearings strong. Continuous miners use spiral sets in their cutting head drives because they need to be strong enough to handle being exposed to rough dust all the time. In real life, these examples show how gear geometry fits with certain practical pressures in mining settings.

Performance and Efficiency Comparison of Straight and Spiral Bevel Gears

When choosing between types of gear, you need to look at both performance measures and the total cost of ownership. Depending on the specifics of the application, each style has its own benefits. Straight and Spiral Bevel Gears each provide distinct mechanical advantages.

Torque Capacity and Load Distribution

Straight bevel gears only have a contact ratio of about 1.4, which means that power is transferred through immediate tooth contact. Because of this limitation, they can't share loads as well, which makes them more likely to break under shock loads. Spiral bevel gears have contact ratios above 2.0 because they connect gradually, sending power to three to four teeth at the same time. This pattern increases power density by 30 to 50 percent compared to straight versions of the same size. This spare capacity is very helpful for mining equipment that has to deal with changing loads, like material lifters that get stuck on ore.

Noise and Vibration Control

Impact loading happens when straight bevel gears connect quickly, making noise levels that are often higher than 85 dB at speeds above 500 RPM. The size of the vibrations gets bigger as the speed goes up, which speeds up bearing wear and damages buildings nearby. These problems can be fixed by spiral bevel gears, which have continuous tooth contact that lowers noise by 10 to 15 decibels and limits stress cycles caused by shaking. This quieter performance is especially useful in underground mines because it makes workers more comfortable and keeps sensitive instruments from getting tired from noise.

Durability in Harsh Conditions

Gears in mines are subject to abrasive dust, changing temperatures, and acidic wetness. Most straight bevel gears that are made with easier cutting methods get AGMA Q8–Q10 quality grades. To get spiral bevel gears to Q10–Q13 precision, they are face milled or ground. This gives them better surface finishes that don't scratch or pit. Field data from open-pit mines shows that spiral designs can work for more than 50,000 hours without needing major repair, while straight gears can only work for 30,000 hours in the same conditions.

Cost Analysis Across Lifecycle

Because they are easier to machine, straight bevel gears have lower initial acquisition costs by 25 to 40 percent. However, lifetime analysis shows a different view of economics. Longer service times for spiral gears cut down on downtime costs, which is very important when hourly mining production values hit tens of thousands of dollars. When labor, spare parts, and missed production during repair windows are taken into account, a medium-sized copper mine that replaces straight gears every three years instead of spiral gears every five years can save 22% over ten years.

These measures of performance help engineers make the best choices, combining the cost of purchase with the reliability of operations. Equipment available is a key factor in figuring out how profitable mining is, and the choice of gear has a direct effect on it.

Design Considerations and Material Selection for Mining Machinery Gears

In tough mining situations, gears will either last or break based on their technical specs. Certain operating stresses must be taken into account when choosing design features and materials.

Tooth Geometry Parameters

Module—the ratio of pitch width to tooth count—has a direct effect on how much weight it can hold and how easy it is to make. Modules for mining drives are usually listed in numbers from 3 to 50, with higher numbers allowing for higher power transfer. Pressure angles of 20 degrees are now normal in the business. They are better at spreading out loads than older profiles with 14.5 degrees. The best mix between smooth engagement and reasonable axial thrust is found at spiral angles between 35 and 40 degrees. This means that strong thrust bearings are needed, which adds cost and complexity to housing designs.

Material Selection for Extreme Service

Alloy steel types are the building blocks of long-lasting bevel gears. Common standards include 20CrMnTi, AISI 8620, and 18CrNiMo7, all of which are great materials for case hardening. To match the grain structure, the production process starts with forging blanks. Next, rough machining is done to get the form close to net. The carburizing heat treatment spreads carbon into the surface layers. This lets the cooling process achieve a surface hardness of 58–62 HRC while keeping the core tough at 30–40 HRC. This difference in hardness keeps the surface from wearing down and absorbs shock loads without breaking easily, which is important for mining because the loads change all the time.

Surface Treatments and Protective Coatings

When you heat treat something and then use precision grinding, you can get surface finishing below 0.8 micrometers Ra. This reduces the places where friction and wear start. Some uses call for nitriding to make the gear more resistant to corrosion in wet mine conditions, but the kiln size limits the size of the gear that can be used in this process. Shot peening adds good compressive loads to tooth root pieces, which raises their bending fatigue strength by 15 to 20 percent. After being made, these gears turn from raw parts into fine parts that can withstand millions of load cycles.

Customization for Application-Specific Needs

The different needs of mining equipment often mean that unique gear solutions are needed in addition to standard stock items. Because of things like variable shaft angles, non-standard mounting connections, and special lubrication rules, the buyer and the maker need to work together on engineering. At YIZHI MACHINERY, our design team works directly with procurement engineers to turn operational needs into technical plans that can fit different module sizes, tooth counts, and mounting arrangements. This ability to customize makes sure that the system works well with current equipment and meets strict performance standards.

Material selection and design refinement separate commodity gears from engineered solutions. Mining operations cannot afford field failures, making these technical decisions critical to operational continuity.

Selecting the Right Bevel Gear Solution for Mining Machinery Drives

A procurement plan includes more than just comparing prices. It also includes the abilities of suppliers, wait times, and help after delivery. For years, strategic choices about where to get parts affect how reliable the parts are. Selecting the correct Straight and Spiral Bevel Gear set depends on a comprehensive analysis of these variables.

Aligning Gear Type with Operational Requirements

The first step in application analysis is to list the operating factors, which include shaft angles, speed ratios, torque needs, job cycles, and environmental conditions. Because they are cheaper, straight bevel gears are better for low-speed auxiliary drives that work below 300 RPM and only sometimes have to do work. Even though they cost more at first, spiral forms are needed for primary drives that run continuously at more than 500 RPM. Material grade choice and safety factor calculation are based on the intensity of the shock load, which is measured by service factors. Putting these needs into a technical specification makes sure that provider offers are tailored to specific needs and not just general solutions.

Evaluating Supplier Capabilities

There are different strengths among global gear suppliers when it comes to product lines, production methods, and customer service. Well-known companies like SKF and Timken offer a wide range of stock choices that have been tested and proven to work. Customization may cost more and take longer, though. Custom solutions can be made by specialized gear producers, who offer technical flexibility and reasonable prices. Production times usually range from 35 to 60 days, based on how complicated the solution is and how many orders are placed.

YIZHI MACHINERY stands out because it can customize everything and uses high-tech production tools to do so. Our factory has fully automated grinding machines and high-precision CNC gear cutting centers that let us make gears with modules ranging from 0.5 to 50 and precise grades that meet ISO 8-9 standards. This equipment's adaptability lets it handle both small prototypes and large production runs without affecting the tools. In addition to being able to make things, we also offer full technical services, from initial design advice to tracking production and coordinating supplies. These services streamline the procurement process for mining projects that need to be finished quickly.

Manufacturing Lead Times and Inventory Strategy

Procurement Best Practices

Request for quote (RFQ) letters should include all technical details, such as the type of gear, the grade of the material, how it should be treated with heat, the level of accuracy needed, the inspection standards, and the packaging needs. Requesting approved material test results and dimensional inspection data makes sure that the requirements are met. When reviewing quotes, you need to look at the total landed cost, which includes the unit price, tooling charges, packing, shipping, and duties. The evaluation matrix is finished with payment terms, guarantee terms, and expert help available. When suppliers are quick during the quotation process, they usually keep up that level of service during production and shipping as well.

Strategic supplier selection establishes partnerships extending beyond individual transactions, building technical familiarity that accelerates future projects and troubleshooting.

Maintenance Best Practices and Troubleshooting for Bevel Gears in Mining Drives

Regular repair keeps gears working longer and stops catastrophic breakdowns that stop production. Systematic methods make tool availability better in ways that can be measured.

Routine Inspection Protocols

During planned shutdowns, tooth surfaces should be looked at visually for pitting, scoring, or spalling, which are early signs of lubrication breakdown or alignment problems. Using dial markers to measure backlash can show how wear is progressing; jumps above 0.010 inches mean that replacement intervals are getting close. Using accelerometers placed near bearing housings for vibration analysis can find problems before they become noticeable. Monitoring temperatures with infrared thermography shows hotspots that mean there isn't enough grease or the machine is under too much load. Keeping track of these numbers creates trend data that lets you plan preventative maintenance instead of fixing things as they break.

Lubrication Management

High-quality extreme pressure (EP) lubricants are needed to keep the teeth of spiral bevel gears from touching each other when they connect. Most mining jobs can be done with ISO VG 220-320 gear oils that have EP additives, but harsh conditions may call for synthetic formulas. Monitoring wear metals, viscosity degradation, and contamination levels with oil research tools can help find seal failures or internal wear early on. Because they roll against each other, straight bevel gears can handle a wider range of oil viscosities. However, regular lubrication is still necessary for bearings to last a long time. Automated lubrication systems get rid of the mistakes that happen when lubricating by hand in places that are hard to get to on mining equipment.

Addressing Common Failure Modes

When the layer thickness is too thin or the lubricant is dirty, surface wear shows up as pitting, which are small craters that form on the loaded sides of teeth. Some things that can be done to fix the problem are making the oil thicker, improving the filtering, or lowering the working loads. When you scuff something, the lube film breaks down under a lot of pressure, leaving behind long scratches. This type of failure needs instant attention: check to see if the EP additive is working, see if the system is overloaded, and look at the cooling systems. Tooth breaking is usually caused by shock overload or flaws in the material, so the root cause must be found before the tooth is replaced to keep it from happening again.

Case Study: Maintenance Optimization

In Nevada, spiral bevel gears in conveyor drives broke down too soon, and they needed to be replaced every 18 months on average. By tracking vibrations every three months, misaligned bearings were found to be causing uneven load distribution. By fixing the balance and using synthetic EP oil, the service life was increased three times, to 54 months. Cutting down on downtime saved about $180,000 a year in lost production and repair work, showing that the maintenance program is worth more than the cost of the parts.

Maintenance discipline transforms gears from consumable items into long-term assets. Mining operations embracing systematic approaches achieve reliability benchmarks competitors struggle to match.

Conclusion

In mining equipment gears, Straight and Spiral Bevel Gears do different jobs, and which one to use depends on practical needs and the total cost of ownership. For low-speed, secondary uses where simplicity is important, straight forms are a cost-effective option. Spiral designs work better in main drives that need to send power smoothly, reduce noise, and last longer when they're under a lot of stress. If gears can work in the harsh conditions of mines, it depends on how well they are made, what materials are used, and how they are customized for each purpose. Strategic buying weighs the original investment against the costs over the product's lifetime, the supplier's skills, and the need for upkeep. When you take care of your gear properly, it lasts longer, which turns trustworthiness from a dream to a certainty.

FAQ

1. Can straight bevel gears be directly replaced with spiral types to reduce noise?

Without making changes to the housing, direct replacement is not possible. Spiral bevel gears create large axial thrust loads that aren't present in straight designs. This means that thrust bearings need to be improved and housings need to be strengthened. The attachment mechanism and shaft size may also be different. Before trying conversions, engineers must check the bearing capacity and housing strength, which usually means redesigning the whole drive instead of just changing out a few parts.

2. What factors determine custom bevel gear lead times?

How long production takes depends on how complicated the gears are, how long it takes to get materials, and how long the factory queue is. Standard materials, like AISI 8620, can be shipped quickly, but exotic metals need mill licenses, which makes delivery times longer. Large units that are bigger than 25 need special tools and longer grinding processes. Adding weeks to complicated orders is the heat treatment group ordering and final grinding operations. YIZHI MACHINERY usually gives custom bevel gears between 35 and 60 days, but there are fast-track choices for pressing mining repair jobs that need priority production slots.

3. How do I verify bevel gear quality before shipment?

Reliable providers give dimensional inspection records that show measures of the tooth geometry, runout, and surface finish. The material documents show the makeup of the alloy and the results of the heat treatment, which confirms the hardness standards. Ask for chances to be inspected by a witness to make sure that manufacturing standards are being followed, especially for important mining uses. When internal knowledge isn't enough, third-party inspection services offer independent confirmation. This gives buyers more confidence in important procurement choices.

Partner with YIZHI MACHINERY for Reliable Mining Gear Solutions

Mining activities need transmission parts that are designed to work perfectly. When it comes to making custom bevel gears for industrial tools, mining, and aircraft uses, YIZHI MACHINERY has fifteen years of experience. Our ISO-compliant production methods use high-quality materials like 20CrMnTi, AISI 8620, and 18CrNiMo7 that are precisely carburized and ground to a surface hardness of 58 to 62 HRC. As a seller of only Straight and Spiral Bevel Gears, we can handle modules from 0.5 to 50 with tooth numbers and pressure angles that can be changed to fit your exact needs. Our full service includes design advice, real-time reports on production, proof of quality inspections, and unique packaging that makes sure the delivery is damage-free. Contact us at sales@yizmachinery.com to talk about the drives you need for your mining equipment and get clear quotes backed by technical support and dependable global shipping.

References

1. American Gear Manufacturers Association. (2019). AGMA 2005-D03: Design Manual for Bevel Gears. Alexandria, VA: AGMA Publications.

2. Dudley, D. W. (1994). Handbook of Practical Gear Design and Manufacture. Boca Raton, FL: CRC Press.

3. International Organization for Standardization. (2013). ISO 23509:2016 - Bevel and Hypoid Gear Geometry. Geneva: ISO Standards.

4. Klingelnberg GmbH. (2016). Bevel Gear Technology: Design, Manufacturing and Optimization. Zurich: Klingelnberg Technical Publications.

5. Litvin, F. L., & Fuentes, A. (2004). Gear Geometry and Applied Theory. Cambridge: Cambridge University Press.

6. Society of Automotive Engineers. (2017). SAE J1073: Vehicle Gear Lubricant Specification for Mining Equipment. Warrendale, PA: SAE International.
