Selecting the Right Precision Internal Gear for Your Application

Choosing the right internal gear system for reducers, actuators, and transmission assemblies can make or break your equipment's performance. Precision Internal Gear solutions address the core challenges faced by engineers in robotics, machine tools, and high-load industrial environments: achieving tight tolerances, maintaining surface quality, and ensuring reliable torque transmission within compact spatial constraints. By understanding the defining characteristics, material specifications, and manufacturing processes behind these critical components, procurement managers and design engineers can confidently select gearing solutions that meet stringent operational demands while optimizing cost and lead time.

​

Understanding Precision Internal Gears: Definitions, Types, and Functions

What Defines a Precision Internal Gear?

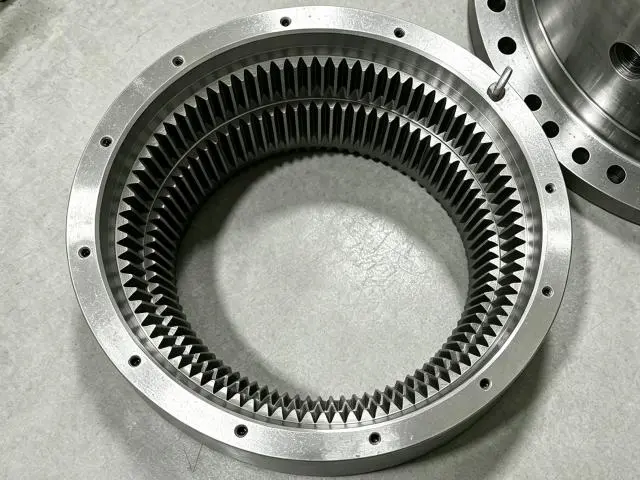

A Precision Internal Gear is a special kind of mechanical part for transmitting power. It has gear teeth cut into the inside of a cylinder-shaped ring or housing so that it can mesh with an outside pinion. In contrast to regular gearing, "precision" gearing means that the manufacturing tolerances must meet strict quality classes, usually ISO 6 Grade or higher. These gears solve some of the biggest problems in the business, like the need for high reduction ratios in small spaces (like planetary gear sets) and better power density. When the pinion is inside the gear, the center distance is much smaller than when the gears are outside the gearbox. This makes it possible to make gearboxes that are smaller and lighter without lowering their load capacity.

When used in high-performance drivetrains, the concave-convex meshing property lowers Hertzian contact stress and sliding velocity. This directly addresses wear and noise problems. Because the contact ratio has been optimized, more teeth share the load at the same time. This makes the transmission smoother and more resistant to shocks than external gears.

Material Choices and Their Impact on Performance

How long something lasts, how much weight it can hold, and how durable it is all depend on the materials that are used. People often ask for high-grade alloy steels like 20CrMnTi, 42CrMo, AISI4140, and SAE4340 because they are so good at getting harder and not wearing down. Advanced heat processes, such as carburizing, quenching and tempering, or induction hardening, are used on these materials to make the surfaces hard (58–62 HRC) while keeping the cores tough and flexible.

Carburizing makes the outside tough and resistant to wear, which is great for places with a lot of contact stress. Quenching and tempering, on the other hand, balance hardness and toughness and make the metal less brittle. Induction hardening treats only the surface of a tooth, keeping the core flexible while making the tooth side stronger. The choice of material and heat treatment has a direct effect on how well the gear works under different loads, speeds, and weather conditions. This makes them very important decisions to make during the design process.

Industry Applications Driving Demand

Precision Internal Gears are an important part of planetary gear reducers used in robotics and automation. They act as the stationary ring gear, which makes it possible to multiply torque by a large amount and have very little backlash (less than 3 arcmin), which is needed for precise movement of robotic arms. In electric car transmission reducers, these gears work at high input speeds of up to 15,000 RPM. They have better mesh kinematics, which means they have less sliding friction and noise, which is important for meeting the noise, vibration, and harshness (NVH) standards of quiet electric drivetrains.

Heavy-duty slewing drives in wind turbines and building equipment use internal gears to handle huge axial and rotational loads in rough outdoor conditions. Deep case hardening and precise grinding make sure that the part will last against pitting and micropitting, even when exposed to changing wind loads or shock loads from digging.

Comparing Precision Internal Gears with Other Gear Types for Optimal Application Fit

Precision Internal Gears vs. External Gears

While external gears are easier to make and check, they need longer center lengths to achieve the same reduction ratios. Internal gears have a smaller structure, which makes the whole assembly smaller and lighter. This is a big benefit in applications with limited space, like robotic joints and planetary gearboxes. The concave-convex tooth engagement in internal gears spreads loads more widely across the tooth shape. This reduces stress buildup in one area and increases the service life.

Planetary Gear Systems and Internal Gears

Internal gears are naturally used as the ring gear part in planetary gear devices. Multiple pinions (planet gears) can share the load in this design, which greatly increases power capacity while keeping the size small. A planetary system's efficiency is usually between 95% and 98%, which makes it perfect for high-precision servo tasks and situations with a lot of torque.

Worm Gears and Spline Shafts

Worm gears can reduce speeds quickly in one pass, but they are less efficient (often 50–70%) because of rolling friction. Spline shafts are great at moving torque along an axis, but they can't reduce torque like gear systems can. Internal gears are well-balanced because they carry power well, are small, and allow for easy changes to the gear ratio.

When engineers understand these trade-offs, they can match gear types to specific working needs, taking into account things like cost, space limitations, and speed.

Key Criteria for Choosing the Right Precision Internal Gear

Defining Operational Requirements

Before choosing the right internal gear, it's important to carefully look at the operational parameters, such as the load size, torque needs, rotational speed, and environmental factors like temperature, humidity, and contamination. For high-load uses, materials need to be very strong against wear and have a hard surface. For high-speed uses, low inertia and sound damping are most important.

The tooth dimensions and load capacity are based on the module size. Larger modules can transmit more torque. The gear ratio is determined by the number of teeth, and the helix angle (which can be anywhere from 5° to 45°) affects how the load is distributed, the noise level, and the axial thrust. In precision positioning systems, backlash control is needed to get rid of play and make sure that the system works the same way every time.

Industry Standards and Quality Assurance

Following industry standards like ISO 1328, ANSI/AGMA, and DIN 3962 ensures that quality is always the same and that parts can be swapped out. These guidelines say how much pitch error, profile deviation, and helix deviation are allowed. These are the things that have a direct effect on noise levels, the quality of the gear mesh, and the total life of the part. Advanced makers offer ISO 6 Grade accuracy, which guarantees tight tolerances that are good for high-precision tasks.

Coordinate measuring machines (CMM), gear rolling testers, and surface roughness analyzers are all part of quality control methods. They check the accuracy of measurements and the finish on the surface. Precision Internal Gears meet certain tolerances and work effectively under practical stresses because they are inspected carefully at every stage of production.

Manufacturing Processes and Lead Times

The way a gear is made has a big impact on its quality and the time it takes to make. Hobbing and milling are the main ways to cut gear teeth. Grinding the teeth is the next step to get a better surface finish and more accurate measurements. For ISO 6 Grade accuracy and a surface hardness of 58–62 HRC, grinding is a must.

Some heat treatment methods, like carburizing and induction hardening, take longer to do but are necessary to get the right hardness and wear resistance. Depending on how complicated the design is, how quickly the materials can be sourced, and the need for inspections, production times usually run from 35 to 60 days. To balance cost, quality, and delivery times, you need to be able to talk to your suppliers clearly about project requirements and due dates.

Procurement Guide: How to Source High-Quality Precision Internal Gears

Identifying Reputable Precision Internal Gear Manufacturers

When looking for a reliable supplier, you should look at their certifications, production capabilities, and reputation in the industry. ISO-compliant facilities show that they are dedicated to quality management systems, and long-term partnerships with well-known mechanical engineering companies show that they can be trusted. Suppliers with high-precision CNC gear machining centers, fully automatic gear grinding machines, and smart heat treatment production lines can always send parts that meet strict limits.

It's important to be able to customize parts when normal stock parts don't meet the needs of a specific design. Manufacturers with low minimum order quantities and the ability to produce a single item allow for prototyping and small-batch orders without charging too much.

The Ordering Workflow and Prototype Evaluation

The following steps are usually part of a normal buying workflow:

• Talk about the module, teeth count, helix angle, material, heat treatment, and surface hardness. Talk about program load, environment, and efficiency.
• The provider's technical section creates exact CAD gear shape, tolerance, and surface polish designs. Check and approve designs before making.
• Production: Quality control and planning govern production. You get live production updates.
• A thorough examination ensures size, finish, hardness, and material standards. Safety and finding items are feasible with inspection records.
• Packaging and shipping: Hardwood pallets and shock-absorbing liners prevent gear damage to 0.1%. Sea, air, or rail shipping between China and Europe offers accurate delivery schedules.
• Test prototypes before big sales. Request samples to test gear in real-world use for noise, backlash, load capacity, and durability. Testing and modifications might occur one to two months before full production.

Best Practices for Supplier Collaboration

To protect confidential designs and technical details, make sure that non-disclosure agreements (NDAs) are clear. Keep lines of contact open for technical advice, output updates, and solving problems. Reliable suppliers offer design help before the sale, real-time updates on the progress of production, and warranties (usually for one year) with quick response times after the sale.

End-to-end visual tracking systems give real-time reports on orders from the time they are loaded at the plant until they are signed off by the customer. This lets logistics managers be more proactive and reduces downtime.

Application Cases and Best Practices for Using Precision Internal Gears

Robotics and Automation Systems

Precision Internal Gears inside planetary reducers in robotic arm systems multiply power with little backlash, allowing for accurate movement and precision. Internal gears' small size lets them fit into small joint spaces, which lowers the robot's total weight and improves its dynamic performance. For collaborative robots that work with human operators, low noise operation is very important. Internal gear systems are quieter than external gear systems because they mesh smoothly.

Electric Vehicle Transmission Reducers

The electric car market is changing quickly, and transmission parts need to be able to work at high input speeds of up to 15,000 RPM with little noise and shaking. The better mesh kinematics of internal gears reduce sliding friction, which increases efficiency and lowers heat production. The concave-convex tooth engagement spreads loads evenly, which makes the part last longer, even when it goes through a lot of acceleration and deceleration cycles.

Maintenance and Longevity Strategies

For gears to last as long as possible, they need to be inspected regularly, oiled properly, and checked for wear before it happens. Check the amount and quality of the lube often, and replace any oil that is dirty to stop abrasive wear. Check the surfaces of your teeth for pitting, cutting, or strange wear patterns that could mean they aren't aligned properly, are overloaded, or aren't properly oiled.

Vibration analysis and sound monitoring can find problems with gear mesh early on, before they become too big to fix. Predictive repair programs cut down on unexpected downtime and increase the useful life of equipment.

Conclusion

To pick the best internal gear system, consider technical parameters, material qualities, production quality, and supplier reliability. Engineers and purchasing managers may make sensible decisions to enhance equipment performance and operations by understanding Precision Internal Gears' compact size, high load capacity, and superior torque transmission. Gears fulfil tight application requirements by following industry standards, quality checks, and source credentials. Successful and reliable project completion requires competent manufacturers with flexible customisation, clear procedures, and complete support.

FAQ

1. What materials are best for high-load internal gear applications?

Alloy steels like 20CrMnTi, 42CrMo, and SAE4340 are great for high-load uses because they are easy to strengthen and don't wear down easily. The carburizing heat process makes the surface hard and resistant to wear while keeping the core tough. This makes it perfect for absorbing shock loads and preventing contact fatigue in tough settings.

2. How do internal gears compare to external gears in efficiency?

Most of the time, internal gears are more efficient because they have slower moving speeds and better contact shape. The concave-convex meshing spreads the weight evenly, which lowers the amount of friction loss. Planetary systems with internal ring gears often have 95–98% efficiency rates, while external gear trains with similar components have 90–95% efficiency rates.

3. What are realistic lead times for custom internal gear orders?

Lead times are based on how complicated the customization is, how readily available the materials are, and the need for inspections. Standard special orders usually take 35 to 60 days to deliver from the time the order is confirmed. For projects that need to be done quickly, expedited production may be an option, but it may cost more.

Partner with YIZHI MACHINERY for Precision Internal Gear Solutions

With 15 years of experience, YIZHI MACHINERY specializes in making custom gears and exporting high-precision transmission parts all over the world. Our ISO-compliant Precision Internal Gears are accurate to the ISO 6 Grade level, can have teeth ground, and have a surface hardness of 58 to 62 HRC. We make small, stable internal gears out of high-quality alloys like 20CrMnTi, 42CrMo, and SAE4340. Our module ranges can be changed from 0.5 to 50, and we can also change the number of teeth to fit your exact needs.

As a reliable supplier of Precision Internal Gears, we help with everything, from design advice and technical drawings to production, quality control, and shipping. Our customized packing and multiple shipping methods guarantee damage-free arrival within manageable wait times. Our low minimum order numbers make prototyping and small-batch production possible, and our one-year guarantee and quick response time after the sale help to build long-lasting relationships.

Contact us at sales@yizmachinery.com to talk about your Precision Internal Gear needs and get advice that is specific to your situation.

References

1. Dudley, D. W. (1994). Handbook of Practical Gear Design and Manufacture. CRC Press.

2. Lynwander, P. (1983). Gear Drive Systems: Design and Application. Marcel Dekker Inc.

3. Radzevich, S. P. (2012). Dudley's Handbook of Practical Gear Design and Manufacture (2nd ed.). CRC Press.

4. ISO 1328-1:2013. Cylindrical Gears — ISO System of Flank Tolerance Classification.

5. AGMA 2001-D04. Fundamental Rating Factors and Calculation Methods for Involute Spur and Helical Gear Teeth.

6. Stadtfeld, H. J. (2014). Gleason Bevel Gear Technology: The Science of Gear Engineering and Modern Manufacturing Methods for Angular Transmissions. The Gleason Works.
