How Worm Gears Control Speed in Industrial Machinery

The Industrial Worm Gear is a useful tool that engineers and purchasing managers can use to fix problems with backup mechanisms that don't work or speed reduction systems that are too big. This gear gearbox system has a spiral threaded screw (worm) that meshes with a matching wheel at a 90-degree angle. It can reduce speed by 5:1 to 100:1 while taking up a surprisingly small amount of space. The sliding contact between parts not only slows down the rotation but also increases the torque output. It also locks itself in place to stop the load from backdriving, which is an important safety feature in mining, aerospace, and industrial machinery lifting equipment and material handling systems.

​

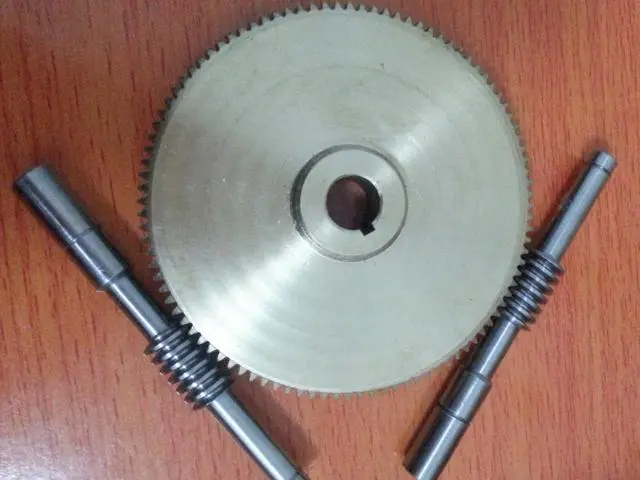

Understanding How Industrial Worm Gears Control Speed

Industrial Worm Gear systems work on a completely different concept than standard spur or helical gears when it comes to controlling speed. The worm shaft's spiral threads slide against the wheel teeth instead of rolling against them when the shaft turns. This makes a special mechanical advantage that determines how well the speed reduction works.

The Mechanics of Speed Reduction

The speed slows down because the worm has to make one full turn to move the worm wheel one tooth forward. A 40:1 reduction ratio is made when a worm wheel with 40 teeth is paired with a single-start worm. This ratio goes down by the same amount with multi-start worms (double or triple thread)—a double-start worm with the same 40-tooth wheel gives a 20:1 ratio. In simple terms, the gear ratio formula is equal to the number of teeth on the wheel split by the number of worm starts. During the construction phase, this mathematical relationship lets engineers exactly define the speed control features.

A lot of the time, our engineering team works with clients who need customized gear ratios for certain application speeds. We can meet exact speed reduction needs that standard catalog goods can't meet by carefully calculating module specs ranging from 1 to 50 and custom tooth counts.

Torque Multiplication Through Right-Angle Transmission

Worm gear systems lessen speed while increasing output power at the same time. The big difference in diameter between the worm and the wheel, along with the shape of the lead angle, give the machine a mechanical advantage. In theory, a 30:1 reduction ratio makes the input torque 30 times stronger (less the efficiency losses caused by sliding friction). Because they can provide torque amplification, worm drives are essential in situations where a high holding force from a small motor is needed—elevator traction machines, positioning steps in automatic production lines, and heavy-duty conveyor drives all use this feature.

Torque potential is directly affected by the materials we choose. Carburizing heat treatment makes the surface of high-quality alloy steels like 20CrMnTi and 40CrNiMo hard, between 58 and 62 HRC. This makes a worm shaft that doesn't wear out and can carry heavy loads. When paired with phosphor bronze wheels, these materials can handle heavy-duty processes that happen over and over again in mine conveyors and lifting equipment that is subject to shock loads.

Self-Locking Properties and Safety Implications

The geometry of the lead angle determines whether a worm gear set exhibits self-locking behavior. If the friction ratios are high enough and the lead angle drops below about five degrees, the machine can't be turned around—the wheel can't move the worm backward. This mechanical feature holds loads in place without the need for a separate braking system or ongoing motor power in vertical lifting applications.

But procurement teams should know that self-locking isn't always the case. Over time, dynamic vibrations, not enough lubrication, or wear can damage this feature. When safety is very important, basic stopping systems should always be used, and self-locking should be seen as an extra safety measure. Our technical consulting services help clients figure out when self-locking features are enough to meet their practical safety needs and when they need more mechanical safety measures.

Key Types and Materials of Industrial Worm Gears

How well the speed control works and how long it lasts depend on choosing the right Industrial Worm Gear arrangement and material composition. When buying experts understand these differences, they can choose goods that meet performance needs and stay within budget.

Single-Thread Versus Multi-Thread Configurations

Single-thread worms reduce speed the most in the smallest space, but they work less efficiently because they slide farther each time they turn. Multi-thread designs (double, triple, or quadruple start) lower the reduction ratio while making the machine more efficient and getting rid of heat faster. As an example in real life, switching from a 60:1 single-thread system to a 30:1 double-thread setup can increase efficiency by 50% to 70% while lowering running temperatures by a large amount in continuous-duty applications.

We make both setups with thread settings that are specific to each order. Single-thread systems are often preferred by clients who use packing tools indexing tables because they are more accurate at reducing and placing. On the other hand, double-thread worms are often used in mine conveyor uses to control heat buildup during long operation cycles.

Material Selection and Heat Treatment Impact

Pairings of materials have a big impact on how long something lasts, how well it works, and how loud it is. Case-hardened alloy steels are often used for the worm shaft. The steels we offer as standard are 20CrMnTi, 42CrMo, AISI4140, and SAE4340. These materials are hardened by induction hardening, quenching and tempering, or carburizing. This makes the surfaces hard and resistant to wear, while the cores stay tough and resistant to shock.

The material of the worm wheel is used as a sacrifice for wear. Phosphor bronze alloys are great at lubricating the edges and embedding strange objects instead of scoring the hardened worm. In light-duty situations, cast iron wheels are cheaper, but they are less efficient and can't carry as much weight. Composite materials are becoming more popular in specific uses that need to fight rust or cut down on weight, but metal is still the most common material used in industrial speed control.

Quality of surface cleaning has a direct effect on noise and initial break-in wear. Our precise grinding methods produce Ra surface roughness levels that keep wear to a minimum during the first hundred hours of operation, which are very important. Paying attention to the quality of the surface increases the service life and keeps the efficiency high throughout the operating area.

Comparing Industrial Worm Gears with Other Gear Types for Speed Control

When making a purchase choice, it's important to know when Industrial Worm Gears are the best option and when other gear systems are better. Each type of gear has its own trade-offs between cost, space needs, efficiency, and reduction ratios.

Performance Characteristics Across Gear Types

Helical gears are 95–98% efficient, but they need more than one stage to get high reduction ratios, which takes up a lot of room when they are installed. Helical gears usually need three steps to achieve a 40:1 reduction, but a single worm gear stage can do the same job in a much smaller space. Bevel gears are good at sending power at right angles, but they can only reduce ratios by one stage, usually no more than 6:1. There are planetary gear systems that offer small, high-ratio reduction that works very well, but they are much more expensive to make and can't self-lock.

Worm gear systems work great when you need small right-angle drives, high single-stage reduction, shock load absorption, and a backstop built in. Depending on the reduction ratio, efficiency is usually between 50 and 90%. Higher ratios make efficiency lower because they cause more rolling friction. In continuous-duty uses, this performance trait needs to be taken into account when managing heat.

Application-Specific Selection Criteria

For mining conveyor drives, the perfect conditions for worm gears are high reduction ratios (30:1 to 60:1), shock load resistance, limited space, and safety standards to keep the belt from backdriving when the power goes out. It's better for absorbing impact loads from material drop zones when the mesh moves than when the gears roll against each other. High-speed machine tool spindles, on the other hand, like helical or planetary systems because they are more efficient and produce less heat.

As part of our project guidance process, we look at six important factors: the needed reduction ratio, the job cycle and load profile, the space envelope constraints, the efficiency goals, the noise limits, and the safety requirements. Instead of using a one-size-fits-all method, this systematic evaluation leads clients to the gear technology that best suits their specific operational needs.

Optimizing Worm Gear Speed Control Performance and Maintenance

To keep the speed control working consistently and make it last as long as possible, you need to do regular maintenance and follow the right installation steps. Ignoring these basics speeds up wear and causes unplanned downtime that throws off production schedules for the Industrial Worm Gear.

Lubrication Strategy and Thermal Management

For worm gears to last a long time, they must be properly oiled. It is very important to choose the right oil because sliding contact gears produce a lot more heat than rolling contact gears. When compared to regular mineral oils, Polyalkylene Glycol (PAG) synthetic lubricants lower friction coefficients and running temperatures by 5 to 10%. The oil film needs to stay thick enough during boundary lubrication, which is when metals touch each other during heavy loading and starting.

When to lubricate depends on the job cycle and the weather. Continuous-duty applications in hot places need to be inspected every 500 hours of use and have their oil completely changed every 2,000 hours. In controlled settings, devices that work on intermittent duty may be able to make these breaks 50% longer. We give our clients thorough lubrication specs that are based on their working conditions, including suggested viscosity grades and additive packages that protect against high pressures.

Inspection Protocols and Wear Monitoring

Regular inspections find problems as they start to form before they become too big to fix. A visual inspection should look for oil leaks, strange noises, and too much shaking. By using infrared thermography to check the temperature, hot spots that show imbalance or poor lubrication can be found. Vibration analysis research finds worn bearings and mesh irregularities before they do more harm.

The bronze wheel goes down slowly, and checking the thickness of the teeth on a daily basis can tell you how long it will last. When wear lowers the thickness of a tooth by 30% of its original size, it should be replaced. If it is kept in good shape, the hardened worm shaft will usually last longer than several wheels. Our quality control methods make sure that the dimensions are accurate within the ISO 8–9 Grade range, which keeps geometric flaws from causing premature wear.

Installation Best Practices

Installing something correctly sets the stage for long-term, reliable use. The center distance must be within the limits given by the manufacturer. Too much distance causes poor tooth contact, while too little distance causes locking and overload. Alignment precision is very important because the 90-degree shaft position can't fix itself if it's not lined up right. Mounting rigidity stops bending under load, which would lead to noise and wear patterns.

When we send something, we include full installation plans and specs. Our expert support team can help with installation remotely, and for important uses, we can arrange for on-site commissioning help to make sure everything is set up correctly before production starts.

Procuring Industrial Worm Gears: What B2B Clients Need to Know

When making a purchase, you have to think about more than just the technical specs. You also have to think about the supplier's abilities, the freedom to customize, lead times, and support after the delivery. To make smart buying decisions, you need to look at many aspects of a supplier's success and the value of the Industrial Worm Gear.

Custom Versus Standard Solutions

Standard catalog items have faster lead times and lower prices, but they make it harder to optimize the design. Standard products aren't always the best way to handle the unique room limits, mounting arrangements, or speed-torque needs of many industrial uses. For specific applications, custom-engineered solutions work best, but they take longer to develop and cost more to buy at first.

We are experts at making customized gear, and we can do everything from building a single sample to large-scale production runs. Our low minimum order quantities make it easier for clients with unique needs or project-based buying needs to buy what they need. The design consultation process starts with analyzing the needs, then moves on to CAD modeling and engineering validation, and ends with the production of gears that are perfectly matched to the needs of the application.

Evaluating Supplier Technical Capabilities

Assessing a supplier's manufacturing skills that have a direct effect on product quality and shipping reliability is an important part of the decision process. The surface finishes and size errors that can be achieved are set by precision grinding equipment. Heat treatment facilities and process controls make sure that the properties of materials are the same from batch to batch. Inspection equipment like coordinate measure machines, hardness tests, and tooth contact analysis systems make sure that the product meets the requirements.

In our factory, we have CNC gear machining centers, automated grinding machines, and smart heat treatment lines that keep process control within tight limits. We can meet ISO 8–9 Grade precision standards across all production levels thanks to this investment in equipment. Our team has been making things for 15 years, which gives us process steadiness and troubleshooting skills that younger businesses can't match.

Lead Times, Logistics, and Delivery Assurance

Project plans need release dates that can be predicted. Standard goods from distribution stock can be shipped within days. Custom-made solutions, on the other hand, take 35 to 60 days to make, based on how complicated they are. Knowing these dates during the planning stage keeps schedule changes from happening that cost a lot of money.

Our logistics services take into account how fragile precision gears are by custom packaging them with shock-absorbing padding and damage-prevention measures. Transport damage rates below 0.1% keep your investment safe while it's being shipped. We use a variety of shipping methods, including sea freight, air freight, and China-Europe rail for a good mix of speed and cost. For shipments, real-time tracking systems make it possible to see where they are and when they'll arrive, from the time they are loaded at the plant to the time they are delivered.

Value-Added Services and Technical Support

Value-added services reduce total ownership costs through engineering support, production updates, and quality documentation. Pre-sales consultation improves specifications and prevents costly redesigns, while post-delivery assistance resolves installation and testing issues. Comprehensive support, including design guidance, inspection reports, warranty coverage, and fast technical responses, helps minimize downtime and improve customer confidence.

Conclusion

For industrial machinery speed control to work well, it needs parts that are carefully designed and can withstand tough circumstances. Industrial Worm Gear systems offer small, high-ratio speed reductions that come with built-in safety features that keep people and equipment safe. Procurement teams can choose options that improve performance while keeping lifecycle costs low by understanding the mechanical principles, material factors, and upkeep needs. As part of the selection process, reduction ratios, efficiency traits, space limitations, and duty cycle needs must all be balanced against the budget and time constraints. Working with skilled providers who offer customization options, technical advice, and full support services is the best way to make sure that speed control solutions are put in place successfully and meet the strict operating needs of mining, aerospace, and industrial machinery.

FAQ

1.What reduction ratios can worm gears achieve in a single stage?

Reduction ratios for single-stage worm gear systems are most often between 20:1 and 60:1. They can be anywhere from 5:1 to 100:1. To find the ratio, divide the number of teeth on the worm wheel by the number of starts on the worm shaft. Single-start worms reduce the ratio the most, while multi-start configurations reduce it in a more even way. Higher ratios usually mean less mechanical efficiency because there is more moving friction. This means that in continuous-duty situations, heat needs to be carefully managed.

2.How does self-locking capability affect safety in lifting applications?

When the lead angle and friction coefficient stop the worm wheel from moving backwards on the worm shaft, the mechanism locks itself. As an inactive stop in lift traction machines and lifting equipment, this feature holds loads in place even when the motor isn't running all the time. However, dynamic situations, shaking, or wear can make self-locking less effective. When safety is very important, primary braking systems should always be used, and self-locking should be seen as an extra safety feature rather than the only way to hold the load.

3.Why do worm gears generate more heat than other gear types?

There is a lot more friction when worm threads and wheel teeth slide against each other than when spur or helical gears roll against each other. This sliding action creates heat that needs to be controlled with the right amount of lubrication, heat dissipation, and thermal rating. Mineral oils cause more friction and higher operating temperatures than synthetic PAG lubricants. For long-term, reliable operation, applications with high duty cycles need thermal analysis to make sure that working temperatures stay within acceptable ranges.

Partner with YIZHI MACHINERY for Precision Speed Control Solutions

If you don't choose the right Industrial Worm Gear maker, your equipment will either break down after a few years or become a maintenance burden. The company YIZHI MACHINERY has been making unique gears for 15 years, providing high-quality gearbox parts to the mining, aircraft, and industrial machinery industries. We can make things out of high-quality alloy steels like 20CrMnTi, 40CrNiMo, and SAE4340. We use advanced techniques for carburizing, quenching, and grinding to get precision at the ISO 8-9 Grade level and a surface hardness of 58–62 HRC. We can work on projects ranging from samples of a single unit to mass production, and we can meet unique needs for modules 1–50, gear ratios, and mounting arrangements that aren't covered in standard catalogs.

Our all-in-one service model helps with your project from the first idea to its ongoing operation. An engineering consultation makes sure the specs are correct, synchronized production updates keep things clear, and detailed quality documentation makes sure problems can be found. With delivery times between 35 and 60 days, damage-proof packaging, and real-time logistics tracking, your investment is safe while it travels around the world.

Contact us at sales@yizmachinery.com to talk about your unique speed control needs. We will give you a technical analysis, thorough quotes, and unique solutions that work best for your specific application. You can learn more about what we can do as your trusted Industrial Worm Gear seller by going to yizhimachinery.com.
