Heavy Duty Worm Shaft System: Benefits, Features, and Applications

When industrial processes need to send power reliably in small areas, the Heavy Duty Worm Shaft System is an engineering answer that strikes a perfect balance between being small and having a high torque multiplier. This unique mechanical assembly combines a helical-threaded worm with a toothed worm wheel. They work on axes that are not parallel to each other and don't intersect, so they can achieve reduction ratios from 5:1 to 300:1 while still taking up very little space. Worm gear mechanisms work by sliding against each other instead of rolling contact like most gear trains do. This makes them self-locking, which is important for vertical lifting equipment, and quieter for precision machinery. Through our research, we've learned how these systems solve important problems in mining, flight, and industrial machines.

Understanding Heavy Duty Worm Shaft Systems

Core Working Principles and Mechanical Function

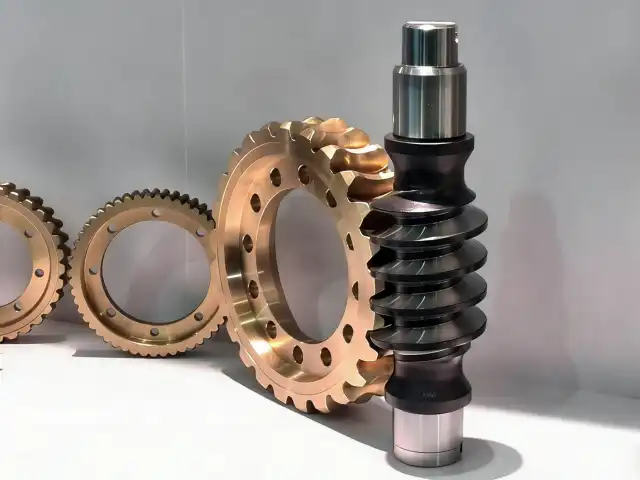

An important part of a worm drive system is the strengthened worm thread and the bronze-alloy worm wheel constantly moving against each other. The worm's spiral thread strikes different teeth on the wheel as it turns, changing high-speed, low-torque input into low-speed, high-torque output. The sliding action gives a clear mechanical advantage: the gear ratio is equal to the number of teeth on the worm wheel divided by the number of thread starts on the Worm Shaft System. A 60:1 reduction is made when a single-start worm engages a 60-tooth wheel. This lets small designs take the place of multi-stage gearboxes.

When the worm's lead angle drops below the friction angle between mating surfaces, the system locks itself in place. When the lead angle is less than five degrees, frictional forces stop the worm wheel from driving the worm backwards. This makes the worm itself a mechanical brake that doesn't need any extra parts. This quality is very important for elevator traction machines and lifting equipment that needs to be able to hold a load without using power all the time to meet strict safety standards like EN 81 compliance.

Essential Design Elements and System Types

Precision in manufacturing determines how long a system lasts and how well it works. For the Worm Shaft System, case-hardened alloy steels like 20CrMnTi, AISI 8620, or 42CrMo are needed. These steels must be heated through carburising and quenching to get the surface hardness to between 58 and 62 HRC while still having a tough core that can handle shock loads. Grinding processes can get Ra values below 0.4µm, which lowers friction coefficients that would otherwise make things less efficient and speed up wear.

A hard-worm/soft-gear matching theory guides the choice of materials for worm wheels. Tin bronze metals that don't cause friction, such as ZCuSn10Pb1, or aluminium bronze, protect the more expensive hardened worm while keeping the good moving properties. This choice of materials makes the product last longer in rough conditions like those found in mine conveyor systems and automatic production line reducers.

Performance Metrics and Operational Reliability

Worm gear systems usually have efficiency ratings between 50% and 95%. These ratings depend on the reduction ratio, lead angle, quality of the oil, and the precision of the manufacturing process. Single-reduction units with ratios less than 20:1 and multi-start worms are more efficient. On the other hand, extreme ratios lose some of their mechanical edge to friction. Modern synthetic lubricants with high pressure additives help to reduce these losses by creating safe border layers that keep metals from touching each other during heavy-load starts.

Compared to multi-stage planetary systems, they still don't need as much maintenance. Regular oil analysis finds high levels of bronze particles that show wear is getting worse, and vibration tracking finds imbalance or bearing degradation before it breaks down completely. Machine tool indexing mechanisms usually have 20,000-hour service intervals for systems that are properly kept. Worm wheel replacement is the major maintenance task that needs to be done over the system's working lifetime.

Key Features and Design Principles of Heavy Duty Worm Shaft Systems

Advanced Material Science and Heat Treatment Technologies

The choice of material based on loading conditions is the first step in making high-quality Worm Shaft Systems. Carbon steels like 45# are cheap and good for light to mild loads. Nickel-chromium-molybdenum alloys like 40CrNiMo, SAE4340, and 18CrNiMo7 are stronger and better at handling shock loads in mining equipment. The heat treatment process needs to find a balance between making the surface hard and making the core flexible. Carburising adds carbon to the surface, then cooling to make it martensitic hard, and tempering to ease stresses inside the metal.

Induction hardening is an alternative method that hardens only the tooth edges and thread surfaces, keeping the shaft body tough. Through-hardening isn't practical for larger modules (1 to 50 in customisable configurations), so this method works better. After heat treatment, post-hardening grinding fixes any errors that happened. This makes sure that the thread profile is accurate enough to meet ISO 8-9 precision grades, which are needed for smooth power transfer without kinematic ripple.

Optimizing Gear Ratios for Torque and Load Management

When choosing the right gear ratios, you have to balance the need for output torque with the need for efficiency. These are the main benefits of this choice framework:

1. Compact High-Ratio Solutions: Single-stage worm drives can reach ratios that helical or spur gear stages can't without using a chain of reduction stages. Three-stage helical boxes are replaced by a 100:1 ratio, which makes assembly easier, reduces the number of possible failure points, and reduces the installation footprint. This is especially helpful in lift machine rooms that don't have a lot of room.

2. Load Distribution Optimization: The multiple teeth of a worm's shape spread out the transferred forces over a larger area than spur gear point contacts. This feature makes it possible for the system to work reliably even when it's under heavy cyclic loading, which is common in mining operations where bulk materials need to be moved.

3. Thermal Management Integration: Less effectiveness creates heat that needs ways to be removed. Keeping lubricant temperatures below critical levels is done with oil cooler heat exchanges, forced air movement, or aluminium housings with built-in cooling fins. When designing something, you have to take into account the climate. For example, aerospace ground support equipment that works in deserts needs better thermal control than industrial machinery that works inside.

These benefits successfully solve production problems like limited space, noise pollution in filled buildings, and the need for holding torque that doesn't need electrical braking systems to fail. The engineering adaptability lets it work in a range of situations, from precise solar tracker actuators to tough mining conveyor drives.

Design Considerations for Extended Service Life

How the lubrication is done has a big effect on how quickly things wear out and how well they work. Splash lubrication works well for slow speeds and light loads, while pressure-fed systems make sure that the film thickness is right at fast sliding speeds. When it comes to boundary lubrication, synthetic polyalphaolefin (PAO) lubricants with phosphorus-sulfur high pressure packages work better than mineral oils. This is especially true when there are a lot of start-stop cycles that break up hydraulic films.

The unique force directions in worm drives are taken care of by structural support. When tangential forces from torque gearbox and separating forces from pressure angles work together, they create loads that bearing systems have to handle. Angular contact ball bearings or tapered roller bearings set up in a duplex configuration can handle both radial and thrust loads. Preload changes can be made to account for temperature expansion that happens during operation.

Heavy Duty Worm Shaft System Applications Across Industries

Industrial Machinery and Manufacturing Automation

Worm gear reducers are used in modern automatic factories to make sure that parts are placed correctly and that they stay in place. Robotic pick-and-place systems use small worm drives in joint actuators instead of bigger planetary gearheads because of space issues. The self-locking feature keeps the arms in place without constantly turning on the motor. This cuts down on electricity use and heat production in areas where temperature control is important.

Indexing mechanisms on machine tools show another important use. For multi-axis cutting, workpieces that are placed on rotary tables must be precisely angled and have no offset. Precision-hobbed bronze wheels and ground worm threads allow for repeatability within arc-seconds. This makes micron-level machining limits possible on aircraft parts and medical implants where size directly affects function.

Mining Operations and Heavy-Load Conveyors

Mineral extraction is very rough and shock-prone, which puts a lot of stress on the parts that carry power. When moving broken rock, belt conveyors work all the time, even when the load changes because the flow of material changes. Worm gear drive systems can handle these conditions because they are built to last. Larger module gears spread contact loads across thicker tooth sections, and harder surfaces stop abrasive particles from getting into housings that aren't sealed well enough, which speeds up wear.

Lifting skips from deep pits with hoist mechanisms is an example of a safety-critical application. The built-in self-locking stops the slope from falling out of control when the power goes out. It works as a mechanical fail-safe in addition to the electromagnetic brakes. Redundant safety systems with worm drives meet regulatory standards for tools used to move people, since failure would require more than one separate safety measure.

Specialized Aerospace Ground Support Equipment

Worm Shaft Systems are used in the lifting and positioning systems of aircraft repair platforms, mobile stairs, and cargo lifters. Weight optimisation is still very important in mobile equipment—getting the right gear ratios while using as little mass and space as possible lets motorised units carry more and use less fuel. Aluminium housings made for aerospace applications and precision-ground parts keep performance levels high even when exposed to the elements outside.

Worm gears are used for human override on key flight control surface test rigs with hydraulic actuator backup drives. During hydraulic system repair, maintenance workers can manually move control surfaces into place. The self-locking feature keeps the positions in place against aerodynamic loads while inspections are being done. This fail-operational design philosophy makes sure that ground testing can still happen safely even if the main power systems need to be fixed.

Maintenance Strategies and Troubleshooting Approaches

Regular maintenance keeps systems running longer and stops expensive unplanned downtime. When accelerometers are placed close to bearing housings and vibration analysis is done, problems that are starting to show up are found. For example, rising amplitude at gear mesh frequencies shows tooth wear or misalignment, while rising amplitude at bearing-specific frequencies shows race spalling or poor lubrication. Thermal imaging finds hot spots that are caused by poor greasing or too much loading, so problems can be fixed before a part breaks.

Wear metal concentrations are tracked by taking samples of oil at regular times. High amounts of copper and tin show that the worm wheel is wearing out faster than expected, so it needs to be inspected and maybe replaced before it fails completely. Counting particles and analysing them spectroscopically give early warnings that let maintenance be scheduled during planned breaks in production instead of having to shut down suddenly, which can't keep delivery promises.

Comparing Heavy Duty Worm Shaft Systems with Alternative Solutions

Performance Evaluation Against Common Gear Types

When comparing gearbox technologies, you have to look at a lot of different performance factors. Worm drives can reach 100:1 ratios with just one stage, while helical gear systems need three stages stacked on top of each other. This makes assembly much easier and cuts down on the number of parts needed. Planetary gear systems are more efficient (usually 90–97%), but they don't self-lock and make more noise because they have more mesh points that are vibrating at the same time, causing harmonic sounds.

Bevel gears are 95% efficient at moving power between shafts that are not parallel to each other, but they need to be perfectly aligned and can only handle a small range of ratios (1:1 to 6:1). To get high ratios, combining bevel and spur stages makes things more complicated and costs more. The sliding contact in worm systems absorbs shock loads and lowers noise, which is helpful in precision machinery and crowded industrial areas where noise levels affect worker output and government rules.

Total Cost of Ownership and ROI Considerations

Buying choices involve more than just the original purchase price. They also include installation, energy use, upkeep, and replacement costs over the product's entire life. Worm Shaft Systems may not be as mechanically efficient as planetary systems, but they are usually cheaper to buy because they are easier to build. Lower component counts reduce the need for spare parts and make maintenance training easier. This is especially helpful for businesses that have a lot of equipment installed.

When you figure out how much energy something uses, you have to take into account how often it is used. For example, sporadic operation reduces efficiency losses more than continuous-duty applications, where a 5% difference in efficiency can add up to a lot of money over years of use. The self-locking feature gets rid of the need for different brake systems in vertical lifting uses. This makes up for lost efficiency by cutting down on parts and making control systems simpler. When space, noise, and keeping a load safely are more important than maximum power transfer efficiency, lifecycle analysis often chooses worm drives.

Application-Specific Selection Criteria

Selecting the right gearbox requires matching performance characteristics to application needs. Worm shaft systems suit limited spaces and high ratios, while helical or planetary designs fit efficiency-focused uses. Duty cycles, environmental conditions, temperature, moisture, and contaminants determine material, sealing, and lubrication choices to ensure reliable operation and cost control.

Procurement Guide for Heavy Duty Worm Shaft Systems

Navigating Supplier Selection and Customization Options

Supplier selection requires evaluating manufacturing capability, certifications, and technical resources. ISO 9001, AGMA, and DIN standards support quality assurance, while advanced equipment confirms precision capabilities. Customisation options, including flexible modules, tooth counts, and material choices, allow application-specific solutions. Low minimum orders provide flexibility for prototypes, pilot projects, and replacement needs.

Evaluating Lead Times and Production Capacity

Production schedules influence project timing and inventory planning. Standard designs usually ship faster, while custom solutions require longer lead times for materials, machining, heat treatment, and inspection. Typical production takes 35–60 days. Suppliers with flexible capacity and multiple machining resources can support changing demands and maintain reliable long-term production partnerships.

Logistics, Warranty, and Technical Support Considerations

Effective logistics, warranty, and technical support improve product reliability and customer confidence. Protective packaging keeps transport damage below 0.1%, while sea, air, and rail options balance cost and delivery speed with real-time tracking. A one-year warranty, responsive technical assistance, and pre-sales engineering support reduce risks and help ensure successful operation.

Conclusion

Heavy Duty Worm Shaft Systems are small, have high torque multiplication, and can lock themselves, which are all qualities that other gearbox technologies have trouble matching in some demanding situations. Advances in material science in alloy steels and bronze formulations, along with precise manufacturing techniques that reach ISO 8–9 grades, make sure that industrial machinery, mining operations, and aerospace ground support equipment all work reliably. When doing strategic buying, you have to weigh the benefits of efficiency against the benefits that are specific to the application, such as reducing noise, making the best use of room, and built-in safety features. When businesses work with experienced manufacturers who offer full customisation, quality certifications, and strong technical support, they can gain a long-term competitive edge through better power transmission solutions.

FAQ

1.What maintenance intervals do worm gear systems require?

Worm drives that are properly oiled and working at their normal loads usually need to have their oil changed every 2,000 to 5,000 hours, based on how hard they are working and the weather. Visual checks for oil leaks, strange noises, or too much heat should be done once a month. More in-depth sound analysis and oil sample should be done every three to six months, depending on how important the problem is.

2.Can worm drives operate in reverse rotation applications?

When the lead angle is greater than the friction angle, worm gear systems can work in both directions, allowing back-driving. Applications that need to be able to go backwards and forwards define multi-start worms with bigger lead angles and less self-locking ability. Single-start designs with small lead angles offer the most holding torque but don't allow backward movement. This makes them perfect for lifting equipment that needs to keep the load securely in place at all times.

3.How does temperature affect worm gear performance?

Higher working temperatures make lubricants less thick, which weakens protective coats and speeds up wear. On the other hand, cold starts with high-viscosity oil cause too much friction until the engine warms up. Compared to mineral oils, synthetic lubricants keep their viscosity stable over a wider temperature range (-40°C to 150°C). This means they work well in harsh environments like those found in outdoor mining equipment and aerospace ground support applications.
