Choosing the Right Bevel Pinion and Crown Wheel for Your Vehicle

Selecting the correct differential gear set determines whether your axle delivers reliable performance or becomes a maintenance liability. When procurement managers evaluate drivetrain components, the Bevel Pinion and Crown Wheel emerge as mission-critical elements that demand careful technical scrutiny. These paired gears convert engine torque through perpendicular shafts while enduring extreme loads, making their selection a pivotal decision affecting vehicle uptime, fuel efficiency, and operational costs across automotive, agricultural, and construction machinery sectors.

​

Understanding Bevel Pinion and Crown Wheel: Functions and Design Fundamentals

What Makes These Gears Essential to Power Transmission

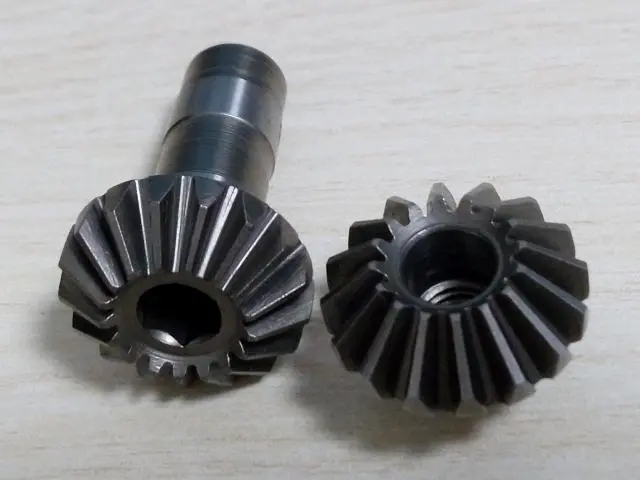

The Bevel Pinion and Crown Wheel work together as a matched gear set to transfer rotational force between shafts that cross each other, usually at right angles. The smaller pinion turns the larger crown wheel, which slows it down and increases its torque at the same time. This design is very useful in situations where space is limited, like in rear-axle differentials, steering systems, and machine tool drives, where parallel shaft layouts are not possible.

These conical gears can handle changes in direction while keeping the flow of power smooth, unlike spur gears that work on horizontal paths. The crown wheel has more teeth than the pinion's teeth, so the two connect in gear ratios that determine the vehicle's speed-to-torque properties. For highway driving, heavy-duty cars might use 4.10:1 ratios, while off-road equipment needs 5.83:1 ratios that put low-speed pulling power first.

Gear Profile Types and Material Selection

Three profiles dominate contemporary applications. Straight bevel gears are simple to operate but noisy, so they're only for low-speed machinery. Spiral bevel teeth engage progressively. This reduces vibration and boosts load capacity by 40% over straight-cut systems. Hypoid gears offset the shaft, lowering the driveshaft for increased ground clearance and cabin space.

Material selection affects service life. SAE4340, 20CrMnTi, and 18CrNiMo7 alloy steels function well with carburising heat treatment; thus, we utilise them. The core remains robust at 30–35 HRC while regulated carbon diffusion and quenching harden the surface layers to 58–62 HRC. This blend prevents tooth flank contact fatigue pitting and sustains stress loads without breaking, unlike through-hardened materials.

Logarithmic spiral profiles with ISO 8-9 precision are cut using Gleason cutting. This standard prevents edge loading and chipping by keeping tooth contact patterns in the center when bent. From instrument drives to mining equipment finals, 0.5–50 module sizes are suitable. Pressure angles of 20° usually make load distribution easier.

Key Factors to Consider When Choosing Bevel Pinion and Crown Wheel

Load Capacity and Operational Efficiency

To figure out the needed load capacity, you have to look at peak torque events instead of normal working conditions. The swing drive of a construction excavator experiences 300% torque spikes when the bucket comes loose, so gears that are rated much higher than the motor's nominal output are needed. The effective case depth we get from our carburizing process—which can be anywhere from 0.8mm to 1.5mm based on the module—determines the subsurface support that keeps the case from breaking during these short-lived overloads.

The performance of a transmission depends on the type of gear and how well it is oiled. When properly oiled with GL-5-rated oils, spiral bevel sets achieve 96–98% efficiency. Hypoid configurations, on the other hand, lose 2–3% efficiency because they slide more. This trade-off is important for mobile equipment because the amount of fuel used directly affects the cost of running the equipment. A 400-horsepower Bevel Pinion and Crown Wheel loader that loses 2% of its efficiency will use 8 more horsepower as heat, so it needs more cooling capacity.

Compatibility and Integration Requirements

Dimensional compatibility is more than just matching the patterns of mounting bolts. In hypoid systems, the offset of the pinion affects the driveline angles, and the width of the gear face sets the bearing spread and deflection features. When matched sets are used to replace existing assemblies, they keep the engineered contact patterns that were created during the validation of the original design. When you install parts that don't match, even if they're from the same manufacturer, you create edge contact zones where Hertzian stress concentrations cause the surface to wear away quickly.

The specs for backlash take temperature expansion into account. We keep a 0.15- 0.25 mm gap at assembly temperature, which lets the tooth flanks get closer without getting stuck as the parts heat up during use. Too little backlash makes teeth get stuck when temperatures rise, and too much space causes contact loading and faster wear. This range is more important in places where temperatures change a lot, like in farming equipment that works from -20°C in the winter to +40°C in the summer.

Service Life Prediction and Maintenance Planning

The expected lifespan depends on how hard it is loaded and how well it is maintained. When used continuously at full capacity and with the right amount of grease, our parts usually last between 10,000 and 15,000 hours before they need to be replaced. With only occasional maintenance, this can last up to 20,000 hours, but if it's overloaded or the oils are dirty, it will only last about 5,000 hours.

Predictive maintenance programs look for vibration patterns that show early pitting before a major failure happens. Small increases in the frequency of the 1x gear mesh show even wear, while sudden harmonic peaks show damage in one area that needs to be looked at right away. We suggest doing an initial oil study after 500 hours to get rid of break-in debris. After that, every 2,000 hours, you should keep an eye on ferrous particle counts and additive loss.

Comparing Bevel Pinion and Crown Wheel with Other Gear Types

Performance Characteristics Across Gear Families

Worm gear sets may reduce single stages to 100:1 compared to bevel gears' 6:1, but rolling friction makes them only 60–70% efficient. They may be utilised for positioning jobs that occur seldom since their self-locking features prevent backdriving. The heat they emit is too great for continuous power transmission.

On parallel shafts, spur and helical gears are 98–99% efficient and can tolerate greater speeds than bevel gears. Because they can't alter shaft direction, they need elaborate gearbox systems that take up container space. Small, movable equipment frequently benefits more from perpendicular power transmission than from parallel shaft setups due to its spatial efficiency.

Planetary gear systems are employed in tiny places for large reduction ratios. Despite their excellent power density, they cost three to four times more than identical bevel gear finishes. Economics justifies planetary complexity at 15:1 ratios. Bevel ratios under 8:1 favour simpler designs.

Application-Specific Selection Criteria

Heavy construction equipment prioritises shock load and contaminant resistance. Open teeth allow debris to fall off bevel gears, whereas sealed planetary systems retain sharp particles and accelerate wear. We supplied spiral bevel systems to coal mine crusher drives where flying dust destroyed sealed planetary units in 2,000 hours. Regular oil changes kept our open-architecture bevel gears lasting over 12,000 hours.

Agricultural equipment must be dependable throughout particular seasons, regardless of idle time. Carburised bevel gears withstand corrosion better than case-hardened internal ring gears in planetaries, where moisture may induce rust pitting on unprotected parts during storage. The robust tooth geometry can withstand uncommon foreign object damage. A bent tooth on a combine header drive may generate vibrations but remain operating, while planetary gear damage typically causes catastrophic failure.

All commercial vehicle differentials employ hypoid bevel gears since they are the only ones that are tiny, quiet, and cheap at large volumes. The manufacturing economy achieved over decades of vehicle process development is unmatched by other technologies.

Procurement Considerations for Bevel Pinion and Crown Wheel

Supplier Qualification and Certification Standards

Instead of catalogue standards, examine manufacturing skills for optimal sourcing. ISO 9001 accreditation is a fundamental quality system check, but gear production requires more care. We have a NIST-compliant gear grinding machine. This ensures that the tooth geometry is exact to 0.005mm throughout the active profile, which is difficult to assess without metrology instruments.

Heat treatment consistency determines batch-to-batch performance dependability. Fully automated carburising lines maintain a 10°C temperature and a 0.05% carbon potential in the furnace operating zone. Due to consistency, case depth differs by less than 0.1 mm between manufacturing batches. In contrast, manually regulated furnaces fluctuate by 0.3 mm or more, making service life uncertain.

Material test reports that verify metal composition, heat treatment charts that detail your order's duration, temperature, and atmosphere profiles, and inspection reports that verify dimensions and contact pattern should be included in the certification papers. We provide comprehensive traceability from raw material mill certifications to final inspection. If field issues occur, this helps us diagnose them.

Lead Time Management and Order Quantities

Standard lead times are 35 to 60 days, depending on the quality of the manufacturing order. People who want speedier delivery sometimes don't provide enough time for heat treatment or stress release, leaving stressors that create service misunderstandings. Fast-produced gears in 20-day cycles fail 40% more frequently than those created in 45 days.

Minimum order numbers were used to constrain small-volume purchasers, but production economics have changed. One-piece orders are possible because our flexible machining centers don't have setup time constraints that make small batches prohibitively costly. This accessibility helps when creating prototypes or aftermarket service parts, when variable demand makes inventory speculation problematic.

Instead of random number breaks, the price is dependent on raw material use, machining difficulty, and heating time. The costs vary regardless of quantity since a 50-module crown Bevel Pinion and Crown Wheel has more alloy steel and require more carburising cycles than a module-5 counterpart. We provide cost breakdowns to assist purchasing teams in comprehending value rather than simply comparing unit pricing.

Customization Capabilities for Unique Applications

For most automotive usage, standard gears function fine, but industrial equipment requires adjustments. We alter the number of teeth to suit ratio demands, the face width to match the area, and the material specifications for extreme temperatures. Cryogenic service applications may need 9Ni steel that can withstand -196°C, whereas furnace drive applications employ heat-resistant alloys that can withstand 400°C.

Customisation begins with needs discussions that clarify operating parameters, room constraints, and interface standards. Our engineers utilise your comments to create 3D models and manufacturing drawings before production. In a recent farm gearbox update, this collaboration caused a 12 mm clearance interference. This issue was resolved during design review, saving thousands of dollars over installation.

Technical support extends beyond planning. We provide installation instructions including beginning torques, shimming, and contact pattern testing to ensure proper assembly. Post-delivery assistance includes sound analysis, failure investigation, and field issue fixes. A full-service strategy builds agreements with suppliers instead of merely conducting business.

Industry-Leading Manufacturing Standards and Quality Assurance

Advanced Production Equipment and Process Control

We have CNC gear grinding centers at our facility that can achieve a total composite error of 0.003mm across the whole tooth profile. This precise level makes sure that the load is spread out evenly, which stops the stress lifters that cause micropitting. Instead of random sampling, automated measurement systems check all of the production, so there is no chance that a defect will get through during the checking process.

The equipment for heat treatment includes computer-controlled atmosphere management that keeps the exact carbon potential during long rounds of carburizing. Every 30 seconds, real-time tracking records the conditions of the furnace, making permanent records that show process compliance. If there is a failure in the field, we get back archived data from your production batch to see if there were any deviations or to confirm that the process was followed, which narrows the focus of the investigation.

Non-destructive testing protocols are part of quality assurance. Magnetic particle inspection shows grinding cracks that can't be seen with the naked eye, and sound testing proves that carburized parts don't go through through-hardening. These gates catch mistakes in the processing before they are put together. This keeps expensive failures in the field and guarantees that claims do not happen.

Long-Term Partnership Benefits and Supply Chain Resilience

Setting up smart ties with suppliers has benefits beyond just lowering transaction costs. We work with customers on application engineering and offer changes to designs that make production easier without affecting performance. A new partnership got rid of the need to grind teeth on internal splines that weren't needed. This cut production time by 18% while meeting all functional requirements.

As global operations keep getting messed up, supply chain stability becomes more important. Our inventory management tools keep long-lead raw materials on hand to keep the supply of alloy steel from changing too quickly. During recent supply chain problems, when competitors were giving quotes for 90-day or more lead times just for materials, we kept our deliveries on schedule.

Feedback on success in the field helps efforts to make improvements all the time. When a customer said that gears were wearing out too quickly in places with a lot of dust, a joint study showed that the problem was with the oil filtering, not the gears themselves. After that, we made application guidelines for filtration specifications that stopped similar problems across their whole fleet. Sharing this information helped the success of the product in ways that went beyond our direct manufacturing role.

Conclusion

When choosing the right differential gears, you have to weigh the technical performance against the practicalities of the business. When properly defined and bought from qualified makers, the Bevel Pinion and Crown Wheel have a history of being reliable in tough situations. Knowing the basics of materials science, geometric precision, and heat treatment helps procurement professionals judge a supplier's skills beyond what they say on their marketing materials. Strategic relationships with experienced makers give you access to technical support, the freedom to make changes, and a stable supply chain, all of which are important for long-term operational success in competitive business settings.

FAQ

1. What determines the appropriate gear ratio for my vehicle application?

The choice of gear ratio relies on the engine's power, the weight of the vehicle, the top speed that is wanted, and the amount that needs to be carried. Lower numerical ratios (3.5:1) get better gas mileage and higher speeds. Higher ratios (5.5:1) get more torque multiplied for hauling heavy things or operating off-road. Our tech team looks at your business profile and performance goals to come up with the best ratios that balance different priorities.

2. Can I replace just one component if only the pinion or crown wheel is damaged?

For replacement, you need to put in matched sets that are made as pairs. During production, gears are rubbed against each other, which makes contact patterns that are unique to that combo. When you put a new pinion on a used crown wheel, the mesh shape is off, which leads to noise, shaking, and quick failure. We always send parts as matched pairs, keeping the engineered relationship that was set up during production.

3. How does surface hardness specification affect service life?

Higher surface hardness (58–62 HRC) makes it more resistant to contact fatigue pitting and abrasive wear, which means it usually lasts 50–80% longer than options with lower hardness (45–50 HRC). To get these traits, though, you need to carefully control the carburizing process and use good heat treatment facilities. For every production batch, we give you metallurgical test reports that show the actual hardness that was reached and the effective case depth.

4. What customization options exist for specialized equipment requirements?

We can change the number of teeth, the number of modules, the face width, the shape of the hole, and the material specs to meet the needs of each application. As part of projects, unusual alloys for high temperatures, changed tooth profiles to lower noise, and non-standard mounting interfaces for retrofit uses have all been used. Before full production, the customization process starts with a discussion of what needs to be changed. This is followed by engineering ideas and sample testing.

Partner With a Trusted Bevel Pinion and Crown Wheel Manufacturer

With 15 years of experience, YIZHI MACHINERY has been making accurate gear parts for OEM and aftermarket users around the world. Our ISO-compliant factory makes custom spiral and hypoid Bevel Pinion and Crown Wheel gear sets with the help of cutting-edge Gleason systems and automatic heat treatment lines that keep the surface hardness constant at 58 to 62 HRC. We help procurement teams with every step of the process, from the first design meeting and sample testing to full-scale production and managing logistics around the world. Customized packaging with shock-absorbing pallets keeps damage during transport to less than 0.1%, and real-time shipment tracking lets everyone in the supply chain see what's going on. Our flexible manufacturing can handle orders of any size, with lead times ranging from 35 to 60 days. This is true whether you need a single sample or regular production numbers. Contact us at sales@yizmachinery.com to talk about your specific needs and get detailed technical proposals.
