Bevel Pinion and Crown Wheel - Precision Engineered for Industrial Excellence

Looking for high-performance Bevel Pinion and Crown Wheel solutions? Henan Yizhi Machinery conveys enterprise-grade adapt sets with 15 a long time of fabricating ability. Our precision-engineered gatherings highlight ISO 8-9 review exactness, surface hardness up to 58-62 HRC, and customizable modules from 0.5-50. With conveyance times of 35-60 days and transport harm rates underneath 0.1%, we give solid control transmission arrangements for directing frameworks, machine devices, and heavy-duty applications worldwide.

Understanding Bevel Pinion and Crown Wheel Technology

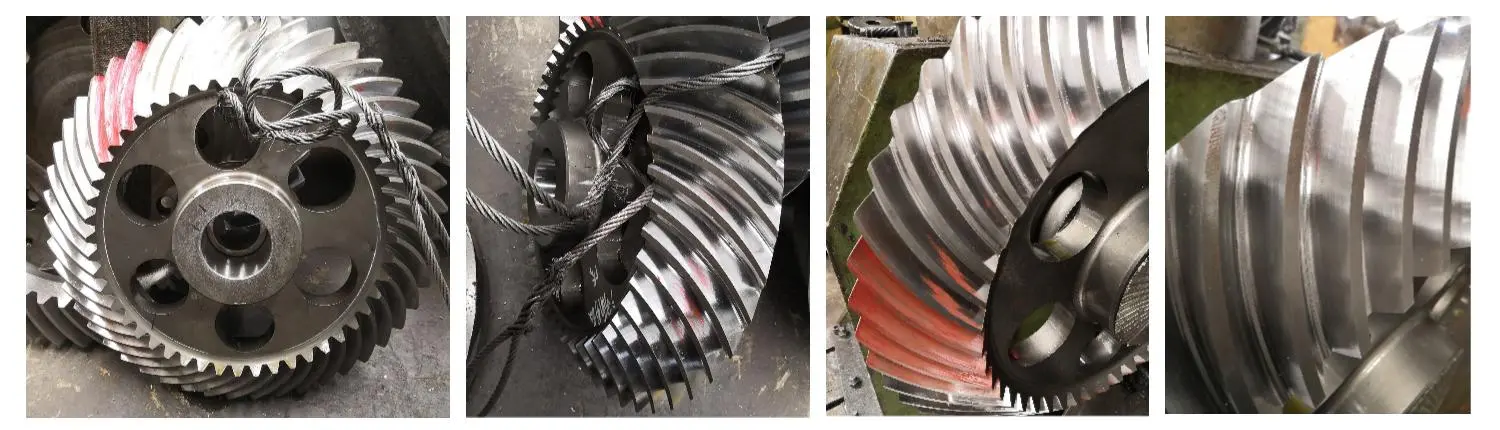

The item set is a specialized mated equip get together outlined to transmit control between crossing shafts. These components work together to divert rotational movement whereas giving speed lessening and torque multiplication.

The pinion serves as the driving equip with less teeth, exchanging vitality to the bigger crown wheel. This setup is basic in car differentials, mechanical apparatus, and marine impetus systems.

Working Principle

Bevel gears work on funnel shaped surfaces that focalize at a common summit. This interesting geometry empowers smooth fitting with progressive tooth engagement, diminishing clamor and affect loads.

The absolutely built cone shaped plan guarantees reliable tooth contact all through the turn cycle. This comes about in effective control transmission whereas keeping up compact establishment requirements.

Technical Specifications

Premium Materials and Processing

Our Bevel Pinion and Crown Wheel assemblies utilize high-grade materials for superior performance:

Material Options:

• 45# steel for standard applications
• 20CrMnTi and 40CrNiMo for upgraded strength
• SAE4340 and AISI4140 for heavy-duty requirements
• 18CrNiMo7 and 17CrNiMo6 for exactness applications

Processing Techniques:

• Cutting and hobbing for exact tooth formation
• Milling for precise surface finishing
• Grinding for extreme exactness and smoothness

Key Advantages

1. Adaptable Spatial Angular Transmission

Our adapt sets productively transmit control between crossing shafts at different points, giving plan adaptability for complex mechanical systems.

2. Balanced Efficiency and Precision

Achieve 95-98% mechanical proficiency whereas keeping up tight resiliences for smooth operation and amplified benefit life.

3. Strong Load-Bearing Capacity

High-quality materials and warm treatment forms guarantee uncommon load-carrying capability beneath extraordinary working conditions.

4. Compact Design Flexibility

Space-efficient setup permits for establishment in restricted zones without compromising performance.

5. Complete Customization Services

We oblige one of a kind details and low-volume orders, counting single-item generation for specialized applications.

Industrial Applications

Automotive Systems:

• Rear-axle differentials
• Steering mechanisms
• Transmission assemblies

Industrial Equipment:

• Machine apparatus shaft drives
• Agricultural machinery
• Heavy mechanical equipment

Marine Applications:

• Outboard engine lower units
• Marine drive systems
• Ship assistant equipment

Our product sets serve differing businesses requiring solid control transmission solutions.

Why Choose Henan Yizhi Machinery?

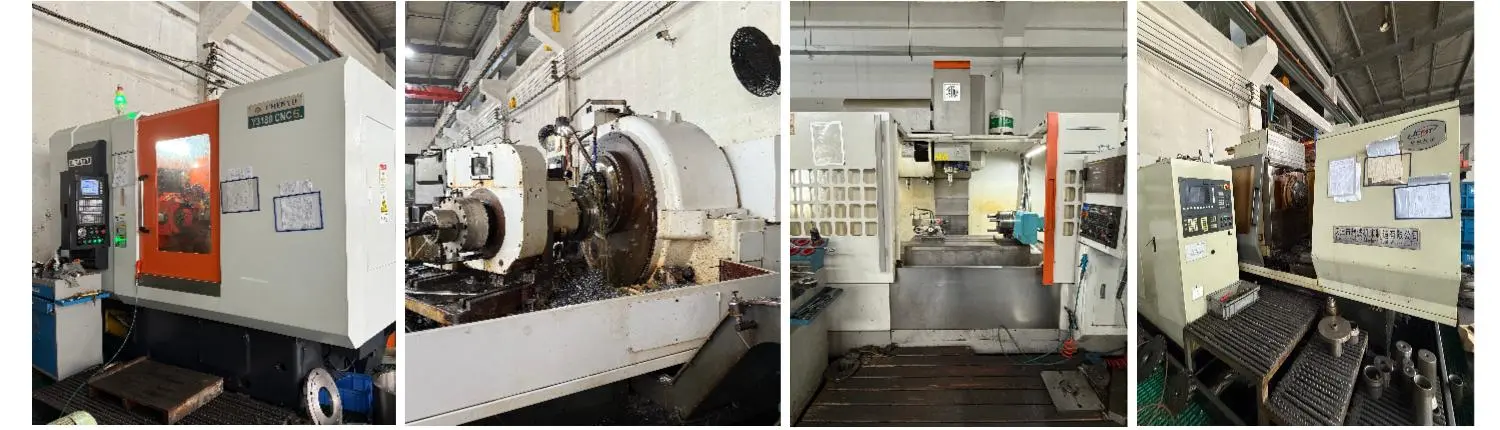

With 15 a long time of fabricating encounter and ISO certification, we convey predominant​​​​​​​ Bevel Pinion and Crown Wheel arrangements. Our progressed generation offices incorporate high-precision CNC equip machining centers and robotized pounding equipment.

We keep up long-term associations with famous mechanical building endeavors around the world. Our standardized OEM customization workflow guarantees effective arrange fulfillment and steady quality.

Quality Assurance Process

We take after a comprehensive quality administration system:

1. Design Meeting: Specialized bolster and custom drawing development
2. Precision Fabricating: State-of-the-art CNC machining centers
3. Heat Treatment: Controlled carburizing and solidifying processes
4. Quality Assessment: Multi-stage confirmation utilizing progressed estimation equipment
5. Protected Bundling: Custom wooden beds with shock-absorbing materials
6. Reliable Conveyance: Multi-channel transport with real-time tracking

Frequently Asked Questions

Q: What's the difference between spiral and hypoid bevel gears?

A: Spiral bevel gears have intersecting axes, while hypoid gears feature offset axes. Hypoid designs allow larger pinion diameters for increased strength and smoother operation.

Q: Why is tooth contact pattern important?

A: Proper contact patterns ensure even load distribution across tooth surfaces. Incorrect patterns cause edge loading, leading to premature failure.

Q: Can I replace individual components?

A: No. Bevel pinion and crown wheel sets are manufactured as matched pairs. Replacing single components results in poor meshing and rapid failure.

Q: What causes gear whining noise?

A: Whining typically indicates improper backlash settings, worn bearings, or insufficient lubrication causing metal-to-metal contact.

Q: How often should gear oil be changed?

A: Initial break-in oil should be changed after 500 operating hours. Subsequent intervals depend on application severity, typically every 2,000 hours for industrial use.
