Worm Shaft System for Industrial Automation: Benefits and Uses

In industrial automation, efficient power transmission determines production reliability and equipment longevity. A Worm Shaft System delivers precisely that—offering compact design, high reduction ratios, and inherent self-locking properties that safeguard operations. This mechanism pairs a threaded worm with a meshing worm wheel to convert rotational motion into controlled torque, making it indispensable for lifting equipment, automated production lines, and valve actuation systems where safety and precision cannot be compromised.

​

Understanding Worm Shaft Systems: Design, Mechanism, and Applications

Core Components and Operating Principle

In a Worm Shaft System, the worm, a threaded cylinder shaft, and the worm gear, a gear wheel, glide against each other. This design of perpendicular axs that don't cross reduces speed and size. Unlike other gear trains, the worm's helical threads move between the gear teeth, transmitting power softly and quietly.

Material choice affects durability and performance. We use 42CrMo, AISI 4140, 20CrMnTi, and SAE4340 hardened alloy steels for our worm shafts. Quenching, carburising, and induction hardening harden the surface to 58–62 HRC. Worm gears employ tin bronze or aluminium bronze to reduce friction and wear. This mix of hard and soft materials prolongs gadget life and maintains communication.

Processing Techniques That Define Quality

How well these systems work in tough situations depends on how precisely they are made. Cutting, hobbing, milling, and grinding are all part of our production process, and we keep the ISO 8–9 level of accuracy throughout. We pay extra attention to finishing the tooth surface—we grind worm threads to get surface roughness below Ra 0.4µm, which lowers friction coefficients and stops wear before it's supposed to happen.

Another important step is the heat process. When you carburize something, the outside gets hard and doesn't wear down easily, and the inside stays flexible and absorbs shocks. This combination can hold a lot of weight, which is important for elevator traction machines and lifting equipment that could fail and put people in danger.

Applications Across Industrial Sectors

Because of its flexibility, worm gear technology is valuable in numerous sectors. These systems enable high reduction ratios for automated production line reducers to convert high-speed motor output into slower, more powerful conveyor and assembly mechanism movements. Machine tool indexing mechanisms perform better because they may be precisely set and lock themselves without brakes.

Packaging equipment manufacturers prefer silent operation because sliding contact is quieter than spur gear impact forces. Valve control systems in chemical processing facilities use self-locking to keep valves in place without electricity. The system is safer and more energy-efficient. Worm drives keep solar tracking systems' panels in position in windy conditions. These Worm Shaft Systems need minimal upkeep.

Advantages of Worm Shaft Systems in Industrial Settings

Compact Design with High Transmission Ratios

In modern machinery plans, equipment designers are always limited by the amount of room they have. Worm gear sets are able to handle this problem because they can achieve reduction ratios from 5:1 to 300:1 in a single stage, whereas other types of gears would need large multi-stage designs. This small structure makes the machine smaller and easier to install, which is especially helpful when adding to existing production lines or making portable lifting equipment.

The perpendicular shaft arrangement makes even better use of space, which lets engineers send power through tight spaces that parallel-shaft gear systems can't reach. We can change the number of teeth and module specs from 1 to 50, and we can change the dimensions to fit your space and torque needs.

Self-Locking Capability for Enhanced Safety

When the worm's lead angle stays below a key level, which is usually less than 5 degrees, the system can only move forward or backward manually. The worm can move the gear, but it can't move the gear backward. This built-in self-locking feature means that there is no need for separate stopping systems in vertical lifting situations where the load must be held.

This safety feature is especially liked by elevator manufacturers. If the motor fails, the self-locking feature stops the cab from falling without control, meeting strict EN 81 safety standards without the need for extra fail-safe devices. This makes the system simpler and more reliable at the same time—fewer parts mean fewer places where it could go wrong.

Smooth Transmission with Minimal Noise

More and more, industrial settings need operations to be quieter to follow rules and make workers more comfortable. The noise made by worm gear sets moving together all the time is a lot less than the noise made by spur or helical gears repeatedly meshing and disengaging. During operation, sound pressure levels are usually 10 to 15 decibels lower, which makes these systems perfect for places where noise pollution is a problem.

This smooth transfer also lowers the vibrations that go through machine frames, which protects sensitive instruments and makes nearby parts last longer. Vibration-free motion keeps fragile goods from getting damaged during shipping and placement operations on packaging lines that handle them.

High Load Capacity and Operational Reliability

Our way of making things puts load-bearing performance first. The worm gear profile is shaped like a cylinder, which spreads contact pressures across many teeth at once. This makes it possible for big loads to be handled reliably. We've sold systems to mines where the conveyor drives have to deal with shock loads while moving materials and keep working in rough, dusty conditions all the time.

When you put together hardened steel worms and brass gears, you get a strong wear couple that keeps working well for a long time between repairs. Gear research institutes have shown that worm systems that are properly oiled can last more than 20,000 hours before they need to have parts replaced. This lowers the total cost of ownership compared to other options that need to be maintained more often.

How to Choose the Right Worm Shaft System for Your Industrial Automation Needs

Evaluating Torque Requirements and Efficiency Targets

The correct worm gear layout depends on how much torque your application requires. The correct reduction ratio influences output torque and system efficiency. Higher ratios increase torque multiplication but decrease mechanical efficiency due to sliding friction. We advise our customers to balance these parameters between 20:1 and 60:1 for optimal automated manufacturing equipment performance.

Program priority affects efficiency. Based on grease ratio and quantity, worm systems are 50–90% efficient. When the system is more useful because to its smaller size and lockability, this trade-off is generally worth it. Lower-ratio setups are more economical in continuous conveyor applications, whereas positioning systems retain torque and provide fine control.

Matching Physical Constraints and Customization Options

Standard catalog parts can be used in a wide range of situations, but unique solutions are needed for specific tools. Our engineering team helps with dimensional optimization, which means changing the size, face width, and configuration of modules so that they fit perfectly inside existing machine frames. We can handle differences in mounting, output shaft configurations, and connection interface needs that standard products can't.

When the situation calls for it, material selection goes beyond normal requirements. In food processing, stainless steel worms don't rust, and in furnace positioning, Worm Shaft Systems, special bronze alloys can handle high temperatures. We've made unique assemblies out of 18CrNiMo7, 20CrNi2Mo, and SAE4320 materials, making sure that the mechanical qualities are right for your application.

Assessing Supplier Capabilities and Support Infrastructure

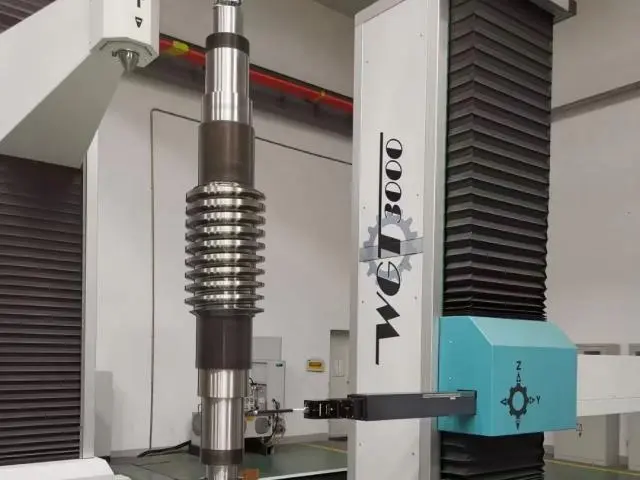

Precision in manufacturing and process control affects part quality. Before choosing a provider, check their inspection abilities. Blueing tests evaluate contact patterns to ensure teeth engagement, while CNC gear metrology facilities assess lead error and profile correctness to establish gearbox precision. To ensure every item fits within the authorised limits, our quality control techniques assess surface roughness and hardness at the layer level.

Supplier certifications boost trust. ISO compliance and industry-specific certifications demonstrate quality management and field knowledge, respectively. Also consider the supplier's skilled support and production expertise. Can they design, apply engineering, and address installation issues quickly? We have technical teams to assist your engineers with planning, installation, and start-up.

Maintenance, Troubleshooting, and Longevity of Worm Shaft Systems

Implementing Effective Lubrication Practices

When you lubricate something properly, it lasts longer and keeps working well throughout its operational range. Worm gears have more friction than rolling-element gears because they slide against each other. This makes choosing the right lubricant very important. We suggest EP (extreme pressure) gear oils that are made just for worm gears and have viscosity grades that match the speeds and temperatures of operation.

How often you need to lubricate depends on how often your equipment is used and how dirty the surroundings is. For continuous-duty applications, oil bath lubrication with heat exchangers to handle thermal loads works best. For intermittent operations, grease lubrication may be easier to maintain. Keeping an eye on the oil temperature while it's running can help you spot problems like not enough protection or too much load. For example, temperatures that stay above 90°C for a long time could mean there are problems that need to be looked into.

Routine Inspection and Preventive Maintenance

Inspections that are planned ahead of time find problems before they become major problems. A visual inspection should check the integrity of the seal to stop oil leaks and dirt from getting in. Changes in the noise level or pattern of the operation could mean that the teeth aren't lined up right or are wearing down and need to be fixed. Check the reaction on a regular basis to see how much wear has happened. This lets you plan when to replace the part instead of fixing it after it breaks.

Vibration analysis gives you more information about how a system is working. During commissioning, baseline readings set the standard working signatures. After some time, special frequency patterns can be used to find signs of bearing wear, mounting looseness, or tooth damage. We suggest checks every three months for important projects and once a year for less demanding ones.

Troubleshooting Common Operational Issues

Systematic analysis cuts down on downtime when systems have problems. Too much heating is often caused by not enough lubrication, too much load, or bad alignment. Check the amount and state of the lubricant. Any oil that is dirty or breaking down needs to be replaced right away. Compare the mounting alignment and load conditions to the design requirements. Unusual noises that don't happen when the temperature goes up could mean that debris is getting into the system or that there is early-stage tooth damage that can be seen with an endoscope without taking the system apart.

If there is a noticeable drop in efficiency, look at the tooth surfaces for signs of wear. Proper touch should be in the middle of the tooth flank; edge loading means the teeth are out of line and need to be fixed. We offer expert advice to help figure out what's wrong with complicated problems. Drawing on decades of experience with applications, we find the root causes and suggest ways to fix them.

Procurement Insights: How to Buy Worm Shaft Systems Efficiently

Understanding Price Influencers and Value Factors

Cost analysis involves more than unit pricing. Material specifications greatly impact pricing. Luxury alloy steels like 40CrNiMo and AISI 8620 cost more than 45# steel but perform better in demanding circumstances. Heat treatments like carburising and induction hardening increase manufacturing costs but extend service life, reducing maintenance and long-term ownership expenses.

Customisation affects price and lead time. Standard catalogue parts ship quickly and cheaply, while customised solutions need design approval, tooling preparation, and unique manufacturing sequences. We keep bespoke work costs low with efficient engineering procedures and flexible manufacturing timelines. Often, we can supply customised assemblies in 35 to 60 days, the same time rivals take to create conventional goods.

Order volume affects unit economics. Larger purchases justify specialised manufacturing runs, which cut item costs. For prototype development and specialty tool production, we offer minimal minimum order quantities and can create one item at a time. Equipment companies may test new ideas without buying too much inventory.

Managing Lead Times and Delivery Logistics

Transparency in production plans keeps supplies from being interrupted. When you place an order, we give you a detailed timeline that breaks down the time it takes to validate the design, get the materials, start manufacturing, do quality checks, and package the items. Real-time updates on the progress of the project keep you informed during production and let you plan ahead for when things need to be put together.

For these precise parts, transportation procedures need to be carefully coordinated. Our damage rate stays below 0.1% because we use custom packing with shock-absorbing padding and protective boxes that keep teeth from getting damaged during shipping. When you need to meet a deadline, integrated transport solutions that include sea freight, air freight, and rail choices can help. Express shipments are great for replacing items quickly, and combined ocean freight saves you money on planned production builds.

Evaluating After-Sales Support and Warranty Coverage

Warranties on parts protect your investment and show that the maker trusts you. Our one-year warranty covers problems with the way the product was made and problems with the materials. We have quick response protocols in place to keep production running as smoothly as possible. After the warranty time is over, we keep a large collection of spare parts and offer technical help for troubleshooting and suggestions for improvement based on years of experience.

We provide assembly drawings, lubrication specs, and check methods that are specifically made for your setup to help your maintenance teams. Support for training helps your staff learn the right way to install and run the system so that it lasts as long as possible. With this all-around service approach, your relationships with suppliers turn into long-lasting partnerships that help your production succeed.

Conclusion

To choose the best worm gear technology, you have to weigh a lot of performance factors, such as reduction ratios, self-locking needs, room limitations, and operating efficiency. These Worm Shaft Systems work great in situations where their small size, quiet operation, and built-in safety features provide strategic value above and beyond just sending power. Knowing about the properties of the material, how precisely it was manufactured, and the right way to care for it will help it work at its best for longer periods of time. As industrial automation gets better, worm gear sets keep showing their worth in a wide range of settings, from heavy mining conveyors to precise robots. They provide reliable motion control that is essential to daily production plans.

FAQ

1. What determines the efficiency of a Worm Shaft System?

The reduction ratio, lead angle, and quality of the lubrication have the most impact on efficiency. Lower ratios (5:1 to 20:1) are 70–90% efficient, while higher ratios are 50–70% efficient. When EP gear oils are used correctly, they reduce friction losses. Multi-start worms are more efficient because they increase the lead angle, but this makes them less able to self-lock.

2. Can worm gear assemblies be customized for specialized automation requirements?

Of course. For different uses, we can change the number of teeth, module sizes (1 to 50), shaft configurations, and mounting interfaces. Choosing the right material depends on the climate. For example, stainless steel doesn't rust, and some bronzes are made to handle high temperatures. The engineers on our team work together to improve speed and find the best dimensions.

3. How do noise levels compare to other gear types?

Because they don't have teeth that hit each other over and over, worm systems are 10-15 decibels quieter than spur or helical gears. Because of this, they are better for places that need to keep noise down, like lifts, assembly lines, and precision tools where noise levels and worker comfort are important.

Partner with YIZHI MACHINERY for Custom Worm Shaft System Solutions

If equipment manufacturers are looking for reliable Worm Shaft System suppliers, YIZHI MACHINERY is a great choice. With 15 years of experience making precision gears, we have the technical skills and production flexibility that your automation projects need. We follow quality standards that are in line with ISO throughout the whole manufacturing process, from choosing the materials to using advanced CNC gear metrology centers for the final inspection.

Our customization options let you get exactly what you need, whether you need special materials like 20CrNiMo and SAE4320 for harsh conditions or exact changes to the sizes of parts that already exist. Low minimum order numbers help with the development of prototypes, and our production capacity can be adjusted to meet volume needs ranging from a single unit to an ongoing supply deal. Your project plans will stay on track with delivery times of 35 to 60 days, real-time tracking of progress, and full logistics management.

In addition to manufacturing skills, we offer full technical support, which includes design advice, help with installation, and quick debugging. Our dedicated after-sales service and one-year warranty show that we care about your long-term success. Find out how our custom worm gear solutions can make your automation systems better by contacting us at sales@yizmachinery.com to talk about your needs and get more information.
