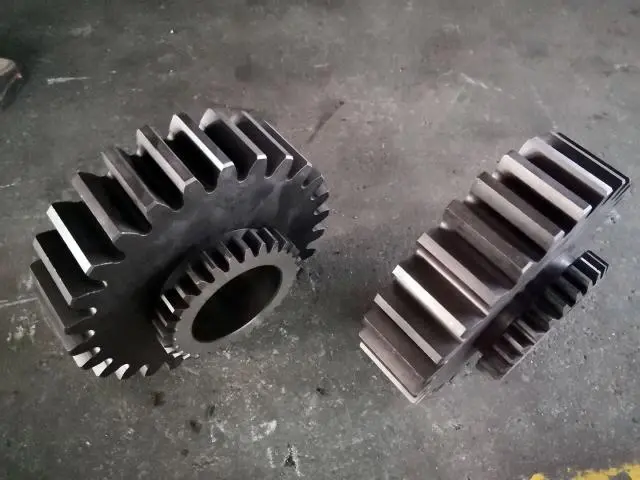

What Is an Industrial Spur Gear? Key Uses in Modern Machinery

Industrial Spur Gears are the simplest cylindrical gears utilized in power transmission systems. Its straight teeth are perpendicular to the gear axis. Because they effectively transmit motion and force between parallel shafts (98–99%), these mechanical elements are crucial in numerous disciplines, from mining equipment to spacecraft. These gears' simplicity is their biggest benefit: they don't have axial thrust loads, which can make choosing bearings harder in other gears; they have uniform velocity ratios, which are important for timing; and they can carry a lot of weight in a small space. Knowing how Industrial Spur Gear works and where they excel helps procurement experts balance performance and budget.

​

Understanding Industrial Spur Gears: Fundamentals and Design

Involute tooth designs mesh well to transmit rotational power in Industrial Spur Gears. Two Industrial Spur Gear teeth mesh parallel to their axes. This produces just radial forces. This basic design improves bearings and production.

Core Design Elements That Define Performance

Two gears work together depending on module and pitch. Module (pitch width to tooth count) sizes range from 0.5 to 50. This lets us meet application torque requirements. Pressure angle, usually 20 degrees in industry, impacts tooth strength and contact ratio. Engineers select pressure angles via load distribution. Higher-angle teeth are stronger but less contact. Building and operation quality impacts quality classes. Everything we make meets ISO 5-6 Grade standards for precise tooth profiles and consistent pitches. High-speed use requires precise grinding since even little defects cause noise and wear. Face width—gear tooth length perpendicular to axis—determines load capacity. Wider faces spread pressures across greater contact area, decreasing surface stress and prolonging life. Strength and material economy are best with face width and pitch diameter between 0.8 and 1.2.

Material Selection and Heat Treatment Strategies

Material choice impacts gear performance in numerous situations. We employ different steel grades for different requirements. Carbon steel 45# is cheap for modest loads. The aerospace and mining industries employ 20CrMnTi and 40CrNiMo alloy steels for their strength-to-weight ratios. SAE4340 and AISI4140 can sustain heavy industrial gear strain. Meeting stringent operating demands necessitates heat-based material modifications. Carburizing toughens but expands cores and hardens surfaces (58–62 HRC). These are perfect for shock-loaded mining equipment. Quenching and tempering gear body bulk hardness makes it ideal for aircraft components that need consistent strength. The most wear-resistant tooth surfaces are hardened via induction hardening, which also simplifies gear bores and mounting characteristics. Due to high-tech materials and heat treatments, our gears can survive sub-zero space utilization and high-temperature mining. Material science ensures every item meets load capacity requirements and stays the same size.

Key Industrial Applications of Spur Gears in Modern Machinery

In many different types of industries, Industrial Spur Gear units are used as standard parts because they are reliable and good value for money. Understanding these application scenarios helps procurement experts find the best gear specs for the machines they need to buy.

Mining Operations and Heavy Equipment

Machines struggle with stress loads, abrasive contaminants, and frequent job cycles. Mineral processing ball mills use large Industrial Spur Gear sets. Massive drums break rock. Girth gears, which may be over two meters wide, can endure enormous power changes as grinding media descends the mill. Precision forging and grinding create gears that can carry hundreds of kilowatts without dust. All mining conveyors use Industrial Spur Gear reducers to control material flow. These uses need reliable speed reduction ratios and enough capacity. Industrial Spur Gears don't have axial thrust, making them easier to set up with bearings when maintenance is tough and downtime costs rise. Tooth flanks with 58–62 HRC surface hardness last longer between replacements, increasing process revenue.

Aerospace Actuation and Auxiliary Systems

For aerospace applications, you must enhance strength, reduce weight, and be reliable yet small. Different aircraft parts use Industrial Spur Gear units to address these issues. Precision-ground Industrial Spur Gear trains linearize motor rotation in landing gear extension systems. The steady velocity ratio prevents timing difficulties that might affect safety-critical activities. Starter-generator auxiliary power units use Industrial Spur Gear reducers, which impact fuel use and pollution. These parts are ground to ISO 5-6 Grade from high-quality alloy steels like 18CrNiMo7 in many steps. Aerospace needs non-destructive testing and material traceability. Our quality methods meet these requirements with strict documentation and inspection. Aerospace gears are damaged by ground-to-altitude temperature changes, aircraft structural movements, and prolonged inactivity. Heat treatment reduces stress corrosion and maintains size throughout time.

Industrial Automation and Manufacturing Systems

Modern enterprises need accurate motion control for assembly, robot, and material movement. Industrial Spur Gear Reducers in servo motor systems provide millimeter-accurate loading. Industrial Spur Gear units must maintain a steady velocity ratio for multi-axis operations where timing mistakes might delay output. Gear reducers are used in packaging, injection molding, and fabric manufacture. Industrial Spur Gear units are cheaper for large sites where performance and price must be matched owing to their simplicity of production. Low maintenance and easy installation boost ownership economics. Factory-moving automated vehicles use tiny Industrial Spur Gear drives to balance torque and space. Customization—module ranges from 0.5 to 50 and customizable tooth counts—enables precise wheel width and speed matching. This technological flexibility allows tool creators enhance performance without overspecializing.

Comparing Industrial Spur Gears with Other Gear Types: Making the Right Choice

To choose the right types of gear, you need to know how the different styles solve different operating problems. Each combination of gear has its own benefits that make it better for certain tasks than others.

Spur Gears Versus Helical Gears

Gear axis-angled helical gear teeth. This reduces noise and vibration more than Industrial Spur Gear units by slowing contact. Silent helical gears are perfect for operator comfort or home work. For the same gear size, tooth contact angle distributes stresses across numerous teeth, improving load capacity. Because of these trade-offs, Industrial Spur Gear units are often better in industry. Helical tooth angles provide axial thrust forces that need thrust bearings or sophisticated bearing designs, increasing housing cost and complexity. Industrial Spur Gear systems reduce drivetrain costs and bearing selection by eliminating axial strains. These improvements are helpful in cost-sensitive situations like micro gearbox units and agricultural equipment. Consider how complicated manufacturing is. Industrial Spur Gear units may be hobbed without preparation, whereas Helix gears must be chopped at certain angles. Industrial Spur Gear unit manufacture is simplified, lowering lead times and tooling costs. We accept single-item manufacturing and low minimum order numbers since Industrial Spur Gear is cheap for custom orders and small batches.

Comparison with Bevel and Worm Gear Configurations

Bevel gears use cylindrical tooth designs to transmit power between shafts at 90 degrees. Right-angle gear reducers and vehicle differential drives use these designs for space-constrained direction shifts. Due to its cutting machinery and complicated setup, bevel gears cost more to build than round Industrial Spur Gear units. Because worm threads glide on wheel teeth instead than against them, worm gear systems may pack numerous gears into a small space. Friction from this movement reduces effectiveness to 50–90% depending on reduction ratio and lubricant quality. For self-locking lifting equipment and valve actuators, worm gears can't be turned around, avoiding backdriving. Industrial Spur Gear devices transfer power from a straight shaft without changing directions more effectively and affordably. Well-designed Industrial Spur Gear systems are 98–99% efficient. Since energy loss is low, equipment running expenses fall. In continuous-duty conditions, even small efficiency gains save a lot of energy.

Material Selection Guidance Across Gear Types

Different gear stress patterns affect material choice. Industrial Spur Gear tooth roots typically touch and bend. We utilize case-hardened steels like 20CrMnTi to withstand these loads because their strong cores prevent fatigue fractures and hard surfaces resist wear. In shock-loaded applications like mining equipment, through-hardened materials like 42CrMo preserve tooth cross-section strength. Premium alloys like AISI8620 are used in aerospace applications that need excellent strength-to-weight ratios. These alloys contain nickel for toughness and chromium for hardenability. Everything from inexpensive 45# carbon steel to rare SAE4320 alloys is available. We can match material attributes to application stress profiles more precisely. Knowing the materials and employing new heat treatment procedures like chilling and tempering, carburizing, and induction hardening maximizes performance under severe operating circumstances.

Procurement Insights: How to Source the Right Industrial Spur Gear

A good buying process combines technical requirements with business needs, making sure that parts meet performance standards while lowering overall costs. Knowing what the provider can do and how to evaluate them makes this choice process easier.

Evaluating Manufacturer Credentials and Quality Systems

Before choosing a supplier, verify their production capabilities meet your technical requirements. ISO certificates oversee quality management systems, although not all organizations appreciate them. For interchangeable part applications, our ISO-standard manufacturing methods ensure quality across production batches. Production equipment innovation is key to excellent manufacturing. ISO 5-6 Grade tolerances are achievable with CNC gear machining centers and fully automated Industrial Spur Gear grinding machines. Intelligent heat treatment production lines maintain exact temperature profiles during carburizing and quenching for consistent hardness. Coordinate measuring equipment and other high-precision tools check measurements before delivery. Manufacturing expertise may improve production reliability and problem-solving. With 15 years of experience making personalized gear, we can solve application-specific problems. They can properly communicate requirements, examine technical drawings, and improve designs during engineering review using this knowledge.

Understanding Cost Structures and Lead Times

Material choice considerably impacts component prices. Premium metals like 40CrNiMo cost more but perform better, although 45# carbon steel is cheaper and can withstand light stress. Complex heat treatment increases processing costs. Case carburizing and grinding to fix heat treatment defects are more expensive than through-hardening. Costs and delivery times vary with customization. Standard module and pressure angle combinations use standard equipment, minimizing setup costs and expediting production. Custom tooth counts or non-standard changes need a special cutting tool, which raises unit cost and delays small orders. Our flexible production strategy handles all situations with low minimum order quantities and volume savings for larger orders. High-quality Industrial Spur Gear units need complex manufacture, thus wait times are 35–60 days. Forged nets need controlled cooling. Rough cutting, hobbing, and end grinding are checked. Batch-planned heat treatment maximizes furnace efficiency. Final grinding fixes heat treatment deformities. After quality testing, the product is packed.

Advantages of Customization and Technical Support

Custom gear specs allow application-specific gearing. In pre-sales, we provide expert guidance on working conditions, materials, heat treatments, and quality ratings. Design drawing services transform performance into production specifications. Parts fit well in bigger assemblies. Sharing production status across manufacturing helps coordinate inventory and assembly. Quality inspection paperwork may monitor critical applications that need material certifications and measurement reports. Special packing protects parts during overseas shipping. Our shock-absorbing padding and handcrafted oak boxes decrease transportation damage to 0.1%. The typical workflow involves requirements communication, design drawings, manufacturing processing, quality checking, packaging, and delivery. This ensures all commands, regardless of complexity, are performed consistently. This methodical approach and real-time order monitoring provide purchasing managers confidence in just-in-time factory delivery.

Maintenance and Performance Optimization of Industrial Spur Gears

Proper upkeep methods greatly increase the useful life of gears and keep them from breaking down at unexpected times, which can throw off production plans. Knowing the right way to lubricate, inspect, and improve the performance of tools saves the money you've spent on it.

Lubrication Best Practices and Oil Selection

Hydrodynamic coatings between tooth surfaces prevent metals from touching, eliminate frictional heat, drain dirt and debris from mesh zones, and prevent corrosion when the machine is idle. To choose lubricants, match viscosity grades to machine speeds, temperatures, and load strength. Industry gear oils perform effectively in many typical working environments, according AGMA. Thicker oil coatings reduce stress loads in low-speed, high-torque applications like mining ball mill drives, making it perfect. Low-viscosity products minimize energy and heat losses in high-speed motor reducers. Gears drop into splash lubrication oil sumps, spreading lubricant by centrifugal force. Fluidizing enclosed gear drives at pitch line speeds < 10 m/s is simple and effective. Pressure-driven forced circulation devices move filtered oil to mesh zones faster. Analysis methods identify worn metal in oil early, enabling maintenance experts to fix the problem.

Inspection Protocols and Wear Detection

Regular visual checkups may spot surface concerns before they break teeth. Pitting, small craters formed by wear cracks from strain underneath the surface, indicating near-end service life. Micropitting begins as frosted surface before forming a hole. Pitting progress may be monitored to schedule replacements during scheduled maintenance rather than emergencies. Scuffing occurs when teeth rub. These occur when high contact pressures or inadequate cooling break the lubrication coating. Adhesive wear mode increases quickly and must be rectified soon. Poor viscosity for operating temperatures, dirty lubricant, or overload may cause this. In edge loading, alignment verification avoids tooth-end contact instead of face-wide contact. A misalignment creates extra heat and wear. Contact patterns with arrangement dye show load distribution; the best designs cover 85% of tooth face width. Shimming bearing housings or changing fitting sizes may help alignment.

Performance Enhancement Through Surface Treatments

Making gears stronger and adding compressive residual pressures in critical areas enhances their lifetime. Before cooling, carburizing adds carbon to the surface layers, forming hard martensitic casings on tough cores. Its twisting strength and contact wear resistance make it perfect for Industrial Spur Gear in heavy machinery that is often loaded and unloaded. Subcritical temperature nitriding adds nitrogen without warping. Wear-resistant hard nitride materials are helpful in harsh situations. Over the slight case depth difference between carburizing and nitriding, nitriding is appropriate for accurate measurements. By employing electromagnetic fields, induction hardening quickly warms and cools tooth surfaces. Gear bodies remain flexible as hardened metal layers form. This method carefully places harder parts where wear is expected without compromising bending portions. This works for activities that need hard surfaces and shock-resistant cores. Shot peening compresses surfaces yet balances tensile stresses with small spherical particles. In high-cycle use, compression layers avoid wear fractures and increase product life. Shot peening and heat treatments improve mining and aeronautical performance.

Conclusion

Mines, aircraft, and automated manufacturing use Industrial Spur Gear systems safely and effectively. They minimize axial pressure, simplify bearing setups, and are cheap owing to their straight teeth parallel to the spinning axes. Improved heat treatments allow our alloy steels to be adapted to any application's stress profile, from shock loads in mining equipment to high-cycle operation in aviation auxiliary systems. You must examine the seller's manufacturing equipment, quality system, and expert support to succeed in procurement. To prolong product life and avoid malfunctions, lubricate and examine regularly. By knowing these concepts, engineers and procurement staff may define spur gears that meet performance and commercial criteria.

FAQ

1. How do spur gears differ from helical gears in industrial applications?

Industrial Spur Gears feature axis-aligned straight teeth. This simplifies production and eliminates axial thrust forces that complicate bearing design. Slanted teeth in helical gears link slowly, reducing noise. Industrial Spur Gear designs are suitable for firms that wish to save money and simplify maintenance. Despite their more complicated bearings, helix gear designs are quieter and ideal for calm areas.

2. What material should I specify for mining equipment spur gears?

Mining materials must tolerate stress and wear. Case-hardened 20CrMnTi or through-hardened 42CrMo steels are recommended depending on the stress profile. Carburizing hardens surfaces to 58–62 HRC and keeps cores strong enough to withstand impact energy.

3. Can you accommodate custom tooth counts and non-standard modules?

Our manufacturing capabilities include module ranges from 0.5 to 50 and customizable tooth counts. Low minimum order quantities allow us to make one item. This makes bespoke specifications cost-effective for prototyping and replacement parts.

Partner with Henan Yizhi Machinery Co., Ltd. for Precision Gear Solutions

Choosing the appropriate Industrial Spur Gear manufacturer affects equipment reliability and lifetime cost. Henan Yizhi equipment Co., Ltd. has been creating specialty gears for 15 years and can create any size or form for mining, aerospace, and industrial equipment clients worldwide. High-precision CNC gear machining centers, automated grinding machines, and ISO-compliant quality systems enable us to create parts that fulfill the tightest specifications. We have everything from cheap carbon steels to high-quality aerospace metals. We apply innovative heat treatment procedures adapted to your application's stress profiles. The usual procedure for each project comprises conveying needs, producing design drawings, managing manufacturing, checking for quality, packaging, and shipping. This ensures consistent outcomes regardless of order complexity. Real-time production monitoring and reporting simplify 35–60-day manufacturing. Shock-absorbing bespoke packaging techniques reduce shipping damage to less than 0.1%. This safeguards your international shipping investment. Our flexible ordering system helps you make low-minimum orders and give affordable pricing for larger quantities. Get in touch with our technical team at sales@yizmachinery.com to talk about your unique needs with an experienced Industrial Spur Gear seller who is dedicated to giving you precision parts that make your business successful.

References

1. Budynas, Richard G., and J. Keith Nisbett. Shigley's Mechanical Engineering Design, 10th Edition. McGraw-Hill Education, 2015.

2. American Gear Manufacturers Association. AGMA 2001-D04: Fundamental Rating Factors and Calculation Methods for Involute Spur and Helical Gear Teeth. American Gear Manufacturers Association, 2004.

3. Dudley, Darle W. Handbook of Practical Gear Design and Manufacture, 2nd Edition. CRC Press, 2012.

4. International Organization for Standardization. ISO 1328-1:2013 Cylindrical Gears — ISO System of Flank Tolerance Classification. ISO, 2013.

5. Townsend, Dennis P. Dudley's Gear Handbook: The Design, Manufacture, and Application of Gears, 2nd Edition. McGraw-Hill Professional, 1991.

6. Lynwander, Peter. Gear Drive Systems: Design and Application. Marcel Dekker, 1983.
