What Are the Essential Worm Gearbox Parts and Their Functions?

Worm gears are very important in industrial machinery because they transfer power efficiently and slow down machines in a controlled way. For procurement professionals, engineers, and OEM clients who value dependability, easy maintenance, and the best selection, knowing the basic parts of worm gearboxes is essential. The goal of this guide is to give B2B decision-makers a complete understanding of key parts, what they do, and how they affect performance. This will help them make smart choices about purchases and maintenance that will cut down on downtime and extend the life of equipment.

The basic unit is made up of carefully designed parts, such as the worm shaft, worm wheel, bearing systems, housing structures, closing mechanisms, and lubrication networks. Individual parts work together to make the whole thing work, turning high-speed input into high-torque, low-speed output while staying stable in tough conditions. These parts are used in heavy machinery, mines, and aircraft, where they have to withstand extreme loads and harsh conditions. This makes choosing the right materials and manufacturing them with great care completely necessary.

The main Worm Gearbox Parts are the hardened steel worm shaft that turns the system, the bronze worm wheel that reduces sliding resistance, the rigid housing that protects the internal parts, the oil seals that keep the oil from getting dirty, and the lubrication system that gets rid of heat. All of these parts work together to make torque multiplication, self-locking, and smooth power transmission possible across configurations with perpendicular shafts.

Understanding Worm Gearbox Fundamentals

Worm gearboxes work by a screw-like shaft called a worm interacting with a worm wheel to change rotational motion and torque while slowing down the speed of the motor. Each part does a specific job, such as transferring torque through friction, reducing noise, or making the machine last longer. Engineers and purchasing managers need to understand these basic ideas in order to figure out which gearboxes are best for different industry uses and how to make the whole system work more efficiently.

It works better because the worm's spiral thread meets the wheel's teeth at a ninety-degree angle, which is a unique shape. This perpendicular direction makes a lot of sliding touch instead of rolling motion, which is why it's so important to match the materials. The friction rate between surfaces affects both how well they work and how they self-lock, which stops lifting and positioning systems from backdriving.

How Sliding Friction Differs from Rolling Contact

In spur or helical gear systems, the teeth roll against each other, but in worm gear systems, the teeth slide against each other. This feature makes more heat, but it also absorbs shocks better and makes the process quieter. For the rolling action to work, the metals must be paired in a certain way, usually hardened steel worms must be paired with lighter bronze wheels to avoid galling and seizure while keeping the efficiency level at 50–90%, depending on the ratio and lead angle.

The Self-Locking Phenomenon Explained

The system locks itself when the lead angle of the worm thread goes below a certain level compared to the friction angle. This means that the worm wheel can't move the worm shaft backward. This makes the worm shaft automatically stop moving, which is useful for lift traction machines and lifting equipment. Worm drives are different from other reduction methods because they have this passive safety feature. However, engineers should never rely on this property alone in critical situations without also having backup braking systems.

Essential Worm Gearbox Parts and Their Specific Functions

The worm shaft, worm wheel, bearings, case, seals, and lubrication systems are some of the most important parts of a worm gearbox. It talks about the structure, material requirements, and functional role of each part, focusing on how they all work together to provide strong power transfer, load support, and environmental protection.

Before looking at individual parts, it's helpful to know how they work together because that helps explain why quality is important in every part. A high-quality worm shaft that is paired with a poor bearing system will not work well, just like good grease can't make up for bad housing design. These are the main parts that determine a system's ability:

1. The Worm Shaft: The worm shaft is made from case-hardened alloy steels like 20CrMnTi, AISI 8620, or 42CrMo. It is then quenched and carburised to make the surface hard, which is between 58 and 62 HRC. This extreme hardness stops wear from constant moving contact, and the core's softer texture keeps it tough against shock loads. The reduction ratio and efficiency depend on the thread geometry, like whether it has a single, double, or triple start. Precision grinding guarantees precision at the ISO 8–9 level, reducing noise and vibrations during operation.

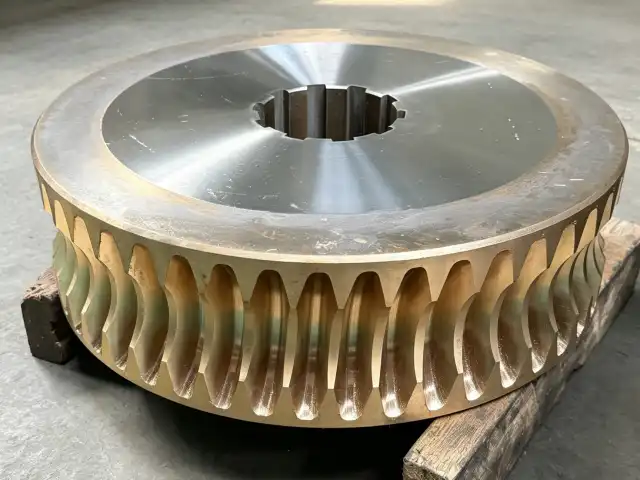

2. The Worm Wheel: The worm wheel is made of tin bronze alloys like CuSn12 or aluminium bronze for lighter uses. It slowly gives up its life to protect the harder worm shaft. This deliberate unevenness in the material stops catastrophic failure modes. The teeth on the wheel are cut or hobbed to perfectly match the angle of the worm's lead. Blueing tests are used to confirm the contact patterns. Finishing the surface makes the bedding-in process better during the first use, setting up the best contact geometry that lowers friction and heat production over time.

3. Bearing Systems: Tapered roller bearings or angular contact ball bearings can handle both the rotational and thrust loads that the spiral worm thread creates. How the shaft bends is directly affected by the bearing choice, which in turn affects the tooth contact patterns and wear rates. The pre-loading requirements need to find a balance between rigidity and friction losses. At the same time, the bearing arrangements need to be able to handle thermal expansion without adding too much play. Premium bearing systems increase the accuracy of the gearbox and increase the time between repair visits.

4. Housing Structures: The housing is made of cast iron or welding steel and has more uses than just keeping things inside. Ribbing patterns make structures more stiff and provide heat-dissipating surfaces. Misalignment tolerances from nearby equipment must be taken into account in the mounting options. Geometries inside the machine control the flow of grease and oil levels for splash or forced circulation systems. Breather plugs keep the pressure inside the system even during thermal cycling. This keeps the seal from failing and lets contaminants in.

These four main parts work together to make sure that power gearbox is stable. Worm Gearbox Parts at YIZHI MACHINERY are made from 45# steel for general use, 40CrNiMo for heavy-duty mining equipment, and SAE4340 for precision that meets flight standards. Grinding and honing the surface gets the dimensions just right for modules ranging from 1 to 50, meeting a wide range of industrial needs from machine tool indexing mechanisms to automated production line reducers.

1. Sealing Systems: Oil seals stop lubricant from leaking and keep out dust and water. For moving shafts, lip seals are still the most popular type. At the housing joints, O-rings or gaskets are used for static seals. The choice of material takes into account the temperature at which it will be used, the speed of the shaft, and how well it reacts with synthetic lubricants. When seals are installed correctly, they don't wear out too quickly because of mismatch or surface flaws that create leak tracks.

2. Lubrication Networks: The lubrication system handles the large amount of heat produced by sliding friction, whether it is splash-lubricated or has forced circulation pumps. When choosing oil, it's important to find a balance between the viscosity needs at different working temperatures and the extreme-pressure additives that keep border lubrication from breaking down. Coolers and filters keep the oil in good shape, which means you don't have to change it as often and gritty particles don't circulate, which speeds up wear.

Common Issues and Maintenance Tips for Worm Gearbox Parts

Seeing signs of wear like too much noise, too much heat, or less efficiency is very important for keeping expensive operating problems from happening. This section gives you useful information on how to do regular maintenance on worm gear components, such as when to lubricate them and how to inspect them.

Monitoring operations should keep an eye on a few key signs that problems are starting to show up before they become too big to handle. If the temperature goes above the normal level, it means that the system is losing performance because of wear, imbalance, or not enough lubrication. Strange sounds patterns could mean that teeth are damaged or the bearings are wearing out. Vibration analysis finds mounting systems that are out of balance or not tight enough.

Inspection Protocols for Extended Service Life

External seals should be checked for leaks, breather plugs should be checked for blockages, and mounting bolts should be checked for proper torque retention every three months. Thermal photography finds hot spots that show where there is movement inside. Oil analysis shows the make-up and concentration of wear particles, which lets you know early on when a part is having trouble. Endoscopic study through drain holes lets you see how the teeth touch directly without taking the whole thing apart.

Lubrication Management Strategies

Manufacturers usually say that oil should be changed every 2,500 to 5,000 hours of operation, but this can change based on the load and the temperature. In high-temperature situations, synthetic polyglycol oils work better than natural oils because they are more thermally stable and have lower friction coefficients. If you choose a viscosity that is too thin, the boundary lubrication could break down, and if you choose one that is too thick, churning losses and starting power will go up.

Addressing Common Failure Modes

Overheating usually has three causes: the wrong oil density that stops the film from forming properly, overloading that goes beyond the thermal capacity, or too much pushback that causes impact friction. Pitting on wheel teeth means that they are worn out from being overloaded or not having the right hardness differential. Scoring patterns show that there isn't enough grease or that gritty bits are getting into the system. When replacing worn Worm Gearbox Parts, it is best to change both the worm and the wheel as a matched set. This is because the wear patterns that form during operation are unique to that pair.

Choosing the Right Worm Gearbox Parts for Industrial Applications

When choosing parts, procurement managers and engineers have to think about things like the quality of the material, the load capacity, the noise level, and how reliable the name is. When buyers compare the top suppliers, they can learn about OEM standards, warranty terms, and customer service after the sale.

The choice of material determines how long a component will last and how consistently it will work. For mining equipment that is subject to shock loads, alloy steels like 20CrNiMo and 18CrNiMo7 are better at being tough. On the other hand, AISI 4140 is a great choice for general industrial machinery because it is strong and easy to machine. The type of heat treatment—carburizing, induction hardening, or through-hardening—determines the hardness level and spread that are necessary to keep the surface from wearing down.

1. Load Capacity Considerations: Gearboxes are rated by manufacturers based on their torque capacity, service factors, and thermal limits. The shock loading, job cycle, and starting regularity are all taken into account by the service factor. Service factors of 1.5 to 2.0 are common in mining applications, while 1.25 is a good value for conveyor systems. The thermal capacity of a housing relies on its surface area and how it is cooled. For example, enclosed housings need to be derated compared to open frame designs with forced air.

2. Noise and Vibration Requirements: Aerospace applications and machine tool positioning systems need very low noise levels, which can be reached by grinding with great accuracy, making sure that assemblies are balanced, and making sure that the tooth geometry is just right. The cylindrical worm gear profile type made by YIZHI MACHINERY reduces noise by using continuous contact patterns that get rid of the effect that comes from sets that aren't made well.

3. Customization Capabilities for Specialized Needs: Products from a standard catalogue don't always meet all the needs of demanding uses. Customisation choices include ratios that aren't standard, unique mounting arrangements, built-in brake systems, and changes to the materials used. YIZHI MACHINERY offers custom solutions for everything from single prototypes to large-scale production. Their low minimum order quantities make customisation affordable. The design process starts with communicating the needs, then moves on to CAD modelling, testing the prototype, and finally mass production. At every step, the quality is carefully checked.

4. Supplier Evaluation Criteria: In addition to the specs of the parts, choices about what to buy should also take into account the supplier's ability to make things, their quality systems, and their service infrastructure. Following ISO standards makes sure that the process is always the same, and buying CNC gear machining centers and precise grinding systems shows that you have the technical know-how. Long-term relationships with well-known mechanical engineering companies show that you can be trusted and that you know how to solve problems. Delivery speed is important. YIZHI MACHINERY usually completes custom orders between 35 and 60 days, using a standard workflow to balance speed with quality control.

Enhancing Worm Gearbox Performance and Longevity

The effectiveness and service life of worm wheels are greatly increased by using the right lubricants and high-tech materials. This section talks about how to choose the right lubricant based on the operating environment and shows you how to apply it step by step.

The science of lubricants is always getting better, and now manmade versions work much better than regular mineral oils. Polyalphaolefins are great at flowing easily at low temperatures and resisting oxidation. Polyglycol oils, on the other hand, are better at protecting against extreme pressure and staying stable at high temperatures. To find the right viscosity grade for the job, you have to weigh film strength against spinning losses. ISO VG 220 is good for moderate speeds and loads, while ISO VG 460 is better for heavy loads and slow speeds.

Application Techniques That Matter

The oil should be filled to the point where it partly covers the worm wheel while it's turning. This will allow splash greasing without too much churning. When you overfill, you lose energy and heat that isn't needed. When you underfill, the bearings don't get enough oil and hot spots form. The arrangement of the breather must allow the pressure to equalise without letting oil move into the breather part. A short run-in period at partial load during commissioning lets the system get used to full operational loads.

Emerging Technologies and Future Trends

Diamond-like carbon and other advanced coatings lower friction coefficients without lowering wear resistance in Worm Gearbox Parts. This could increase efficiency by 3–5%. With additive manufacturing, complex cooling pathways can be built into housings, which makes it easier for heat to escape. Condition tracking systems with built-in sensors keep an eye on temperature, vibration, and oil quality in real time. This lets repair plans be planned ahead of time, which cuts down on unplanned downtime. Because of these improvements, worm gears can still compete with other gearbox technologies in situations where economy is very important.

Conclusion

When procurement workers and engineers know what the important parts do and how they work, they can make decisions that improve the performance and life of tools. Each part—the worm shaft, worm wheel, bearing systems, casings, seals, and lubrication networks—does something specific that makes torque gearbox stable in harsh industrial settings. How well things work over many years depends on how well the materials are chosen, how precisely they are manufactured, and how well they are maintained. Companies build machinery infrastructure that supports business goals by being reliable and having little downtime by judging providers on their technical skills, quality systems, and ability to make changes rather than just price.

FAQ

1.How often should worm gear components be inspected?

For most industry uses, visual reviews every three months are enough to check the seals, mounting hardware, and outside state. Every year, thorough checks should include checking the oil, measuring the vibrations, and making sure there is no pushback. Applications with a high duty cycle or that are very important should be checked every month with thermal imaging and ultrasonic testing.

2.What materials work best for heavy-duty worm shafts and wheels?

Heavy-duty worm shafts work best when they are made from case-hardened metals like 20CrNiMo or SAE 4320. Their tough cores can handle shock loads and their surfaces are hard at 58 to 62 HRC. If you want the best friction and wear protection in worm wheels, you should use tin bronze like CuSn12. Aluminium bronze is a lighter option for mild loads.

3.Can components from different manufacturers be mixed?

Worm Gearbox Parts from different sources might not work well together because wear patterns become unique to matched pairs during operation. Changes in pitch, lead angle, and pressure angle dimensions stop proper contact patterns from happening. Worms and wheels should always be replaced as matching sets that are made to the same specs. This ensures the best performance and the expected service life.

Partner with YIZHI MACHINERY for Premium Worm Gearbox Parts

YIZHI MACHINERY can help you with your needs for industrial machinery, mining equipment, and aerospace equipment by making precise parts that meet ISO 8-9 grade standards. Modules from 1 to 50 can be fully customised to fit a wide range of needs, from machine tool turning mechanisms to lift pulling systems. We offer options that are both high-performance and low-cost thanks to our fifteen years of production knowledge and modern CNC gear machining centers. Our efficient process, which includes communicating requirements, designing, producing, inspecting for quality, packing, and shipping, makes sure that delivery happens within 35 to 60 days. Finding a Worm Gearbox Parts supplier for ongoing production or needing specialised one-off parts is easy with our expert team. They offer design advice before the sale and help after delivery, all backed by full warranties. Contact us at sales@yizmachinery.com to talk about your specific needs and find out how our customised packing, real-time package tracking, and damage prevention methods deliver parts that are ready to be installed right away and provide reliable long-term service.

References

1. Dudley, D.W. (1984). Handbook of Practical Gear Design. CRC Press.

2. Townsend, D.P. (1991). Dudley's Gear Handbook: The Design, Manufacture, and Application of Gears. McGraw-Hill Professional.

3. American Gear Manufacturers Association. (2004). AGMA 6034-B92: Practice for Enclosed Cylindrical Wormgear Speed Reducers and Gearmotors.

4. ISO 14521:2010. Gears — Calculation of Load Capacity of Wormgears.

5. Predki, W., & Krueger, B. (2005). "Efficiency and Temperature Calculation of Worm Gears." Proceedings of International Conference on Gears, Munich, Germany.

6. Radzevich, S.P. (2012). Theory of Gearing: Kinematics, Geometry, and Synthesis. CRC Press.
